machine used

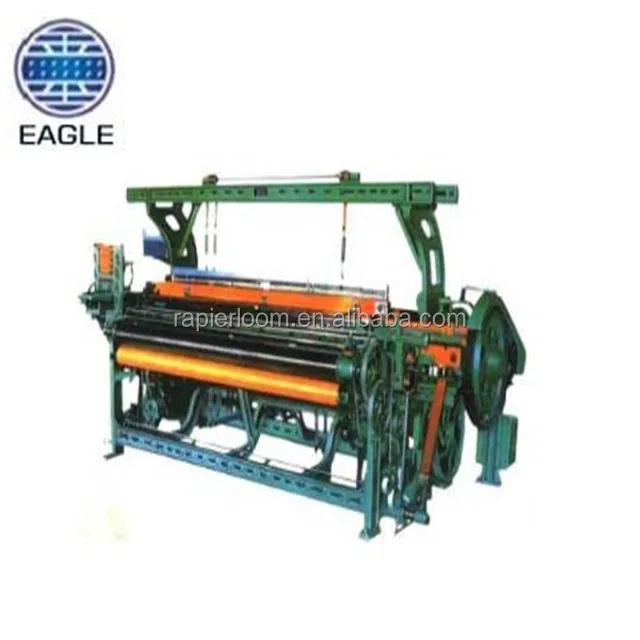

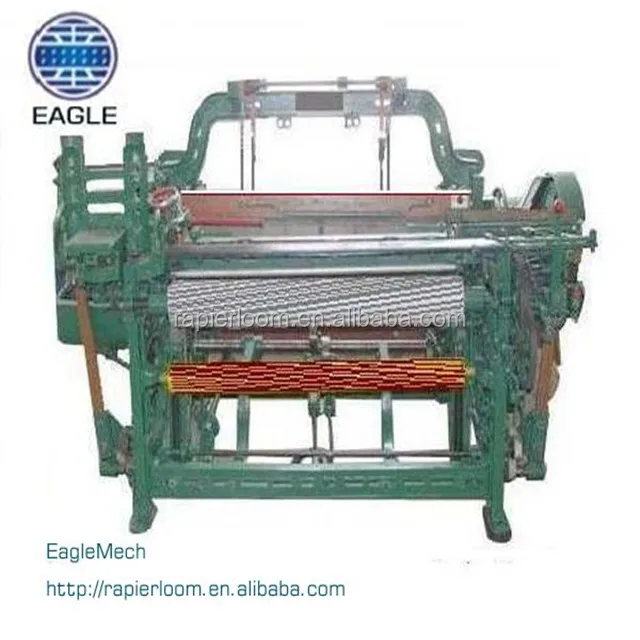

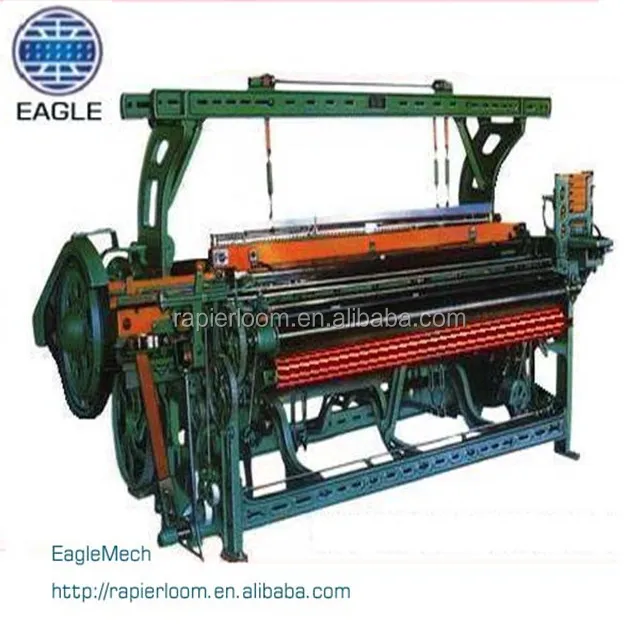

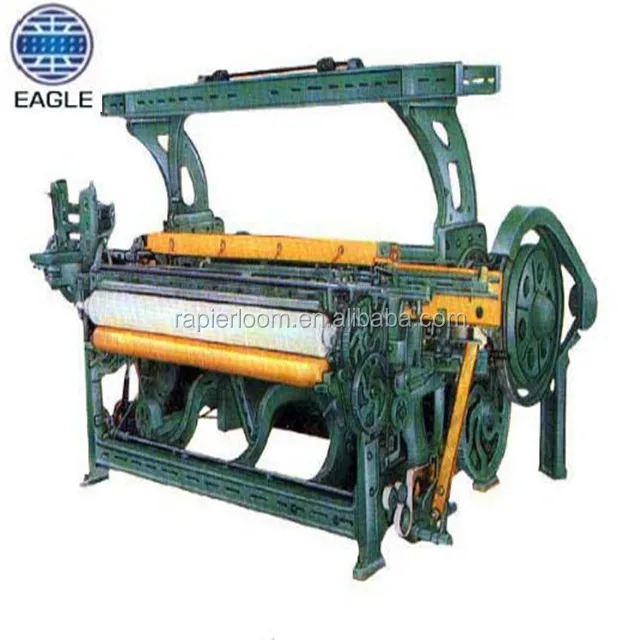

EAGLE GA615 Series Shuttle Loom
Main usage Automatic shuttle changing power loom
Shuttle loom is mainly used to weave plain weave fabrics. If equipped with dobby
or jacquard we can weave all kinds of fabrics with complicated patterns.
.Main Specification
Technical features | |
Reed width (mm) | 1000 – 2800. |
Rotation speed | Design speed 150-180rpm. |
Motor speed | 960rpm. |
Warp beam diameter | 500cm (550cm optional) |
Handle | Left or right. |
Shuttles inventory | 10 pieces. |
Motor power | 0.8KW. |
Overall dimensions(mm3) | 180cm: Tabby 3171x1596x1540,dobby 3171x1596x2250. |
Net Weight | 180cm: Tabby 1400kgs; dobby 1600kgs (not including motor). |
Main components | |
Shedding device | Inner side tappet type top roller harness mounting shedding; 6 pages of spring heald return shedding. |
Shuttle change motion | Automatic shuttle changing mechanism. |
Picking motion | Under picking. |
Weft supplying motion | Automatic changing shuttles without machine halt. |
Beat-up motion | Crank shaft beating-up. |
Take-up mechanism | 7 tooth intermittently take-up. |
Let-off motion | Semi positive and semi negative automatic let off. |
Warp stop motion | Wiggling back and forth mechanical stop. |
Weft stop motion | Nods pecking type of weft detector control automatic stop. |
Temple | Ring type copper cylinder with pin. |
Warp-protector motion | Movable reed. |
Note: optional dobby - heald lifting device is available.
