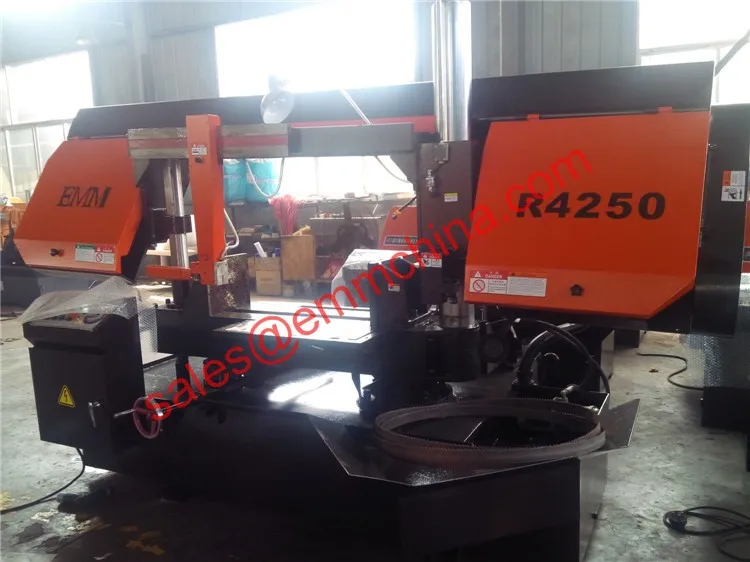

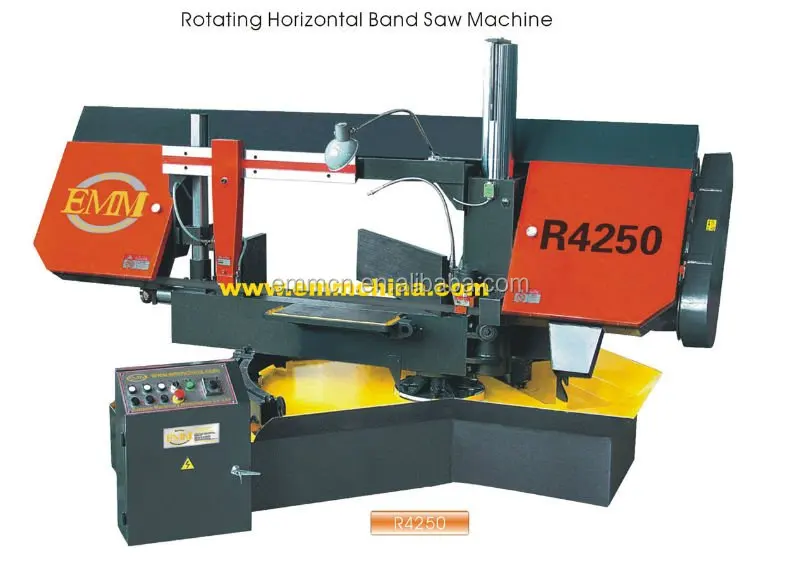

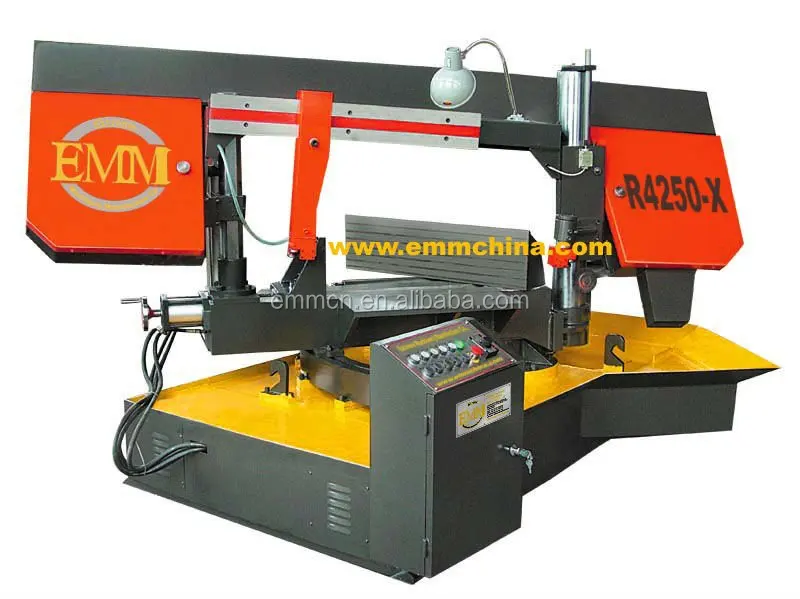

R4250 angle cut 45 degree automatic metal band saw machine

Product Overview

Description

R4250 angle cut 45 degree automatic metal band saw machine



1. R4250 angle cut 45 degree automatic metal band saw machine  used series apply to cutting large batch same material , and the machine have the advantage of high cutting speed , high efficiency , work stable , energy saving and saving material. Can install a small beam clamping device.

2. Machine adopts manual, full automatic and matches emergency off device function. Hydraulic feed-in and tight clamping work. Step less adjustable, automatic power off and protect the equipment after finished cutting.

3. Man-machine interface replace the function of traditional control panel, digital setting, indicator lamp etc. display the equipment state, operation instruction and parameter setting at any time. All the setting are finished through the man-machine interface and all the information are English, easy to operate.

4. PLC (programmable logic controller) set the cutting / sawing whole process automatically.

5. Feeding length of material was controlled by grating ruler tolerance less than 0.2 mm, can set 5 groups sawing parameter by once.

6. Can increase the rotating angle function as customers’ requests.

7. CNC Cutting Machine Mainly used for cutting various kinds of ferrous metal and non-ferrous metal.With the advantages of narrow saw cut, saving material, energy-saving, the structure of the machine tools is reasonable and reliable performance and high precision.



 Product specification



DA4250 angle cut 45 degree band saw machine

Model/Name	Cutting capacity	Working way clamping	Specifications band saw	The main electrical power	Pump motor power	Package size
DA4232	Round 320mm, plate 320*320mm	hydraulic	1.1*34*4470mm	4.0KW,380V,50HZ	0.75KW,380V,50HZ	2000*2900*1600 mm
DA4235	Round 350mm, plate 350*350mm	hydraulic	1.1*34*5100mm	4.0KW,380V,50HZ	0.75KW,380V,50HZ	3070*2150*1950 mm

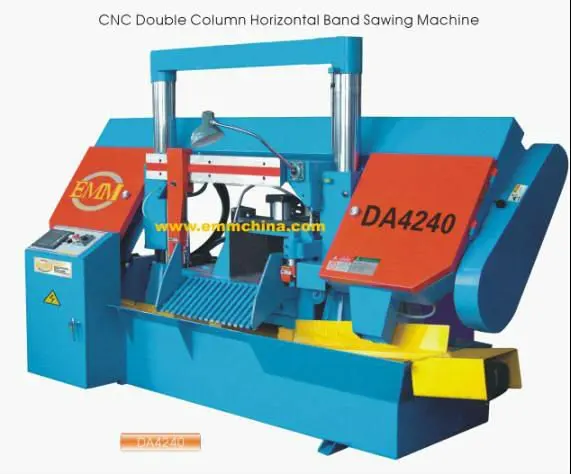

DA4240	Round 400mm, plate 600mm	hydraulic	1.3*41*5800mm	4.0 KW	1.1KW	2600*1800*1900 mm
DA4250	Round 500mm, plate 500mm	hydraulic	1.3*41*6430mm	4.0 KW	1.5KW	3100*2150*2150 mm
DA4265	Round 650mm, plate 650mm	hydraulic	1.3*41*6860mm	7.5KW	1.5KW	3600*2200*2100 mm
DA4280	Round 800mm, plate 800*1200mm	hydraulic	1.6*67****(as per the actual situation)	11.0 KW	2.2KW	5000*2000*2800 mm
DA42100	Round 500-1000mm	hydraulic	1.6*67*9850mm	11.0 KW	2.2KW	4800*2400*2900 mm
DA42120	Round 1200mm, plate 1200mm	hydraulic	1.6* 67*11800 mm	15kW,380V,50HZ	3.75kW,380V,50HZ	5200*1900*3000 mm
DA4230-X	Round 300mm, plate 300*300mm	hydraulic	1.1*34*3880 mm	3.0KW,380V,50HZ	0.75KW,380V,50HZ	1800*1800*1500 mm

Packaging:   Plywood Case

Shipping: FOB shanghai by sea



 EMMis a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.

We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.

Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.

 1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on.

During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us.

If the malfunctions are caused by customer's incorrect operations, we will offer the spare parts at cost price.

Anyway, our company promises to supply the customer cost price of spare parts and provide longterm technical guide beyond the guarantee.

 1. 100% by T/T;



2. 30% deposit by T/T, the balance paid by L/C at sight;



3. 100% by L/C at sight;



4. 100% by 30, 60 or 90 days usance credit.
