Xilin Stand on Type Platform Pallet Truck 2000KG 2Ton 4400lbs capacity Electric Rider Pallet Truck AC motor
- Category: >>>
- Supplier: Ningbo Ruyi Joint Stock Co. Ltd.
Share on (60093515670):
Product Overview
Description

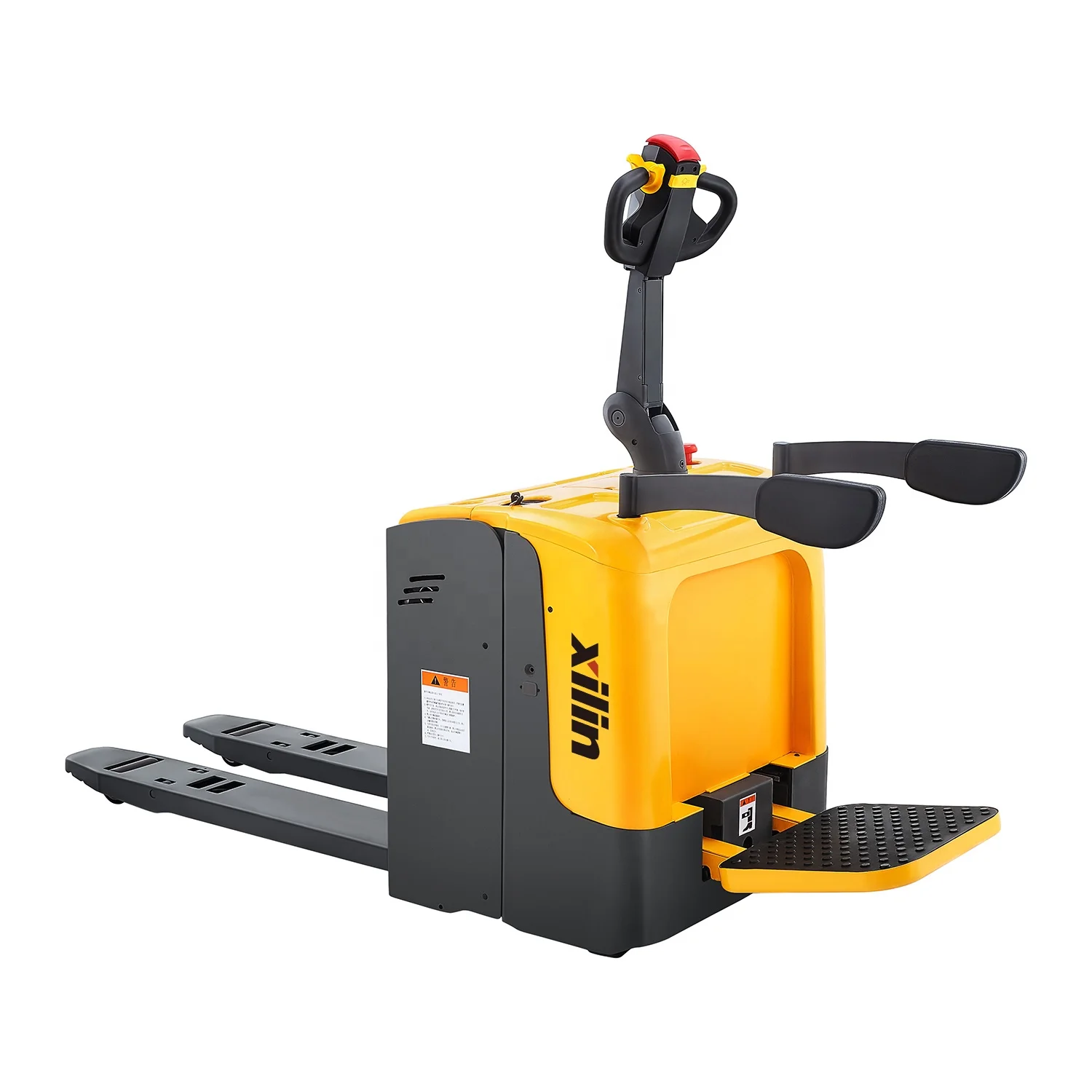

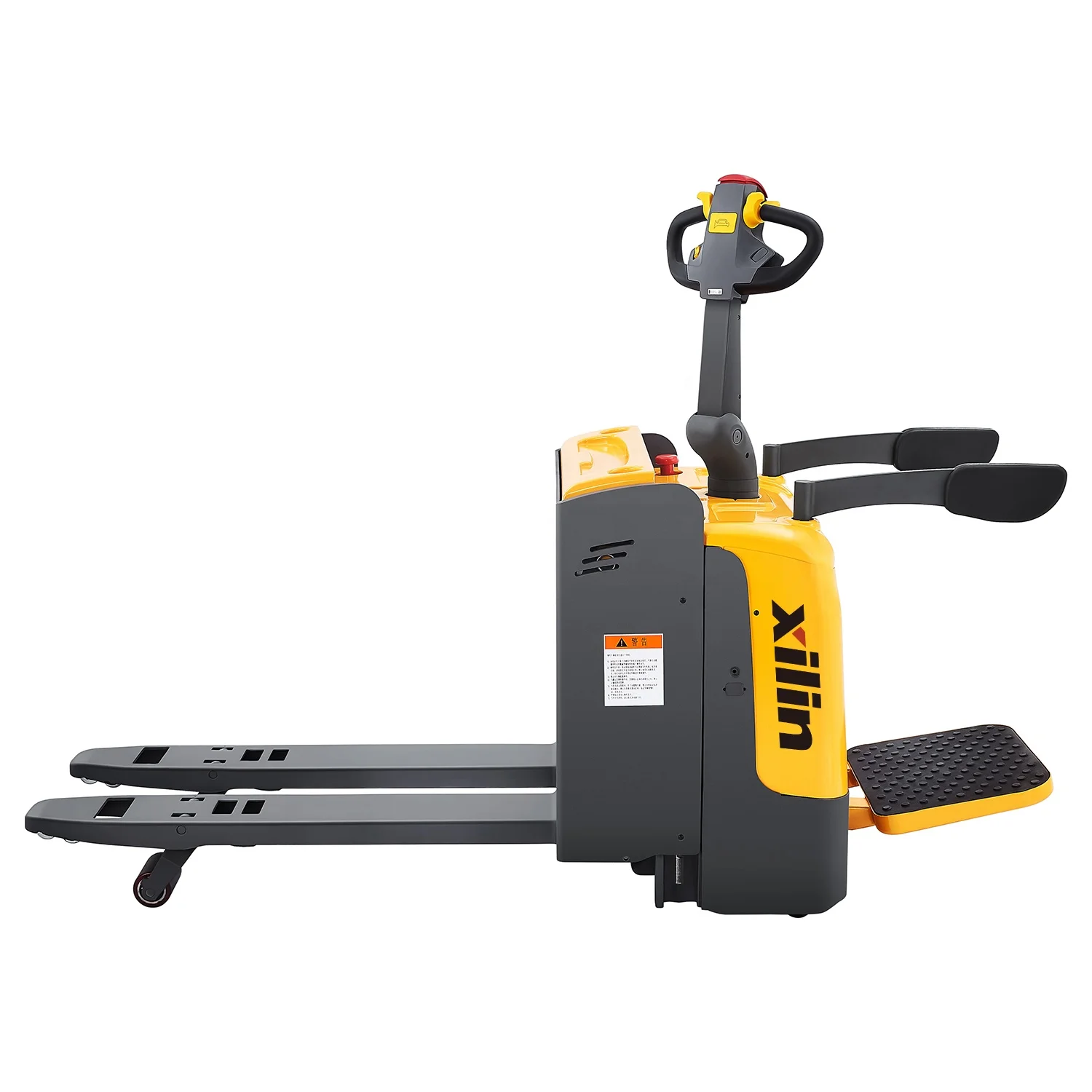

Xilin Stand-on Type Platform Pallet Truck 2000KG 2Ton 4400lbs capacity Electric Rider Pallet Truck AC motor
Standard features:
* RUYI handle
* Emergency stop & belly button

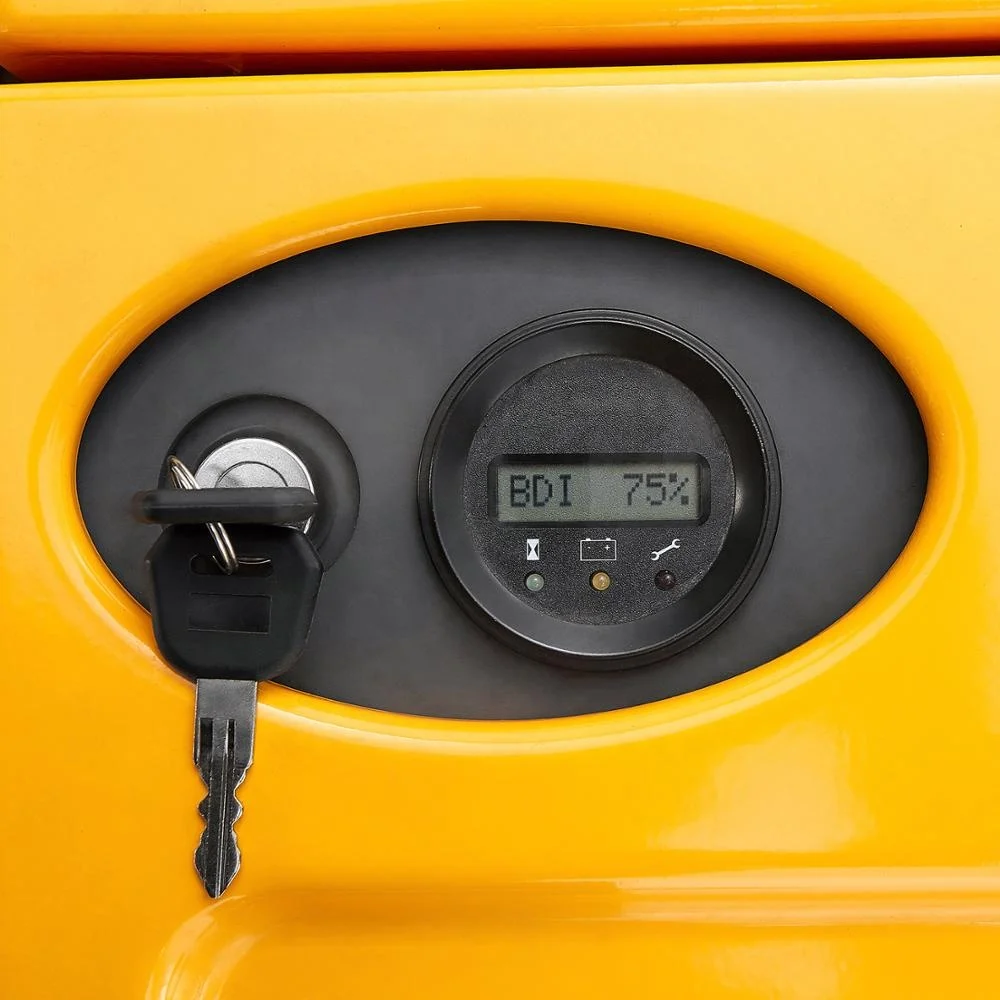

* BDI and hour meter
* Casters to balance stablity
* Industrial battery
* Brushless AC motor
* Vertical driving motor
* Sideway battery change
* Built-out charger

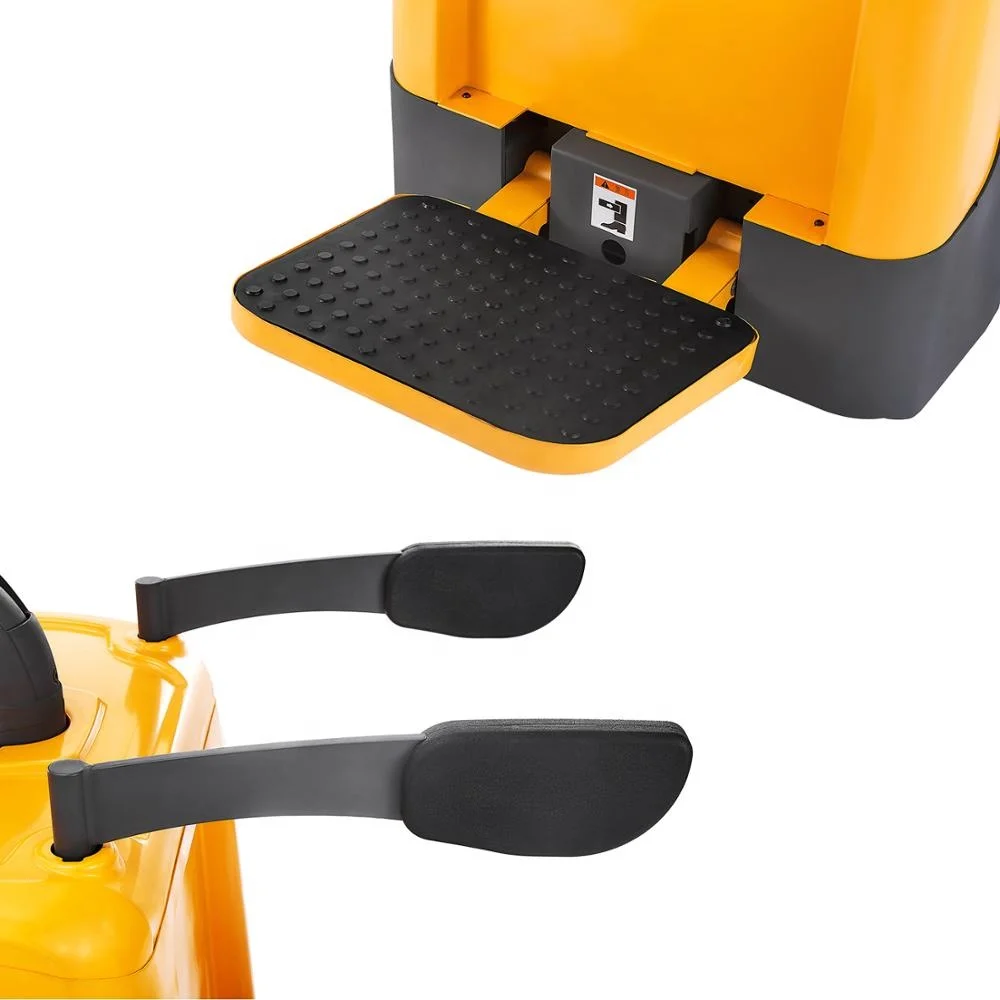

* Platform with speed sensor
* Emergency stop & belly button
* BDI and hour meter
* Casters to balance stablity
* Industrial battery
* Brushless AC motor
* Vertical driving motor
* Sideway battery change
* Built-out charger
* Platform with speed sensor
Option:
* Fork width and length ( size )
* Load backrest
* Built-in Charger
* Cold storage with rubber drive wheel
* Entry & exist roller for empty pallets
* EPS
* large compartment with battery capacity 280Ah, 400Ah
* CBD20R-II/CBD25R-II: Lithium battery 24V/125AH
* Load backrest
* Built-in Charger
* Cold storage with rubber drive wheel
* Entry & exist roller for empty pallets
* EPS
* large compartment with battery capacity 280Ah, 400Ah
* CBD20R-II/CBD25R-II: Lithium battery 24V/125AH
CBD30R-II: Lithium battery 24V/225AH

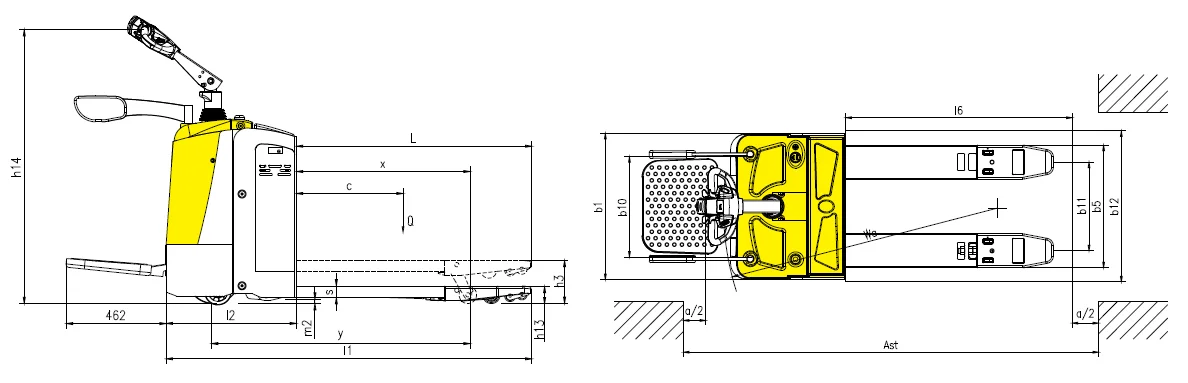

Model | CBD20R-II | |||||||
Capacity | (lbs) | 4400 | (kg) | 2000 | ||||
Load centre distance | c | (inch) | 23.6 | (mm) | 600 | |||
Fork height, lowered | h13 | (inch) | 3.2 | (mm) | 82 | |||
Max. lift height | h3 | (inch) | 8.0 | (mm) | 202 | |||
Height of tiller in drive position Min/Max. | h14 | (inch) | 45/56 | (mm) | 1150/1430 | |||
Overall length | l1 | (inch) | 67.3/69.3/72.0 | (mm) | 1710/1760/1830 | |||
Length to face of forks | l2 | (inch) | 24.0 | (mm) | 610 | |||
Overall width | b1 | (inch) | 30.5 | (mm) | 775 | |||
Fork dimensions | s/e/l | (inch) | 2.1/7.1/43.3(45.3/48) | (mm) | 53/180/1100(1150/1220) | |||
Width overall forks | b5 | (inch) | 20.5/21/25.6/27 | (mm) | 520/550/650/685 | |||
Aisle width for pallets 1000x1200lengthways | Ast | (inch) | 92.9/94.7/97.4 | (mm) | 2360/2405/2475 | |||
Aisle width for pallets 800x1200lengthways | Ast | (inch) | 88.4/89.4/90.7 | (mm) | 2245/2270/2305 | |||
Turning radius | Wa | (inch) | 61/63/65.8 | (mm) | 1550/1600/1670 | |||
Travel speed, laden/unladen | (Km/h) | 7/7.1 | Km/h | 7/7.1 | ||||
Battery Voltage, normal capacity K5 | V/Ah | 24/210 | ||||||
Truck weight | (lbs) | 1588 | (kg) | 720 | ||||
Q1: Are you a factory?
A1: Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
A1: Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
Q2: Can Ruyi provide customized products? OEM products or ODM products?
A2: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
A2: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
