Concrete Test Hammer price Schmidt hammer HT 225A for building strength and bridge testing

Product Overview

Description

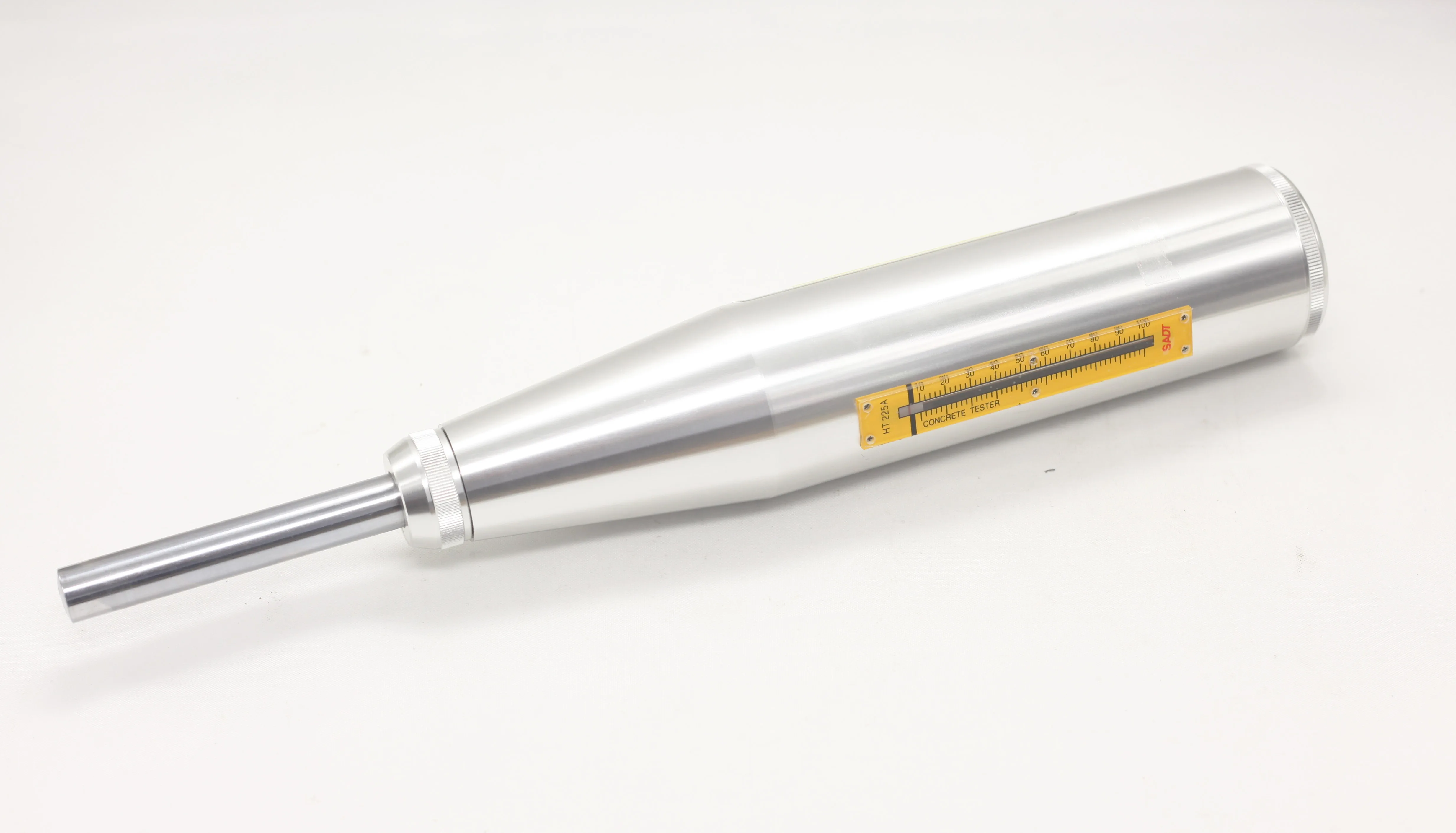

Portable Schmidt Hammer concrete test hammer HT-225A



Product Introduction



HT-225A is used for testing the strength of various concrete members (slab, beam, column, truss) of normal building strength and bridge.





Specifications



Model	HT 225A
Nominal kinetic energy	2.207J(0.225kgf.m)
Flip tension spring rigidity	7.84N (0.80kgf)/cm
Punch advance for impact hammer	75mm
Impact surface hardness value between impact hammer and rod	HRC59-63
Maximum breakout friction of pointer system	0.49-0.78N(50-80g)
Mean-value of steel-anvil rating of concrete test hammer	80+/-2
Standards	ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993
Dimension	60x280mm
Net weight	1kg

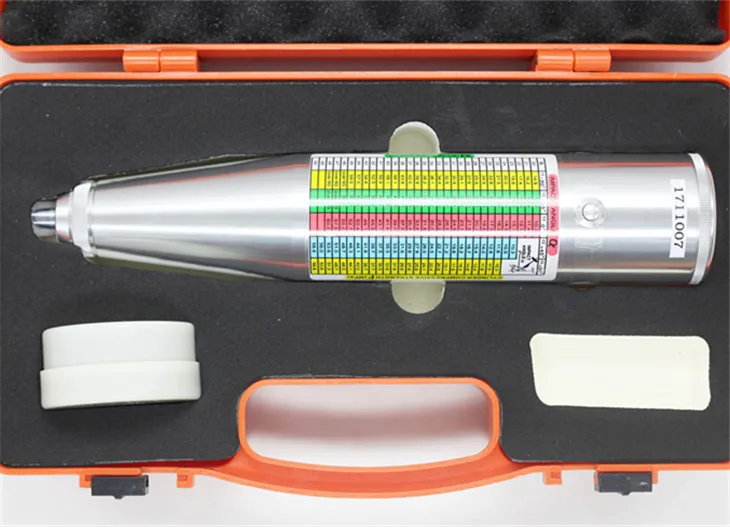

Standard package - HT-225A
HT225A main unit 1
Grinding wheel 1
Screw driver 1
Spring 1
Operation manual 1
Carrying case 1
