5V 6V 7V 8V 9V 10V 11V to 12V 1A 2A DC DC step up converter
Product Description

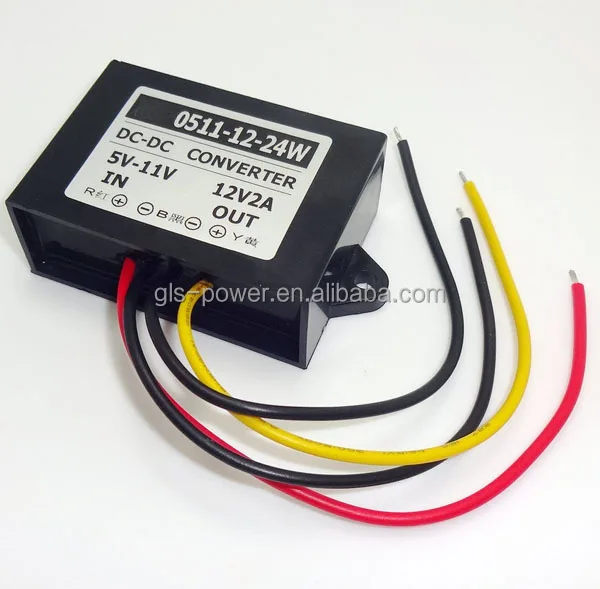

5V to 12V 1A 2A dc dc step up converter
Application:
Motors, audio, navigation, surveillance, car LED display, air conditioning, electric fans, solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, electrical appliances and industrial equipment and so on.
Parameter
Unit
Values
Min
Typ
Max
Input
voltage range
V
5
11
efficiency
%
93
Output
voltage
V
12
current
A
2
3
power
W
24
36
ripple
mvp-p
40
Protection
Input over voltage protection
V
>12V
over temperature
°C
>85 degree
Output over current protection
A
>3A
output short circuit
protected
Environment
working temperature
°C
-40 ~ +85
working humidity
20%~90%RH
storage temperature
°C
-40 ~ +85
Others
IP rating
IP 65(Silicon encapsulation)

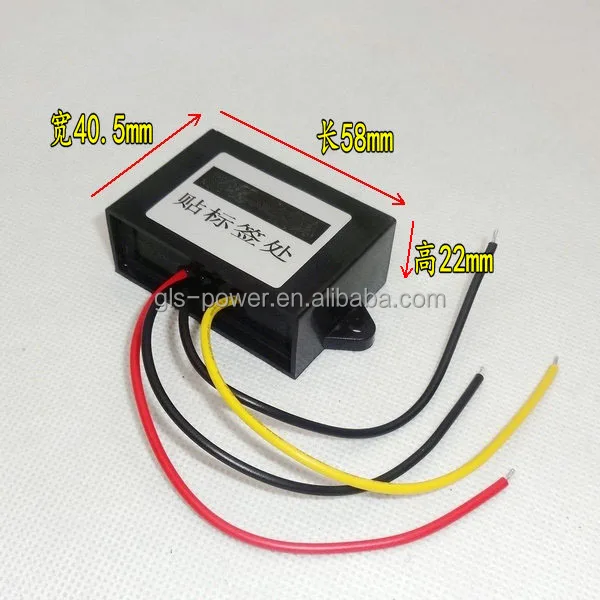

product dimension
mm
58*40.5*22(L*W*H)
weight
Kg
0.097
Wiring
Input: Red+ Black-;
Output: Yellow+ Black-
color of the shell
Black
material of the shell
Inflaming retarding ABS, waterproof, shockproof
