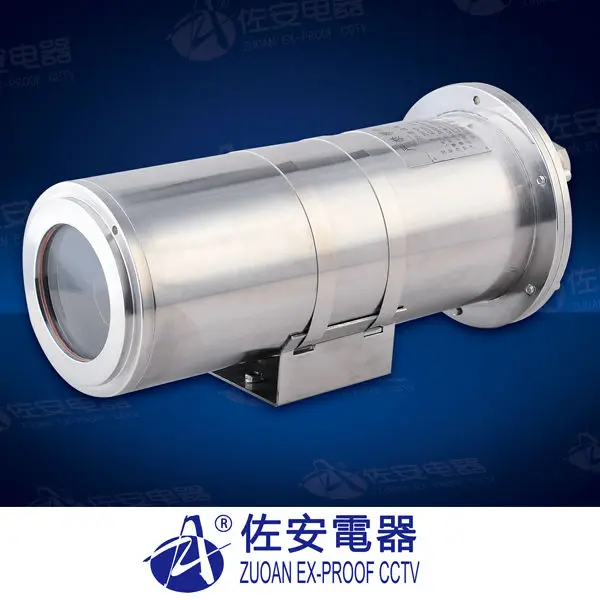

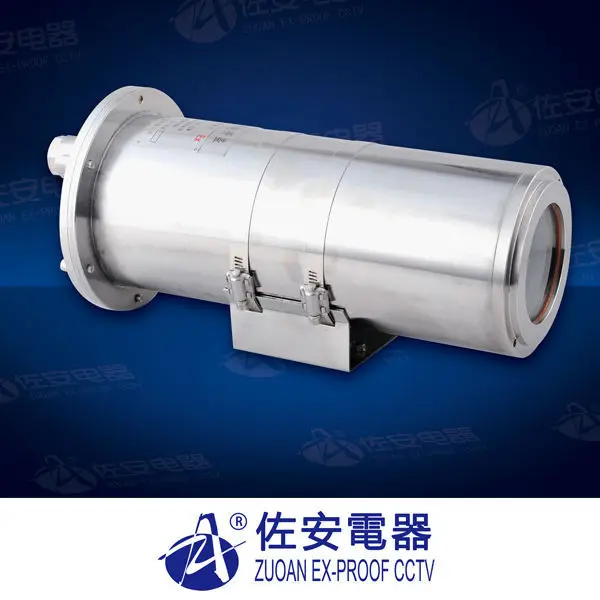

Stainless Steel IP68 Explosion Proof Housing for Bullet Camera Manufacturer
Product Description
ZUOAN is more than 12 years industrial explosion proof housing manufacturer. ZAF105 series is a middle size of explosion proof housing for bullet camera. The explosion proof case weather proof rate reaches to IP68, which means dust tight, and can protect agaist continuous immersion in water. ZUOAN explosion proof housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera housing, weather proof CCTV camera case, flame proof CCTV camera housing. ZAF105 explosion proof housing surface also can be special treated, like electropolished or painting finish, according to customer requirement. ZAF105 explosion proof case adopts 12mm thickness tempered window glass, which is fit for indoor /outdoor mounting. At the explsoion proof case end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF105 explosion proof housing inner Size: 260*80*80mm, net weight: 7.8KG. 98% bullet cameras on the market can be installed in our explosion proof case. Customers can offer camera and let us to make free assembly. On the other hand, ZUOAN also offer integrated explosion proof case with bullet camera.
Applications
explosion proof type for hazardous area, like refinery, petrochemical, oilfied
salty proof type for marine, vessel, offshore platform,royal navy
vandal proof type for armed conflict, military.
Main Features
·CNEx certificated
·Adopts stainless steel316L
·IP68
·2 cable glands
·Tempered glass with nanometer paintfilm
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
