cnc resin dispensing machine for label doming
cnc resin dispensing machine for label doming

cnc resin dispensing machine for label doming

Share on (60094086283):


Price:$3,750.00 - $4,200.00

Quantity:


Product Overview

Description



Products Description

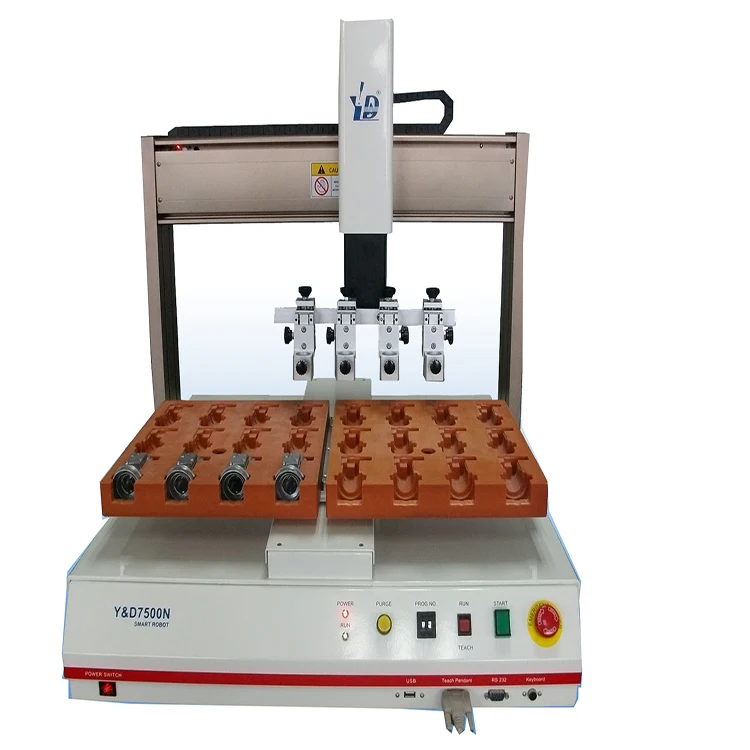

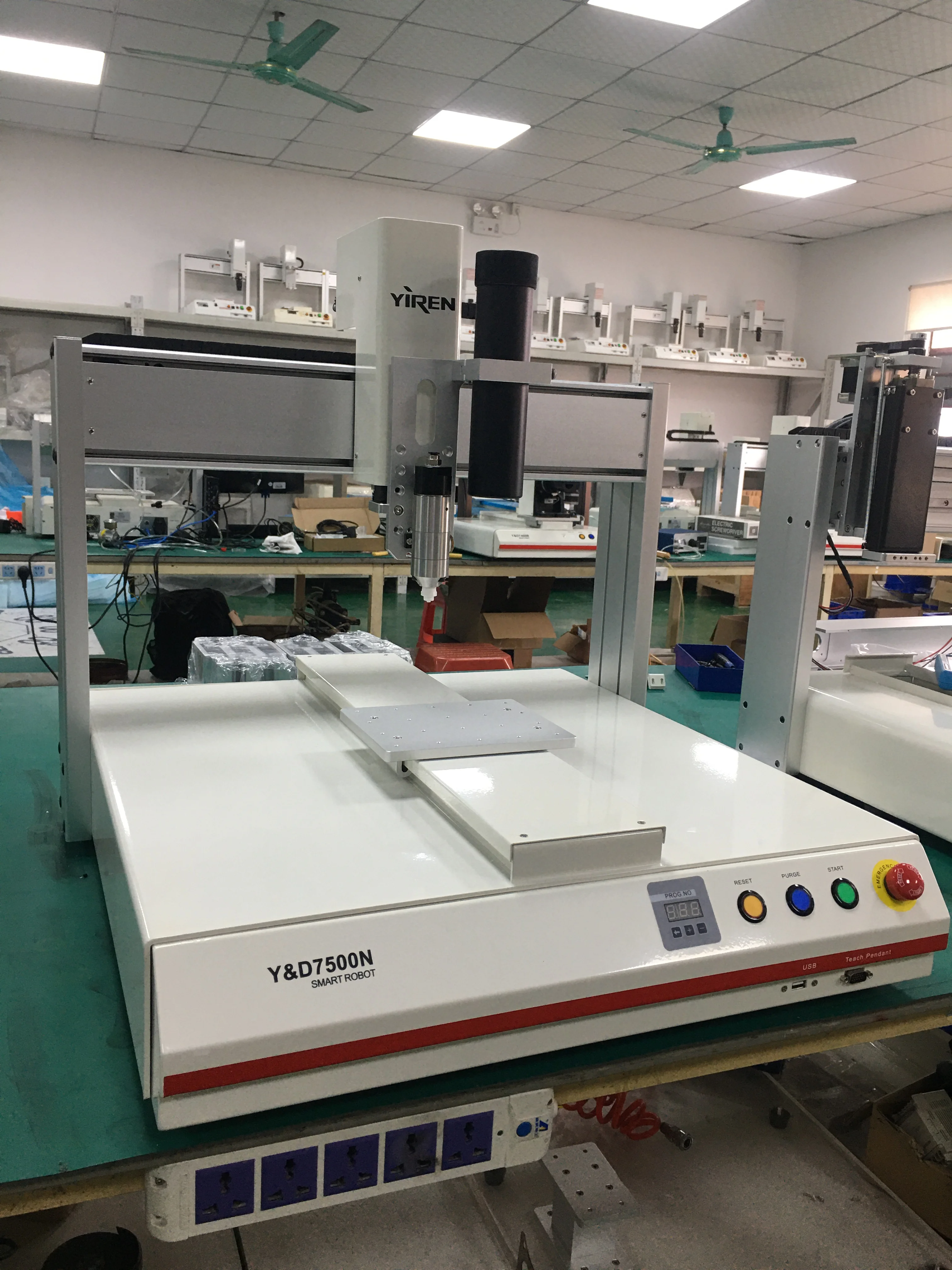

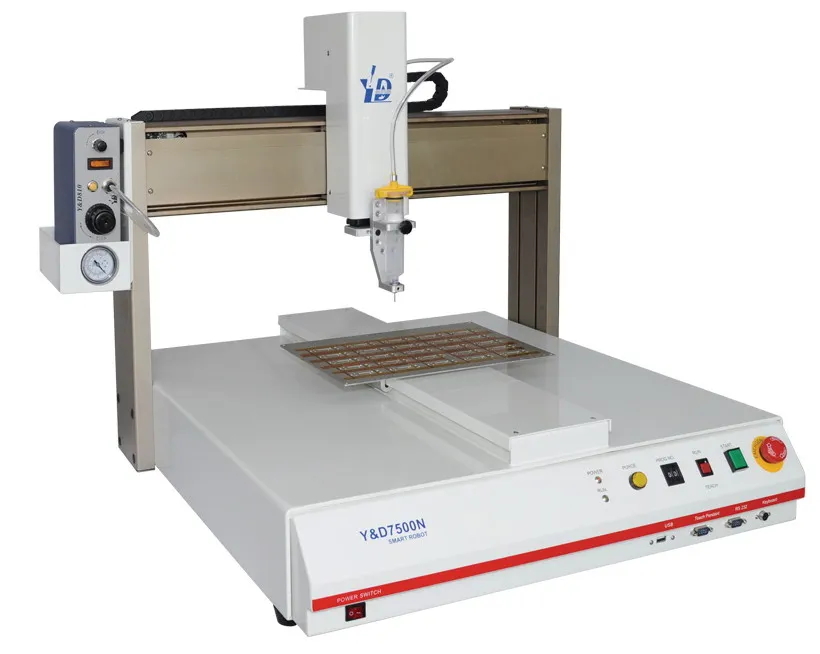

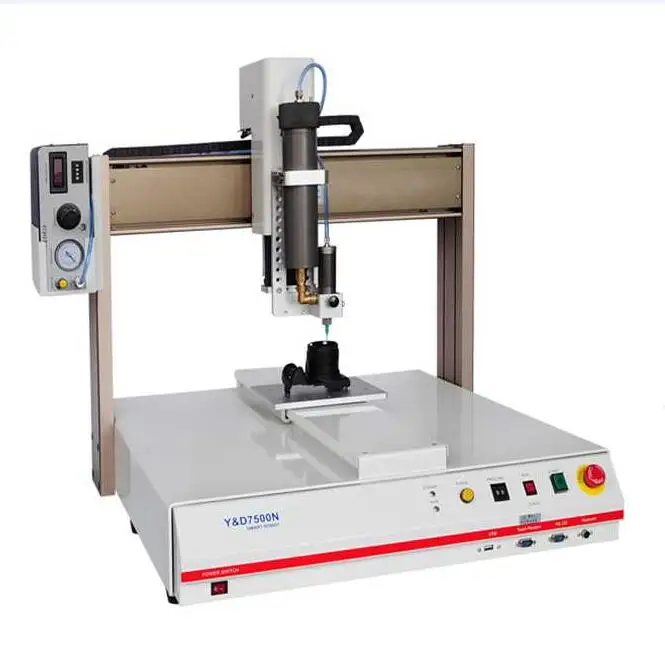

A powerful and optimum sized benchtop robot with a working area of 19.68"x19.68" (500x500mm) and extra Z reach of 5.90" (150mm). Ideal for large non contiguous structures and for larger dispensing equipment or apparatus. The Y&D500N is suitable for plasma treatment applications prior to dispensing. Programming is carried out by a teach-pendant (included) using the industry's leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes.


Gaugel/Model
Y&D7500N
Working range (mm)
500/500/100
Max Load Y/Z Axis
11kg/6kg
Speed X&Y/Z(mm/sec)
800/350
Repetitive Positioning Accuracy
+/-0.02 mm/Axis
Program Capacity
Min 100 Group, 4000 points/ Group
Data Storage Type
CF Card
Byte
32bit
Motor System
Japan micro stepping motor
Mode of transmissioin
X/Y Axis synchronous belt, Z Axis precision ball screw
Program Display
LCD
Interpolation Function
3axis
Teaching method
Teach Pendant
I/O Signals Port
8 Inputs/8 Outputs
External Control Interface
RS232
Power Supply
AC100-230V  300W
Working Temperature
10-40℃
Working Relative Humidity
20-90% no condensation
Dimensions(LxWxH)mm
685*700*610
Weight
52kg


Details


Apply Glue:
UV glue, AB Glue, EPOXY (vinyl), white plastic, EMI conductive adhesive,
SILICON,Epoxy, instant glue, silver glue, red glue, solder paste, thermal compound, anti-solder paste, lacquer, screws fixed 'set agent

Suitable for object:
mobile phone, computer casings, optical drives, printers, ink, clip, PC board, LCD, LED,
DVD, digital cameras, switches, connectors, relays, radiators, semiconductor and other electronic industry, uick-point connection with the SMT devices / glue, clocks, toys, medical equipment required to liquid dispensing products.


Application
1. English Teach pendant operation, easy to learn and easy to understand;
2. With a draw point, line, surface, arc, circle. Irregular curves and three-axis continuous
interpolation functions such linkage;
3. Software with regional arrays, shift operations and other functions;
4. The glue size of the thickness, coating speed, dispensing time, stop time Jieke parameter setting glue, a glue
amount of stable, non-leakage Epoxy;
5. According to process needs, they may install table positioning PIN, glue gun or bottom heating
temperature control device
6. Optional 2 fine-tune the plastic tube jigs, double-headed simultaneous operation,
multiplied improve work efficiency;



Features
1:)Dispensing area of 500mm x 500mm
2:)Resolution of 0.01mm for precision dispensing
3:)USB port allows for data transfer between robot and PC
4:)No computer skills required
5:)Continuous path motion for accurate XYZ dispensing
6:)Available in three and four axis models
7:)Interpolates lines or arcs for three-dimensional dispensing
8:)Teach Pendant programming


Product packaging




Package & Terms
Package: Y&D standard package.
payment:100% T/T in advance after confirm the order
Shipping:DHL/TNT&Fedex express shipment


Exhibition




We will participate in Munich Fair every year to show our products and technologies and build our own brand with all our heart.


Company Profile


Company Strenghth
We are a professional manufacturer of dispensing equipment and liquid dispenser and all the accessories. Valve, pressure tank, cartridge, barrels, tips, dispensing pen, glue gun, connect and so on. Our main product including dispensing equipment and liquid dispenser. We also have gantry conveyor robot.






Competitive Advantages
* Professionalism,creativity,advanced fluid control technology.
* Established an unshakable position in the liquid control and dispensing production.
* Highly Vertical Integration Of Manufacturing.
* Worldwide Sales
* Advanced Engineering/ Development Capability.
* Good Material Management Programs.


OEM/ODM service offered
Our product could match with other accessories (valve, tank, cartridge) according to your actual situation or as your request. We are capable to manufacture dispensing equipment and liquid dispenser according to customer's drawings or samples. We are insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.


For more information, please feel free to contact our sales, and we will give you a quick reply as soon as we get to know it.
