equipment from china for the small business precast cement pipe mould

Product Overview

Description



5.Main models include GP60-2, GP120-2, GP200-2, GP120-3,

GP50-4, GP60-4, GP120-4, GP150-2, GP150-3, etc.

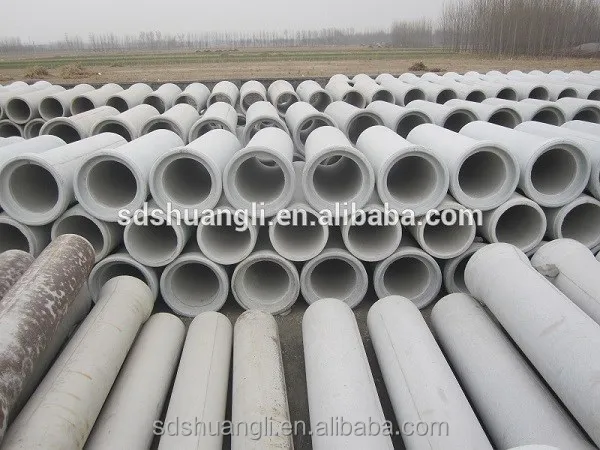

6.Cement pipe size: Inside diameter 200~2500mm, Length 1~5 m.Interface Type includes waist , tongue and groove joint, and perforated.





Working Principle
This machine uses the Roller to support the pipe mould, and produce the roller force to concrete in the mould.
When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould
and form a cement pipe with the centrifugal force, and when the mould with the inner concrete pass on the roller,
the concrete between the mould and the roller will be compacted solid to form a pipe.

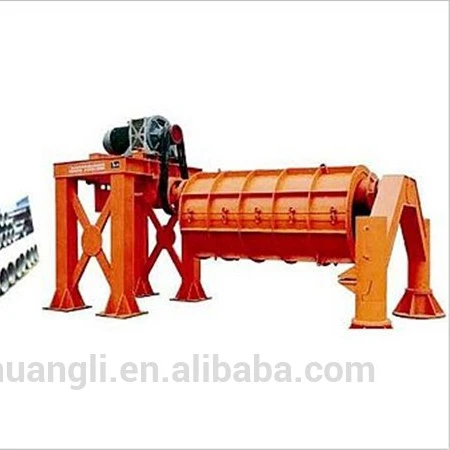

Character of Suspension Roller type Concrete Pipe Machine
(1) Short production Cycle: because of the good effect of the roller to compact the concrete, every pipe just need 3-5 minutes with high speed roller rotation.
(2) This Pipe machine uses the dry cast material, there will no waste cement mud, then it won’t pollute the environment.
(3) During the production, the noise is low, it is about 80-90 DB

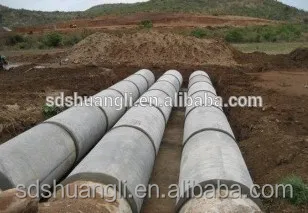

(4) The Concrete Pipes are with high pressure load and with high production efficiency.





We specialize in the production of precast prestressed concrete molding machine. The factory runs through a strict management system with improved detection methods and perfect quality assurance system.With the increasing effort on R&D ,We have successfully developed more than 100 models of precast molding machines, including Concrete hollow cored slab making machine, concrete lintel machine, concrete purlin machine, concrete column making machine, lightweight wall panel machine, and concrete pipe making machine, etc.The thickness of the product can be varied from 30mm to 380mm, widest 1.2m, longest 18m.All our products can meet the country's large-scale construction projects and civil needs.









Welcome your consultation
