hot wholesale gadgets support iphone Full HD cctv surveillance camera
- Category: >>>
- Supplier: Shenzhen Aiseeing Technology Co. Ltd.
Share on (60094752286):
Product Overview
Description
Product Parameter of cctv surveillance camera
| Camera Specification | |
| Media Processor | High-performance TI DaVinci DSP |
| Image Sensor | 1/3" 3MP progressive scan CMOS |
| Shuttle time | 1/5s to 1/50,000s |
| Lens | 3.6mm/6mm optional |
| IR Range | Up to 15m |
| Day&Night | IR cut filter with auto switch |
| Compression | |
| Video Compression | H.264/MJPEG (optional) |
| H.264 coding standard | H.264 Baseline/MainProfile/HighProfile (optional) |
| Audio Compression | G.711a/G.711u/RAW_PCM (optional) |
| Audio Bit Rate | G.711a(8kbps)/G.711u(8kbps)/RAW_PCM(16kbps) (optional) |
| Image | |
| Max Image Size | 2048(H)×1536(V) |
| Stream | Dual-stream |
| Frame Rate | Main Stream:50Hz:20fps (2048 × 1536), 25fps (1920 × 1080), |
| 60Hz:20fps (2048 × 1536), 30fps (1920 × 1080), | |
| Sub-stream:50Hz: 25fps(640 × 480);60Hz: 30fps (640 × 480); | |
| Network | |
| Memory Slot | SD/SDHC (Max 32GB) |
| Alarm Trigger | Motion detection, tampering alarm, network disconnect, storage exception |
| Protocols | IPv4/IPv6,RTSP/RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,FTP,DDNS,PPPoE,SMTP,Onvif V2.3 |
| Onvif | V2.3 Version |
| Interface | |
| Video Out | 1Vp-p Composite Output(75Ω/BNC) |
| Network | 1 RJ45 10M/100M adaptive Ethernet port |
| Reset | A reset button (press and hold 3 seconds valid) |
| General Specifications | |
| Operating Conditions | -40℃ ~ 60℃,humidty less than 95% |
| Power Supply | DC12V±10% |
| Power Consumption | 4W |
| Weather proof rating | IP66 |
| Dimensions(mm) | 220×56.2×60 |
| Weight(kg) | 0.47 |
Features
• UP to 3 megapixel resolution(2048×1536)
• Max 20fps@3MP(2048×1536)&25/30fps@1080p(1920×1080)
• H.264&MJPEG dual-stream encoding
• WDR (wide dynamic range)
• Advanced H.264 High Profile Level@4 compression
• Day/Night (ICR) &3D DNR&AWB&AGC&BLC
• Lens(3.6mm/6mm)
• Support mobile phone monitoring and P2P function
• POE function (optional)
• Auto Iris (2.8-12mm) and motor lens (optional )
Advantage

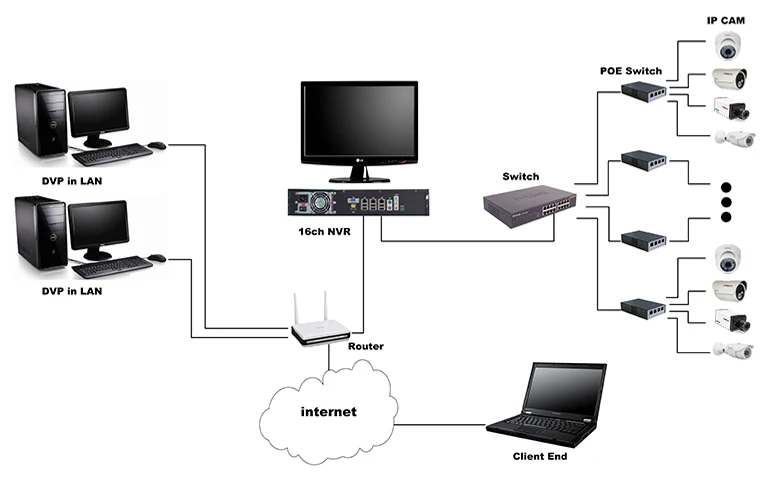

Connection Diagram
IE Web Interface
VMS Interface
Application
Production Process
Company Profile
Aiseeing Technology Co.,Ltd was established in 2003 as a premier provider for Security IP Cameras, NVR Recording systems,
analog camerasand standalone DVRs. We also have some featured product lines such as LPR/ANPR cameras, fisheye
cameras for your choice.
High quality is our first principal way to show respect to our customers. We have passed ISO9001 quality management system
and got CE, FCC,RoHs and other certificates.
All our security products have been widely used in USA, European countries, South American, Russia, South African, the Middle
East, Asia and so on.
You can find more information of us at: //aiseeing.en.alibaba.com/
Certificate
Our Service
l After-sale service
A.All goods will be strictly checked by our QC department before shipping
B.All goods will be well packaged
C.12-24 Months hardware warranty
D.Life –time software/firmware update and technical support
E.All questions will be replied at the first time
l Payment terms
We accept T/T by bank transfer, PayPal, Escrow, Western Union, Money Gram and L/C for bulk order
B.All goods will be well packaged
C.12-24 Months hardware warranty
D.Life –time software/firmware update and technical support
E.All questions will be replied at the first time
l Payment terms
We accept T/T by bank transfer, PayPal, Escrow, Western Union, Money Gram and L/C for bulk order
l Shipping
We have strong cooperation with DHL, FedEx, UPS, TNT, EMS, China post office. You can also choose your own forwarder
.
