Aogao 28 series compact hpl restroom stall dividers

 28 series  restroom stall dividers

Square design, it is high end restroom stall dividers  system,the whole package of accessories 's material is  stainless steel 304, it can use together with 12mm compact board , 18mm moisture-proof board PVC board,metal board etc.

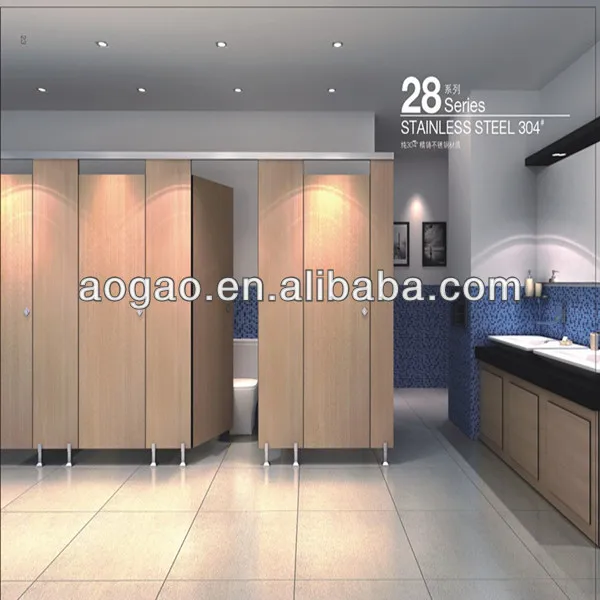

restroom stall dividers   the overall effect diagram:

restroom stall dividers   Advantages:

Aogao restroom stall dividers  systems use the compact laminate as the partition wall panel

restroom stall dividers   Compact laminate introduction:

The Compact Grade laminate is a high pressure laminate, which at 2-25mm, is much

thicker than conventional laminates(0.8-1.0mm). The Compact Grade laminate is intended
for application as interior horizontal or vertical surface where high strength, impact, water
and humidity resistance are required . Because of its inherently high strength, Compact
Grade laminate may be used as a structural material. It may be drilled, tapped, sanded,
shaped, and cut with standard carbide tipped tools, Aogao brand Compact Grade
laminate is a unique structural material which is available in panels with one or both sides
faced with decorative surfaces and meeting or exceeding AS mechanical performance
specifications in all categories, particularly in such cntical areas as impact strength and liquid
absorption. In addition, it also meets and exceeds EN438 physical properties. Compact
Grade and Aogao hardware system can be used to make a series of cubicles system,
lockers system and wall system.

restroom stall dividers   Compact laminate features:

• Solid, low water absorption
• strong, impact-resistant, damp-resistant, heat-resistant and cigarette burn-resistant
• Easily dean, lifetime durability
• Integrated curved shape, showing the beauty of streamline
• Remarkable processing technology: By drilling, screwing, cutting to form different shapes
• Versatile color matches

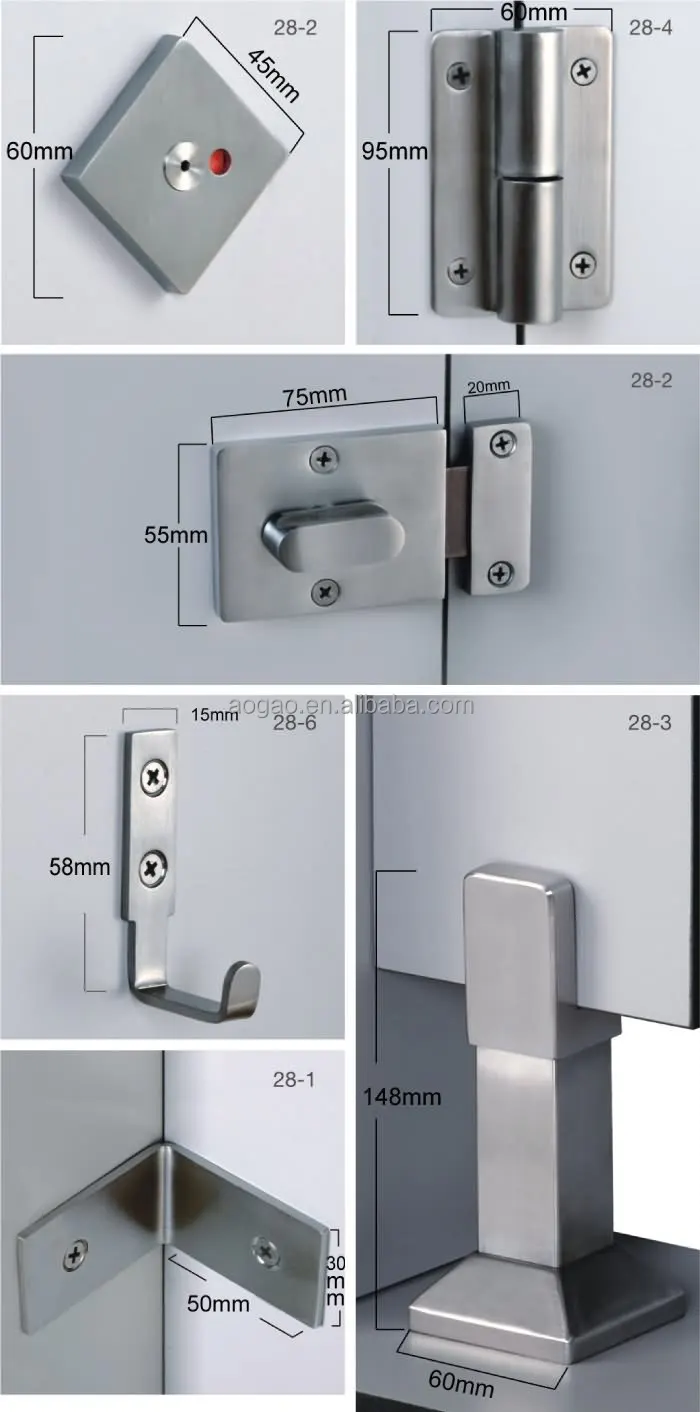

restroom stall dividers   hardware introduction:

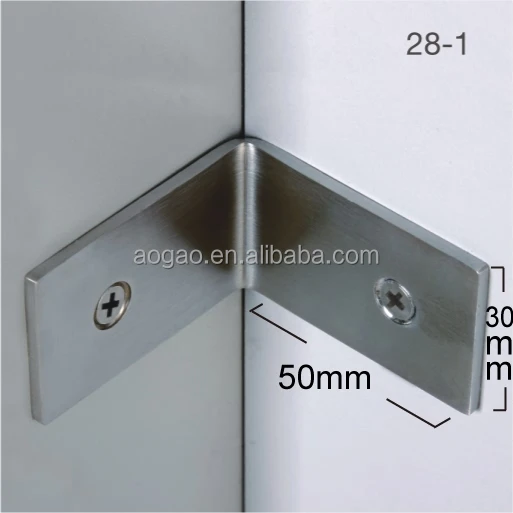

restroom stall dividers   Corner fastener:

304 stainless steel material , long life

It can be used to fix the division plate to create a solid and steady structure

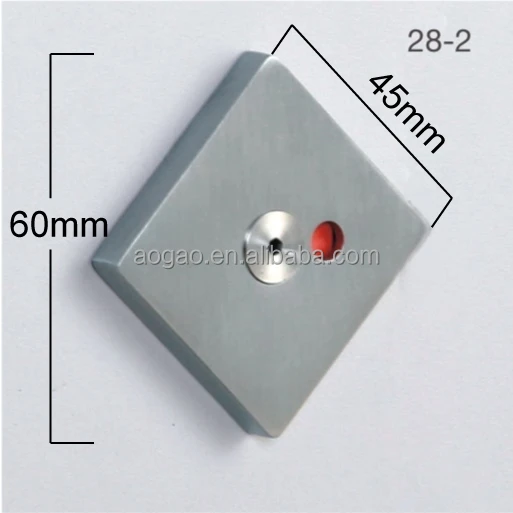

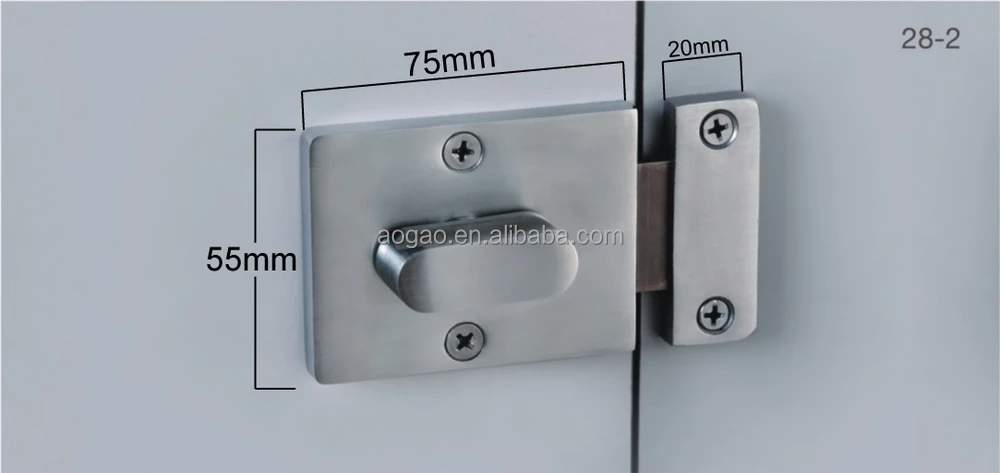

restroom stall dividers   Indicator lock:

304 stainless steel , square design , without handle

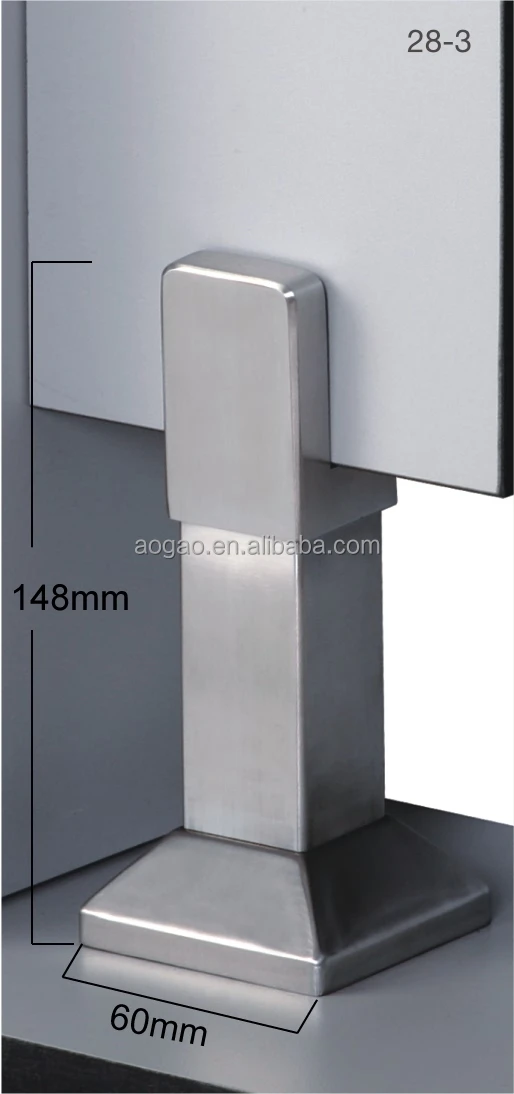

restroom stall dividers   Adjustable leg:

304 stainless steel , square tube socket , height 100mm.

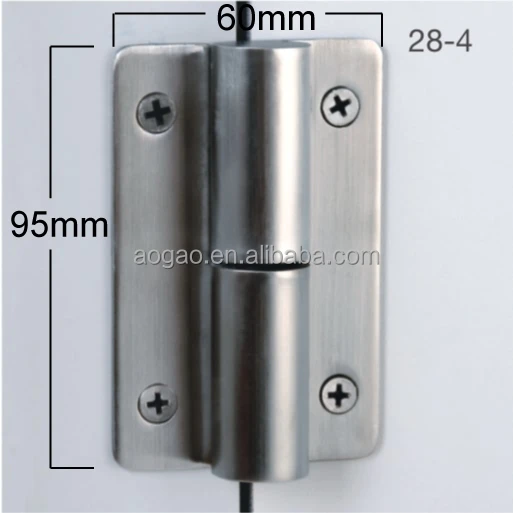

restroom stall dividers   Hinge:

304 stainless steel material , the use of tooth axis , you can freely adjust the hinge angle.

It is thus designed with the function of auto closing,thus enabling the door plank naturally to stay ajar or wide-open,demonstrating our delicate consideration for the customers convenience.

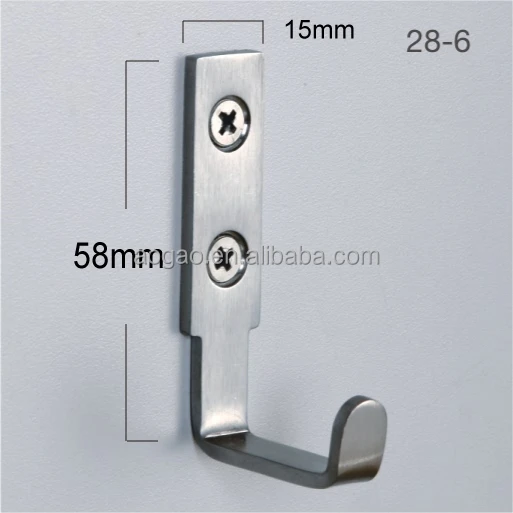

restroom stall dividers   coat hook:

304 stainless steel material.

restroom stall dividers   cubicle config introduction:
