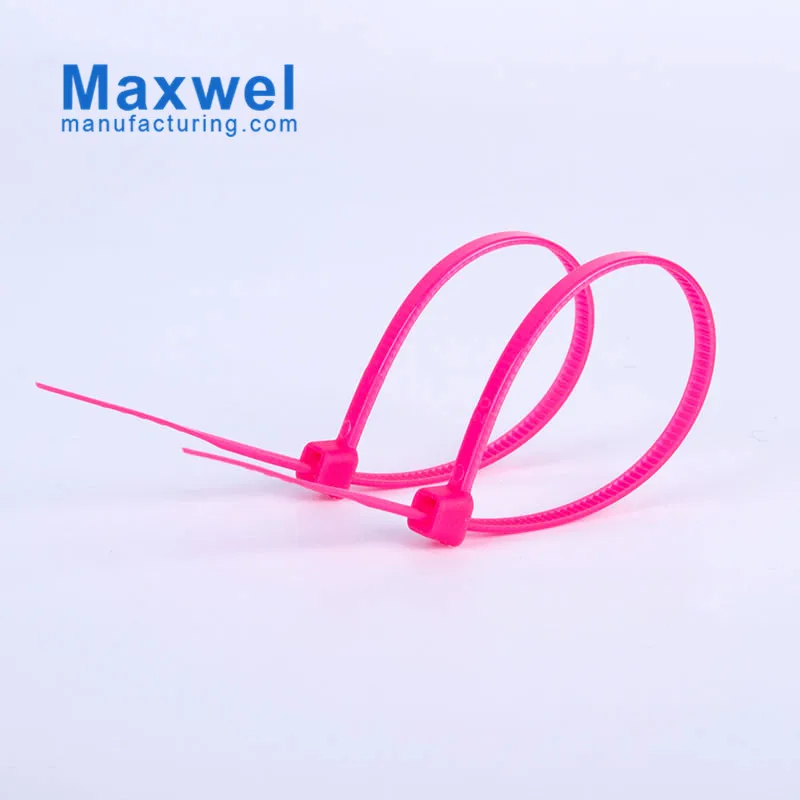

Self locking flexible security nylon 66 plastic cable ties for cable management

Product Overview

Description

High Quality UV Resistant Nylon Cable Tie



Product Description



1.Specification



-Maxwel brand Nylon Cable Ties

-Type: self-locking nylon cable tie

-Material:  Nylon66, 94V-2 Nylon Cable Tie certificated by UL

-Feature: Fire&Heat resistant, erosion control, insulate well and not apt to age

-Operation Temperature: -40°c to 85°c

-Colour: Natural (white or standard colour), UV black and other colours are available

-Package: Polybag + Label (100pcs/bag)

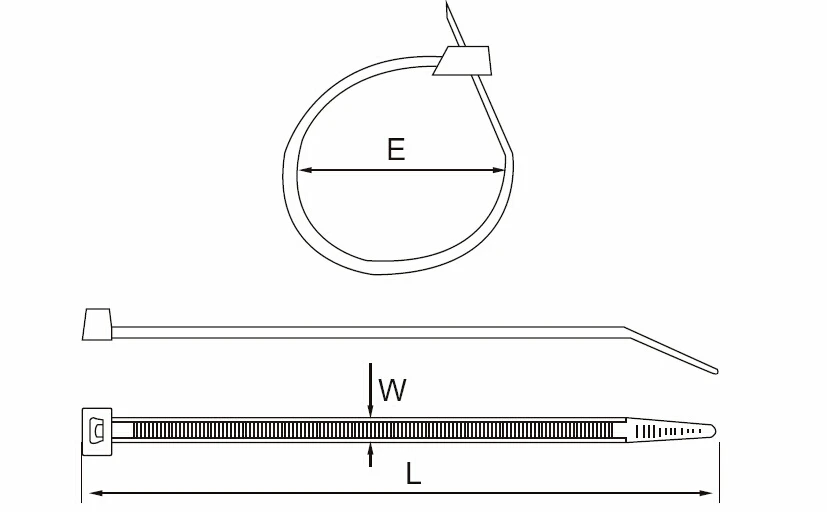

2.Data Sheet



Item No	L		W	Bundle	Tensile Strength
	Inch	mm	(mm)	Diameter(mm)	LBS	KGS
2.5×80	3.2''	80	2.5	2-16	18	8
2.5×100	4.0''	100		2-22
2.5×120	4.7''	120		2-30
2.5×150	6.0''	150		2-35
2.5×200	8.0''	200		3-50
3.6x150	6.0''	150	3.6	3-35	40	18
3.6x180	7.1''	180		3-42
3.6x200	8.0''	200		3-50
3.6x250	10''	250		3-65
3.6x300	12''	300		3-80
3.6x370	14.6''	370		3-105
4.8x200	8.0''	200	4.8	3-50	50	22
4.8x250	10''	250		3-60
4.8x300	12''	300		3-80
4.8x350	14''	350		3-90
4.8x370	14.6''	370		3-98
4.8x400	16''	400		3-105
4.8x450	17.7''	450		3-130
4.8x500	19.7''	500		3-150
7.6x350	14''	350	7.6	4-90	120	55
7.6x400	16''	400		4-105
7.6x450	18''	450		4-110
7.6x500	20''	500		4-150
7.6x550	21.6''	550		4-165
9.0x400	16''	400	9	8-105	175	79.4
9.0x500	20''	500		8-150
9.0x600	23.6''	600		8-170
9.0x650	25.6''	650		8-185
9.0x800	31.5''	800		10-230
9.0x900	35.5''	900		10-265









Packing&Shipping
