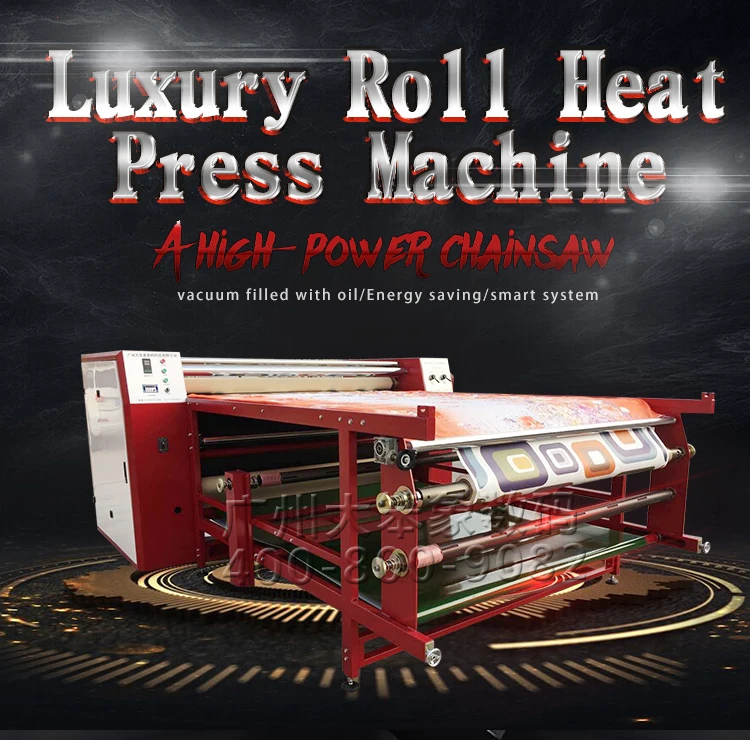

Multi function Heatpress Roll Rotary Calender Heat Transfer Press Machine For Sublimation

Product Overview

Description

Multi-function Heatpress Roll Rotary Calender Heat Transfer Press Machine For Sublimation
1.stress control by air pump
2.1 year warranty
3.easy control



MANUFACTURER:	Guangzhou, China
MODEL:	Roll Heat press machine
COUNTRY OF MANUFACTURE:	China

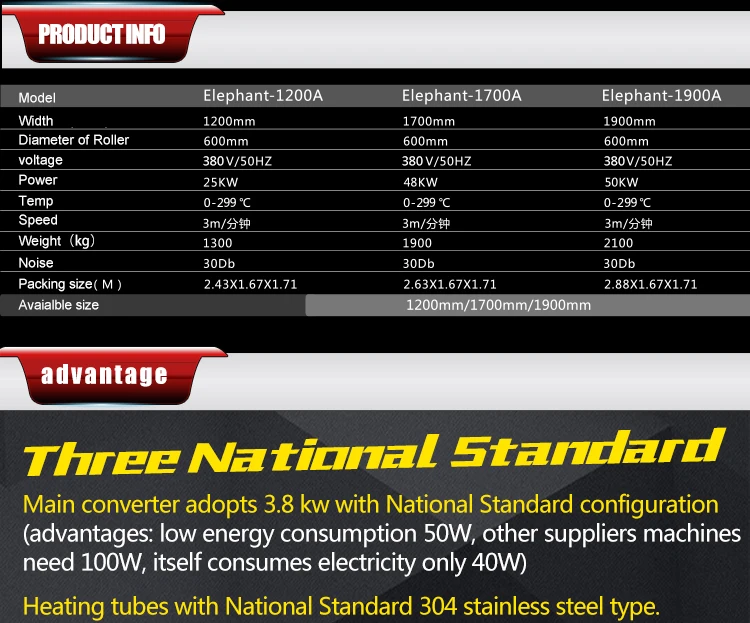

GENERAL DETAILS
Work table size approx	3500 x 1850 MM
Effective print width approx.	3500 x 1850MM
Blanket width approx.	2000MM
Heating elements
Number minimum	10 to 12
Heating power	15-28KW
Heat transfer medium	Oil
Cartridge heater Ø approx.	220 V or 380 V, 3 phase
Electrical details
Suitable for electrical system of .	comply
Three phase	comply
Voltage   please state	380v or 220v
Frequency	0-399
Performance
Operating speed	0-999sec
Noise level	< 30 dBA
Control panel
Control panel operation size details	27cm*35cm
Heat press machine Dimensions
Length	3100mm
Width	2680mm
Height	1370mm
Weight	1500KG
Optional Equipment
Please provide priced details of optional equipment	customer request
SERVICE SUPPORT	1 Year warranty



More detail :

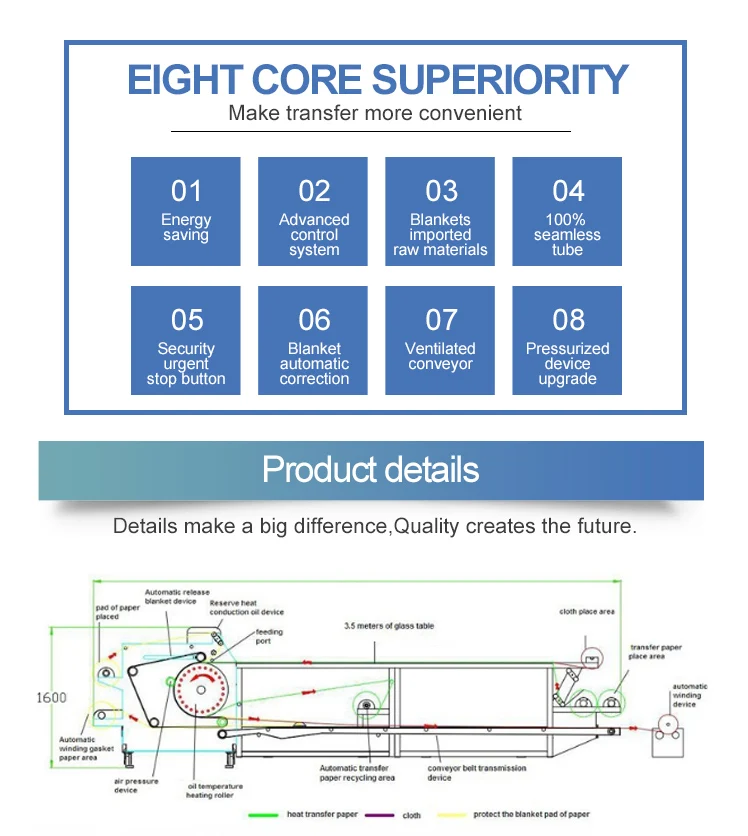

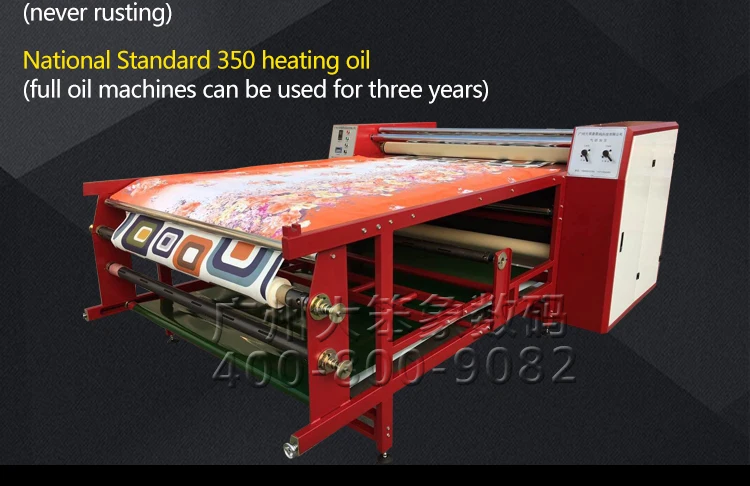

1.Oil heating Roll to Roll heat press machine!



2.sulimation transferl temperature and speed controller,adjustable speed

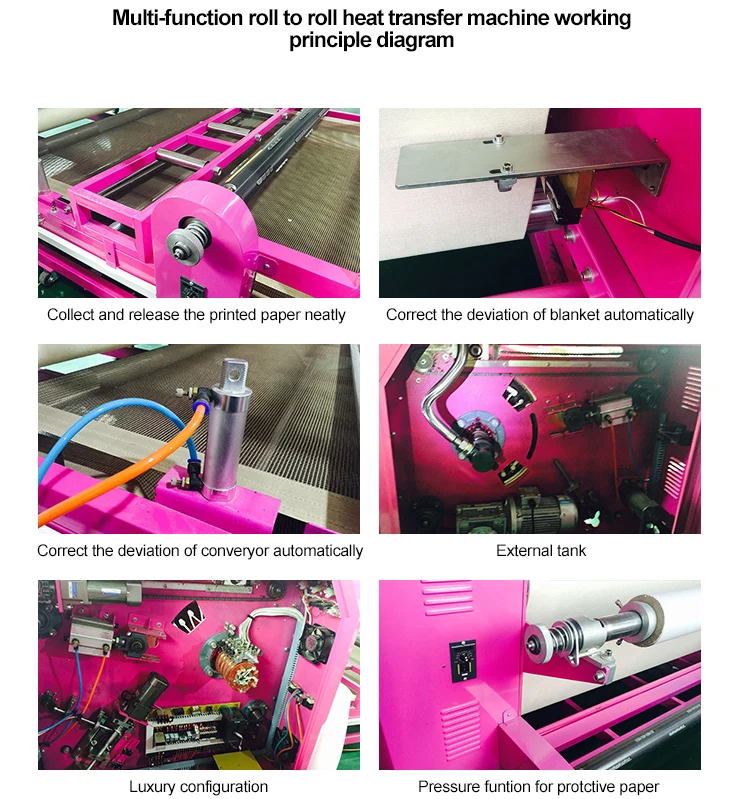

3.Machine with a two-meter-long double-deck working table,the bottom with a conveyor belt, convenient for customers to transfer sheet material.



4.Equipped with continuous speed adjustment system,you can adjust printing speed as you need ,The roller was heating up with oil and temperature heating system.





5.Printing speed is equipped with continuous speed adjustment system ,feeding equipment is convenient for operation ith swiftness and high reliablity.

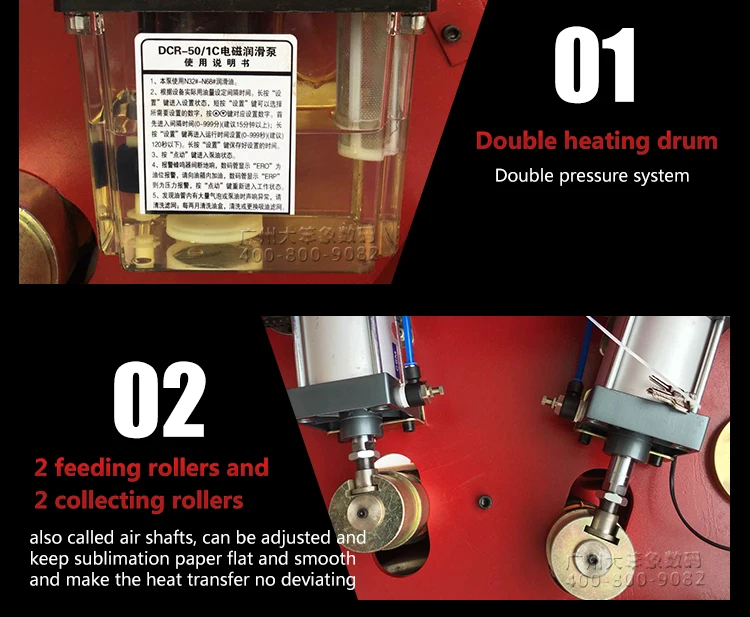

6.The blanket is detachable,and not easy to burn;with three putting devices for fabric,protecting



paper and transfer paper.Two make in roll devices for transfer paper and protecting paper.



Convenient for customer operating.





7.Using imported heating pipes,heat evenly, durable;imported blankets which is not easy to deviate.



8.Machine with a pressurized system,to meet the different requirements of the different products on the

pressure



9.The most advanced technology and imported units arew adopted by machine controlling system with automatic positioning , accuracy together with security ,electronic constant temperature controlling wtih high accuracy, long service life and other features



10.Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature,





Application:

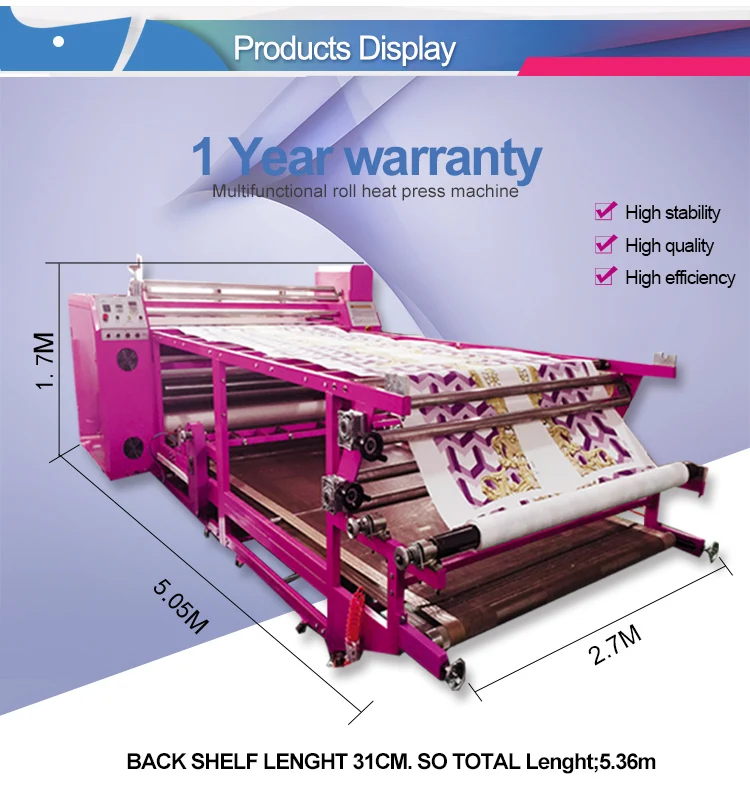

Roll heat press machine  is a multifunctional roll to roll heat



 transfer machine can be used for both roll material and sheet material heat transferring.



Comparing with the normal flat heat transfer machine, this machine is in high speed,



convenient and labor saving.Which is suitable for sublimation transfer large banners, flags, non-woven fabrics, apparel fabrics, towels, blankets, mouse pads and other products in the piece or in roll,

especially the continuous transfer of the cloth.

 Capable of continuous printing speed, to meet the needs of large volume printing





 Roll heat press machine custom design size



we can custom design 1.2M, 1.7M,1.9M, 2.1M etc width Roll heat press machine ,welcome to custom design!
