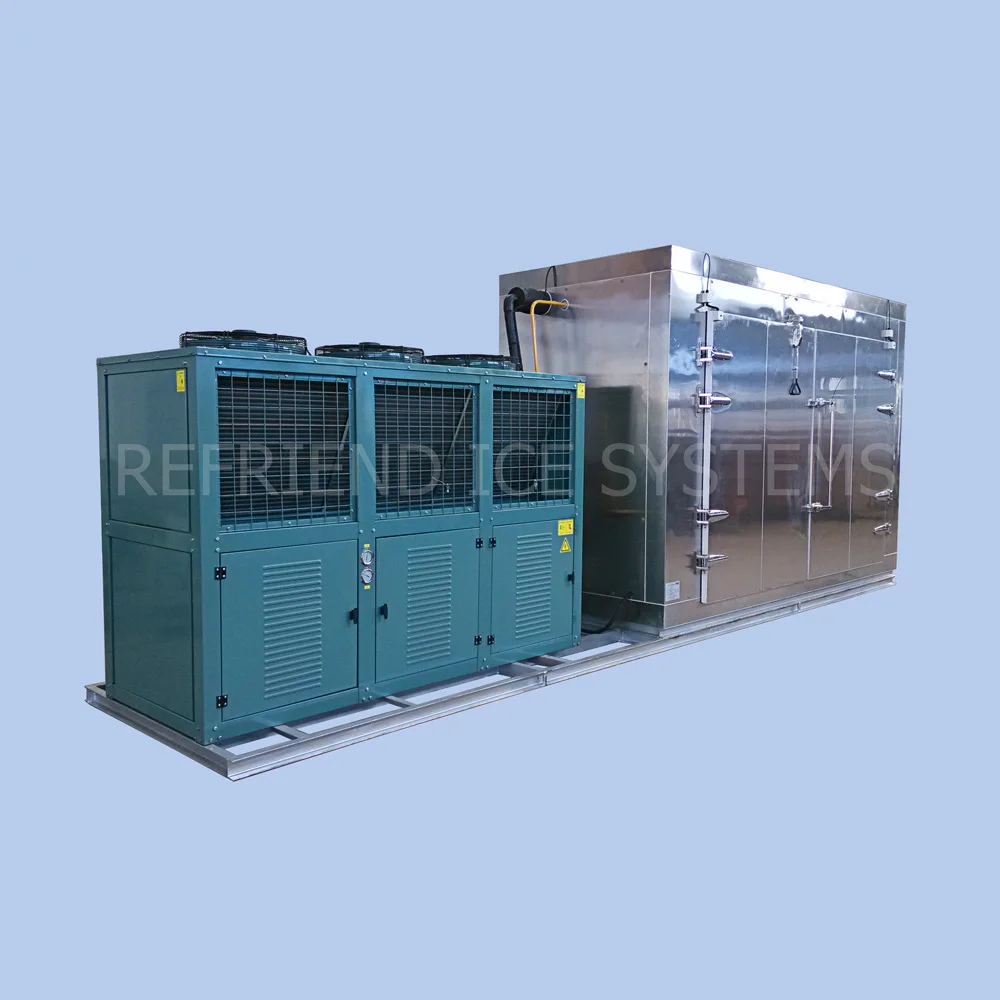

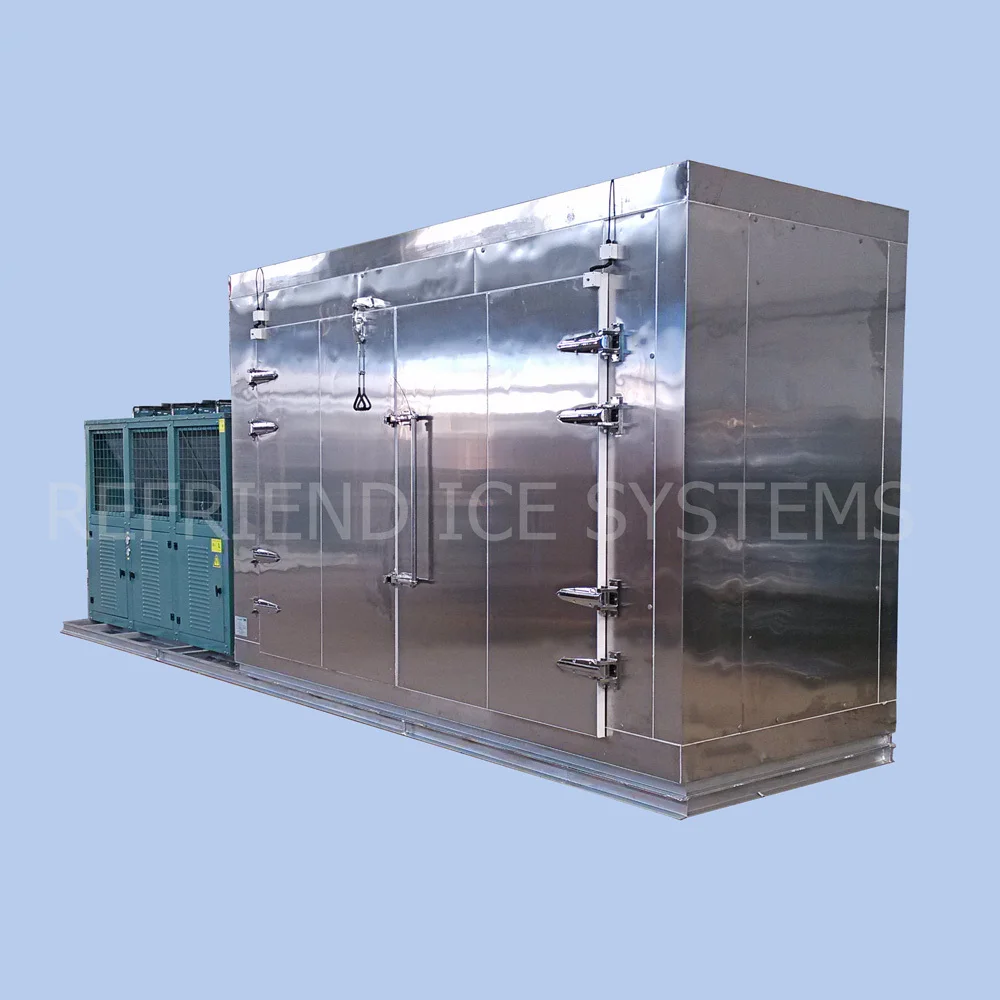

Industrial Air Blast Plate Freezer For Fish and Shrimp

Product Overview

Description



Plate Air Blast Freezer has several layers(plate) on which fish or shrimp trays are put.

Refrigerant will evaporate in the tubes across the plates, freeze the products directly.

2 fans blow and recycle the air in the freezer, taking heat away.









Capacity	750kg/batch
Freezing Time	8 hours
Inside Temperature	-35oC to -40oC
Compressor	Bitzer 25HP
Installed Power	30KW
Refrigerant	R404a
Dimensions	6700 x 1500 x 2500mm
Net Weight	2700kg
Fan	2.2kw x 2pcs
Air flow	21000m3/h x 2pcs

























1. Engineer avaiable provides sevice overseas

2. Techniqual Instruction Service

3. Spare parts provide

4. Wooden Box for machine
