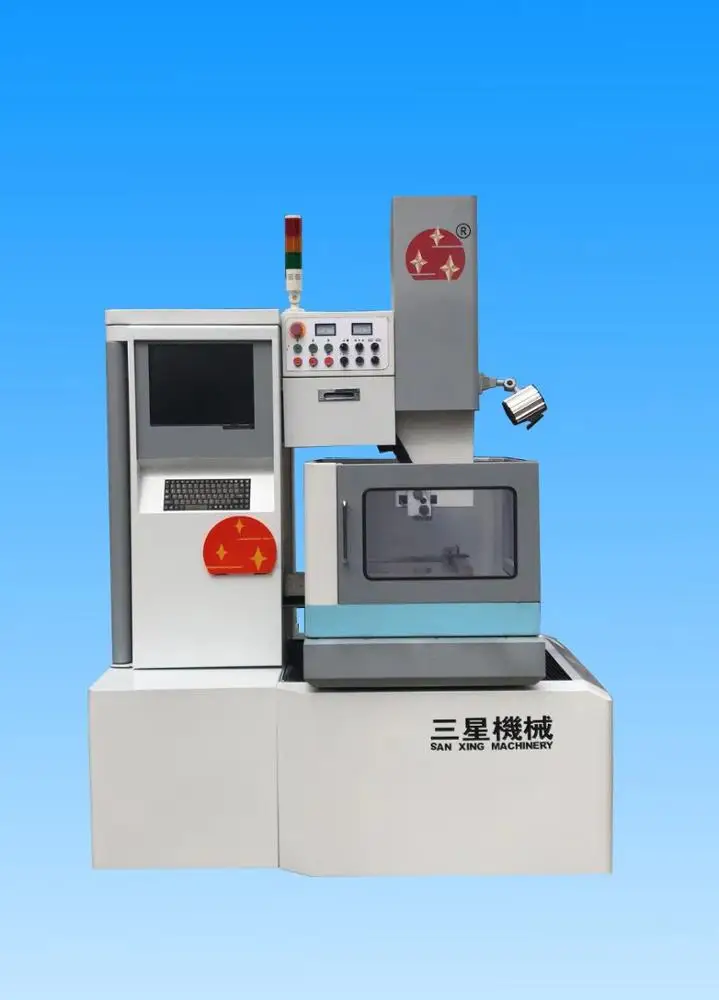

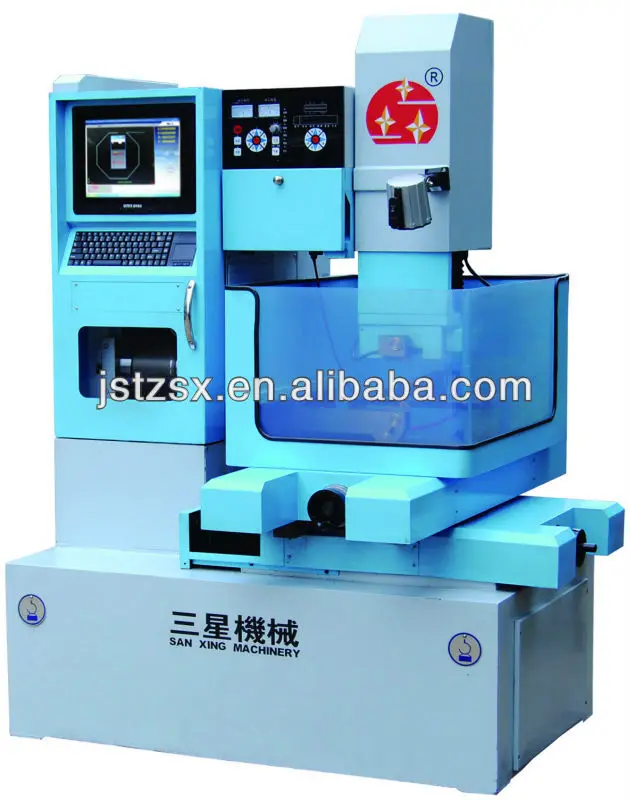

DK7725 edm wire cutting machine/lathe cnc
- Category: >>>
- Supplier: Jiangsu Sanxing Machinery Manufacture Co. Ltd.
Share on (60095380672):
Product Overview
Description
P
PRODUCT DESCRIPTION
| Type | Unit | DK7725AZ |
| Worktable size | mm | 520*336 |
| Table travel | mm | 320*250 |
| Max. workpiece thickness | mm | 400 (330) |
| Total weight | kg | 1100 |
| Overall dimensions | mm | 1400*1060*1500 |
| Wire traveling speed | m/s | 11.5 |
| Wire diameter | mm | Dia. 0.13~Dia. 0.18 |
| Max. cutting speed | mm²/min | 100 |
| Taper | °/mm | 6°/100 |
| Power input | 3N-50Hz 380V (Monophase 50Hz 220V) | |
| Total power | KW | ≤1.2 |
| Advantages of Vertical Incorporate Controller | |
 | 1, High intelligent grape exchange software system; |
| 2, Graphically programming and vector programming; | |
| 3, 3B, G codes compatible, communicating with microprocessor; | |
| 4, DXF, AUTOP graphic document, CAD character library document; | |
| 5, Hard disk with big processing and storage capacity; | |
| 6, Return, retreat and stop functions for graphing ordinary curves; | |
| 7, Simultaneous indication of processing tracks and data, power-off memory function; | |
| 8, Interaction of four shafts, processing special shaped surfaces; | |
| 9, Parallel work, inputting program while processing; | |
HL, HF, AutoCut
| 1. Windows 98/Windows XP; |
| 2. Industrial computer; |
| 3. Auto CAD file can be transferred into working; |
| 4. Return, retreat and stop functions; |
| 5. Simultaneous indication of processing tracks and data, power-off memory function; |
| 6. Interaction of four shafts, processing special shaped surfaces; |
| 7. Parallel work, inputting program while processing. |
Optional
| 1. Taper (± 15°, ± 30°); |

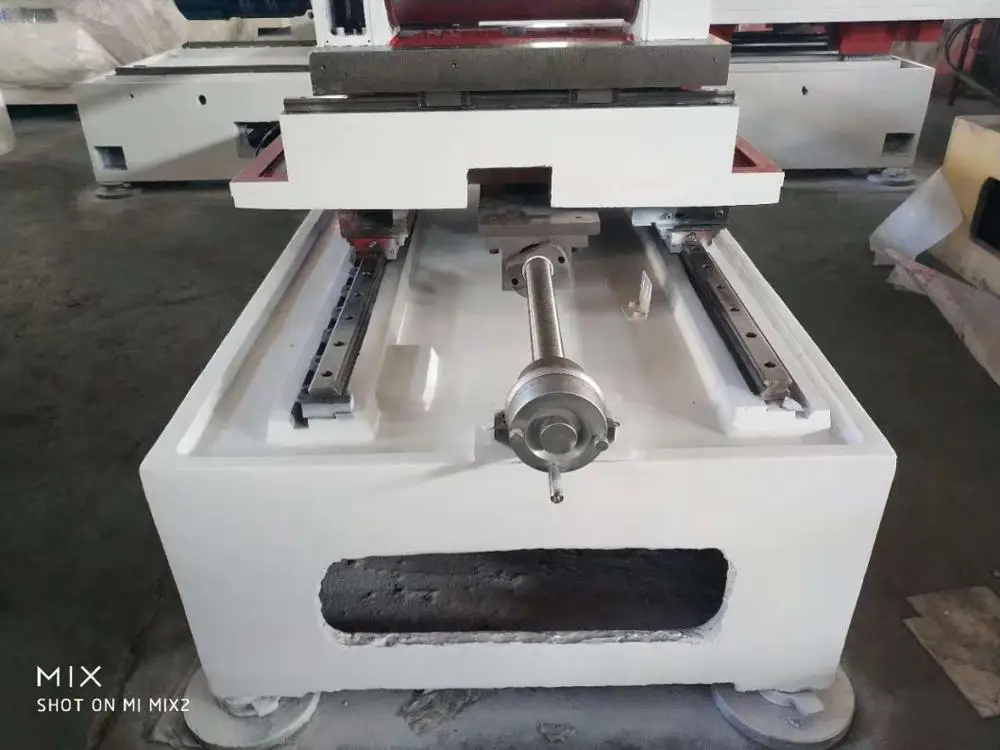

| 2. Linear guide ABBA; |
| 3. Servo motor; |
| 4. High pressure pump; |
| 5. DRO digital read out is optional, accuracy of 0.005mm; |
| 6. Environmental and protection cover; |
| 7. Higher speed control , speed up to 160 mm²/min ; |
| 8. Multi-cut function to reach better accuracy and surface roughness; |
| 9. Thickness up to 1000mm; |
| 10. Color. |
P
CERTIFICATIONS & SAMPLES
CERTIFICATIONS
CUTTING SAMPLES
C

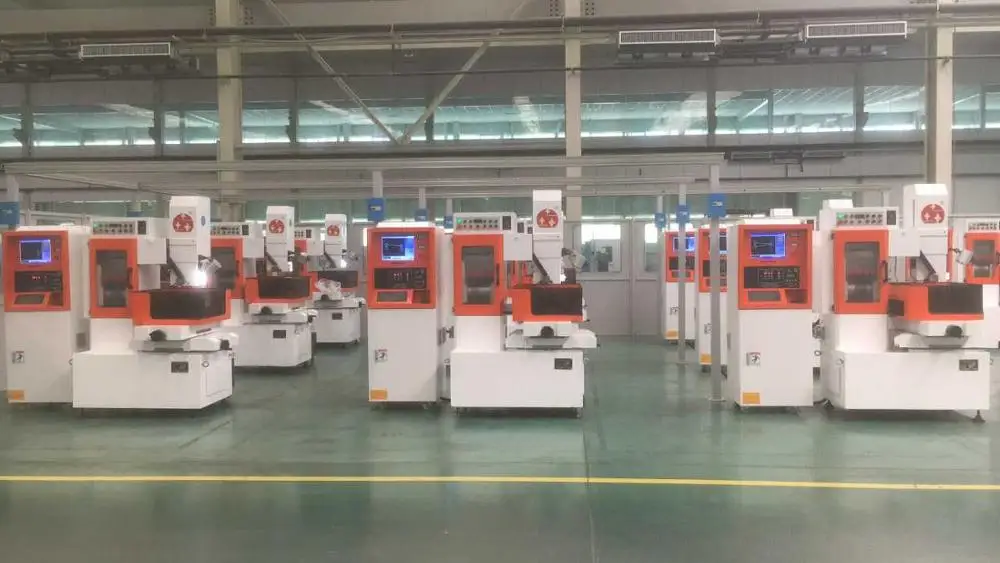

COMPANY INFORMATION
Jiangsu Sanxing Machinery Manufacture Co.,Itd was founded in 1993. The company is a high-tech enterprise integrating research and development, production and sales. Our company has been awarded IS09001-2008 international quality certificate CE certificated for Europe, and also honored with "enterprise of high-tech". Our many products are titled “high-tech products” and “provincial famous trademark”, get the Machinery Industrial Science And Technology Award and the Small & Medium Enterprises Innovation Award of the Ministry of Science and Technology, meanwhile, the products own 3 invention patents, 27 New practical patents, 3 designing patents and 7 patents during application. |
P
PACKAGING & SHIPPING
| ♦ Packaging details: inner plastic, outer plywood case |
| ♦ Delivery detail: 15-20 days afterpayment |
| Minimum order quality: 1 set |
Port: Shanghai or any Chinese port |
| Payment Method: L/C, T/T, Western Union, MoneyGram |
| Supply Ability: 200 sets/month |
| Warranty period: 12 months |
FAQ
| 1. What’s your MOQ ? |
| Our MOQ is one set for each machine. |
| 2. Could we use our own brand on your machine ? |
| Yes, we would love to accept. |
| 3. Could your engineers go to our factory to install the machine and train our workers? |
| Yes, our engineers could go to your factory and assist you. |
| 4. Whats your fast delivery time ? |
| According to machine, our production time is from 7 days to 30 days, and some machines are in stock. |
| 5. Could I visit your factory ? |
| Yes, sure, welcome. |
