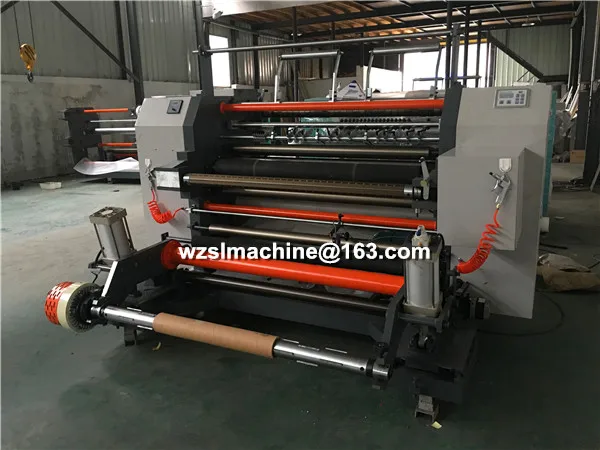

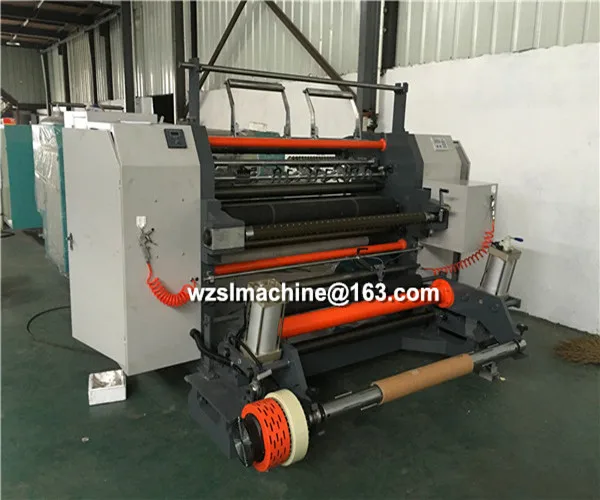

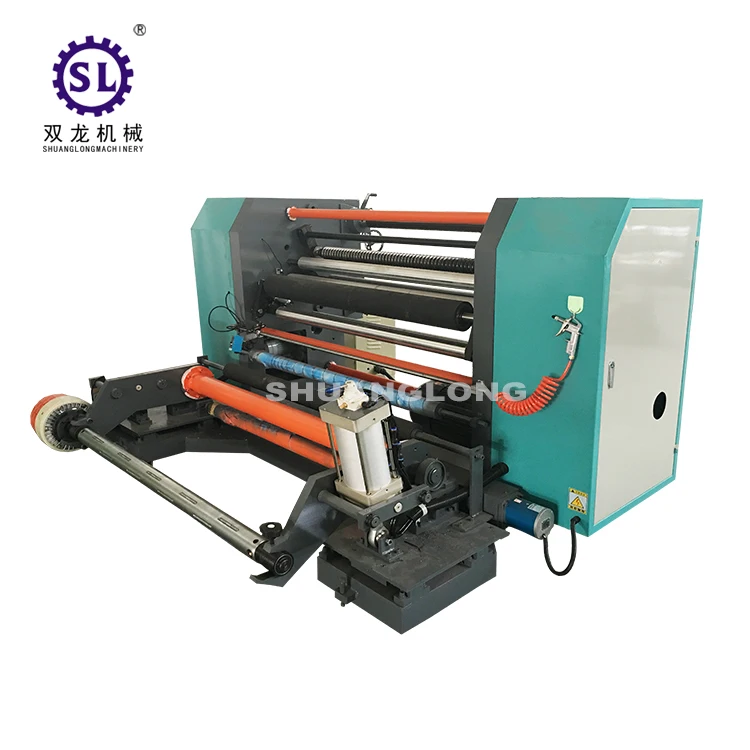

Automatic TTR Slitting MACHINE,brand new stretch film Slitting rewinder MACHINE

Product Overview

Description

Automatic TTR Slitting MACHINE,brand new stretch film Slitting rewinder MACHINE

Skype: yangshiyan

Mob/Waht'sapp/Wechat: +86-13958831773

What's the details of our machine

Usage

Plastic Film Slitting Machine is suitable for slitting and rewinding such various roll materials as  BOPP, PET, CPP,CPE, PVC, aluminum foil laminated with film and paper, etc. And can cut edge, separate and cut material according to different requirements during production.



Feature



1.The motor unit adopts three-motor connective control with high speed, stable tension and nice looking products
2.It’s equipped with tension detecting device with PLC auto constant tension control system.
3.The rewind press roller system adopts combined device of discontinuous movement and air pressure auxiliary control to ensure minimum distance between press roller and products, and also to ensure different materials convertingthe line of material.
4.The rewind system can be changed easily from air shaft to differential shaft.
5.It’s equipped with infrared ray auxiliary paper core position device to save time.clutch for rewinding tension control
6.It’s equipped with finished products fast unloading device.
7.Waste collect system can choose left-right moveable surface rewinding type, servo motor control center rewind type and blower fan collect type.

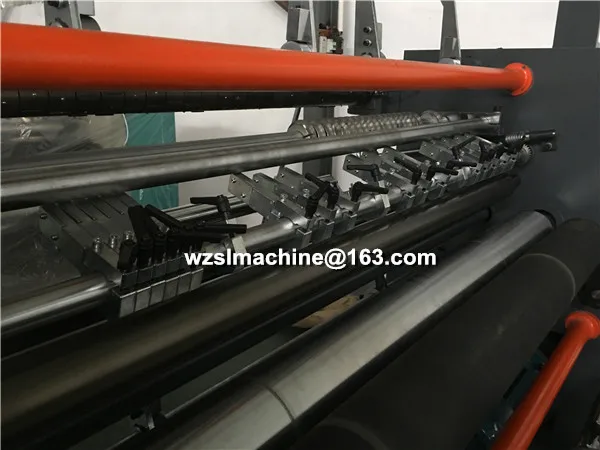

8.Slitting blade can use air blade, shear blade, razor blade for different material slitting.
9.The unwind system has EPC/LPC device, hydraulic type jumbo roll uplifting device and material receiving plarform.

10. The unwind system can choose shaft/shaftless connect type, shaft/shaftless separate system.



Advantages:

1.All photo was taken from actual products.

2. We can print client's logo on our machine if needed.

3. Our machine specification can be developed as requests,

4. All of our machine with assured quality and compretitive price.

5. Fast & Timely delivery is our merits.

6. After-sales was provided.



If any items you are intereste. Warmly welcome you feel free to CONTACT US



Main Technical Data
Model	SLFQ-H-700	SLFQ-H-1100	SLFQ-H-1300
Max. Unwind Width	700mm	1100mm	1300mm
Max. Unwind Diameter	Φ600mm
Paper Core	Φ76mm or Φ156mm
Slitting Width	30-600mm	30-1000	30-1300
Slitting Speed	5-300m/min
Slitting Thickness	10-75mic(razor blade); 100-350mic(disc blade)
Slitting Recision	±0.15mm
Automatic Tension Control Range	3-30kg
Total Power	5.5kw	7.5kw	11kw
Weight	3500kg	4000kg	4500kg
Dimension	2800×2820×1800mm	3000×2820×1800mm	3200×2820×1800mm
Different size model can be custom-made  Feel Free to Contact US

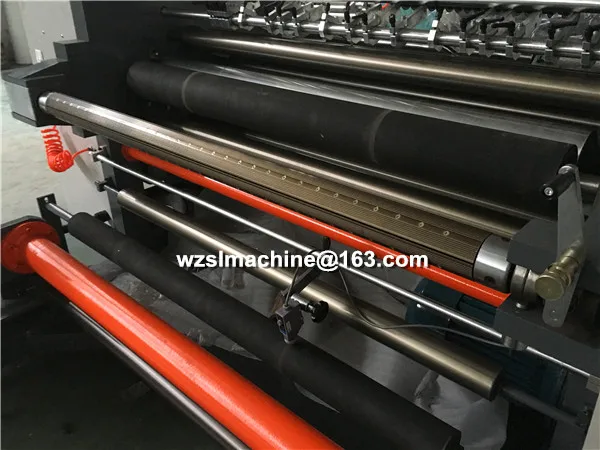

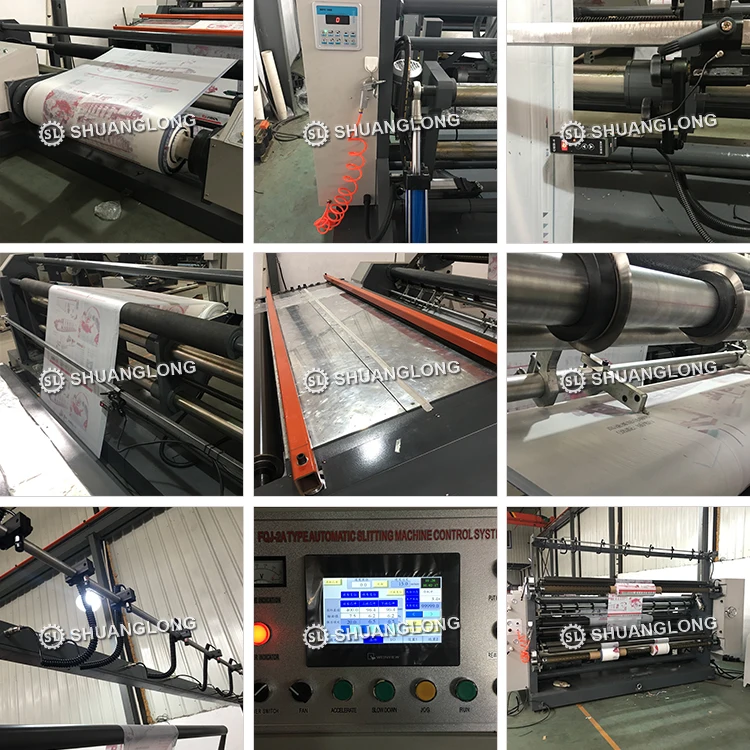

Products details

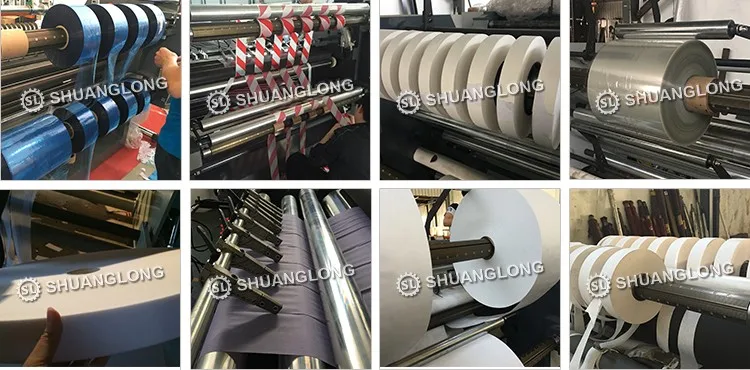

Samples

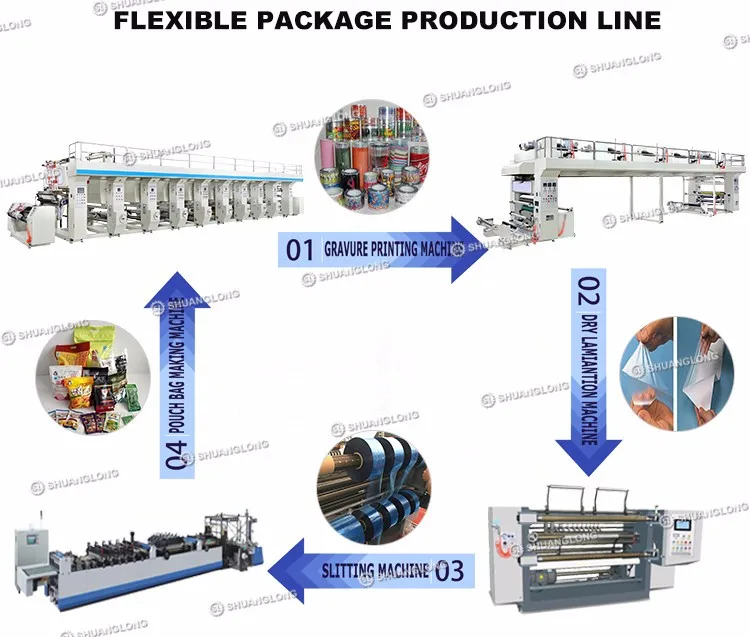

Flexible packages processing line

Customer show

Why choose us -- Wenzhou Shuanglong

1. We have more than 15 years experience;

2. We are manufacturer who have been exported more than 15 countries;

3. Large production capacity that ensures the shipment on time;

4. Quick responses with full attention

5. Sample fee could be returned after the order has been placed.

6. We guarantee our products quality and pre-sales and after-sales service.



                                                                                                      Add to favourite>>>

Packing and Shipping

Packing Details: Packed by pearl cotton and plastic film, some items will packed in wooden ply box

Delivery Time: Within 40-60 days after got deposit



                                                                                             Please contact us now by Clicking Here

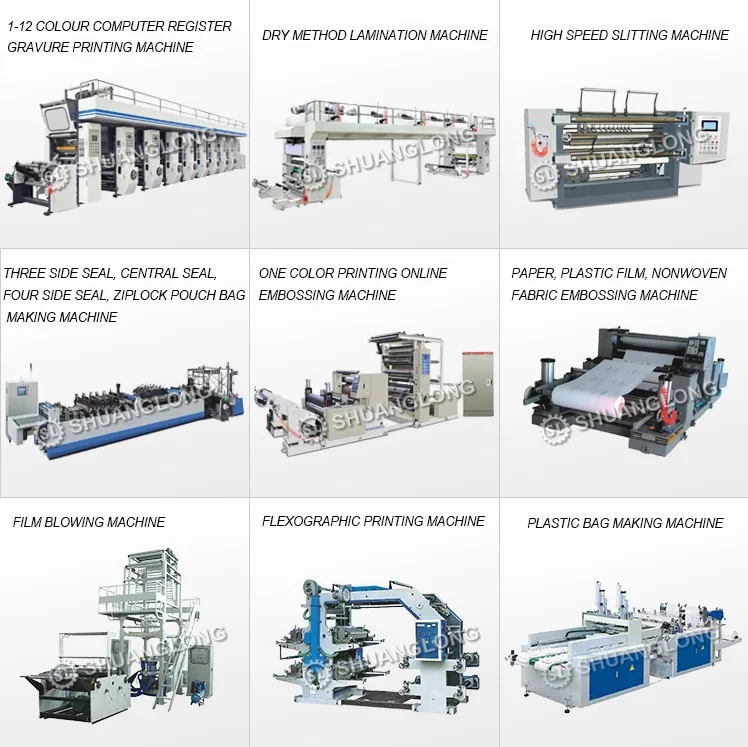

Hot sale products
