Product Description

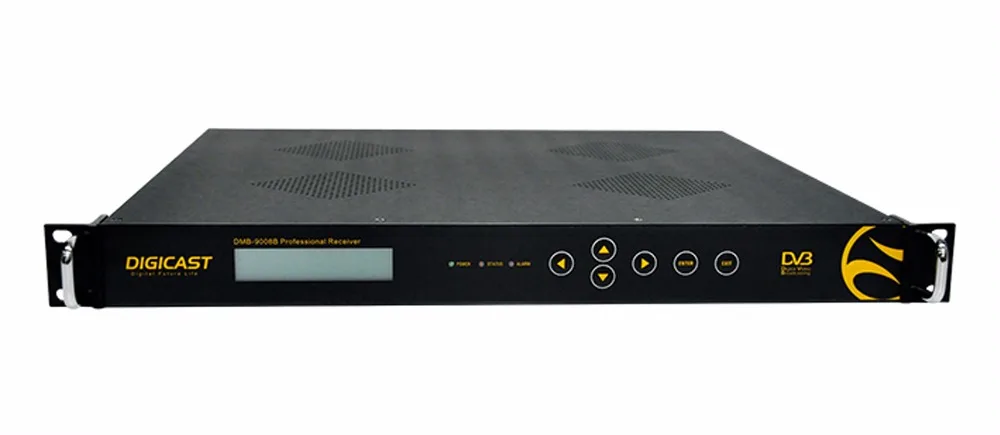

8-CH Professional Receiver

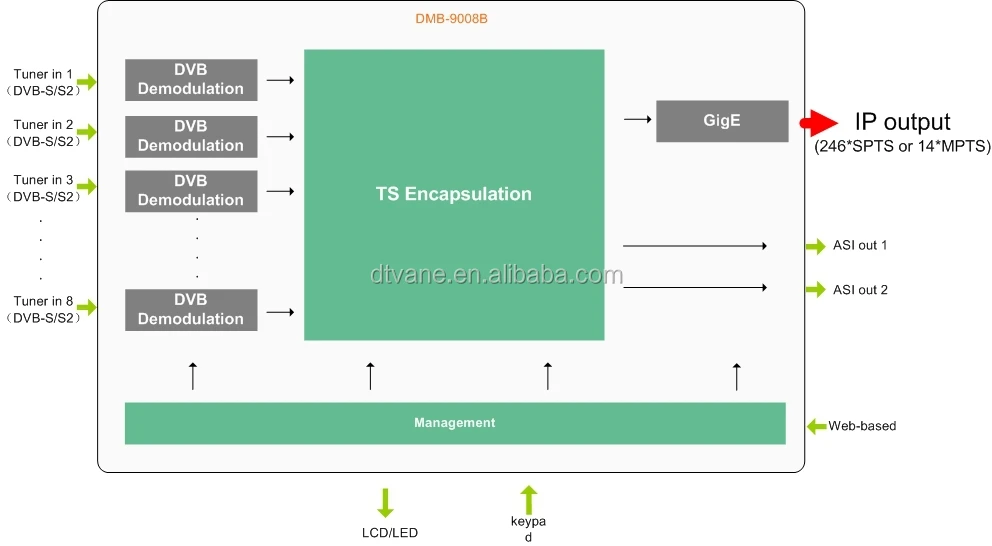

DMB-9008B 8-Channel professional Full HD Satellite receiver works with TS over IP technology. De-modulate the Tuner signals to DVBASI signals, encapsulating TS over IP signals transmission. Meanwhile capable of multiplexing, SimulCryption, DVBCSA scrambling, BISS decryption. This Multichannel Professional Receiver can accept 8*Tuner(DVBS/S2/C/) input signals, demodulate to 2*ASI(independent) output and encapsulate to IP packet, then output 246*SPTS or 14*MPTS over IP addresses or ports. Adopting Gigabit Ethernet interface, DMB9008B 8 Channel Professional IPTV Receiver features high I/O bit rate, powerful correction capability, low error rate, etc.. It has become the bridge between the new generation IP network and traditional DVB network, which is suitable for digital TV , IPTV & OTT headend contribution system.

Features

Tuner inputs support DVBS/S2,DVBT/T2,DVBC,ISDBT/Tb for option

Each Tuner input with loop out interface, for the convenience of next device

Up to 246*SPTS or 14*MPTS output over IP addresses or ports via GigE

IP transmission follows UDP, RTP, ARP, ICMP, IGMP protocol

Capable of multiplexing, SimulCryption, DVBCSA scrambling, BISS decryption.

Realize optimum transmission performance in low latency

Easy and convenient operation, with keyboard on front panel and LCD display

Web-based management!

\t
Specification
\t
Transport Stream Input Interfaces
\t
Tuner Input
\t

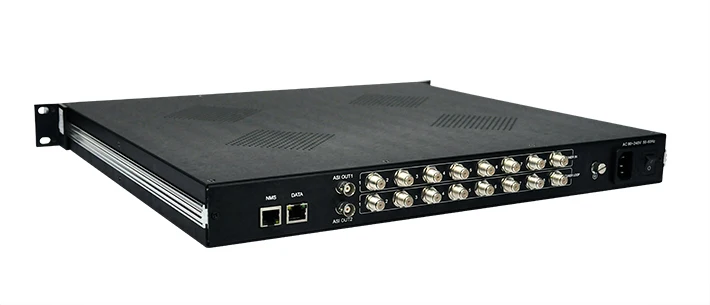

Interface: 8*Tuner(DVBS/S2/C) input and loop out

RF input range: 950MHz~2150MHz(DVBS/S2)

Input level: 65~25dBm

Connector: Ffemale type, 75ohm

Symbol rate: 2~45Msps for QPSK/8PSK

Rolloff factor: 0.35 for QPSK; 0.35,0.25,0.2 for 8psk

Convolution: DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 ;

DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

Standard: DVBS comply to EN300421

DVBS2 comply to EN302307

LNB Power Output: 0V/+DC 13V/18V, Imax=400mA
\t
Transport Stream Output Interfaces
\t
ASI Output
\t
2 x ASI(independent),impendence 75Ω, BNC Female

188/204 Bytes MPEGTS per packet length

Bit Rate≤100Mbps each
\t
IP Output
\t
Output: 246*SPTS or 14*MPTS over IP

Interface: GigE port(100/1000M baseT Ethernet),RJ45

Transmission protocol: UDP, RTP, ARP, ICMP, IGMP protocol

Transmission mode: Unicast or Multicast

TS packet Length: 7 x 188Byte
\t
Transport Stream Processing
\t
Re-multiplexing
\t
Capable of multiplexing, BISS decryption, SimulCryption & DVBCSA scrambling(optional)
\t
GENERAL OPTIONS
\t
Control and Management
\t
Interface: 1*RJ45,10/100 BaseT network interface

Remote control: web-based management

Local operation: keyboard on front panel, LCD display
\t
Physical Parameters
\t
Voltage: 90~260VAC, 50/60Hz

Consumption: 25W

Operating temperature: 0~50°C

Storage temperature: 10~70°C

Relative humidity: 10%~90%(non-condensing)

Dimensions: 430mm(W)×400(D)mm×45mm(H)(19inch,1RU)

Weight: 4 KGS

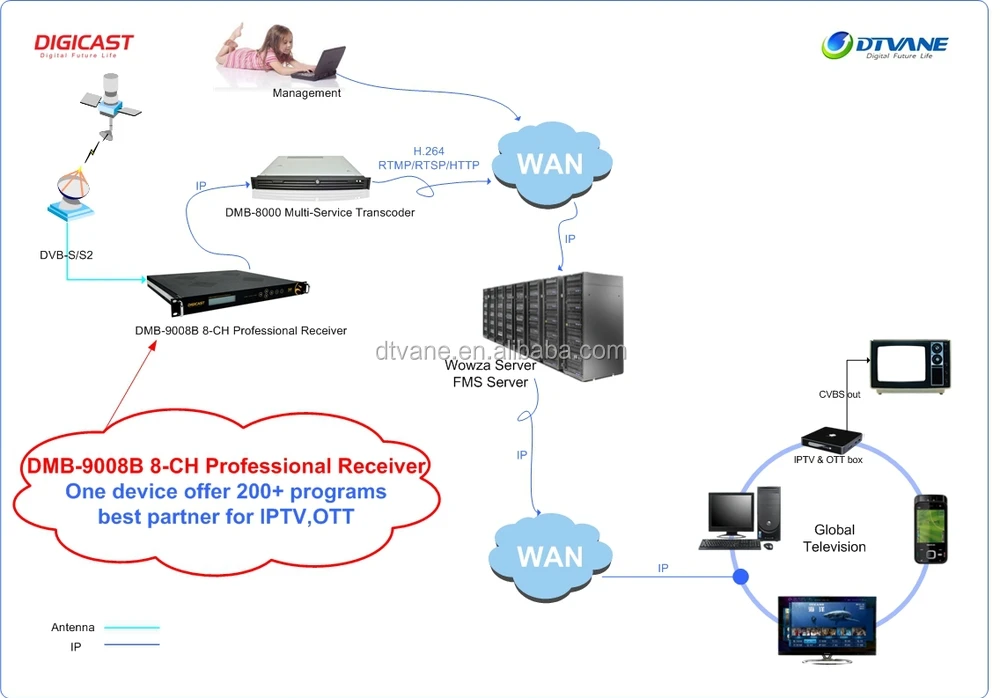

Application
