horizontal drilling machine for pipe(KDP 20 horizontal directional drilling machine,20tons HDD machine)

Product Overview

Description

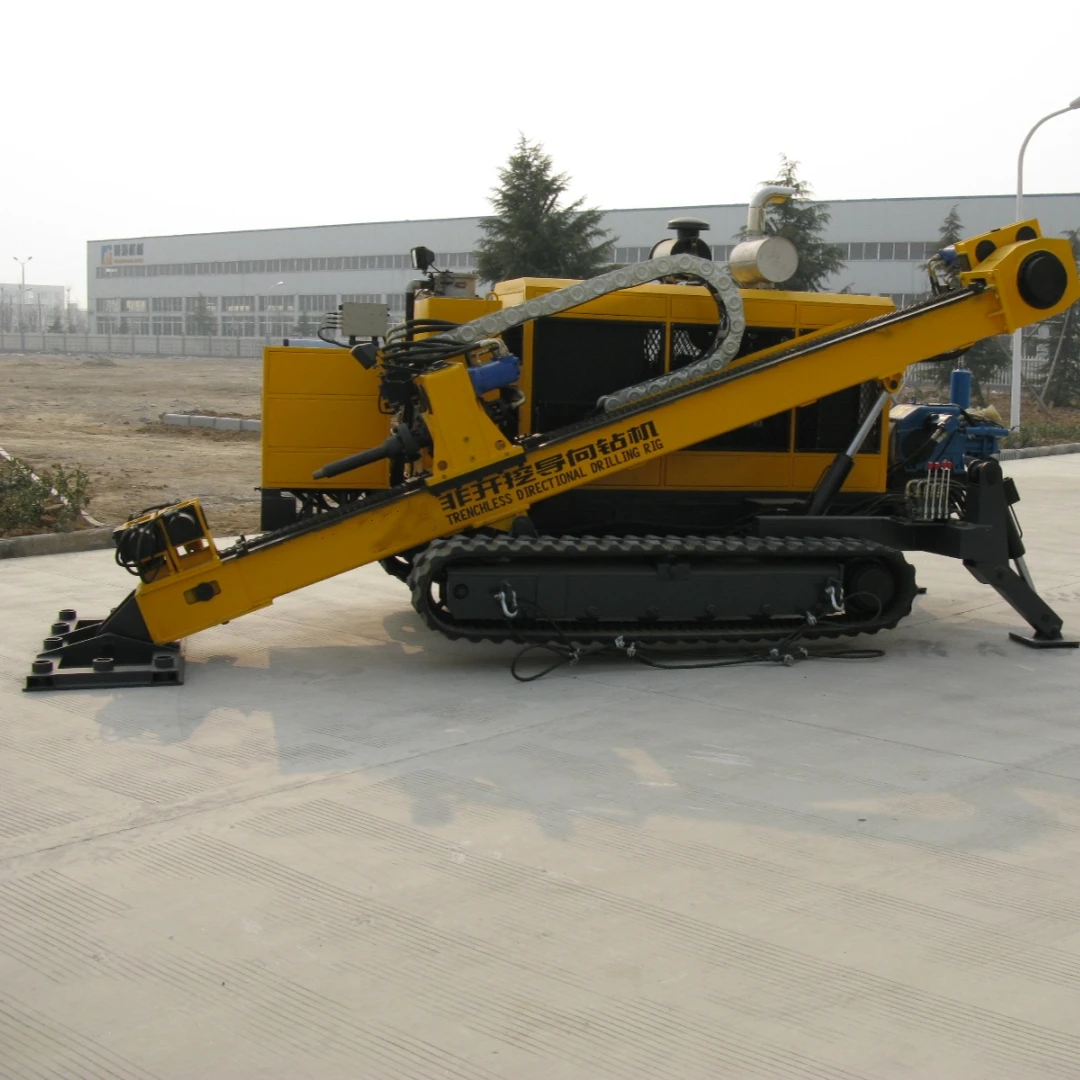

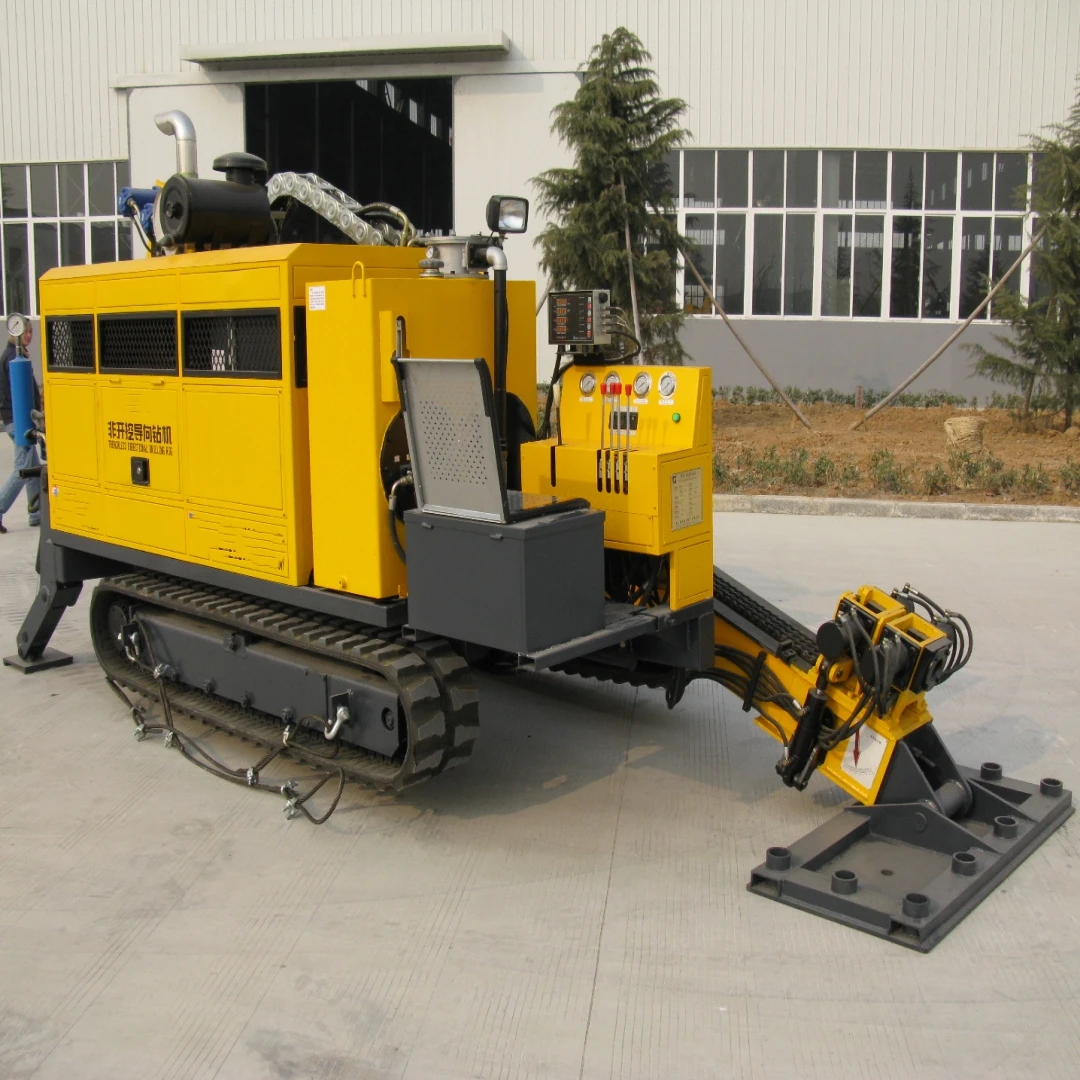

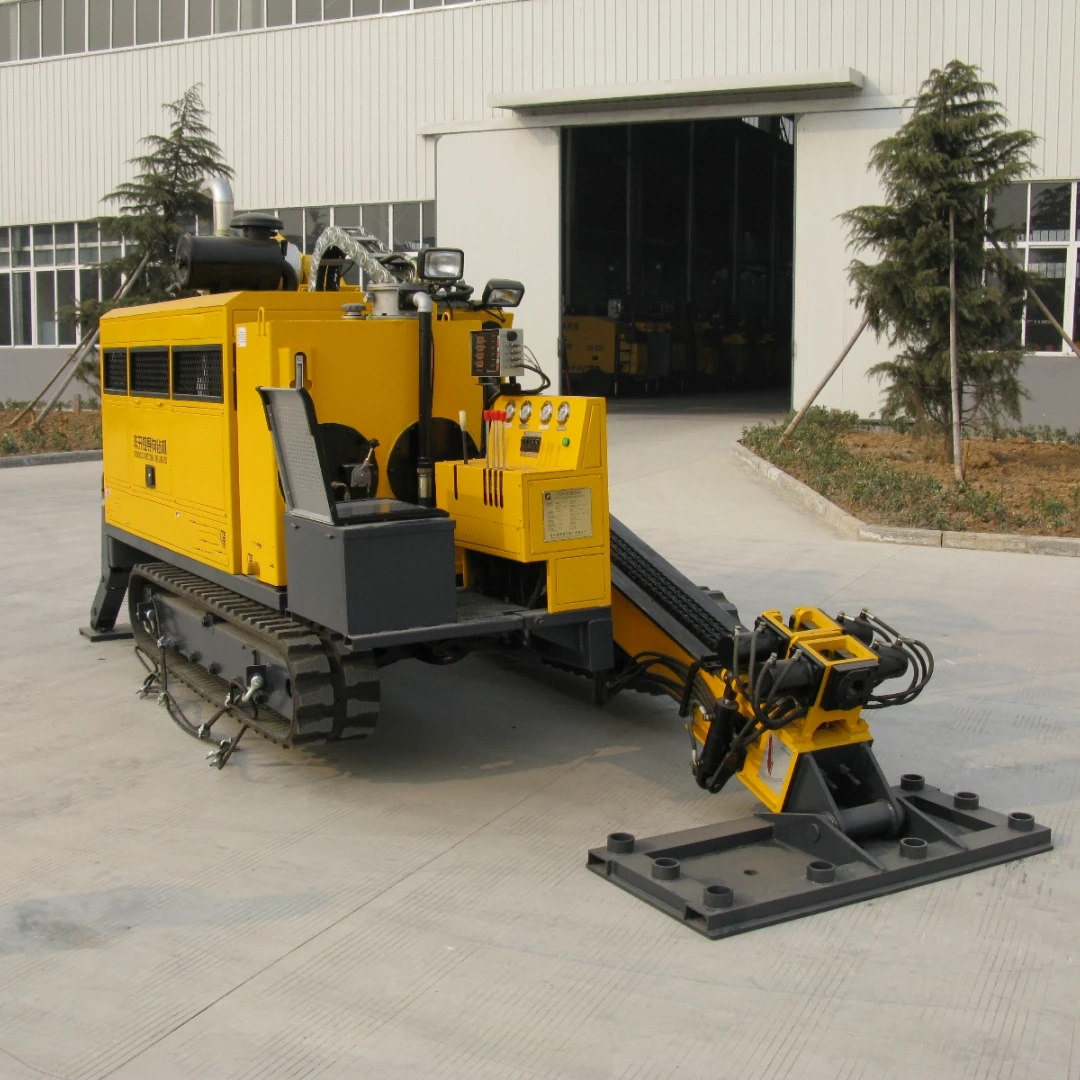

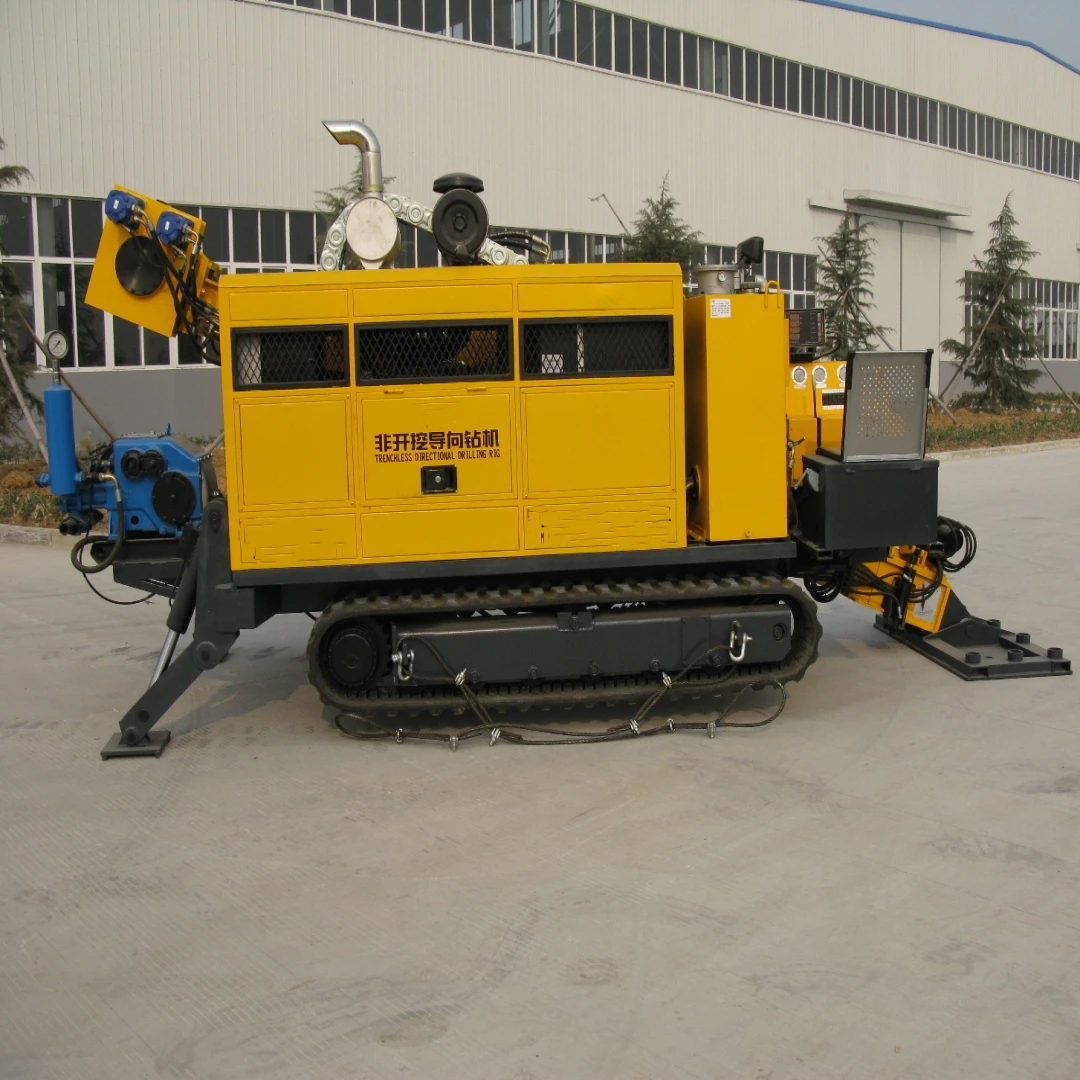

 KDP-20 horizontal directional drilling machine

The KDP-20 is a full hydraulic Horizontal Directional Drilling Rig self-propelled with rubber crawler belts, integrated with power station and main power. It is convenient for moving and powerful of flexibility. Equipped with Cummins diesel engine, the rig is powerful with stable property. Adopting double-motor driven to the power head, the rotation will be steady with large torque. The power head equips with self-float shackle device to reduce the wearing of screw thread of the drilling rod, and then the operation will be easy and stable. All hydraulic hoses are covered into the protecting jacket to increase the service life. Convenient angle-adjusting cylinder, flexible adjusting of incidence drilling angle, adopting motor-chain machanism to the feeding pull-back, the same thrust power and pulling capacity, effect the direction controlling at a long distance easily. Double-holder makes the rod loading and unloading efficient. The KDP-20 rig is with the advantages of full hydraulic driven, centralization control, easy and nimble to operate.

Drill machine
Pullback force (kN)	200
Rated spindle torque force (kN)	6000
Rated pressure (Mpa)	20
Spindle rated rotary speed (r/min)	0-70/0-140 (L/H)
Thrust force (kN)	200
Feed travel distance (mm)	3300
Diesel engine rated power (kW)	110
Travel speed (km/h)	1.6/3.2
Mud pump flow capacity (L/min)	160
Mud pump pressure (Mpa)	8
Entry angle (o)	0-21
Guide hole diameter (mm)	80
Overall dimension (LxWxH) (mm)	5900x2100x2400
Operation weight	6000
Drill rod part
Rotary guide head diameter (mm)	80
Rotary connecting swivel diameter (mm)	120
Drill rod (dia. x length) (mm)	60x3000
Max. pullback diameter by reamer (mm)	420
Guide hole length (m)	300
Reamers (mm)	φ179φ259φ313φ365φ417
Mud pump part
Mud tanker capacity (m3)	1.5
Sludge making capacity (m3/h)	6
Engine rated power (kW)	4
Mixing method	Direct Inject sludge
Overall dimension (LxWxH) (mm)	2400x1300x1681
Operation weight (kg)	6000
