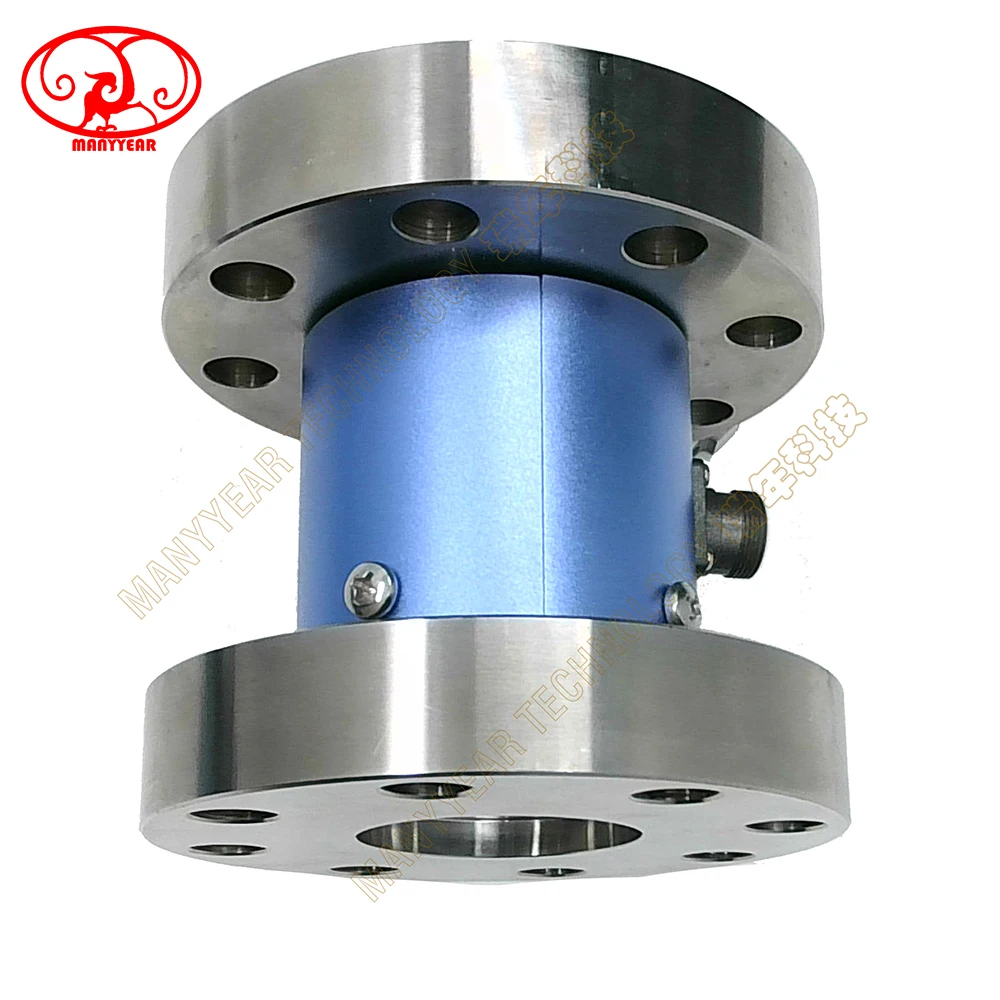

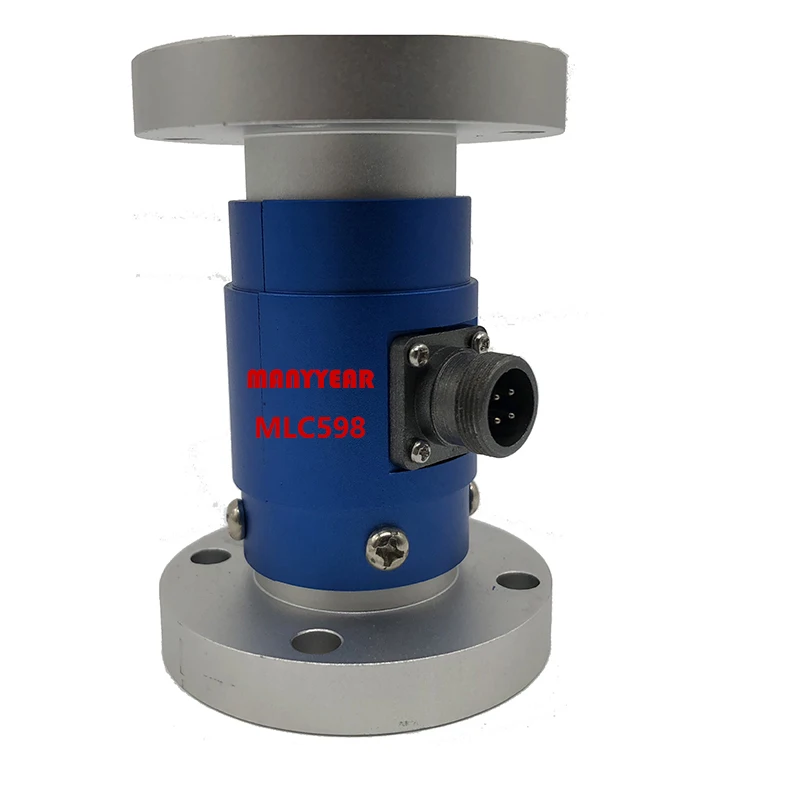

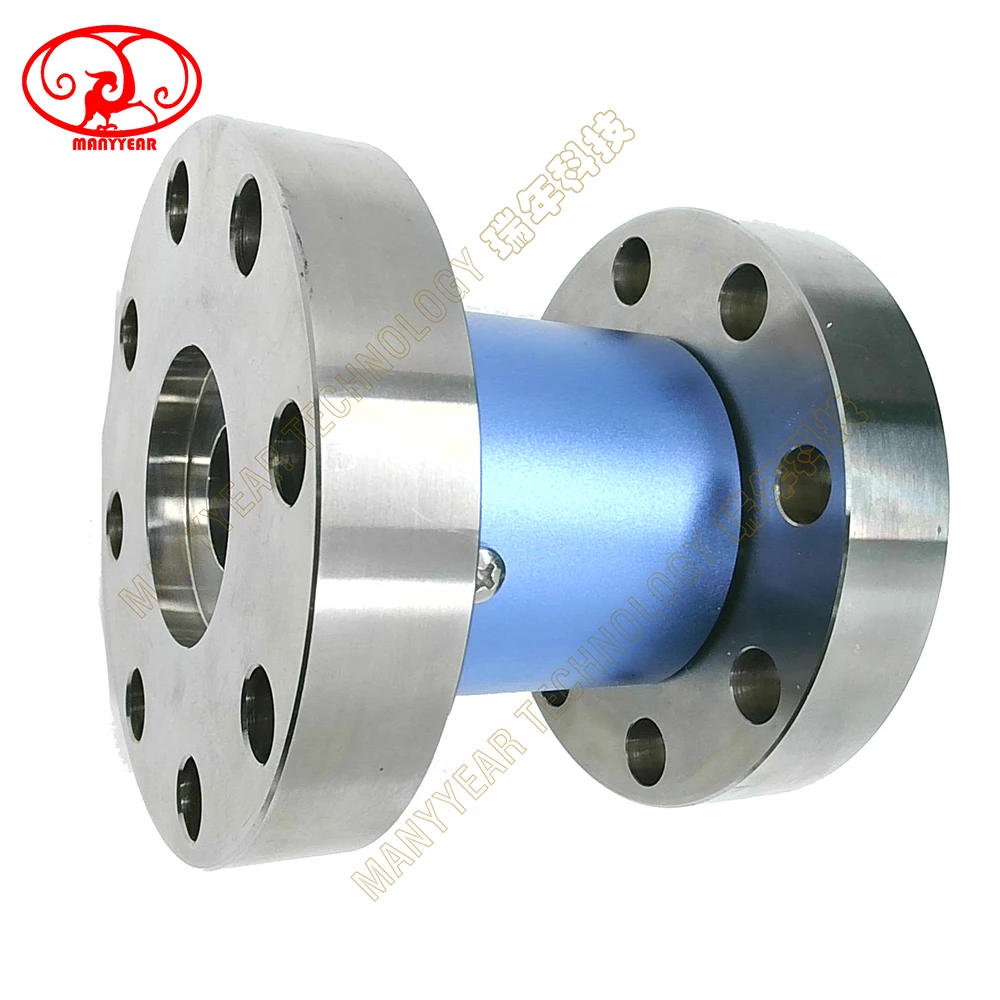

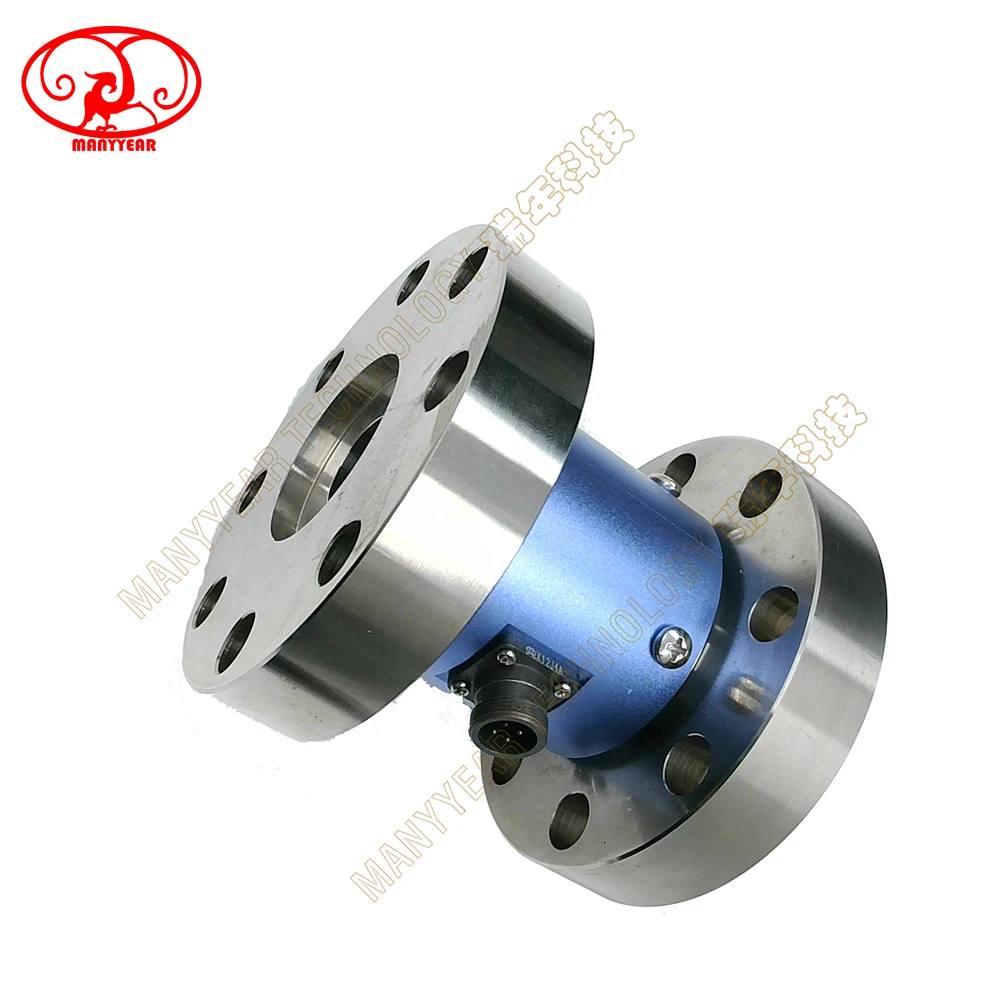

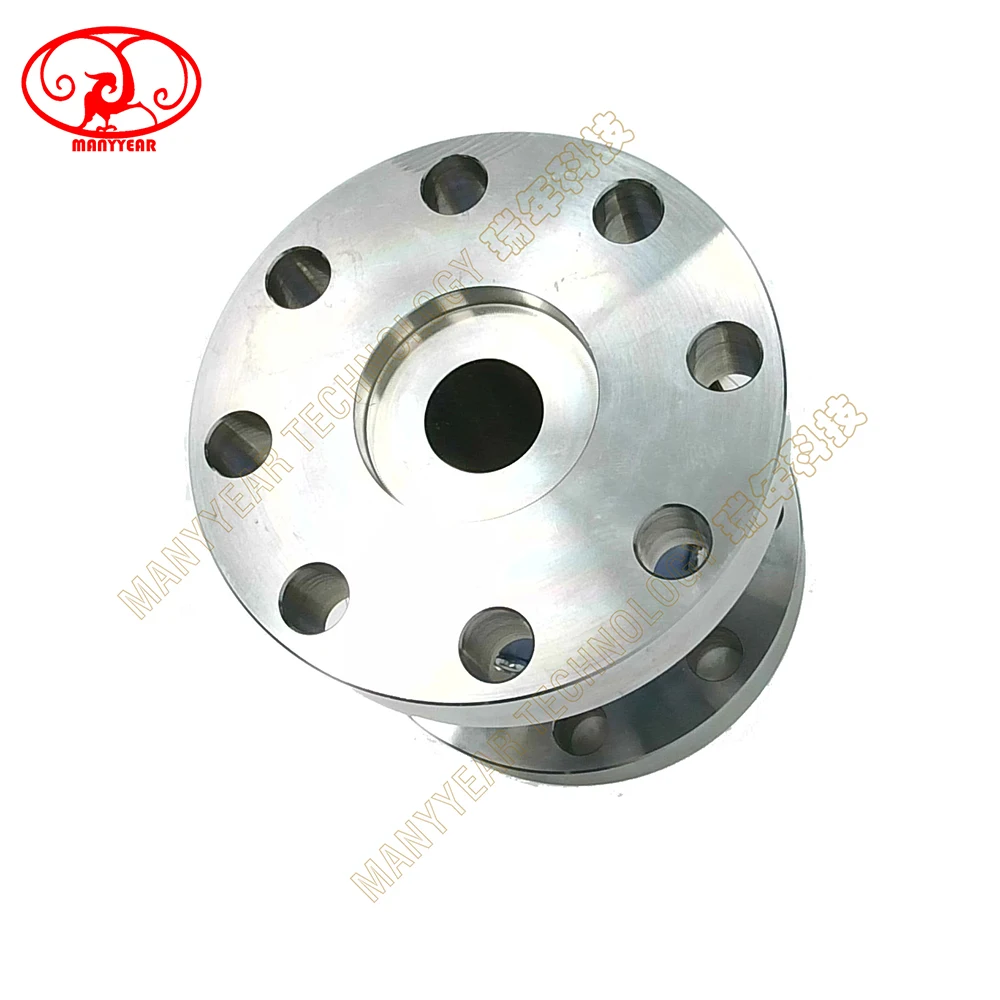

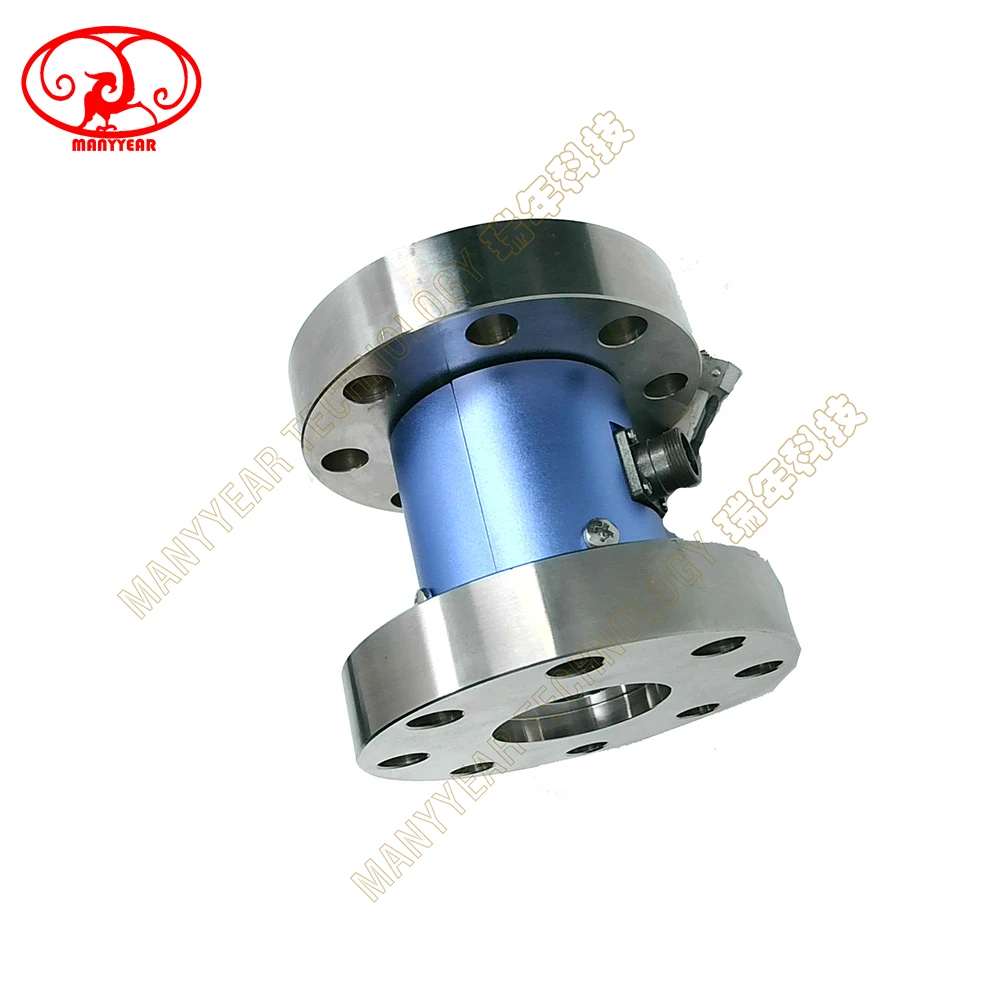

MLC598 Torque testing machine double flange static torque sensor load cell
- Category: >>>
- Supplier: Manyyear Technology Company Limited
Share on (60095854577):
Product Overview
Description
Product Description
torsion test machine double flange static torque sensor load cell
MODEL: MLC598category: Torque Sensr
Range: 0-100Nm,1K,2k,5K 10KNm
Dimension: D125*95mm
Material: alloy steel
Apllication: Static torque measurement, railway locomotive power, car power, tractor power, aircraft power, ship power, mining machinery power, sewage treatment system
Technology Specification
Below spec is only for customer design reference. we can provide ODM product.
Range | 0.5,1,2,,5,10,20,30,50,100Nm | Resonant Frequency | 100μS |
Rated Output | 1.5±10% mV / V | insulation | ≥5000MΩ/ 100VDC |
Zero Output | ±1% F.S. | Work voltage | 10VDC(9-15VDC) |
Nonlinearity | ±0.1，0.3% F.S. | Compensated Temp. | -10 ~ 60℃ |
Hysteresis | ≤±0.05% F.S. | operating Temp. | -20 ~ 65℃ |
Repeatability | ≤±0.05% F.S | Safty overload | 150% F.S. |
Creep | ≤±0.03% F.S/30min | Ultimate overload | 200% F.S. |
Ratedoutput drift by temp. | 0.03% F.S. / 10℃ | Wire | Ø5.2×3m |
Zero drift by temp. | 0.03% F.S. / 10℃ | Electric connect | RED/E+，BLK/E-，GRN/S+，WHT/S- |
Input resistance | 350,750±10Ω | Material | aluminium，stainless steel or alloy steel |
Output resistance | 350,700±5Ω | Others | Customizabler |

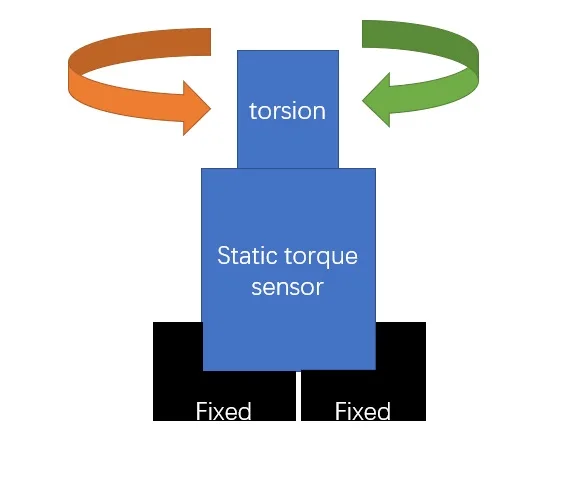

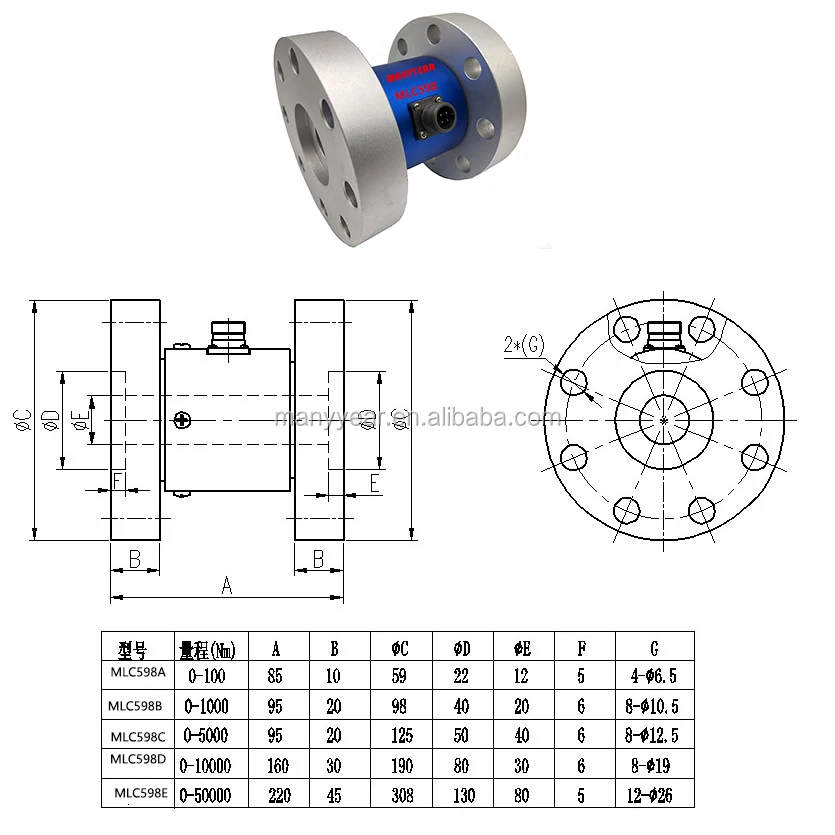

Product Assembly Structure
Blow force structure is for reference.
Product Process

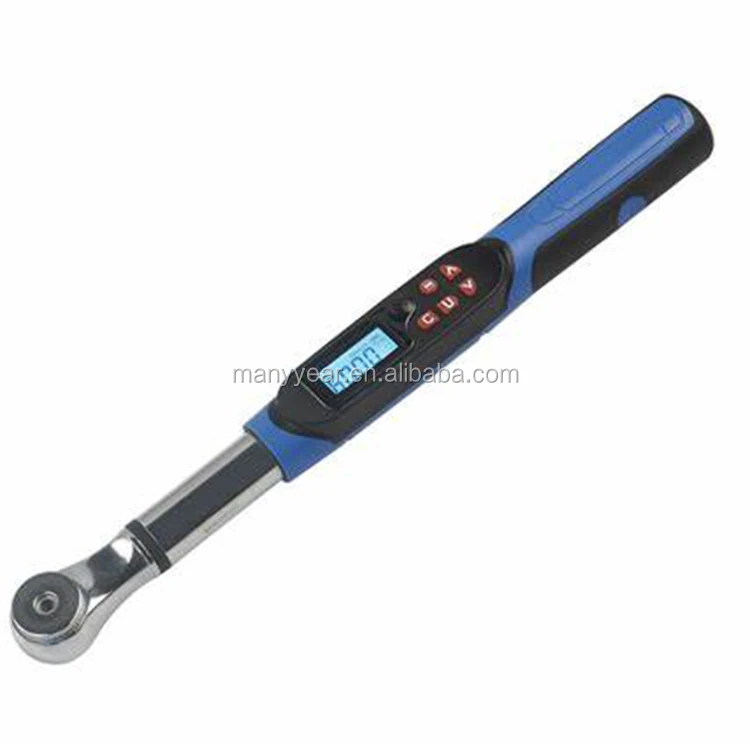

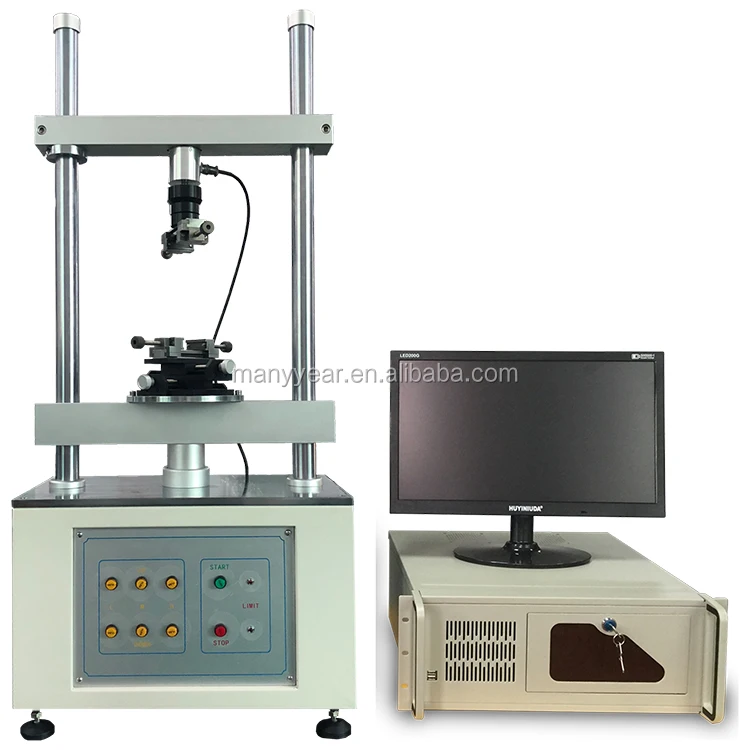

Product Application
Delivery and Shipment
