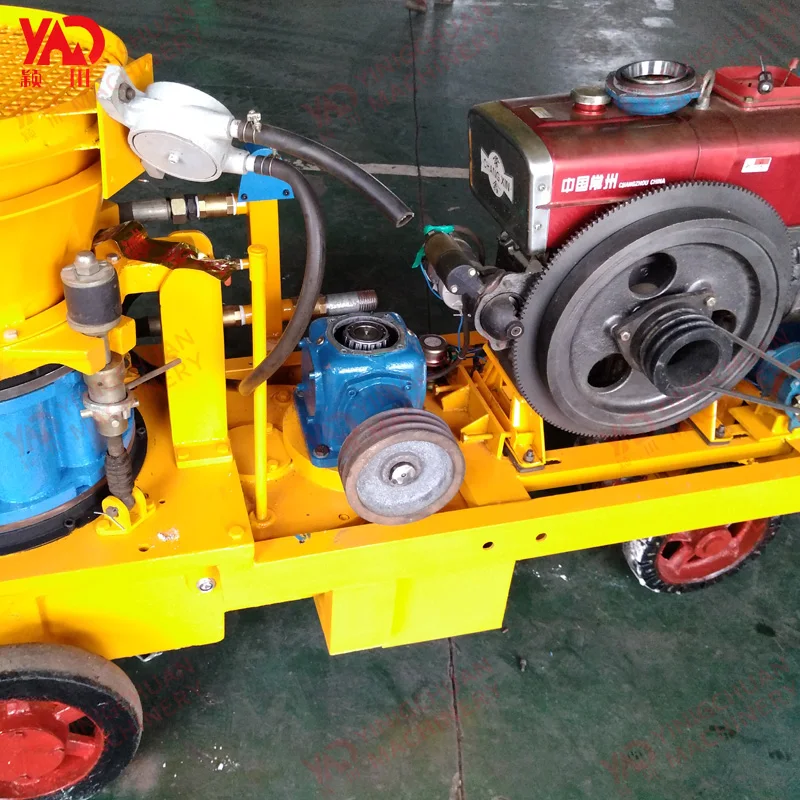

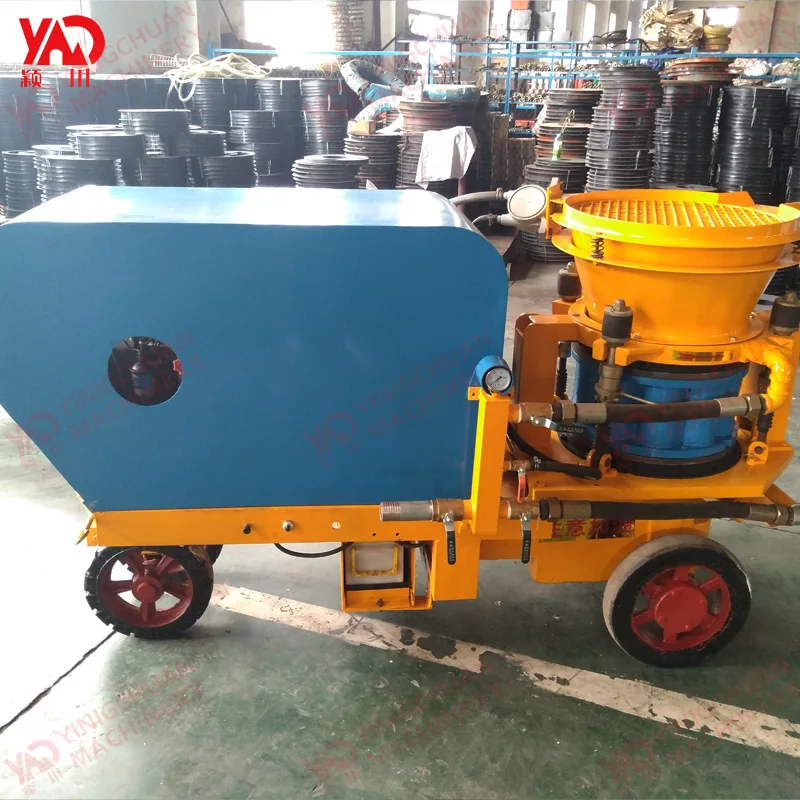

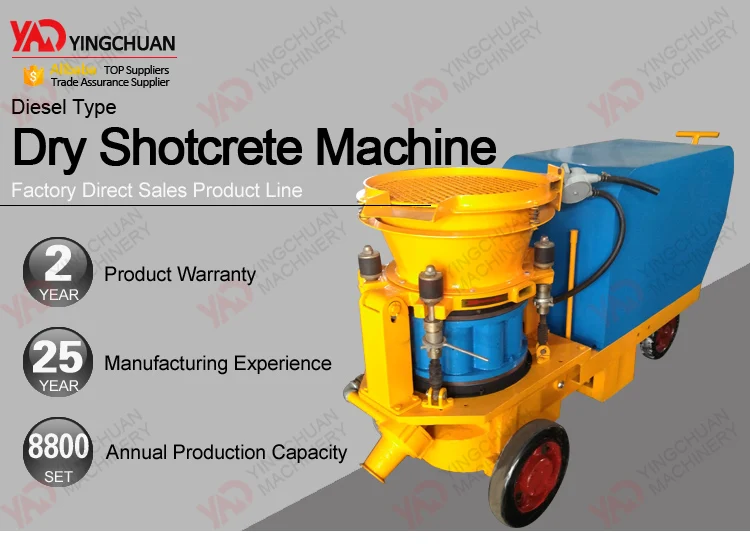

PZ 5 dry mix gunite diesel engine shotcrete machine concrete sprayer

Product Overview

Description

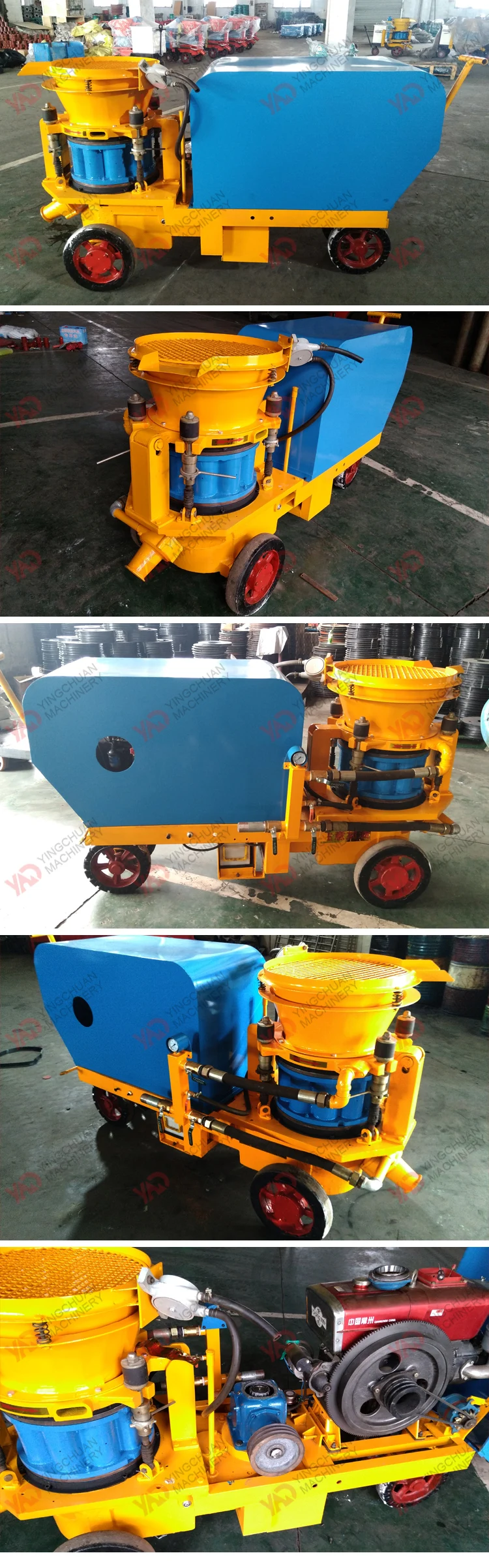

PZ-5 dry mix gunite diesel engine shotcrete machine concrete sprayer

Technical Parameters:



Model	PZ-5 Diesel	PZ-7 Diesel
Output	5m3/h	7m3/h
Max. Convey Distance	Horizontal:200m Vertical: 20m
Water Cement Ratio	≤0.4	≤0.4
Max. Aggregate Size	Ø 20mm	Ø 20mm
Hose Inner Diameter	Ø 51mm	Ø 64mm
Rotor Diameter	Ø 438mm	Ø 480mm
Operating Air Pressure	0.2~0.4MPa	0.4~0.6MPa
Air Consumption	8-10m3/min	10-12m3/min
Motor Power	18HP	20HP
Voltage	380V or as your request(can be customized)
Dimension (mm)	2200*960*1200	2660*1110*1500
Net Weight	850 Kg	950 Kg
Wheel	Rubber Wheel / Skid Wheel / Rail Wheel



1. Factory service direclty

2.we are looking for agent all over the world ,and we offer special price for our agent

3.OEM and ODM accept,and our machines come with 1 year quality warranty



 The main advantage of this technology of spraying concrete is, in particular, its top rate of discharge from the jet (up to 30 m/s) which enables perfect consolidation of the concrete mixture and high strength of the sprayed concrete. Another important feature is the long distance transfer which enables the application of concrete mixture at hard to access places (up to 200 m horizontally and 20 m vertically).



We have the professional production line for the main wearing parts about shotcrete machine:

1.Delivery Rubber Hose: More durable than normal kind rubber pipe, weaved by the quality steel wire, high resist compression ability, high wear resistance.

2.Rubber Sealing Plate: Adopt nature rubber, working time can meet 400m3.For the normal kind can only meet 130m3.

3.Rotor Disk: Casting by quality carbide tools, The working time is 3-5 times than normal kinds, and can meet 600-800m3, it's prefect for the rotor type shotcrete machine.



Warm tips: Shotcrete machine wearing parts, please prepare more original accessories when purchasing machine.



Standard export package,fumigation-free wooden case to protect the machine from long-distance delivery.



1000 sets/month







Shotcrete machine Application:

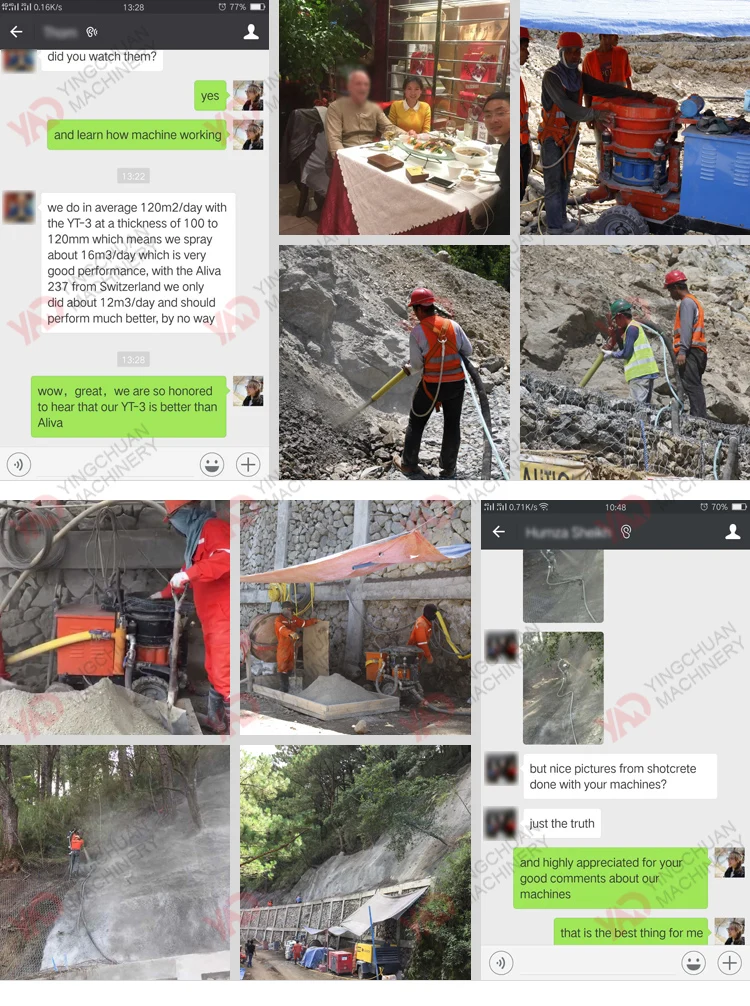

Shotcrete machine are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc.

It has many obvious advantages such as simple structures, easy operation and convenient after sales service and very long serviceable life etc.

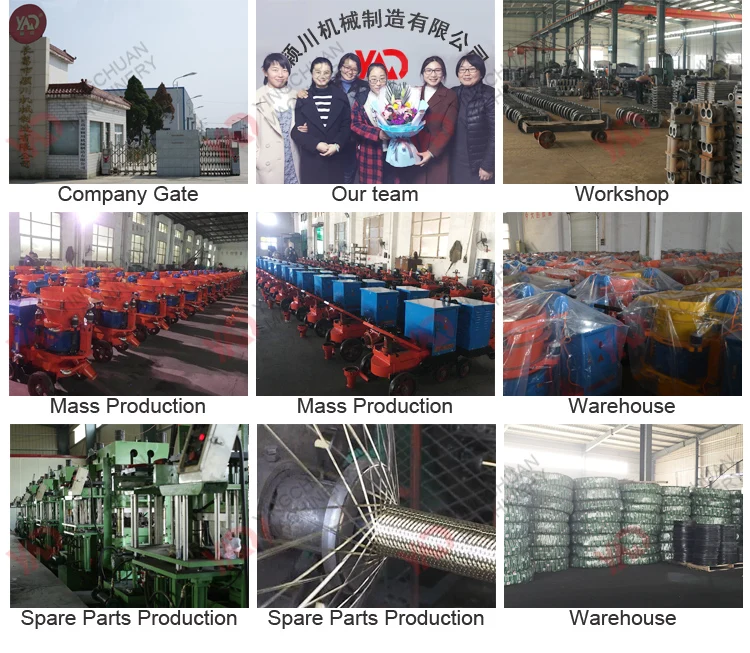

Standard production, strict and regulate assembly line work, strict quality control and inspection.

 Professional sales and after sale service team, timely and efficiently to solve your problem.





Our company goes through the international BV certification authority, and we have the ability to provide you the products with reliable quality, competitive price and timely service.

Sincerely welcome you to visit, consult and negotiate business.

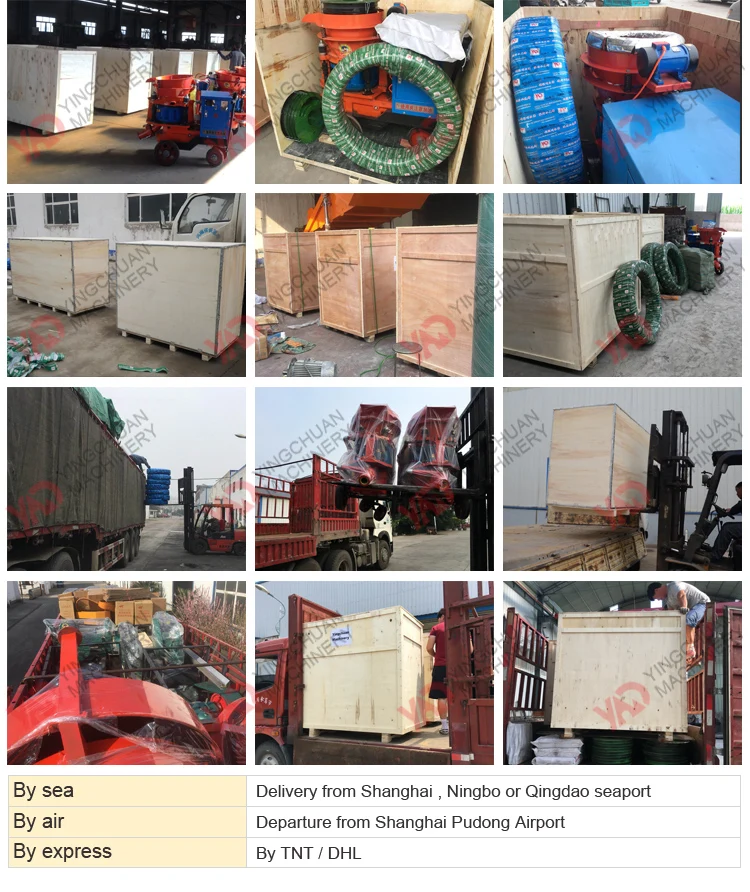

Packaging :
Free fumigation safe Wood case package.

MOQ
1set can be acceptable for trail order.

Over 3sets can have wholesale price. Welcome to join us as our sales agent in your market.

OEM and ODM
changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable

QC
Third party inspection : acceptable
1 year guarantee for quality problems



Delivery time:

1 week for our own design.(motor:380v 50hz 3phases)

15-25days for customized model.

Payment :
TT, 30% deposit ,70% before shipment.
L/C at sight (high bank charge, not suggest , but acceptable )
100%TT in advance (specially for air shipment or small amount)

Available shipment by :
FOB Qingdao

FOB shanghai
