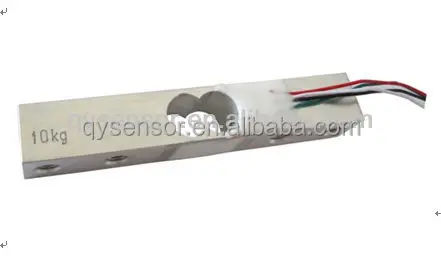

10kg,20kg,50kg,100kg, 200 kg Jewelry scale mini parallel beam load cell for personal scale QL 55

Product Overview

Description

Specifications

1.Capacity :0.5 kg to 200 kg 2.High accuracy load cell 3.Aluminum parallel beam

QL-55 load cell are available in the capacities from 0.5 kg to 200 kg.

Aluminum construction with parallel beam type.

Silicon adhesive sealed, surface anodized and anti-corrosion.

Integral structure and easy installation.

Suitable for electronic balance, electronic platform scale and other electronic weighing devices.





 Features:

 1.Capacity :0.5 kg to 200kg

 2.High accuracy.  3.Aluminum parallel beam

 4.Max. platform size:450x450mm

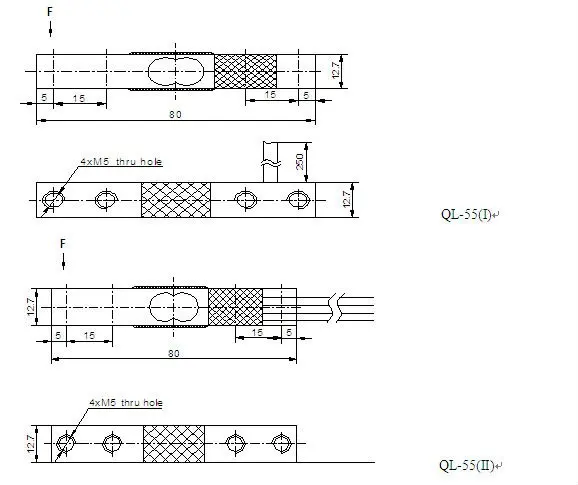

Electrical connection and Dimensions:

 <img src="https://sc01.alicdn.com/kf/He04a2561f2704132b458c86948af7684w.jpg" alt="QL-55 micro load cell for pensonal scale" ori-width="578" ori-height="485">







Technical Specifications

Specifications:
capacity	kg	QL-55: 0.5, 1, 2, 3, 5, 10, 20, 30, 50,
		QH-55:  20, 30, 50, 80, 100,150,200
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	1.0 ± 0.1
excitation voltage	Vdc	5 ~ 12
combined error	%FS	± 0.05
zero unbalance	mV/V	± 0.1
non-linearity	%FS	± 0.05
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.03
creep	%FS/5min	± 0.05
input resistance	Ω	1090 ± 50
output resistance	Ω	1000 ± 10
insulation resistance	M Ω	≥ 3000 @ 50 Vdc
operating temperature range	°C	-20 ~ +55
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.05
temperature coefficient of ZERO	%FS/10°C	± 0.05



Electrical connection:

Excitation+ red     Excitation- black   Signal+ green   Signal- white

Four-core shielded cable with polyethylene. Cable is not connected with elastomer.

Cable length:250 mm ±20 mm

Cable diameter :3 ±0.2 mm

The cable length could be chose by customer’s application.



Ordering code: model (QL- Aluminum alloy, QH-Alloy steel)-range- rated output-accuracy-defend grade-cable

        Example:QL-55-2kg-1.0mV/V-0.05%FS-IP65-as customer’s application
