47~862MHz CATV Optical Receiver for FTTH
H9122
Product description

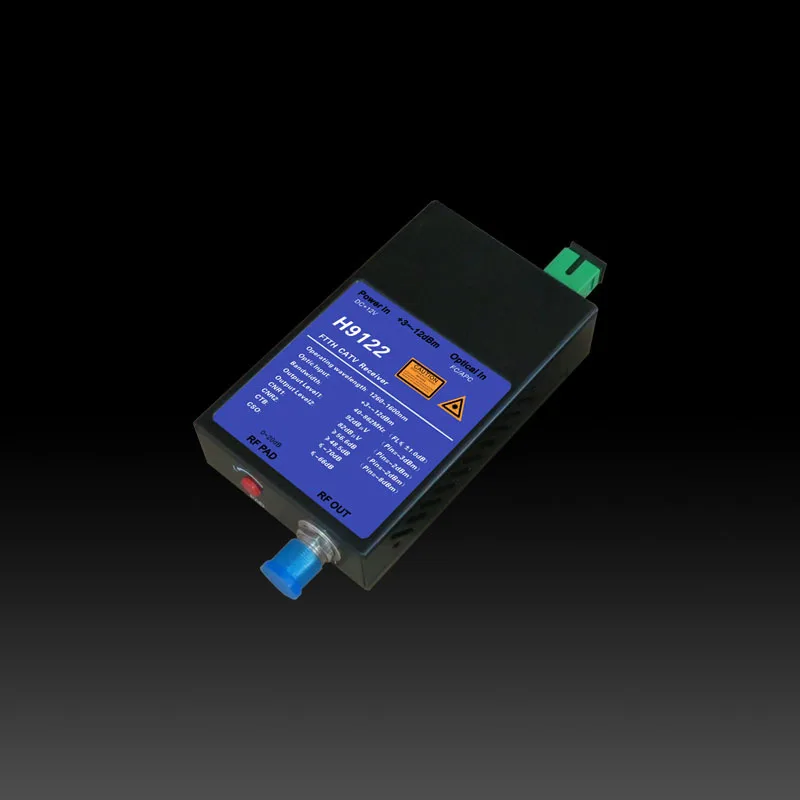

Huatai H9122 product series, CATV Optical Receiver for FTTH ,47~862MHz operate bandwidth, output level Vo=82dBμV (Pin=-2dBm), suitable for FTTH optical fiber access network, which is a low power consumption, high performance, and excellent cost performance RFTV broadcast network ONU(Optical network unit).
Triple play, fiber to the home, using the H9122 can save a lot of optical fiber amplifier power resources. For operators, can greatly reduce the cost of building the network.
Product feature
- Extra-low noise(3.8% modulate, -10dBm receive, CNR ≥ 45dB)
- All receiving optical power in the range of +3dBm to -12dBm has good linearity
- In the range of 47~862MHz, all have good flatness (FL ≤± 1.0dB)
- Metal shell, supply safeguards to opto-electrical sensing device
- High output level can supply for many users
- Low power consumption, high cost performance
Main application
- CATV FTTH
- Integration of three networks
- FTTH PON
Technical Index
Performance | Index | Supplement | ||
Optic feature | CATV work wavelength | (nm) | 1260~1620 | H9122 |
1540~1563 | H9122/WF, H9122/WD | |||
| Pass wavelength | (nm) | 1310, 1490 | H9122/WD | |
| Channel Isolation | (dB) | ≥40 | 1550 &1490nm | |
| Responsibility | (A/W) | ≥0.85 | 1310nm | |
≥0.9 | 1550nm | |||
| Receiving power | (dBm) | +2 ~ -10 | Analog TV (CNR>45dB) | |
+2 ~ -20 | Digital TV (MER>28dB) | |||
| Optical return loss | (dB) | ≥55 | ||
| Optical fiber connector | SC/APC | H9122, H9122/WF | ||
LC/APC | H9122/WD | |||
RF feature | Work bandwidth | (MHz) | 47 ~ 862 | |
| Flatness | (dB) | ≤±0.75 | 47 ~ 862MHz | |
| Output level | (dBμV) | >82 | Analog TV (Pin=-3dBm) | |
>64 | Digital TV (Pin=-16dBm) | |||
| Output level adjust | (dB) | 0 ~ 18 | MGC | |
| Return loss | (dB) | ≥14 | 47 ~ 862MHz | |
| Output impedance | (Ω) | 75 | ||
| Output port number | 1 | |||
| RF tie-in | F-Female | F-male optional | ||
Analog TV Link feature | Test channel | CH | 59CH(PAL-D) | NTSS/80CH |
| OMI | (%) | 3.8 | ||
CNR1 | (dB) | 54.6 | Pin=-2dBm | |
CNR2 | (dB) | 48.9 | Pin=-7dBm | |
CTB | (dB) | ≤-65 | Pin:0~-10dBm | |
CSO | (dB) | ≤-65 | Pin:0~-10dBm | |
Digital TV Link feature | MER | (dB) | ≥37 | Pin : +2.0~-13.0dBm |
≥36 | Pin = -15.0dBm | |||
≥29 | Pin = -20.0dBm | |||
| BER | (dB) | <1.0E-9 | Pin :+2.0~ -20.0dBm | |
General feature | Power supply | (V) | DC+12V | ±1.0V |
| Power Consume | (W) | ≤3 | +12VDC, 210mA | |
| Work temp | (℃) | -20 ~ +50 | ||
| Storage temp | (℃) | -40 ~ 85 | ||
| Work relative temp | (%) | 5 ~ 95 | ||
| Size | (mm) | 48×88×22 | A Type | |
59.5×98×24 | B Type | |||
