Product Overview
Description

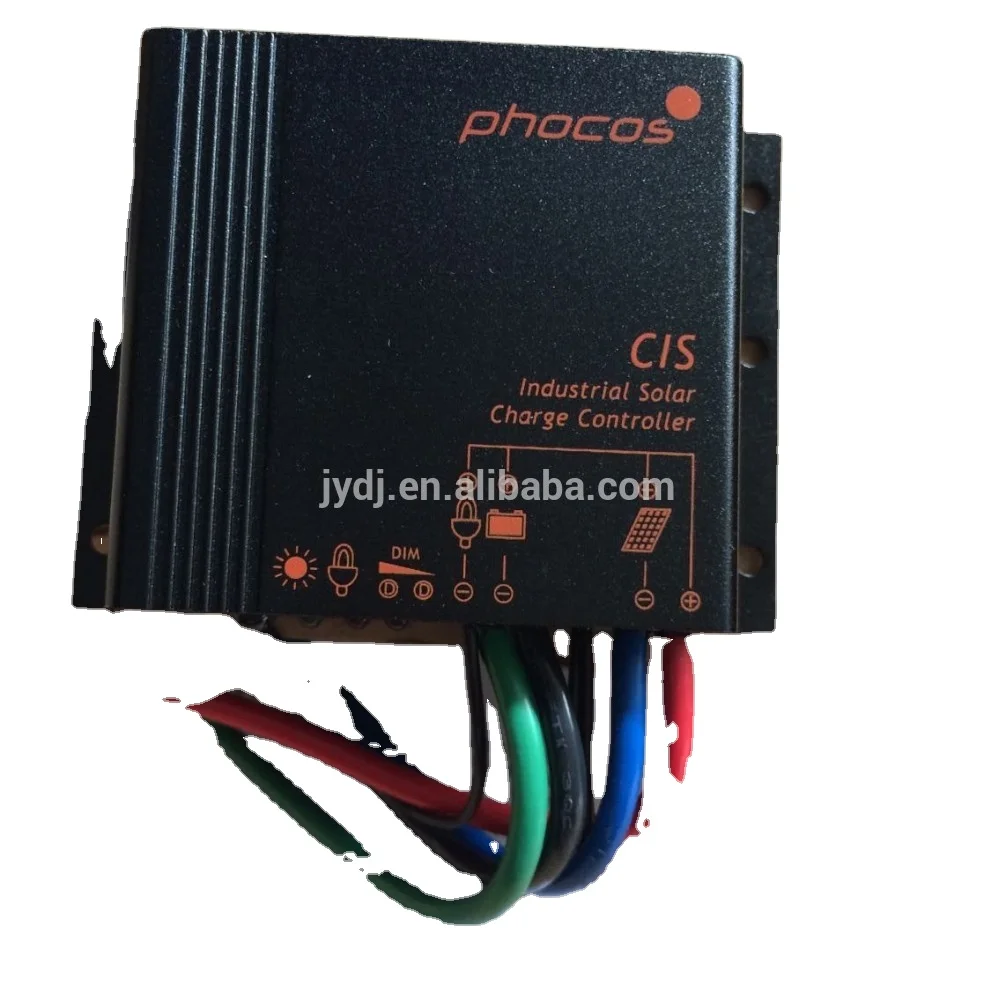

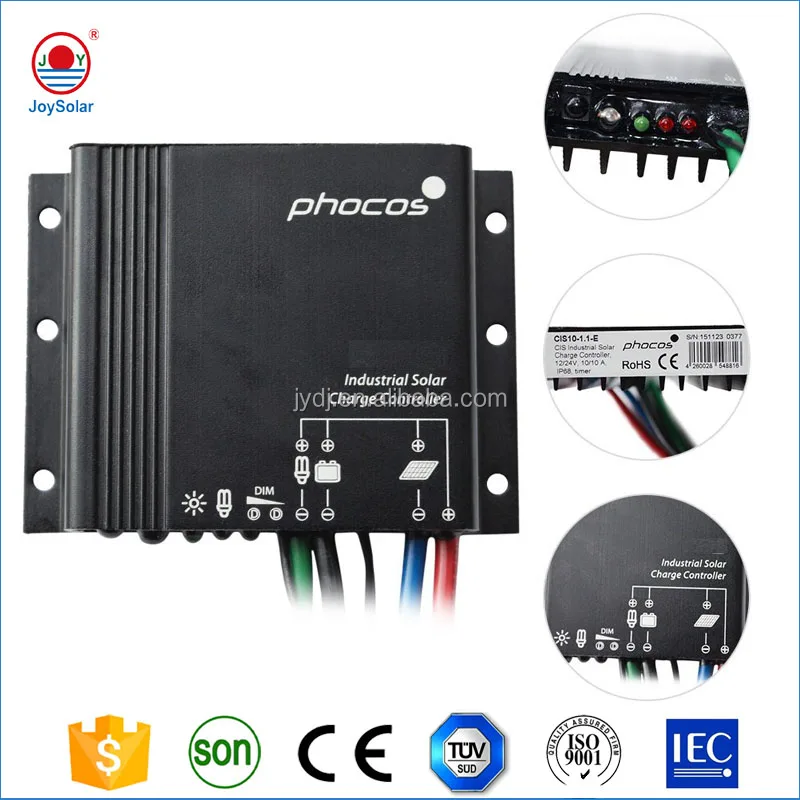

12v solar panel charge controller / 12 volt 20 amp solar charge controller
Phocos 5A/10A/20A IP68 Street solar cha wind solar hybrid controller rger
controller
We (joysolar) are sales agent for Germany brand Phocos for solar controller , inverter, battery ....

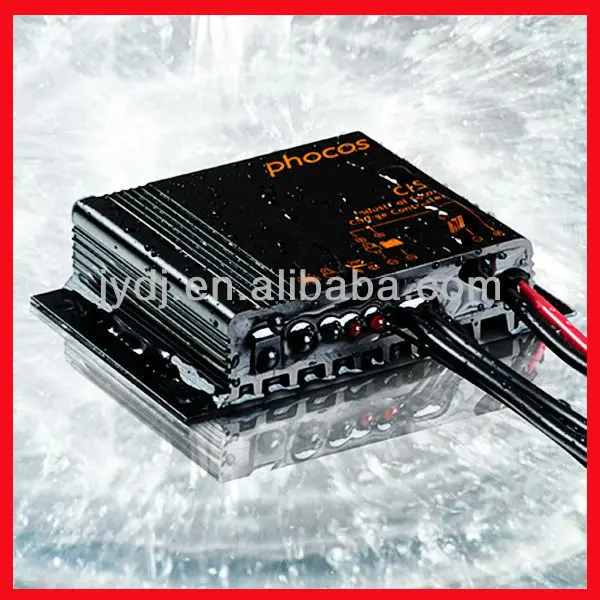

Solar Charge Controller w/ Lighting Control
The CIS controller was especially developed to deliver optimum performance in industrial PV systems in demanding environments. It features 4-stage, series-switching PWM charge regulation and is fully programmable via infrared devices (CIS-CU or MXI-IR and CISCOM software).
The CIS controller includes convenient and advanced lighting control, which allows the user to decide whether they want the automatic lighting control with LED dimming to be time or low-voltage activated.
Type | CIS 05 | CIS 10 | CIS 20 |
System voltage | 12/24 V auto recognition | ||
Max. charge/load current | 5A | 10A | 15A |
Float charge | 13.8/27.6 V (25 °C) | ||
Main charge | 14.4/28.8 V (25°C), 30 min. (daily) | ||
Boost charge | 14.4/28.8 V (25 °C), 2 h | ||
activation: battery voltage < 12.3/24.6 V | |||
Equalization | 14.8/29.6 V (25 °C), 2 Std | ||
activation: battery voltage < 12.1/ 24.2 V (at least every 30 days) | |||
|
| ||
Cut-off voltage | 11- 12 V / 22- 24 V | ||
Reconnect level | 12.8/25.6 V | ||
Overvoltage protection | 15.5/31.0V | ||
Undervoltage protection | 10.5/21 V | ||
Max. panel voltage | 55 V
| ||
(Overvoltage protection by varistor) | |||
Temperature compensation | −25 mV/K at 12 V | ||
(Charge voltage) | −50 mV/K at 24 V | ||
Max. self consumption | 5-8 mA at 12 V | ||
6 -10 mA at 24 V | |||
Grounding | positive grounding possible | ||
Ambient temperature | −40 to +60 °C | ||
Max. height | 4,000 m above sea leve | ||
Battery type | lead acid (GEL, AGM, flooded) | ||
Adjustment range: |
| ||
Evening/morning hours | 0 -15 h / 0 -14 h | ||
Night/day detection | 2.5 -10 V | ||
Wire length | 10 cm | ||
Wire cross section | 1.5 mm2 | 1.5 mm2 | 2.5 mm2 |
Type of protection | IP68 (1.5 m, 72 h) | ||
Technical data dimming output | CIS 05 | CIS 10 | CIS 20 |
Dimming value | 0-100% output power | ||
Dimming output voltage | 0 -5 V (max. 1 mA) | ||
phocos solar controller/phocos charge controller
1.CIS 5A 10A 20A
2.phocos solar controller
3.PHOCOS agent in qingdao
Product Features
- Works in 12 or 24 V systems (auto recognition)

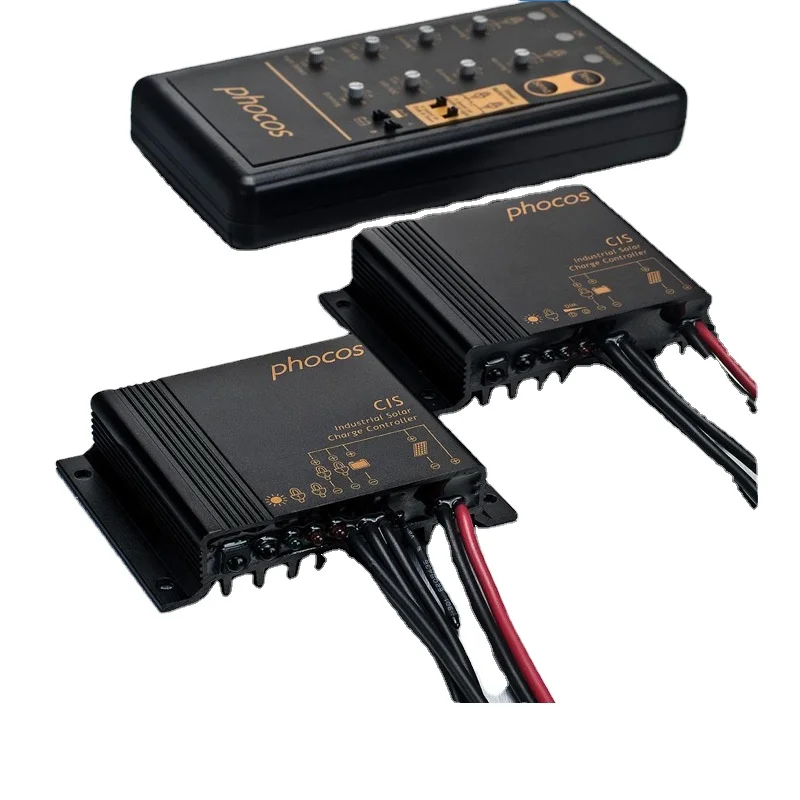

- Fully programmable charge/discharge program via infrared (CIS-CU or MXI-IR and CISCOM software)
- Timed and low-voltage dimming settings
- Dimming interface for external LED drivers

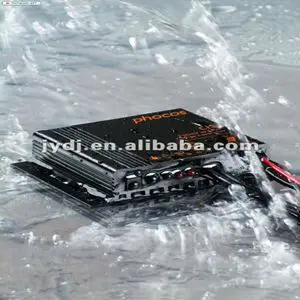

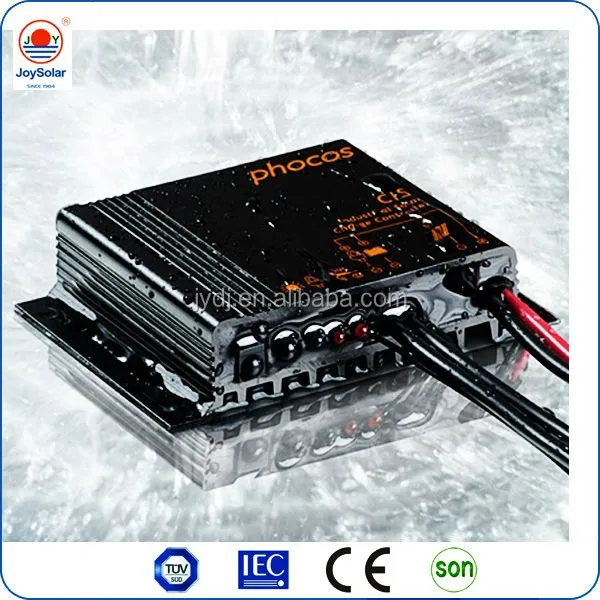

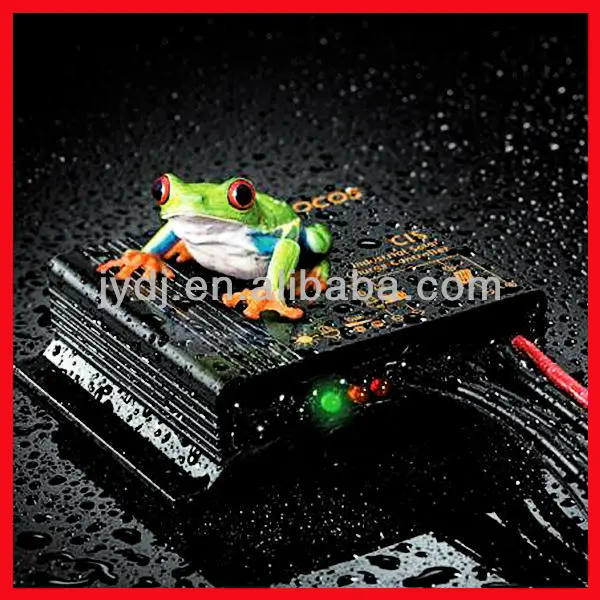

- Fully potted (IP68) aluminum housing
- UL1741/Class I Div. 2 certified
- Infrared-programmable load timing feature with dimming, ideal for lighting systems
- Compatible with Lithium batteries (no BMS communication)

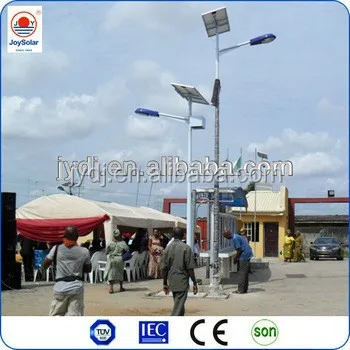

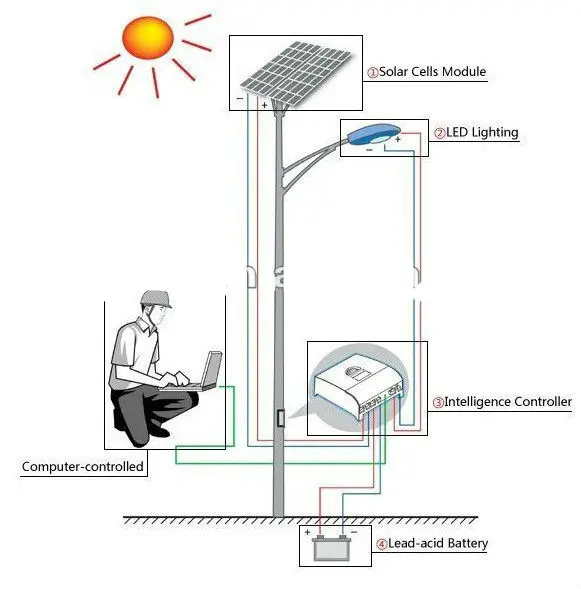

The controller Used for solar street light
wind solar hybrid controller / 12v 24v wind generator charge controller 12v 24v CIS 5A 10A 20A
Our models offer these advantages:
- CML: Designed for rural electrification and mobile device charging
- ECO: Compact size and economical choice for low-power industrial applications
- CXN: Advanced features and intelligence for industry and lighting applications
- CIS: Built for the harshest environments with advanced lighting control features
- Multi-purpose: Engineered for reliability in low- to high-power applications
