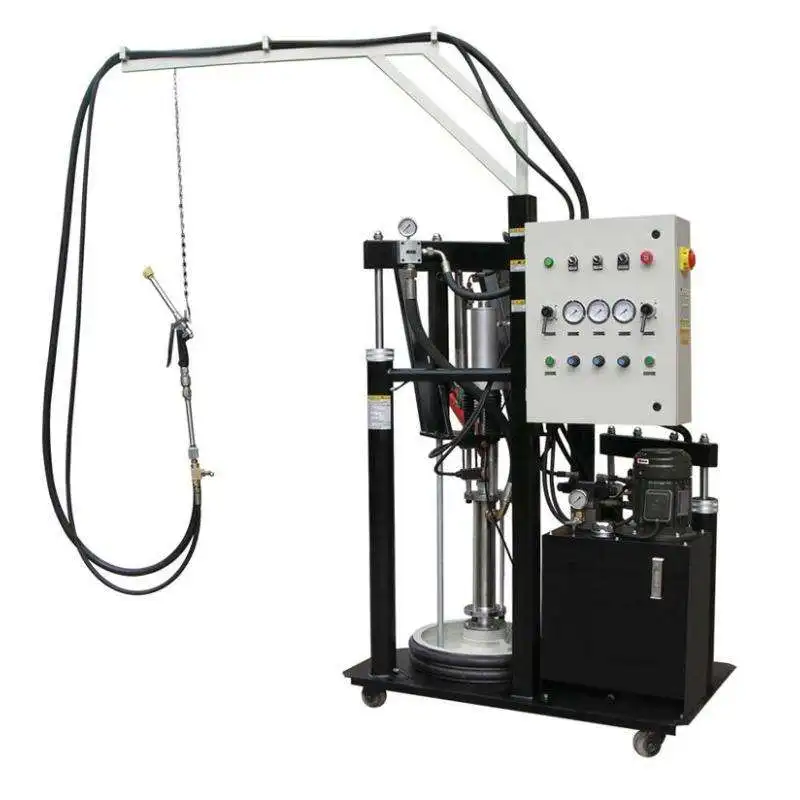

ZHAOYANG silicone extruder machine for insulated glass process

Product Overview

Description

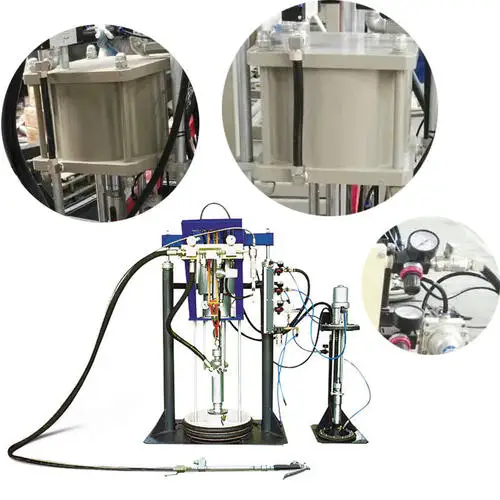

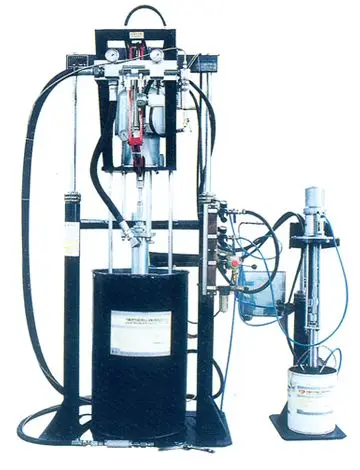

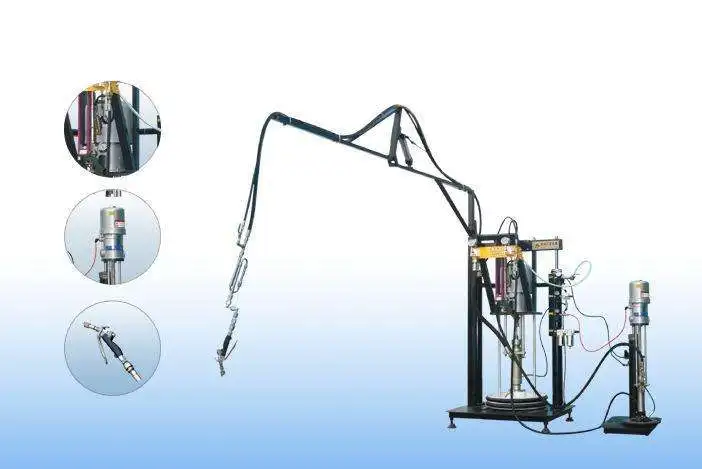

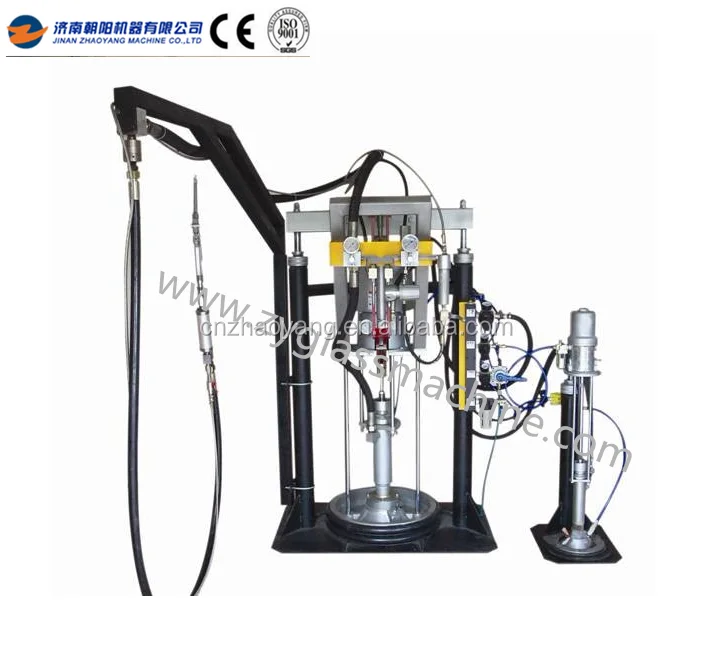

silicone extruder machine for insulated glass process



  Silicone extruder--silicone extruder machine  is used for the second sealing of the insulated glass.

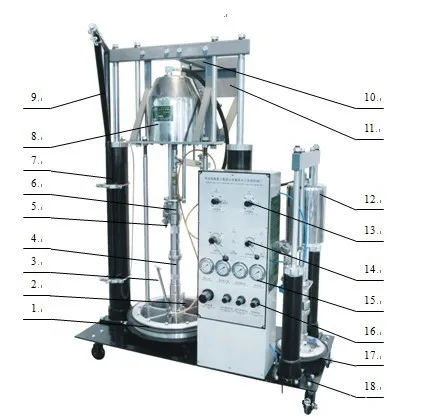

 The equipment fromA, B plastic pumps, hydraulic systems, pneumatic systems, lifting bodies, such as rack and control box components.













As follows:

1.Glue pump: A,B group have their pump respectively,drived by hydraulic cylinder, and make movement back and forth.then inhaling glue and make it out..A,B gule pump is connected with pressing glue and glue plate,then link together with the rack.



2.A,B ratio of the components separately control A,B groups to achieve.The range of glue amount is bif,also easy operation.



3. Hydraulic system: A, B driving force comes from the hydraulic system, A, B group are located in a plastic pump air movements, movements of the body by two cylinders of parallel and Beams through the body of their respective fixed link, one of its purposes is to be closed to the surface through the press of two-cylinder.The pressure from the size of adjustment clamps.: Second, when the need for plastic barrels, the cylinder Pressure can be set against. Leave the plastic barrels, to replace the new plastic barrels.

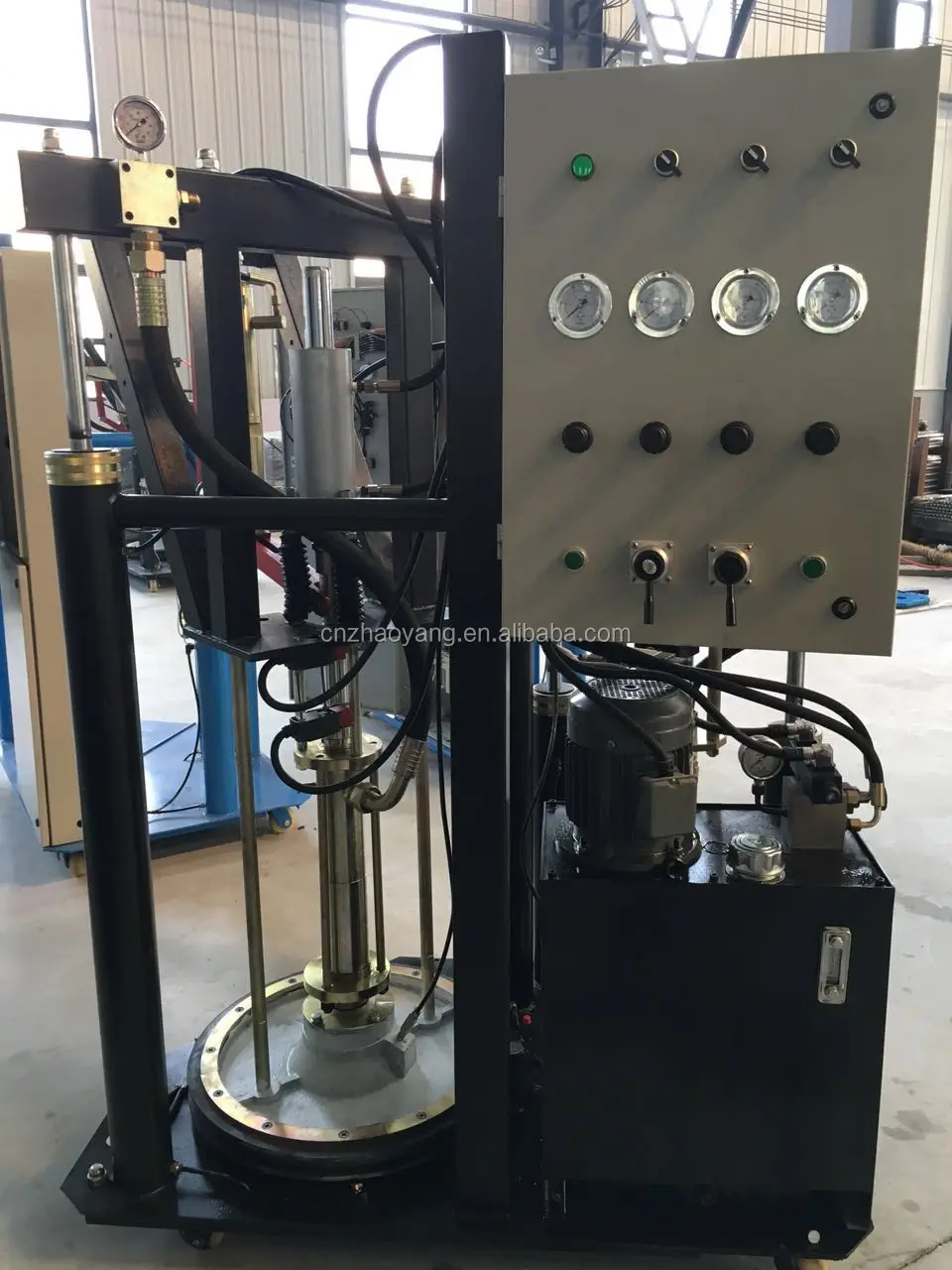

4.The control box: it have electronic, hydraulic, pneumatic and electrical components, control switch is on the panel.



5. The control box is equipped with "exigency stop switch," running in the event of a failure, should be "exigency stop switch" button, emergency shutdown,can use again after the trouble solved.



Technical Parameters:



Model	TE-3500   Silicone sealant spreading machine
Power Supply	380V 4KW
Diameter of A pump	570mm
Diameter of B pump	280mm
Mixture rate	7:1—14:1
The scope of work pressure	8-14pa
Binder canister	55gallen(20L)
Hardener	5gallen(2L)
Max gas consumption	0.5m³/min
Max extrusion pressure	200Mpa
Air pressure	0.6-0.8Mpa
Sealant:	silicon/polysulfide/polyurethane
Outline Dimension	1200*1100*2500mm
Weight	600kg















































Features:
 Extruder surging is continuous and steady and the direction can be changed stably.

• The quantity of extruder surging is large.The pressuer is high.it is very convenient to adjust the quantity of extruder surging.
• TE3500 Insulating Glass Sealing Machine is convenient to adjust ratio.
• The glue gun coats the mixed material on the working surface uniformly.It is light and easy handing.
• The facility maintenance is easy.
• The sealing elements can run well and increase of service life with out extra lunricant added into the pump.
• The operation is safe.It discharges automatically when it goes beyond the normal pressure.







Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.

Port of Loading: Qingdao, China

Delivery Time: During 15-20 days after we receive your first payment.

Shipment: Usually by sea, Silicone sealant spreading machine is dismountable, so it can be packed in a small container.

Package: Each PC in wooden cases.











CE certification
