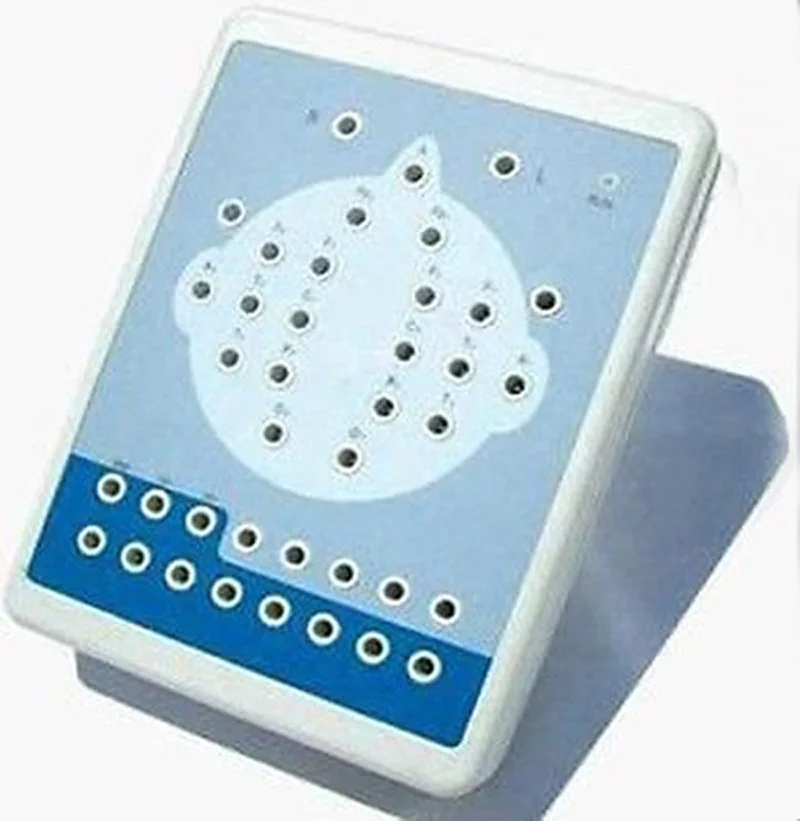

EEG-1018 High Quality 16 Channels Digital EEG System
Mode
Parameter
EEG-1016
EEG-1018
EEG-2400
EEG-3200
Numbers of channels
16 channels EEG
16 channels EEG,
2 channels ECG
19 channels EEG,
1 channel ECG,
1 channel EMG,
2 channels EOG,
1 channel Breath
32 channels EEG
Speed of sampling
100 Hz/channel
100 Hz/channel
200 Hz/channel
200 Hz/channel
Precision of sampling
12 bit
12 bit
12 bit
12 bit
Input impedance
≥10MΩ
≥10MΩ
≥10MΩ
≥10MΩ
Level of noise
≤5uV Vp-p
≤5uV Vp-p
≤5uV Vp-p
≤5uV Vp-p
Common mode rejection ratio
≥90dB
≥90dB
≥90dB
≥90dB
Magnifying multiple
10 000
10 000
10 000
10 000
Filter constant
Freeosetting in full digital
Freeosetting in full digital
Freeosetting in full digital
Freeosetting in full digital
Speed of gathering
15, 30 mm/s
15, 30 mm/s
15, 30, 60 mm/s
15, 30, 60 mm/s
Speed of displaying
5, 10, 15, 30, 60, 120 mm/s
5, 10, 15, 30, 60, 120 mm/s
5, 10, 15, 30, 60, 120 mm/s
5, 10, 15, 30, 60, 120 mm/s
Speed of playing
1, 2, 3, 10, 20, 40, 60
1, 2, 3, 10, 20, 40, 60
1, 2, 3, 10, 20, 40, 60
1, 2, 3, 10, 20, 40, 60
Displaying amplitude
1, 2, 5, 10, 12, 15, 20 mm/s
1, 2, 5, 10, 12, 15, 20 mm/s
1, 2, 5, 10, 12, 15, 20 mm/s
1, 2, 5, 10, 12, 15, 20 mm/s
Interference rejection ratio
≥30dB
≥30dB
≥30dB
≥30dB
Optional function
Null
Video
Video, Support the function of intraoperative monitoring & sphenoidal electrodes; (optional parameters: Spo2)
Video,Support the function of intraoperative monitoring and sphenoidal electrodes
Features
1. Method of 10/20 electrodes placement under international standard system, can change leads ways while replaying, and set electrode connection mode at will.
2. Powerful replaying function : support consecutive and rolling replaying models, adjustable amplitude and replaying speed. Special vertical time line, which marks the collecting time, divides the waveform in one second into 5 parts and convenient for doctor to analyze the waveform.
3. Multifunctional digital filter system, and provides many filtering methods.
4. Analyze and distill manifold parameters automatically. Choose and analyze many segments of wave at the same time.
5. Paritial amplificatory window ,more accurate measurement of the wave and the measure results can be adjusted manual.

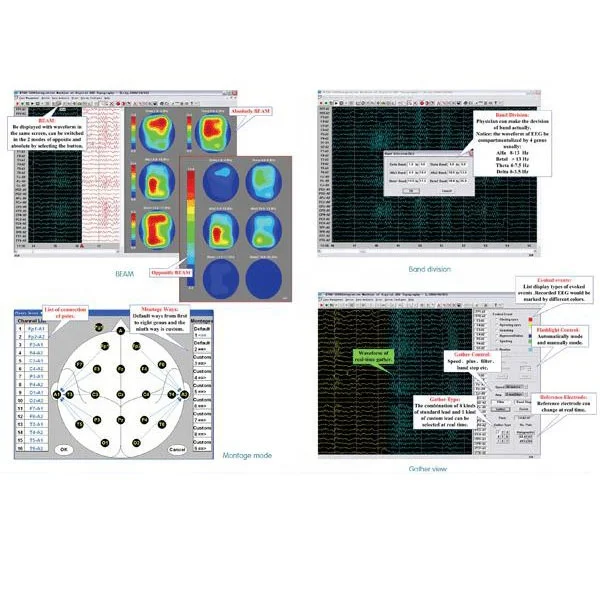

6. Several models of BEAM can be displayed in the same screen with brainwave, such as three-dimensional rotary of BEAM, power spectrum graph, numerical BEAM,
compressed spectrum graph and other graths.
7. Professional isolation transformer, dual power supply isolation system and optoelectronic data transmission to ensure security. Use USB interface to transmit data which just need to be inserted. Distance of digital signal transmission is up to a maximum of 30 meters. Patients and doctors can be operated in different rooms and monitoring system is optional.
8.Multifunctional flashlight of USB interface, and frequency can be controlled manually or automatically.
9.The perfect medical records management, convenient for data investigation, looking up patient case and modifying his (or her ) information.
10 Report with incorporating pictures and text, user could not only select report mode and edit it but also select the information to print out.

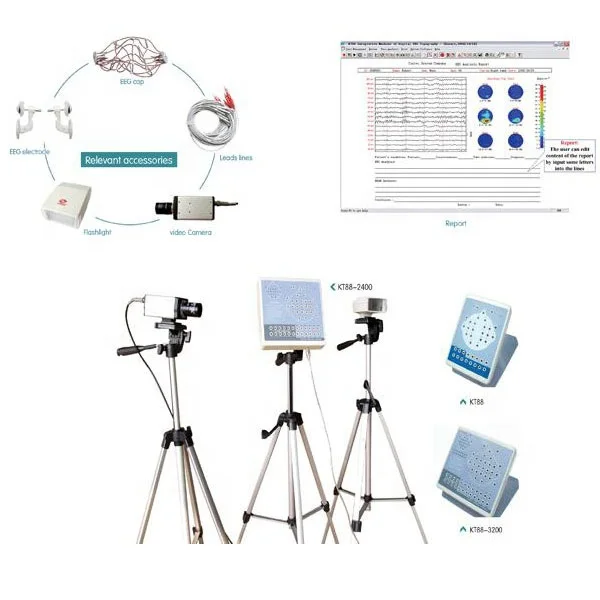

11.Digital synchronic system for video monitoring, recording and replaying. Video system of EEG graph. Long-distance transmission of medical records.

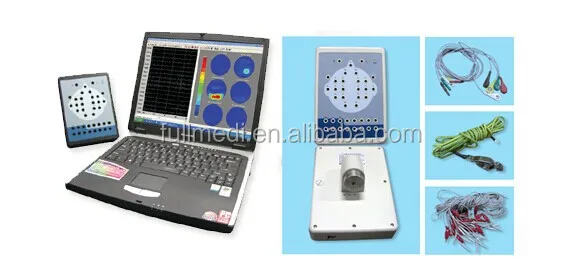

12. Option the portable computer to consist the portable EEG.
13.16 channels EEG or 16EEG + 2 channels ECG, and could select video version.
14. It can load one template of report into office word.
15 .Physicians could add tag information at where it is needed to.
16. Transform the case file into EDF form in order to data or academic exchange.
17. Physicians could add events by himself, name it and define color. Set modes of display event expediently.
18. Export or load the case file.
