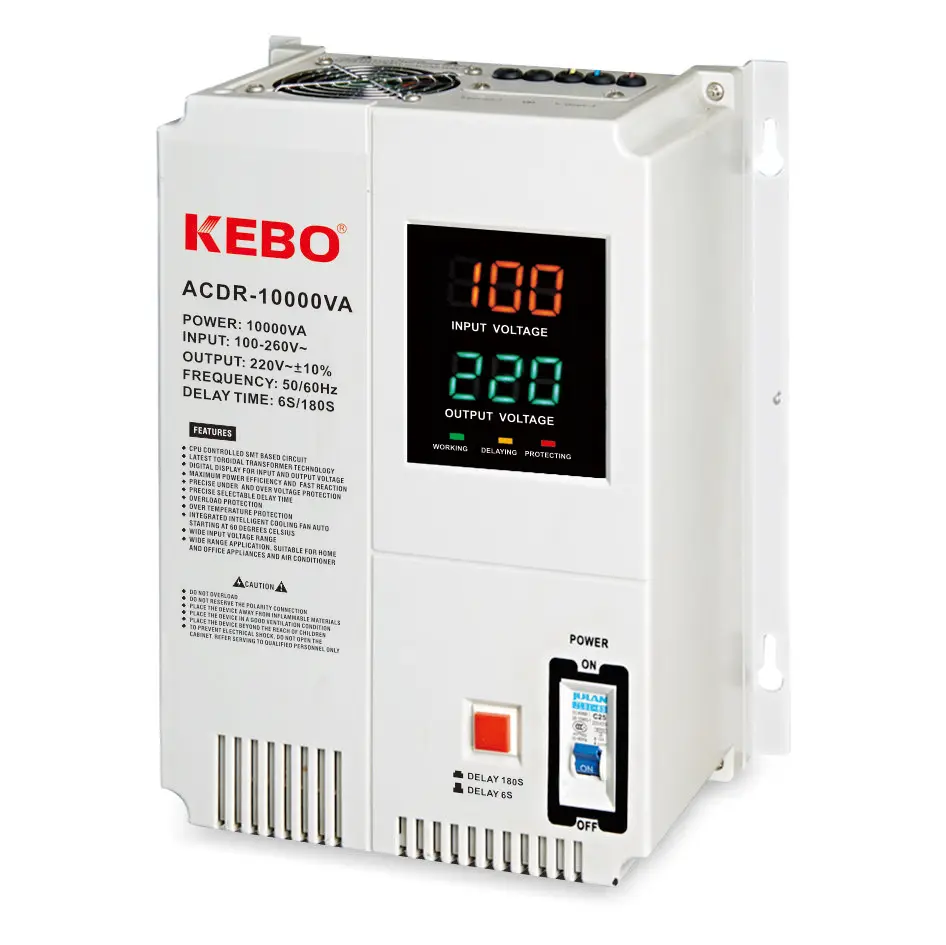

Wall Mount Type AC automatic voltage stabilizer
- Category: >>>
- Supplier: Zhongshan Dianxing Electrical Appliance Industry Co. Ltd.
Share on (60097629788):
Product Overview
Description
Products Description
Name | Automatic Voltage Regulator ACDR Series (Relay Type) | ||||||||||||||
Model | ACDR-500VA | ACDR-1000VA | ACDR-1500VA | ACDR-2000VA | ACDR-3000VA | ACDR-5000VA | ACDR-8000VA | ACDR-10000VA | |||||||
Power | 300W | 600W | 900W | 1200W | 1800W | 3000W | 4800W | 6000W | |||||||

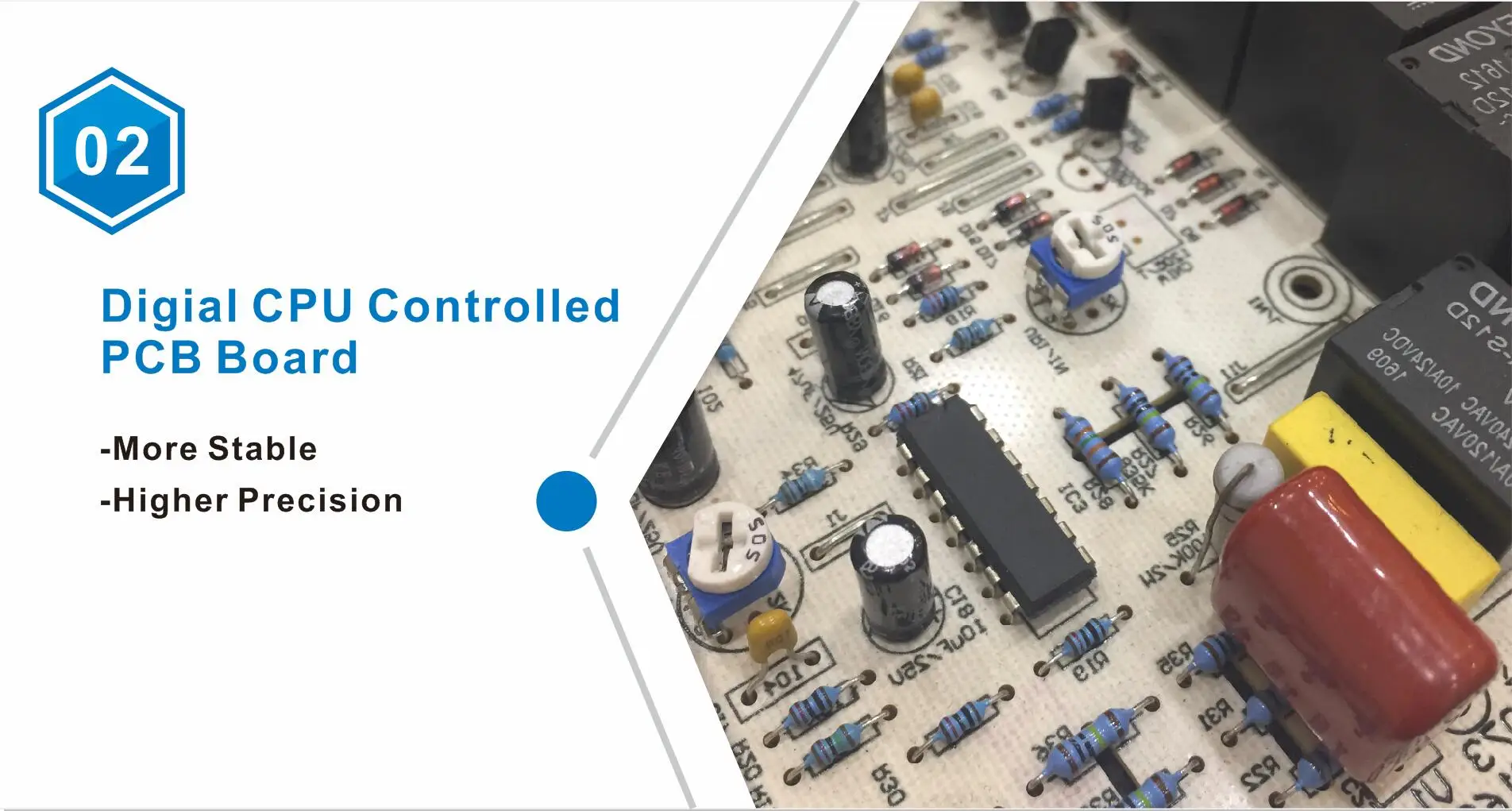

Technology | Zero Cross Switching Technology & Digital CPU Control & Delay Countdown System & Plastic Cabinet | ||||||||||||||

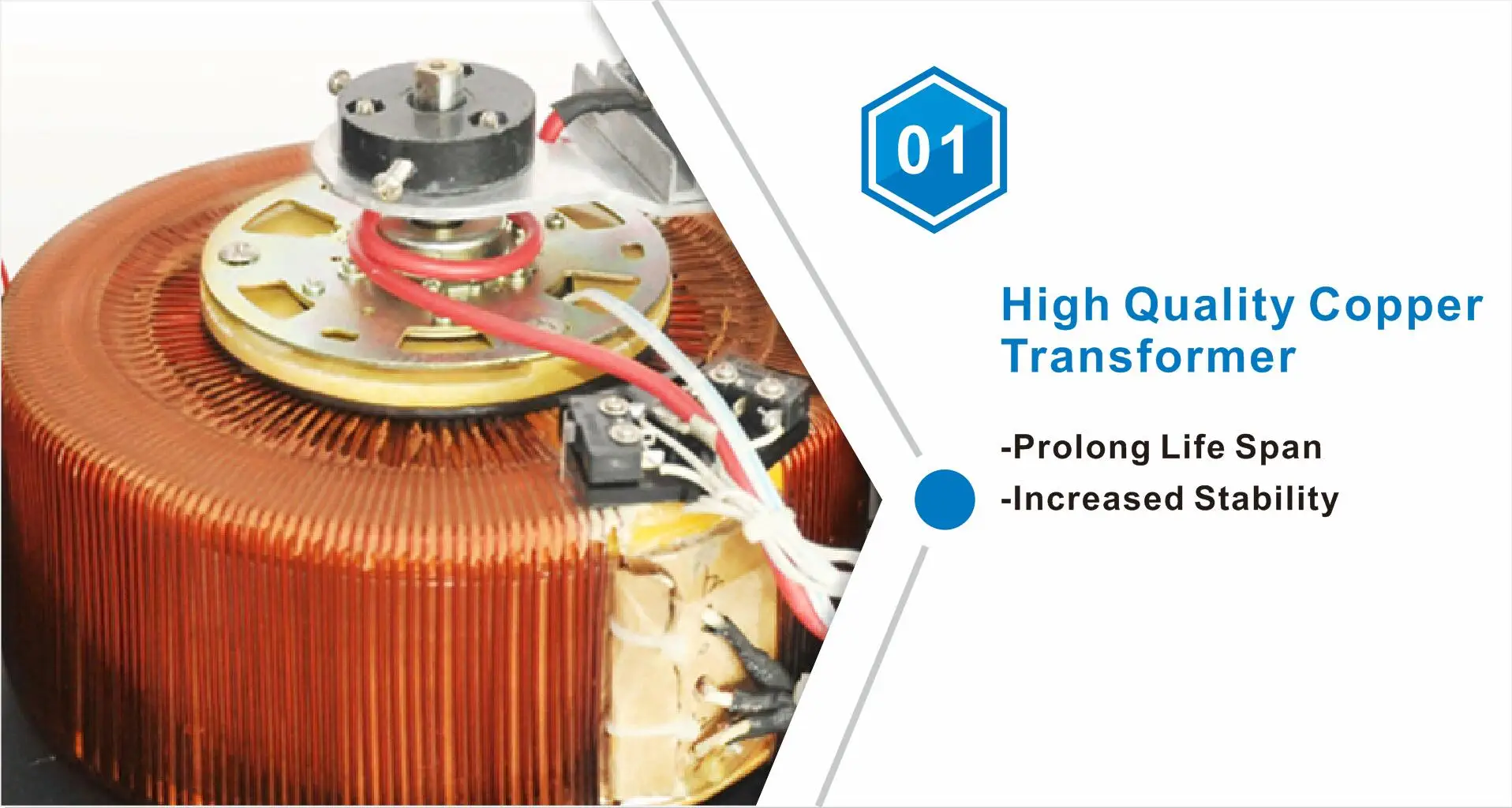

Transformer | Toroidal Transformer | ||||||||||||||
Input Voltage | 100-260Vac/140-260Vac, 50/60Hz | ||||||||||||||
Output Voltage | 220/230Vac, ±10% or 8% | ||||||||||||||
Efficiency | >98% | ||||||||||||||
Phase | Single Phase | ||||||||||||||
Display | Dual Colors LED Digital Display | ||||||||||||||
Protection | High Voltage / Low Voltage (Optional) / Overheat / Overload / Short Circuit / 6s or 180s Output Delay | ||||||||||||||
Cooling System | Fan (Automatic Start up at 65°C) | ||||||||||||||
Safety Standard | CE (LVD + EMC) | ||||||||||||||
Operating Condition | 0~45℃, Non Condensing | ||||||||||||||
Unit Weight / N.W. | 2.4 kgs | 2.7 kgs | 3.7 kgs | 4.2 kgs | 7.9 kgs | 11.0 kgs | 15.5 kgs | 16.9 kgs | |||||||
Giftbox Size (mm) | 285*230*187 | 285*230*187 | 285*230*187 | 285*230*187 | 370*290*230 | 370*290*230 | 440*340*270 | 440*340*270 | |||||||
Carton Size (mm) | 480*300*390 (4) | 480*300*390 (4) | 480*300*390 (4) | 480*300*390 (4) | N/A | N/A | N/A | N/A | |||||||
