Air Breather Filter PAF2 0.035 0.55 20F

Product Overview

Description

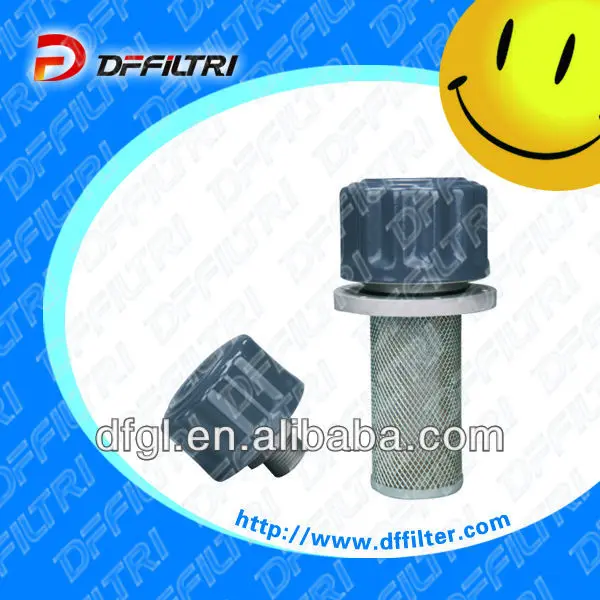

Air Breather Filter PAF2-0.035-0.55-20F



Product Introduction

Various performance standards have reached the technology requirements of similar foreign product;

connection size is consistent with foreign filter, can be changed and replaced.

Product  Characteristics

Filter basic construction

The product has small volume, reasonable structure, beautiful & fashionable appearance design,

stable filtering performance, minimal pressure drop, convenient installation etc. characteristics,

and outer cover and lower cover is assembled by pressing.

2.1  Filter head material

Outer cover material: High strength carbon steel
Lower cover: high strength cast aluminum alloy

2.3  Filter mesh material

Top cover is high strength cast aluminum alloy

Skeleton is made of high strength carbon steel

Filter media is made of high strength stainless steel wire

2.3 Seals

Perbunan (= NBR)

2.4 Type of connection

Chosen according to the breather filter type

2.6 Sign & symbol



Model	PAF1-*-*-*L	PAF2-*-*-*F
Check valve setting (mpa)	0.02  0.035  0.07	0.02  0.035  0.07
Air Flow rate(L/min)	0.45  0.55  0.75	0.45  0.55  0.75
Air Filtration(um)	10  20  40	10  20  40
Oil Filter Mesh(mm)	None	0.5 ( or as customer require)
Temp.range(degree)	-20~+100	-20~+100
Connect type	Thread(G3/4)	Flange(6 piece M4X16)
Weight(KG)	0.2	0.28























Type selectoin and technical data

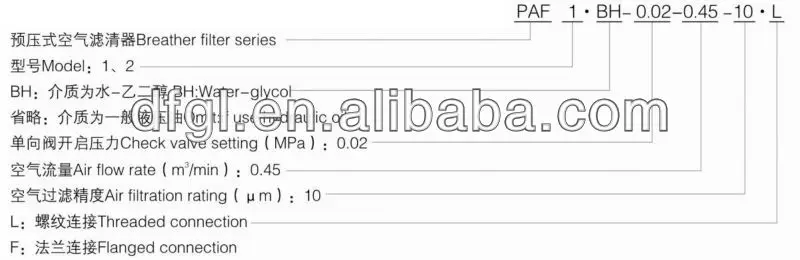

3.1 Order example

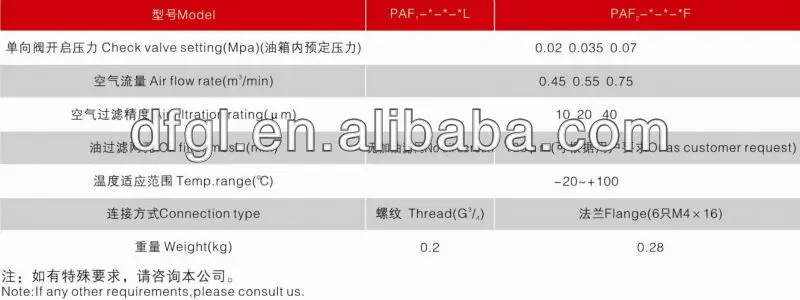

3.2 Technical Data

Mounting Size
