6 m3/h Double pistons hydraulic cement mortar pump with compact structure factory price
- Category: >>>
- Supplier: Langfang CABR Construction Machinery Technology Co. Ltd.
Share on (60098667360):
Product Overview
Description
Product Description
UBY series cement mortar pump is a new type of piston pump. It has two main types: single piston and double pistons, driven by hydraulic.
These piston pumps are robust, extremely low-wearing, high-performance machines suitable for use on any construction site. They are exceptionally versatile and can handle all types of site-mixed mortar and dry mortars up to 8 mm grain size. These highly reliable machines can work well under extreme harsh condition.
6 m³/h Double pistons hydraulic cement mortar pump
Technical Data
| Model | UB3Y | UB6Y |
| Max. discharge volume ( m³/h ) | 3 | 6 |
| Max. pumping pressure ( MPa ) | 7 | 7 |
| Maximum conveying length (horizontal) (m) | 330 | 330 |
| Maximum conveying distance (vertical) (m) | 110 | 110 |
Rated Motor Power (kw) | 15 | 18 |
| Voltage | 3-phase 380V,50Hz or customized | |
| Allowable aggregate particle size (mm) | 8 | 8 |
| Total Weight (kg) | 700 | 850 |
| Dimensions (L*W*H) (mm) | 2300*1210*1140 | |
| Characteristic of Structure | hydraulic drive | |
Technical Advantages
1.Automatic overload protection , high security.
2.Compact size, convenient to move.
3.The mechanical driven pump has simple structure, so it is easy to operate and its maintenance cost is very low.
4.The hydraulic driven pump has higher pressure and run more stable, especially suitable for mortar pumping of high buildings or long distance engineering.
5.Key project of China Science and technology Plan, integrated a number of patents.

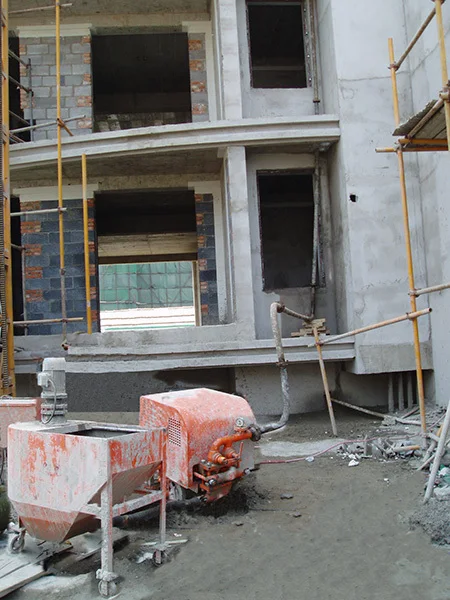

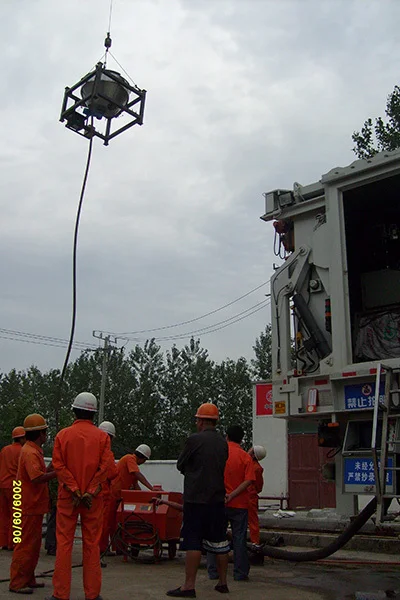

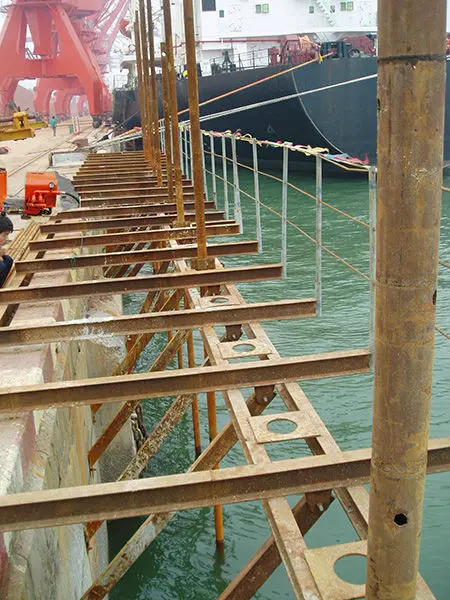

Application examples
1. Various types of mortar pile, water conservancy foundation grouting.
2. Borehole backfilling of ground source heat pump.
3. Mortar conveying for industrial and civil buildings.
4. Mortar spraying.
5. Grouting for metallurgical furnace repairing.
6. CA mortar pumping for high-speed railway.
Application scheme

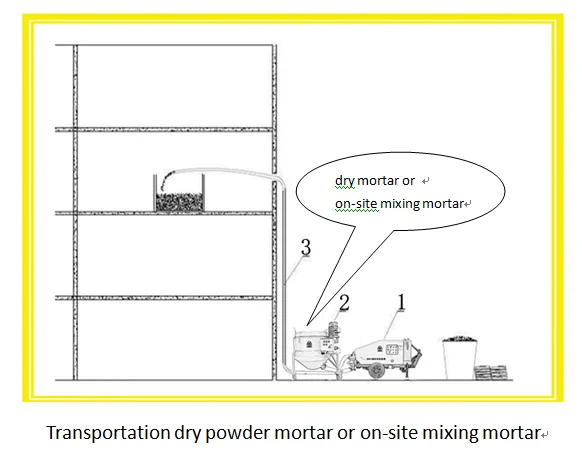

Conveying dry mixed mortar or site-mixed mortar
No. | Equipment | Quantity |
1 | UB series mortar pump | 1 |
2 | UJLS series mortar mixer | 1 |
3 | Rubber hose or steel pipe for conveying | Length depends on distance |

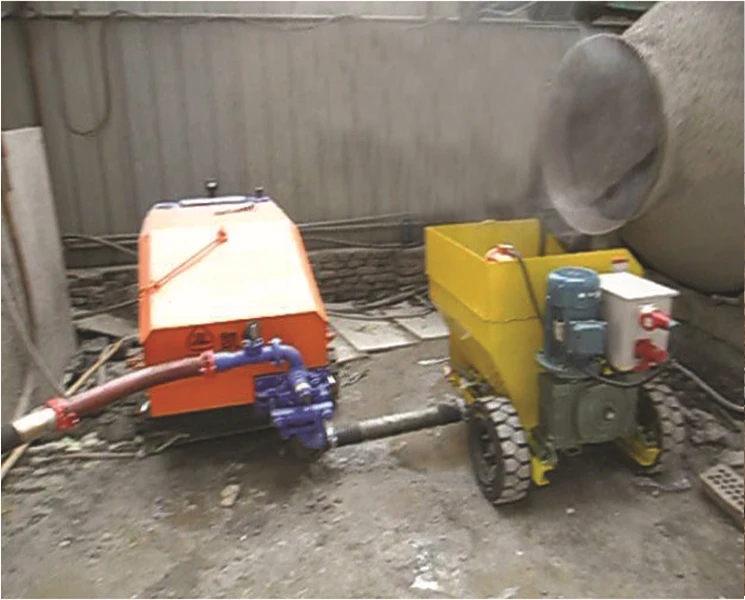

Conveying ready-mixed wet mortar
No. | Equipment | Quantity |
1 | UB6Y hydraulic cement mortar pump | 1 |
2 | ULDZ250 mortar hopper | 1 |
3 | Steel pipe for conveying | Length depends on distance |
4 | Rubber hose for conveying | Length depends on distance |
