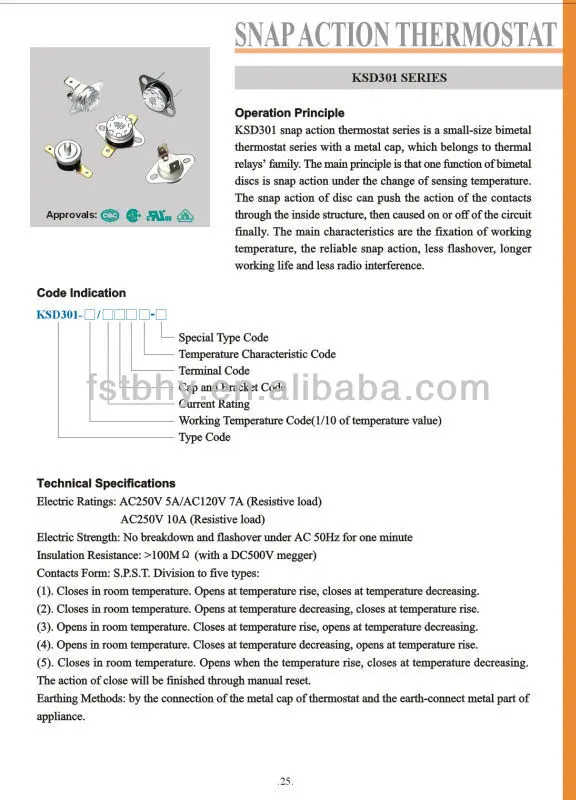

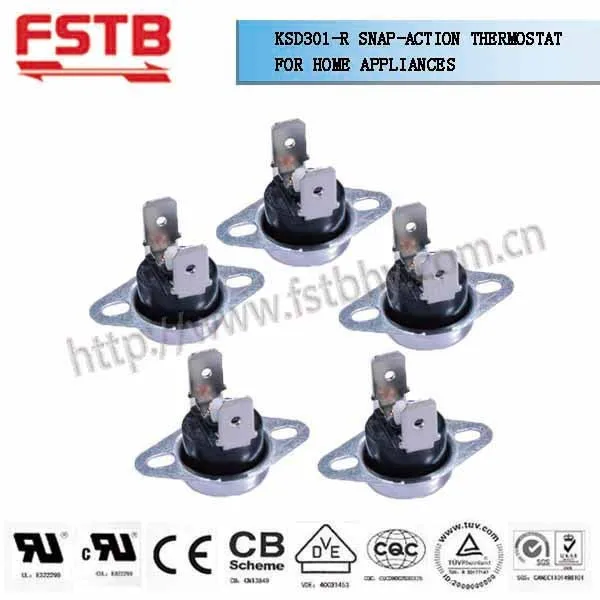

KSD301 R SERIES SNAP ACTION HEATING THERMOSTAT

Use

Overheat protection

Appliance

Coffee maker/ Drinking machine/toaster/Microwave oven/Heating/ Portable Refrigerator/etc

Reset type

Manual

Base material

resist heat resin base

Amperage

5A/10A/16A

Max. Operating Temperature

180℃

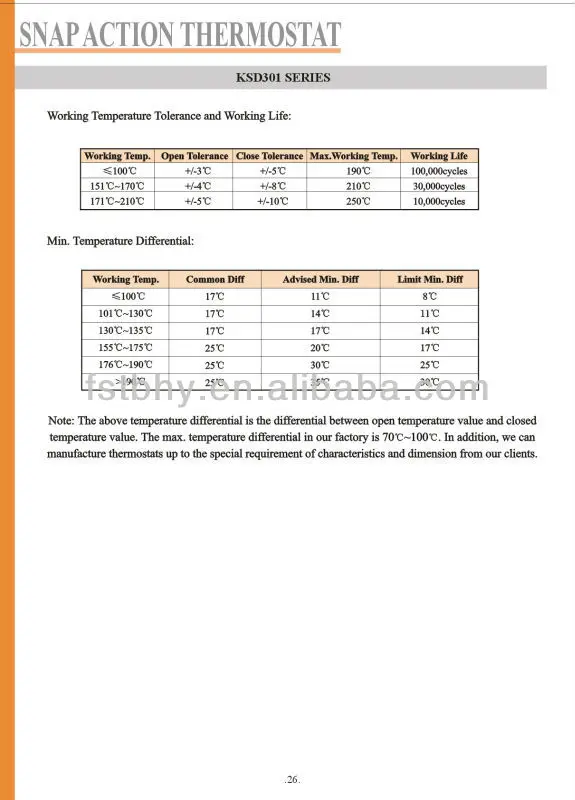

Differential

Refer to the regulation

Tolerance

Refer to the regulation

Protection class

IP00

Contact material

Silver/Gold

Dielectric Strength

Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover.

Insulation
Resistance

With a DC 500V megger, borne DC 500V, the tested value is over 10MΩ.

Resistance
Between Terminals

Below 50mΩ

Temp.characteristics

Normal type: OFF temperature higher than ON temperature.(Normal close)
One-shot type: The thermostat switches on at room temperature and it won't be able to reset after switching off.

Maximum ambient
temperature

205℃ (Long period)
235℃ (Less than 15 min)

Diameter of
bimetal disc

Φ12.8mm(1/2″)

Approvals

UL/CQC/TUV

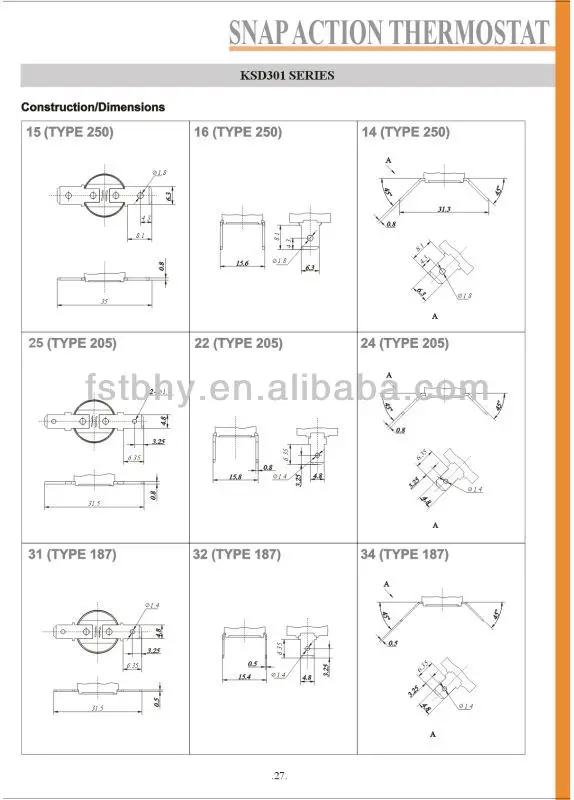

Terminal type

Customized (Refer to our specification)

Cover/Bracket

Customized (Refer to our specification)
