IBR Profile (Inverted Box Rib) Roofing Sheet Forming Machine



1. IBR Profile (Inverted Box Rib) Roofing Sheet Forming Machine Application



The color steel sheet is widely used in villa , holiday village , gardening industrial building , storage , scenic tourist area , pavilions , hotel , exhibition hall and so on . And we are emphasis on the detail and the technical update constantly.









2.    IBR Profile (Inverted Box Rib) Roofing Sheet Forming Machine  Technical Parameter





No.	main parameter of roll forming machine
1	Suitable to process	Color steel plate
2	Width of the plate	1250mm
3	Rollers	10rows
4	Dimensions	5.3*1.5*1.61m
5	Power	4+4kw
6	Thickness of the plate	0.3-0.6mm
7	Productivity	0-15m/min
8	Diameter of the roller	∅70mm
9	Voltage	380V 50Hz 3phases
10	Material of the roller	Cr12 with hard chrome
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control







3.Sand Accessiries





No		Technical Specification

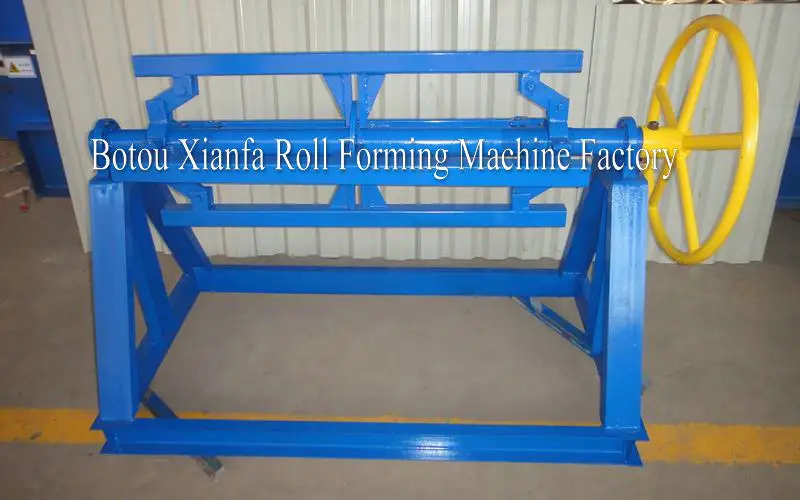

1	Manual Uncoiler	Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T Inner diameter: 500-508mm
2	Feeding Table	Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3	Hydraulic System	Power:4kw,Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
4	Computer Control Cabinet	The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
5	Output table	It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.







4.The Producion process flow





5.Manufacturing process









main body









Rolling material: Forging Steel 45#,Rolling galvanization thickness:0.05 mm



sample









6.Quality Control







We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.













7.Company Corner







 1.  Work shop

























2.samples

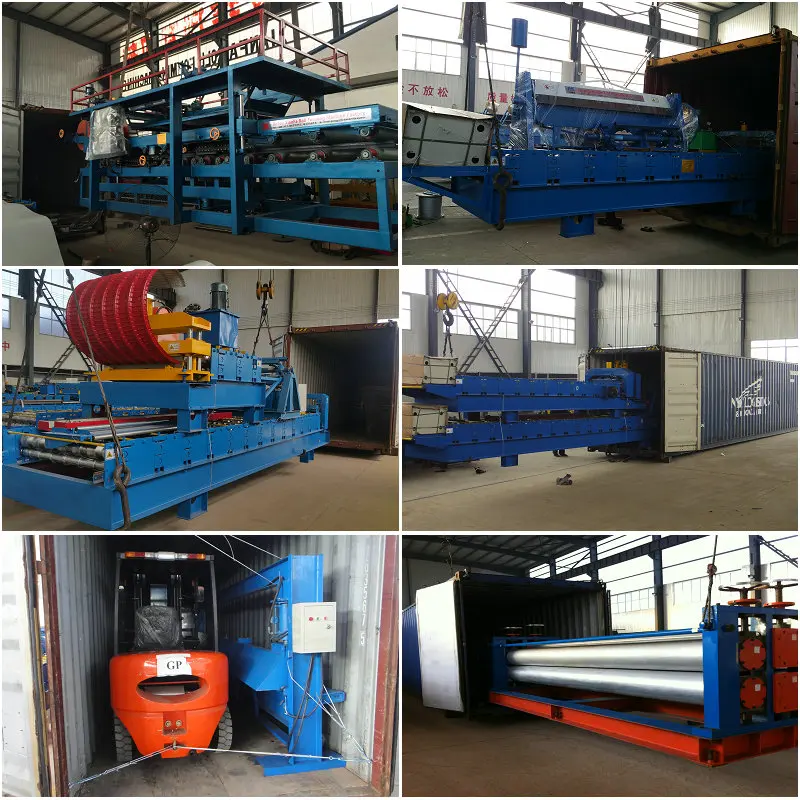

3.Container shipped
