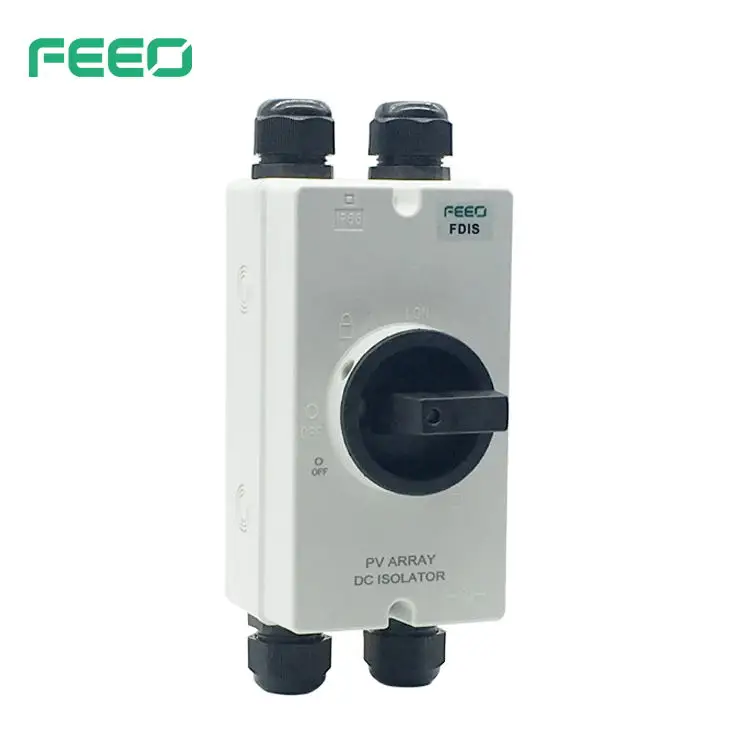

CE Up Input 25A 2 Poles Solar 1000V DC Isolator
- Category: Rotary Switches >>>
- Supplier: Yueqing,Feeo,Electric,Co.,Ltd.,[Zhejiang,China]Yueqing,Ltd.Yueqing
Share on:
Product Overview
Description
CE Up Input 25A 2 Poles Solar 1000V DC Isolator
1000v dc isolator Features:
1.Compact and suitable were space is limited
2.DIN rail mounting for easy installation
3.Load-breaking up to 8 times rated current making it ideal for motor isolation
4.Double-break with silver rivets-superior performance, reliability and long lasting
5.Highly visible red/yellow handle
6.Large padlockable red/yellow or grey/black handles
7.Comprehensive range, 16 to 32A models
8.High IP 66 rating
9.Easy to install and operate
10.10 years warranty
1000v dc isolator Parameters:
Technical parameters | Model | FDIS-32 | ||
Rated insulation voltage | Ui | V | 1500 | |
Rated heating current | Ithe | A | 32 | |
Rated impulse withstand voltage | Uimp | V | 8000 | |
Rated short-time withstand current(1s) | Icw | 2,4 | A | 1000 |
2H | A | 1700 | ||
Rated short-circuit making capacity | Icm | 2,4 | A | 1000 |
2H | A | 1700 | ||
Rated short-circuit current | Icc | A | 5000 | |
Maximum fuse specifications | gL(gG) | A | 80 | |
Mechanical life | 10000 | |||
DC poles | 2 or 4 | |||
Operating temperature | ℃ | -25 to +70 | ||
Storage temperature | ℃ | -40 to +70 | ||
Class of pollution | 2 | |||
IP level | IP66 |
Detailed Images
Large silver contacts
Safety lock

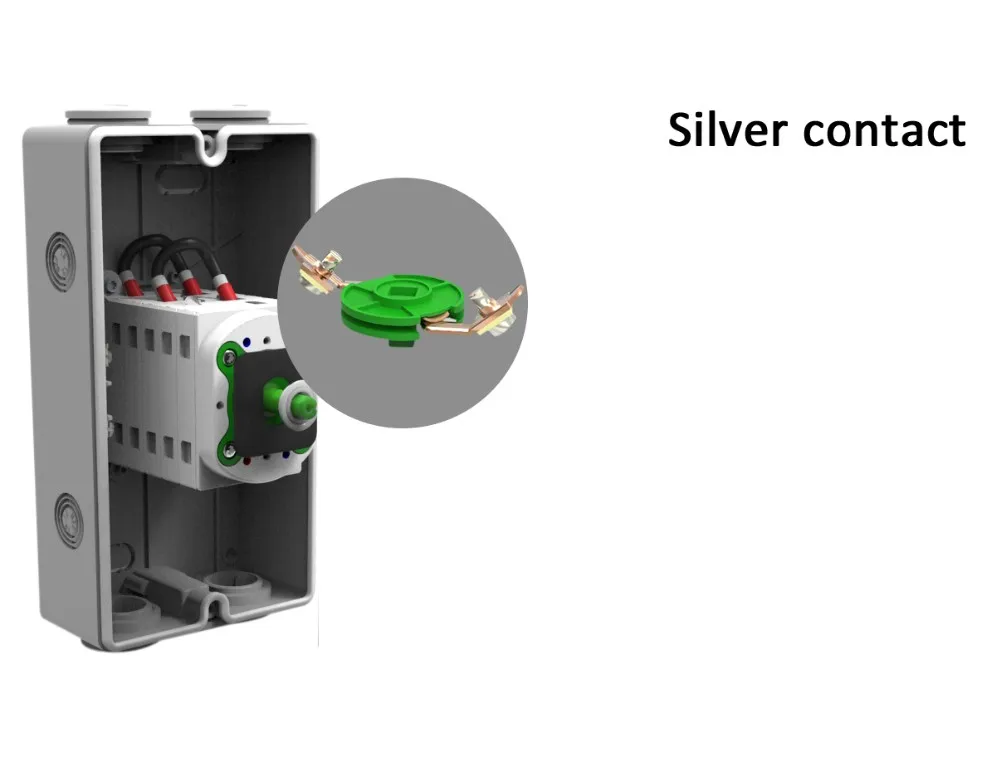

Large silver contacts
Switch contact silver, silver layer is thicker, low temperature rise, good arc extinguishing effect, a long service life. Not because the silver layer depletion leads to ignition switch.

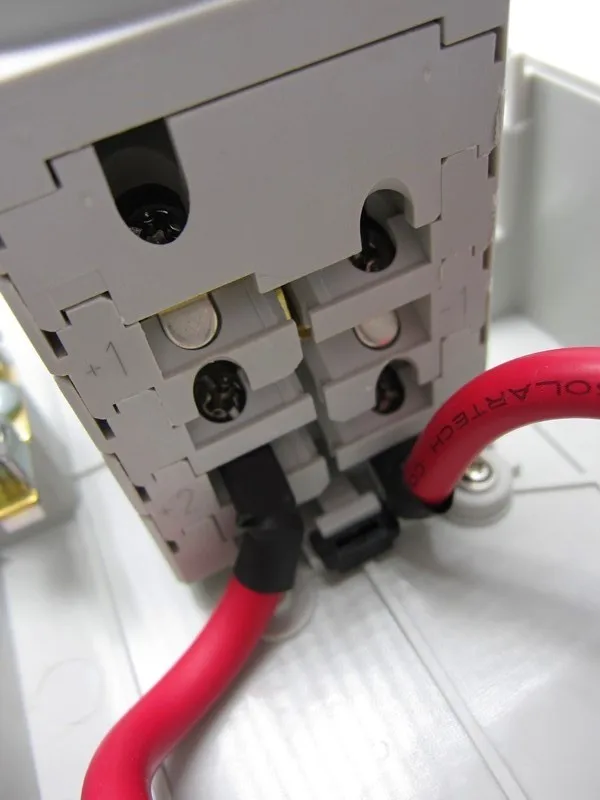

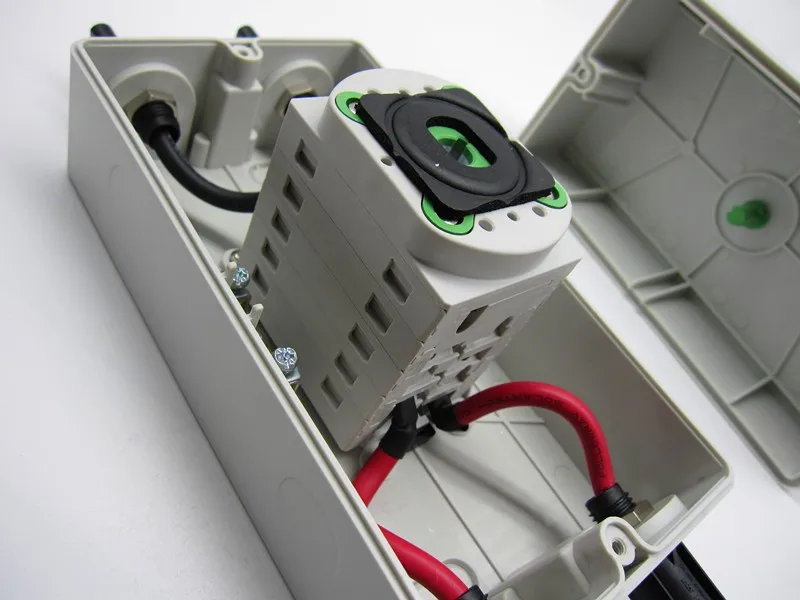

Wire jumper

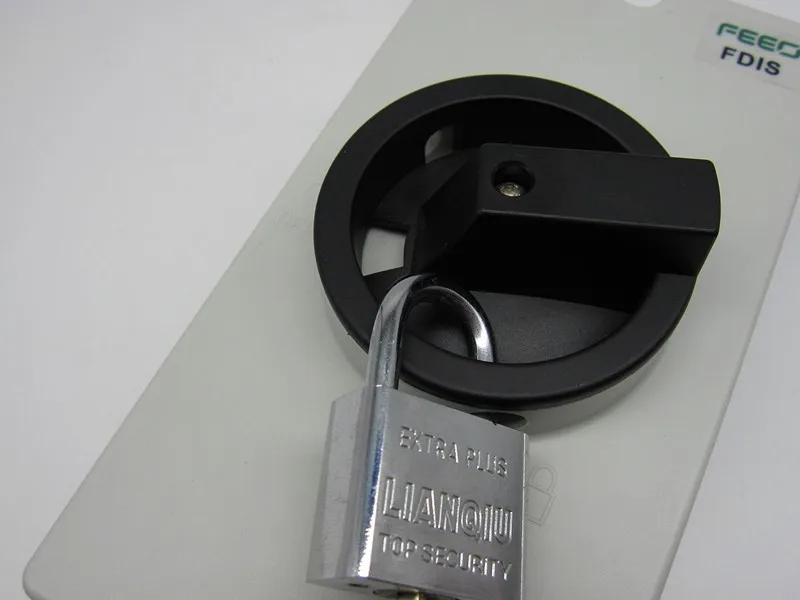

Safety lock
“FEEO”DC ISOLATOR designed a safety lock.Rotate the extra 30 degrees to lock the switch.

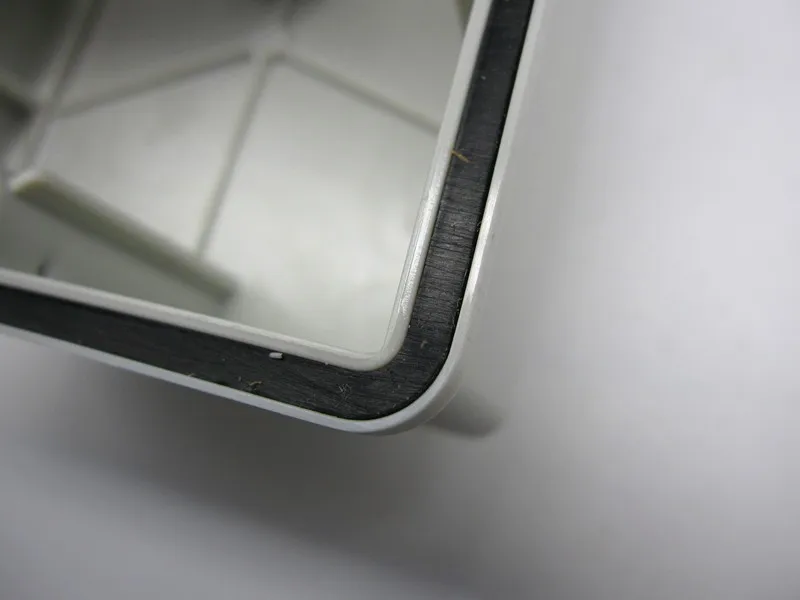

Waterproof seal
Waterproof grade: IP66
Packaging & Shipping
1000v dc isolator Package:
Standard export carton packing:
DC ISOLATOR with 10pcs/ctn
DC ISOLATOR without solar connector 20pcs/ctn
Carton Size 52*40*25CM3
TUV Certificate:
1000v dc isolator Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
1000v dc isolator Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Company Information
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, SOLAR CONNECTOR.
FAQ1. What are the common faults of isolator switches
2. What is the cause of the overheating of the contact part of the isolator switch during operation
1. What are the common faults of isolator switches
1. Contact parts overheating, 2. Refuse opening and closing, 3. Error opening and closing.
2. What is the cause of the overheating of the contact part of the isolator switch during operation
During operation Isolator switch overheating, mainly due to heavy load, increased contact resistance, the operation is not fully satisfactory
