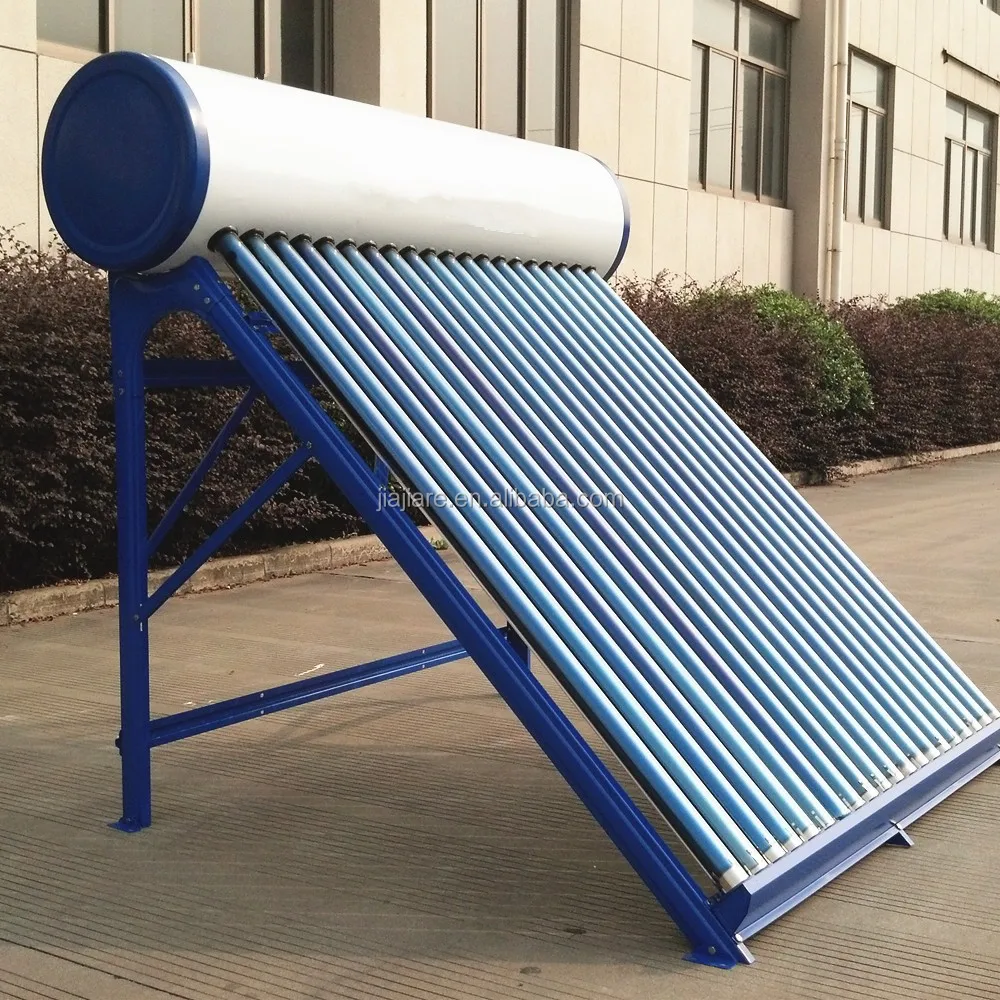

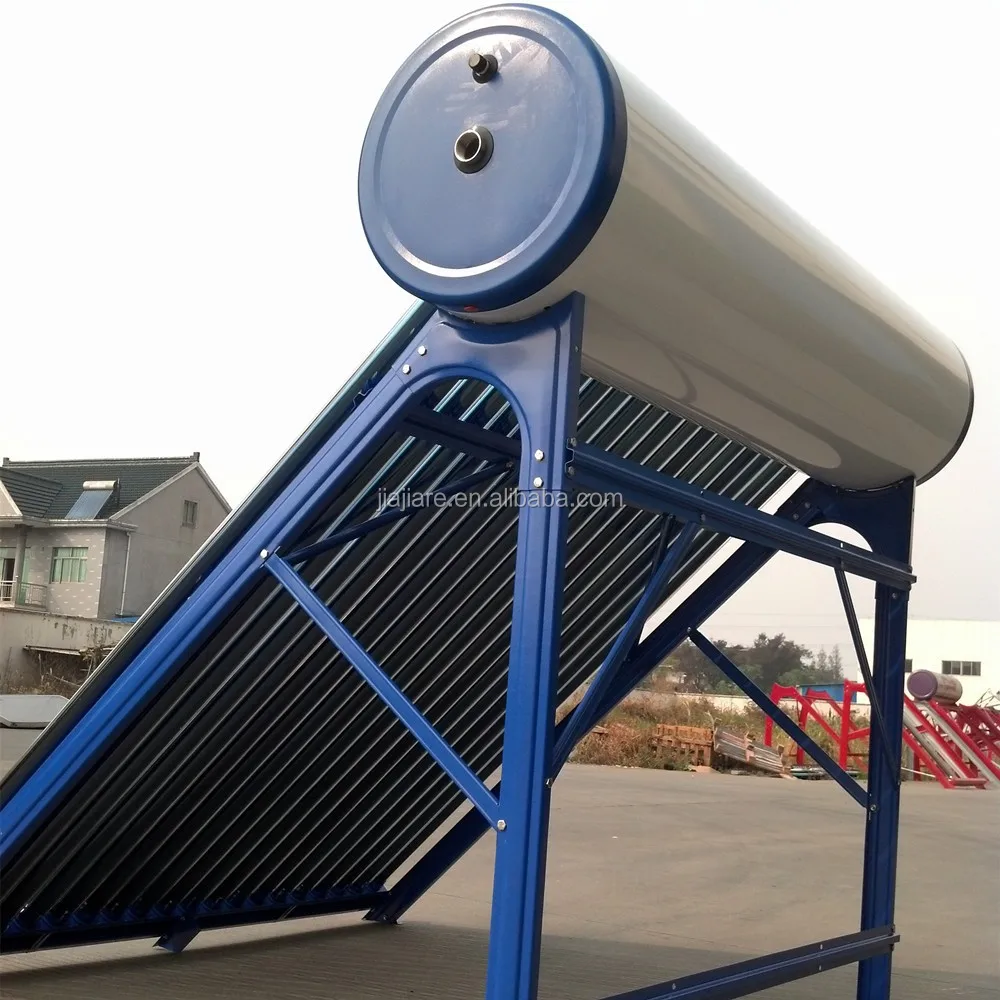

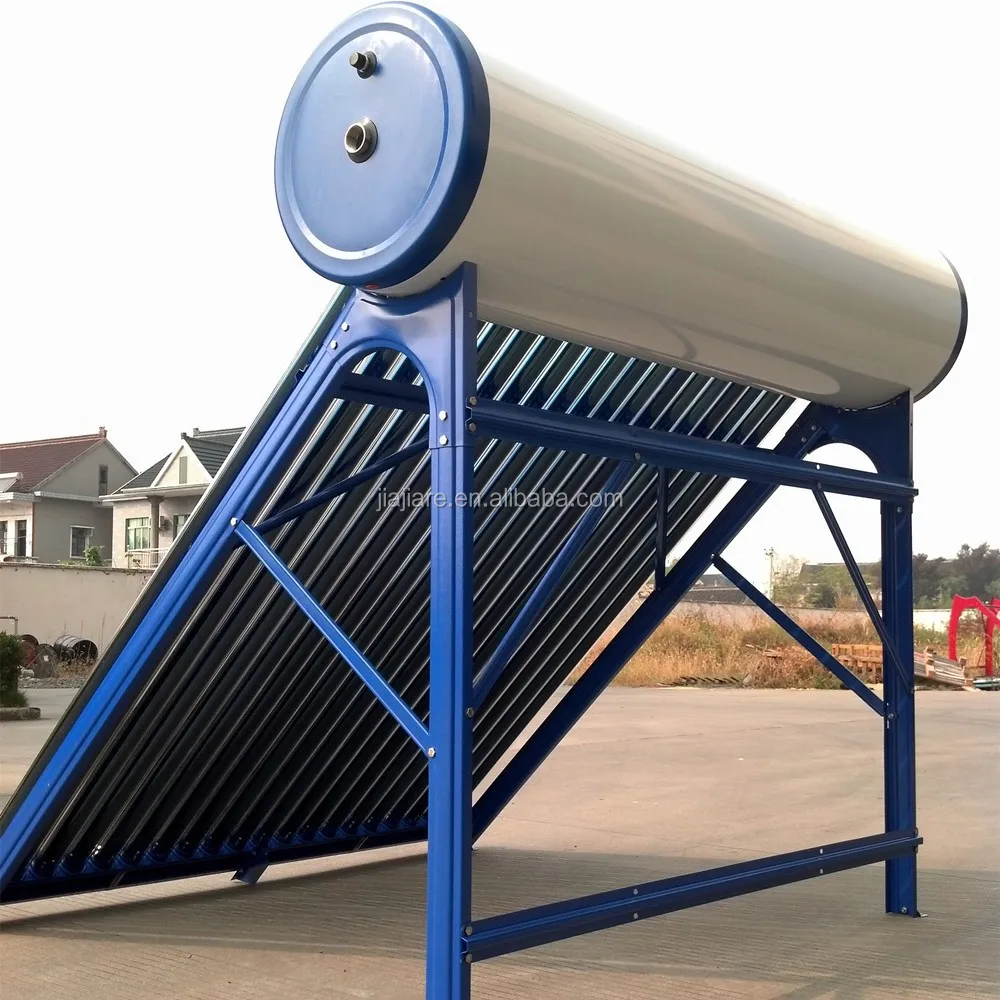

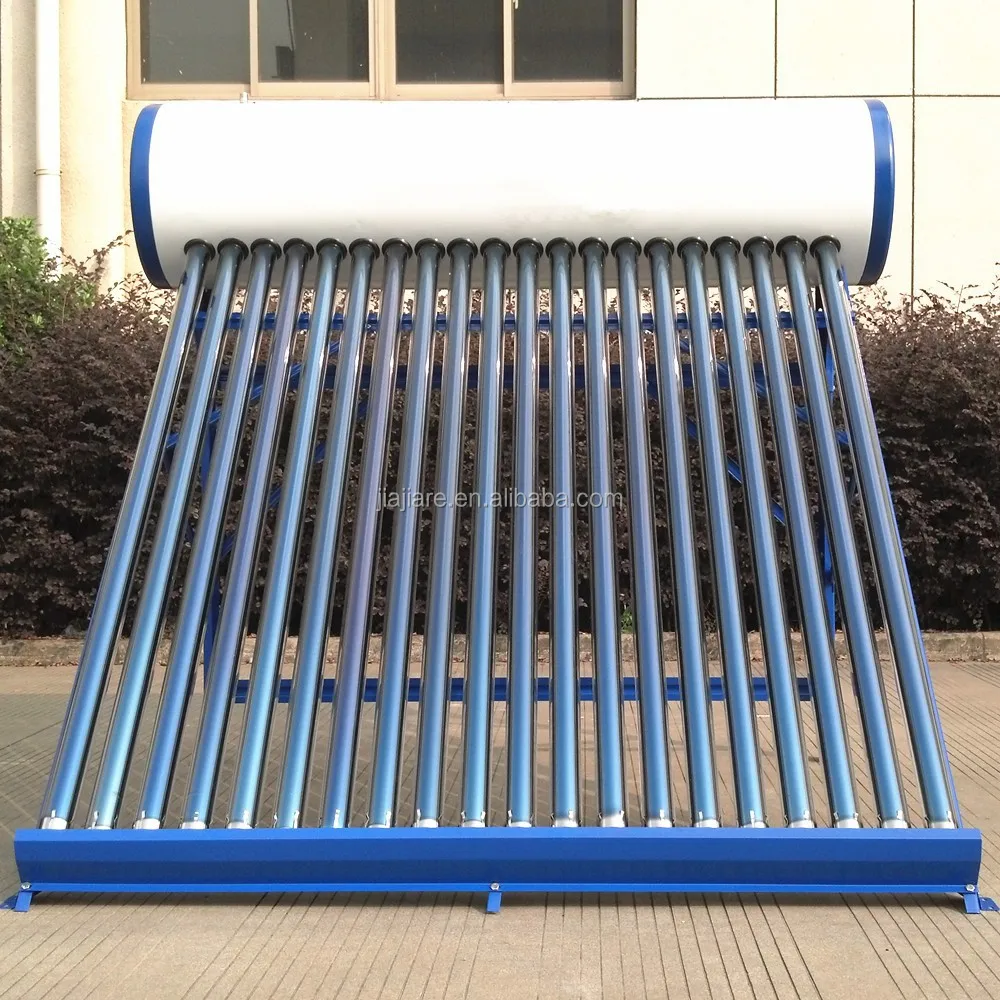

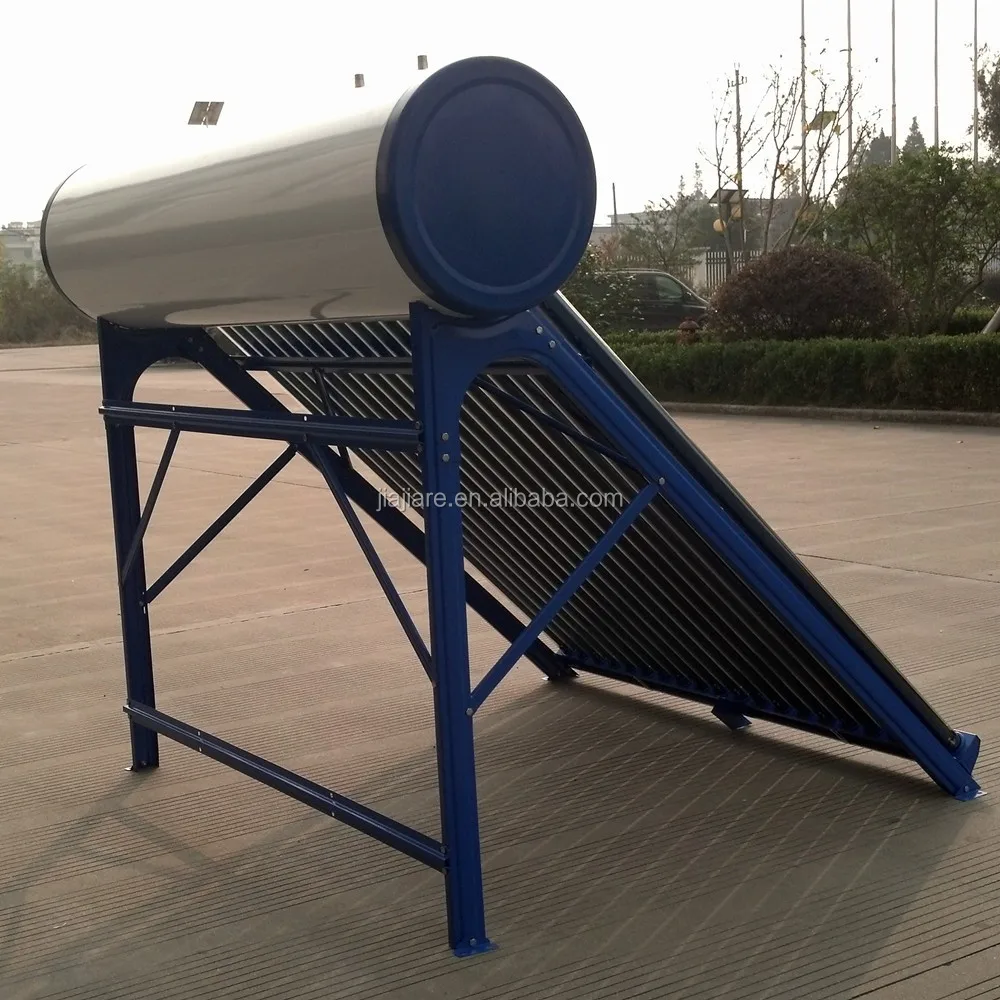

200L Most popular type and Approved Best Quality Home Using Unpressured Vacuum Tubes Solar Water Heater

Product Overview

Description

    200L Most popular type and Approved Best Quality Home Using  Unpressured Vacuum Tubes Solar Water Heater



 Details unpressrued solar water heater for home using

 1)Description of home using non-pressrued solar water heater:

Compact Pressurized Heat Pipe Solar Water Heater with Heat Pipe works with pressure up to 0.7Mpa and can normally work in all climates. There is a heat pipe in the vacuum tube and no water flows in the tube, thus the heat collecting efficiency can be tremendously enhanced and the thermal loss is minimized . Even if some vacuum tubes are broken, the whole solar water heater can still normally work.

Item	Diameter of Water Tank(mm)	Solar Vacuum Tube		Capacity (liters)	Aperture Area(m2)	Loading Quantity(sets)
		No.(pcs)	Size(mm)			20’GP	40'HQ
JJR-NPS-10	460	10	Φ58×1800	100	1.45	74	181
JJR-NPS-15	460	15	Φ58×1800	150	2.18	54	127
JJR-NPS-20	460	20	Φ58×1800	200	2.9	41	98
JJR-NPS-24	460	24	Φ58×1800	240	3.48	34	80
JJR-NPS-30	460	30	Φ58×1800	300	4.35	29	68



2)Specification of  home using unpressrued vacuum tubes solar water heater:

Evacuated tube: three-target coating tube

Vacuum tubes: three layer vacuum tubes

Inner tank material: 0.4 mm SUS304-2B food grade stainless steel

Inner tank diameter: 360mm

Inner tank welding: Uses fully-automatic seamless pulsed argon arc butt welding

Outer tank material: 0.5mm colorful steel plate/PVDF plate

Outer tank diameter: 460mm

Frame: 1.5 mm galvanizeed

Insulating layer: 50mm

Capacity: 100 to 300 liters

Max working pressure: 0.7Mpa

Frame gradient: According to local latitude

Color: white/light yellow/silver/black...



3)Our special service

OEM service available

Unique design for various customers

Free parts: 2% of the vacuum tubes is given to the customer for free

Controller, electric heater, water filter device and magnesium rod are available at favorable prices

The economical environmental protection is the populace family ideal choice 10 . The water tank can keep the hot water lasting for 72-80 hours.

Using the silicate rubber ring which the quality to be good, prevent the water leakage



4)Terms

1. Payment terms: 30% in advance and 70% against B/L copy or 70% by  L/C

                          For sample T/T 100% in advance

2. Delivery terms: 15 working days after receiving deposit or original L/C

3. Warranty:   10 years for vacuum tubes ,5 years for water tank and support frame



5)Tips for you

• Considering the economics of a solar water heating system


• Evaluate your site's solar resource


• Determine the correct system size


• Determine the system's energy efficiency


• Estimate and compare system costs

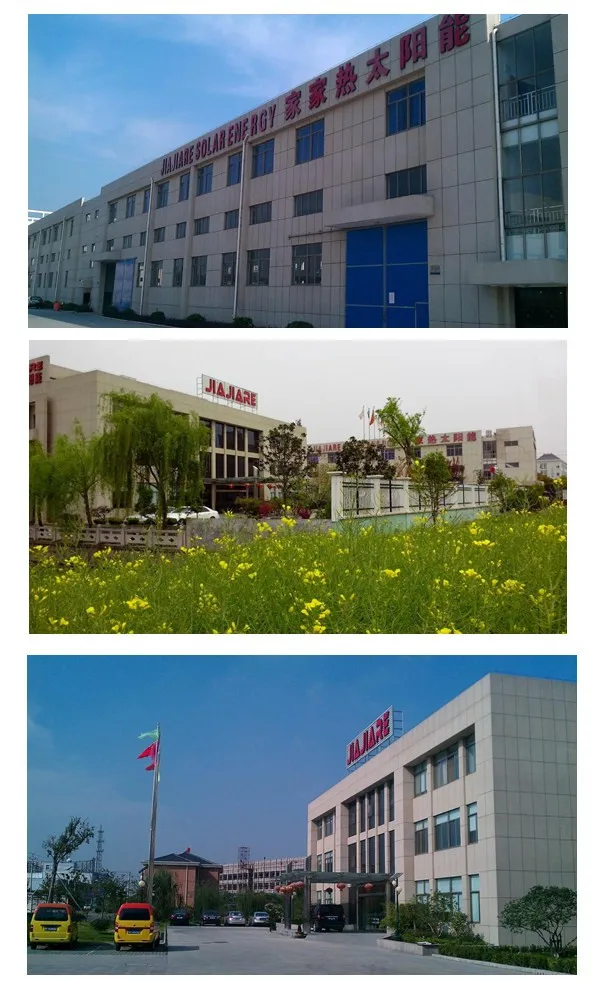

6) About JIAJIARE

Our company specializes in solar application technology, and develops with the researching, production and industrialization enterprise distribution for more than eighteen years.

The Jiajiare brand solar water heater is the leading product of company, and the green environmentally safe product is our country do its utmost to recommend.

The company regards fine product quality as the vitality; The products are sold well in our country, and are exported to America, Southeast Asia etc, and well received by the masses of consumers







7)Why choose JIAJIARE ?

we have our clients set to list of reasons why to choose us over other solar water heater,here are our benefits

Engaged in the solar energy application technology for more than 18 years

We has received many honors and passed multiple verifications

The number of service outlets across the country, so you have no worry.

Wu researches and produces all kinds of products , widely used in hospitals, schools, hotels, etc
