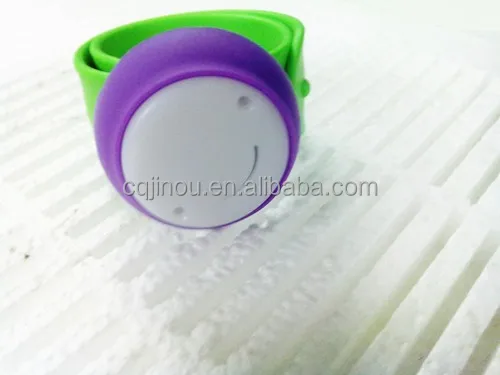

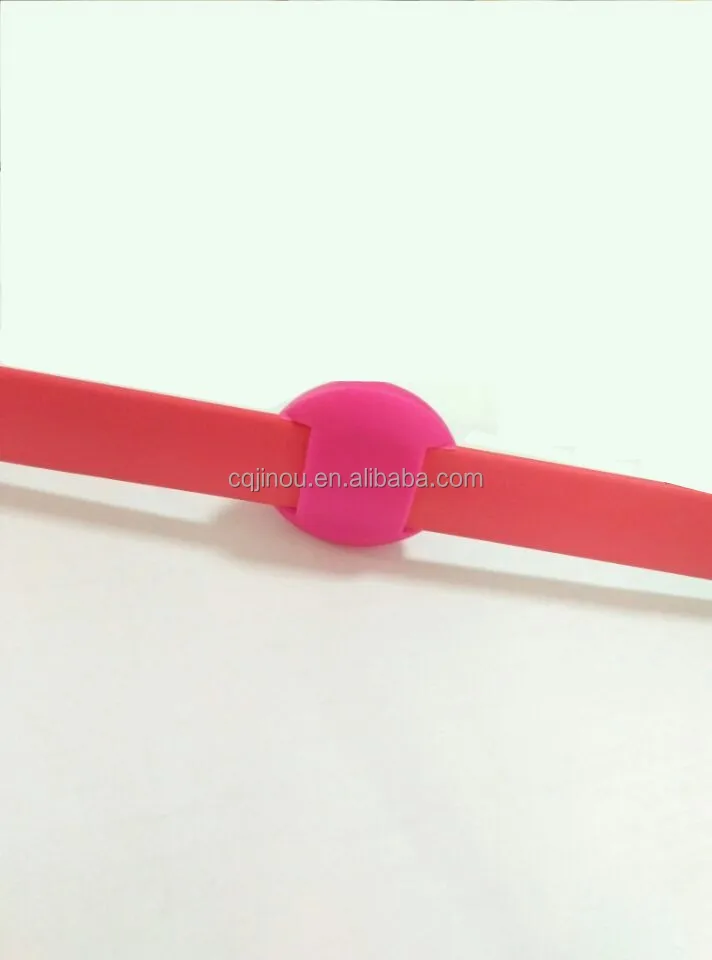

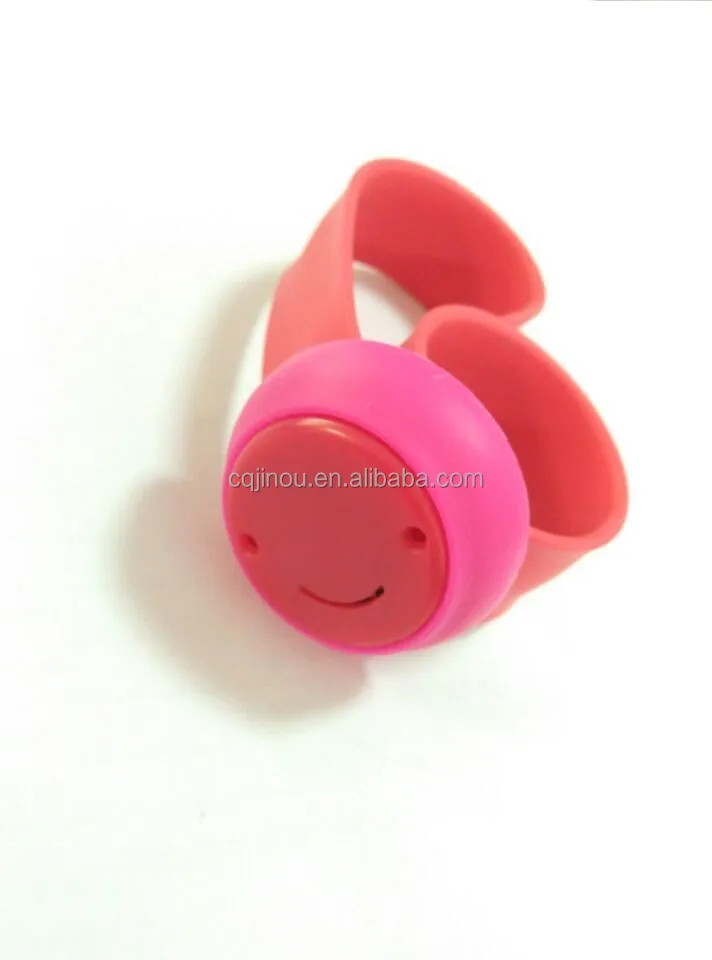

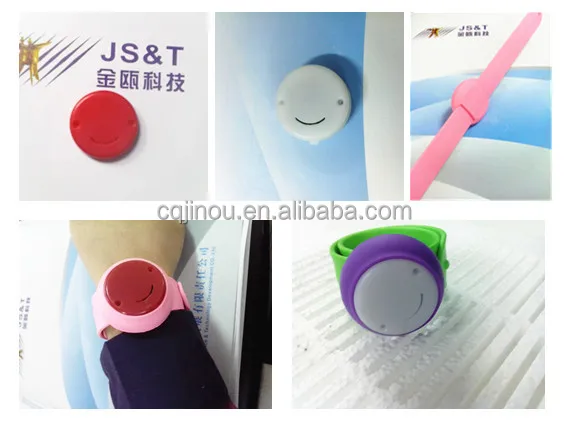

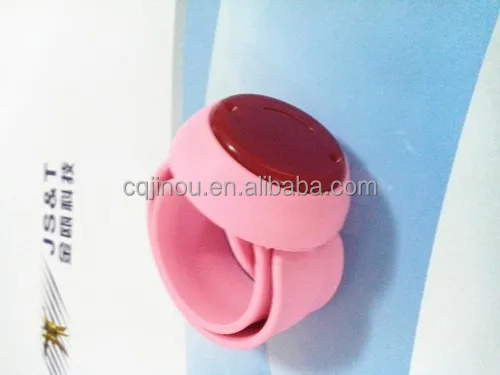

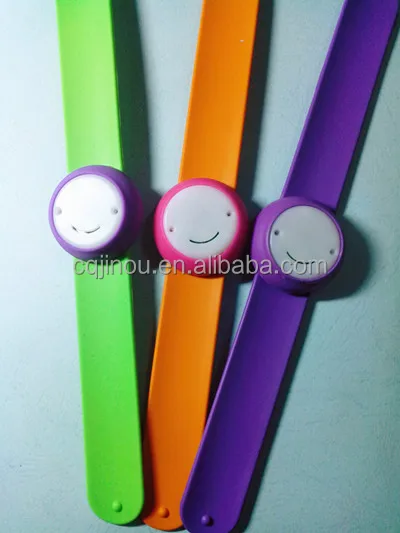

Bluetooth 4.0/4.1 BLE Beacon/iBeacon Silicone Bracelet/Wristband Android/iOS Parameter Setting
- Category: >>>
- Supplier: Chongqing Jinou Science And Technology Development Co. Ltd.
Share on (60099172324):
Product Overview
Description
Bluetooth 4.0/4.1 BLE Beacon/iBeacon Silicone Bracelet/Wristband Android/iOS Parameter Setting
Highlight:
* Size & Casing & Function [ OEM/ODM ]
* Distance: 50m ( 164 feet) in open air
* Battery life: 1~2 years
Product Description
Description
It has a smaller factor, dimension:DIA29.5*10.00mm.
Users can detect its UUID signal RSSI signal,and battery life signal with smart phones.
Users can change its paring code, transmitted power, and other customized functions.
It has a virtue of quick respond and less Latency.
Our Beacon is highly qualified Apple iBeacon standard and we can provide test app for Android system(version 4.3 and up).
Product Features
Features
• Built-in firmware, compatible with Beacon
• JO-BEC05 is powered by CR2032 button cell.
• Bluetooth Low Energy 4.0(Bluetooth Smart)
• Available for long distance transmission
• Precise figures indicate received signals strength
• CE/FCC standard
• High performance, low power consumption
• AES Security Processor
• Moulded silicon wristband, slide-type, circle changeable according to your wristband
Specification
Specification
1. Bluetooth version: Bluetooth BLE 4.0
2. Size: JO-BEC06: DIA29.50*10.00mm(outer size) (Wristband: soft silicon, adjustable)
3. Install: indoor & outdoor
4. Searching Distance: 50m
5. Connecting Distance: 10~30m
6. Power Supply: JO-BEC06 is powered by CR2032 battery, coin battery, 3.0Vdc, 1 pc.(0.5~1year)
7. Chipset: TI CC2540/CC2541
8. Working Current (3ms wake up): About 235uA
9. Matching APP: Android 4.3+, iOS 7.0+
10. Operation Frequency: 2400-2483.5MHz, Programmable
11. Frequency Error: +/- 20KHz
12. Modulation: Q-QPSK
13. Standby Current: 46uA, depends on duty cycle/broadcasting frequency
14. Broadcasting Frequency: 2S, duty cycle
15. Output Power: 0 dBm, default setting, programmable
16. Receiving Sensitivity: -93dBm, high gain mode
17. Transmission Distance: 25 meters, BER<0.1%, open space
18. Antenna: 50ohm, on board/ PCB antenna
19. Operation Voltage: 2.0-3.6V, DC
20. Security Processor: AES 128-bit
Applications
Application
- advertising and positioning
- jBeacon firmware, compatible with iBeacon, supports CC2540 with CC2541 BLE module 4.0
- Built-in pairing password preventing others to modify Settings
- UUID, Major and Minor values can be amended by the users
- Broadcast cycle can be modified by the users
- The battery intelligent detection and notification
- Names shown on the IOS device can be modified by the user
- jBeacon compatible with iBeacon when connected with other IOS devices, it will continue broadcasting
- Free jBeacon firmware upgrade services
Our Services
Why choose us?
1). OEM & OEM & customize available
2). CE/FCC/IC standard
3). Best Quality & Best Service
4). Our technical team includes former Microsoft engineers, and engineers with over 20 years of experience in RF technology and wireless communication development.
5). We will use frequency spectrum analyzer to do frequency calibration for all the electronic products before they are shipped.
Our Services
1. Sample order accepts. Sample delivery time: about 3 days.
2. OEM & OEM & customize available.
3. Software/ App customize available.
4. 24 hours-7 days sales service.
5. Factory check accepts.
6. Free warranty: 2 years.
OEM service:
1. Logo: single color or multi-color
2. Package: blank carton or customize
ODM service:
1. Software: function, APP, UI and ect.

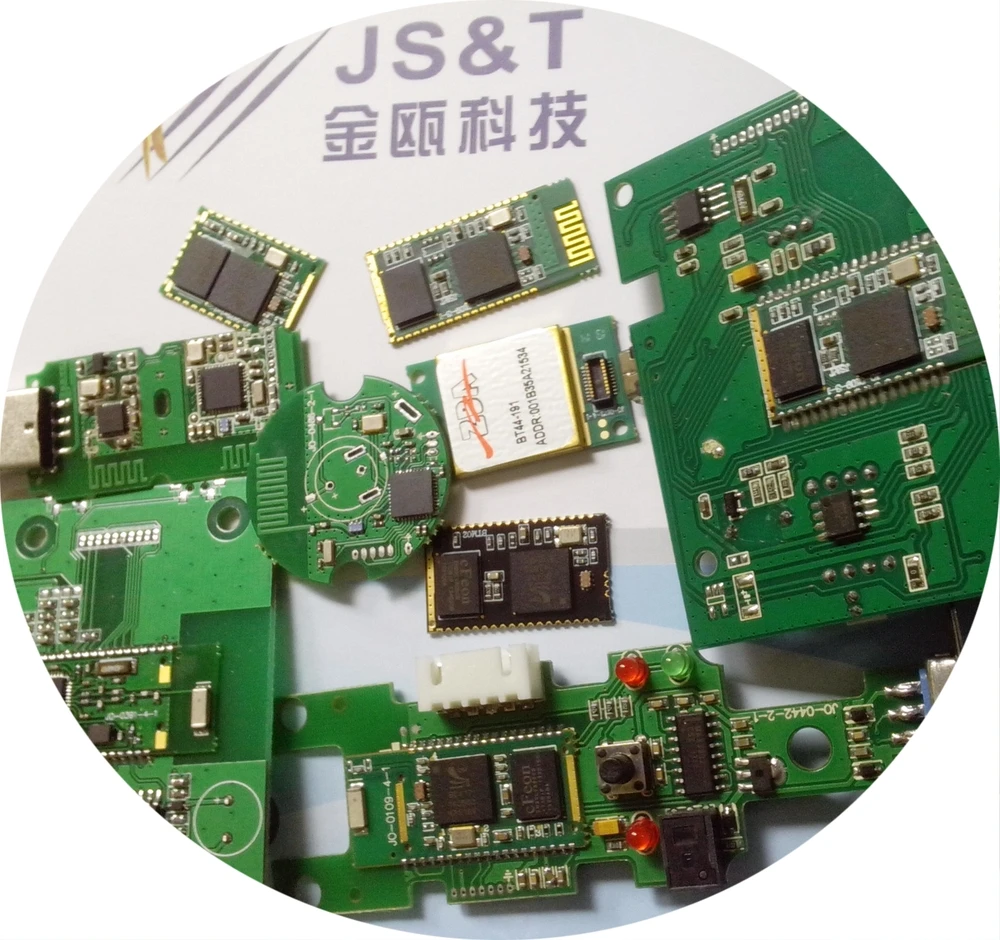

2. PCBA: size and shape
3. Case: public case or customized case
FAQ
Q:What are the terms of payments you offer?
A: Payment of the goods should be sent in USD or RMB on the basis of goods Values. We accept payment of T/T, Western Union, PayPal.
Q:How long will it take to deliver goods?
A: We will deliver the goods within 3-5 days for spare parts, other goods maybe take a little more times to test and prepare, we will deliver the goods within the deadline which both parties agreed.
Q: What kind of packaging you offer?
A: We will pack the goods well with exporting packages to make sure all goods in good condition during storage and delivery.
Company Information

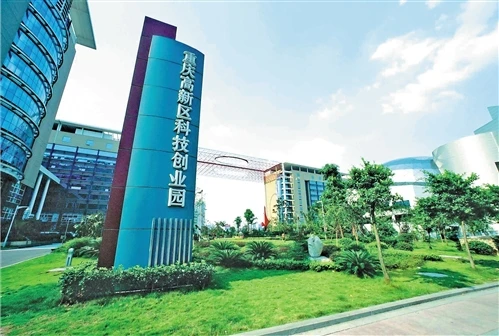

Chongqing Jinou Science & Technology Development CO., Ltd is established in September 2000. We focus on Bluetooth Technology as a leader in China for 14 years. Jinou Bluetooth Technology Research Institute shoulders R & D task for our customers and help them keep top position in their field needless to mention some of them even went IPO.
Our engineers has published more than 10 works in Bluetooth technology , such as Bluetooth Technology, Bluetooth Protocol and Source Code Analysis, Wireless Local Area Network, Wireless Network Security, IPTV and Its Solution, Zigbee Technology and Cases Analyses, ULP Bluetooth Technology Specification Analyses, etc.. In addition, they also present more than 80 Disquisitions and more than 60 patents.
We have our own producing line.
For more home use and industrial solutions, plz check our website: www.oemblue.com
