Product Overview
Description
Product Description
JINOU BLE Beacon JO-BEC01
Highlight:
* Size & Casing & Function [ OEM/ODM ]
* Distance: 50m ( 164 feet) in open air
* Battery life: 1~2 years
Beacon technology is a massive step forward in ambient context identification for indoor
positioning. Beacons allow for background positioning and detection, giving new power to a
phone that can make it truly 'smart'. jBeacon is compatible with iBeacon, and there are
applications for Android & iPhone.

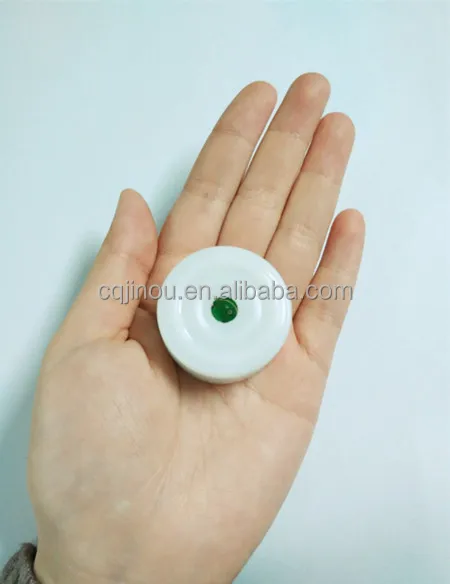

Jinou Beacon uses Bluetooth 4.0 BLE technology. It’s so small that just like a coin, which can
be easily placed indoor. Users can detect its UUID signal, RSSI signal and battery life signal by
smart phones. Also, users can change its paring code, transmitted power and other customized
functions. It has a virtue of quick respond and less Latency. Additional functions: power switch, power level indicator Led, Buzz alarm etc.
* Size & Casing & Function [ OEM/ODM ]
* Distance: 50m ( 164 feet) in open air
* Battery life: 1~2 years
Beacon technology is a massive step forward in ambient context identification for indoor
positioning. Beacons allow for background positioning and detection, giving new power to a
phone that can make it truly 'smart'. jBeacon is compatible with iBeacon, and there are
applications for Android & iPhone.
Jinou Beacon uses Bluetooth 4.0 BLE technology. It’s so small that just like a coin, which can
be easily placed indoor. Users can detect its UUID signal, RSSI signal and battery life signal by
smart phones. Also, users can change its paring code, transmitted power and other customized
functions. It has a virtue of quick respond and less Latency. Additional functions: power switch, power level indicator Led, Buzz alarm etc.
1. Built-in firmware, compatible with iBeacon
2. Bluetooth Low Energy
3. Available for long distance transmission
4. Precise figures indicate received signals strength
2. Bluetooth Low Energy
3. Available for long distance transmission
4. Precise figures indicate received signals strength
5. CE/FCC standard
6. High performance, low power consumption

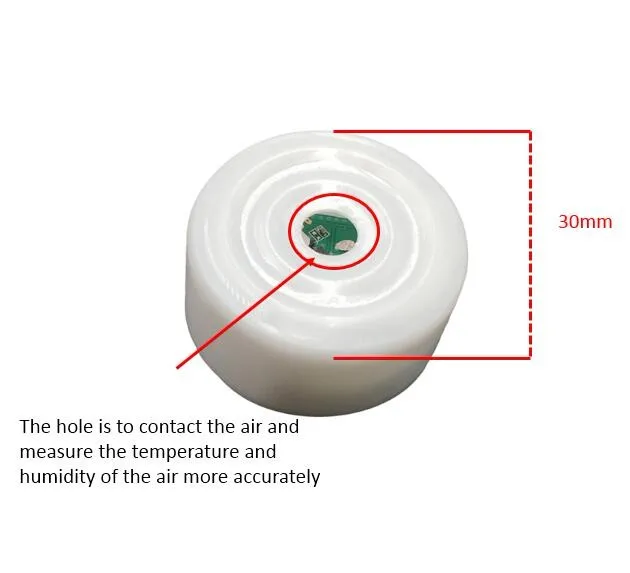

7. Temperature sensor
8. AES Security Processor
6. High performance, low power consumption
7. Temperature sensor
8. AES Security Processor
Specification
Bluetooth version | Bluetooth BLE 4.0 |

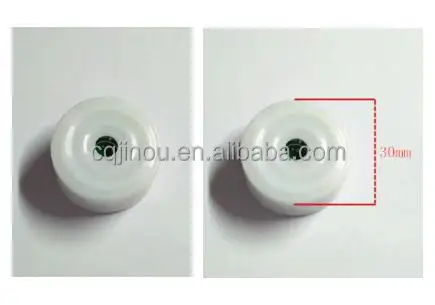

Size | DIA30.00*17.20mm(outer size) |
Install | indoor & outdoor |
Searching Distance | 50m |
Connecting Distance | 10~30m |
Power Supply | CR2032 button cell(0.5~1year) |
Chipset | TI CC2540/CC2541 |
Working Current (3ms wake up) | : About 235uA |
Matching APP | Android 4.3+, iOS 7.0+ |
Operation Frequency | 2400-2483.5MHz, Programmable |
Frequency Error | +/- 20KHz |
Modulation | Q-QPSK |
Standby Current | 46uA, depends on duty cycle/broadcasting frequency |
Broadcasting Frequency | 2S, duty cycle |
Output Power | 0 dBm, default setting, programmable |
Receiving Sensitivity | -93dBm, high gain mode |
Transmission Distance | 25 meters, BER<0.1%, open space |
Antenna | 50ohm, on board/ PCB antenna |
Operation Voltage | 2.0-3.6V, DC |
Security Processor | AES 128-bit |
Application:
1. advertising and positioning
2. Built-in pairing password preventing others to modify Settings
3. UUID, Major and Minor values can be amended by the users
4. Broadcast cycle can be modified by the users
5. The battery intelligent detection and notification
6. Names shown on the iOS device can be modified by the user
7. JBeacon compatible with iBeacon when connected with other iOS devices, it will continue broadcasting
8. Free jBeacon firmware upgrade services
9. Fashionable customized cover and firmware services
10. 10. Kinds of sensors can be added to use it in logistics tracking, greenhouse, buildings, baby house, hospitals, etc.
1. advertising and positioning
2. Built-in pairing password preventing others to modify Settings
3. UUID, Major and Minor values can be amended by the users
4. Broadcast cycle can be modified by the users
5. The battery intelligent detection and notification
6. Names shown on the iOS device can be modified by the user
7. JBeacon compatible with iBeacon when connected with other iOS devices, it will continue broadcasting
8. Free jBeacon firmware upgrade services
9. Fashionable customized cover and firmware services
10. 10. Kinds of sensors can be added to use it in logistics tracking, greenhouse, buildings, baby house, hospitals, etc.

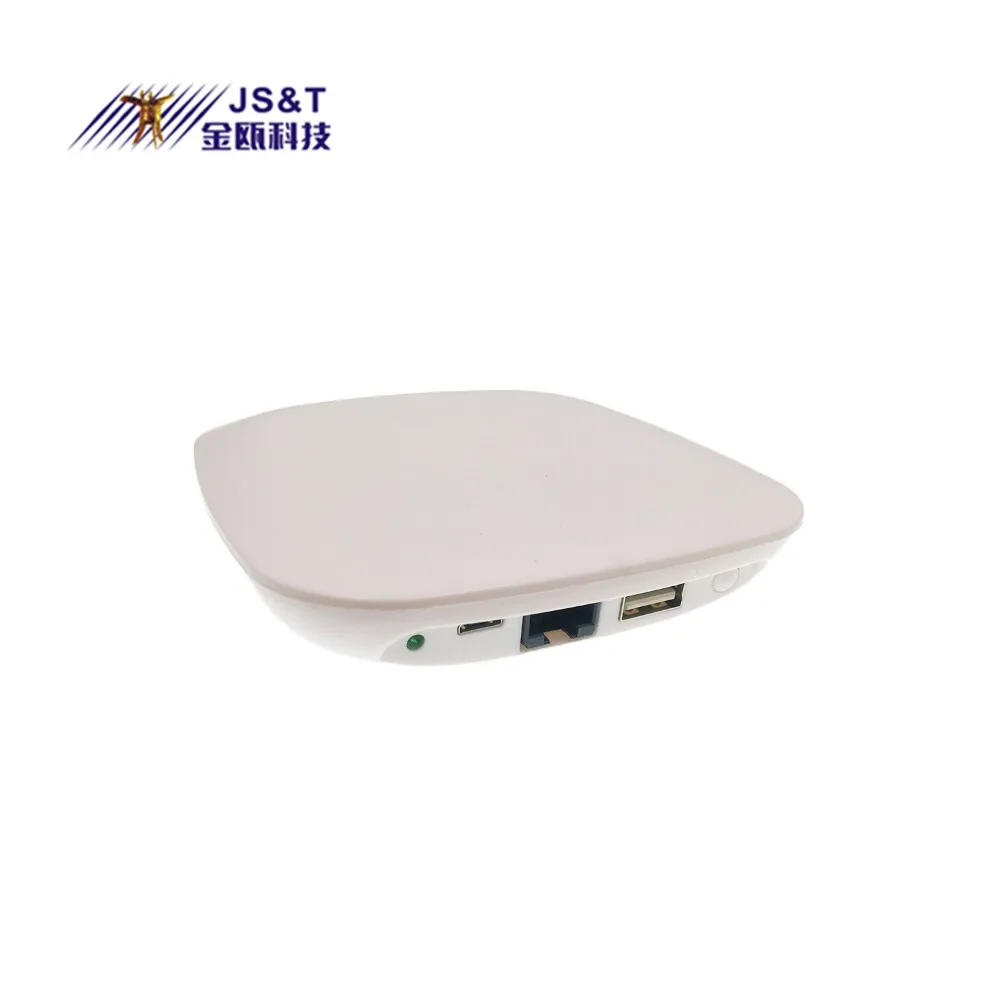

iBeacon Manager Gateway
iBeacon applications widely spread, it’s important to have the devices managed and controlled. You are the manager in the office
sitting in front of the computer, how do you know if some jBeacon works well or not? What’s the matter? Which one is running out
of power? And how should you do to shut them down for some period or at night? Now, an jBeacon manager gateway will easily get all
these work done.
sitting in front of the computer, how do you know if some jBeacon works well or not? What’s the matter? Which one is running out
of power? And how should you do to shut them down for some period or at night? Now, an jBeacon manager gateway will easily get all
these work done.
Our test
Company Profile
Chongqing Jinou Science & Technology Development CO., Ltd is established in September 2000. We focus on Bluetooth Technology as a leader in China for 15 years. Jinou Bluetooth Technology Research Institute shoulders R & D task for our customers and help them keep top position in their field needless to mention some of them even went IPO.
Our engineers has published more than 10 works in Bluetooth technology , such as Bluetooth Technology, Bluetooth Protocol and Source Code Analysis, Wireless Local Area Network, Wireless Network Security, IPTV and Its Solution, Zigbee Technology and Cases Analyses, ULP Bluetooth Technology Specification Analyses, etc.. In addition, they also present more than 80 Disquisitions and more than 60 patents.
In recent years, Jinou has partnerships with Mediacom, Gamestop, Microsoft, ARM, Invengo, HUAWEI,POTEVIO, Southsurvey, Chongqing CHANGAN, Hanwei, SNBC, Newland Group, Hi Target, CMCC, China UNICOM, CQTV, IT University of Copenhagen, Peking University, Tsinghua University, Chongqing University, Chongqing University of Posts and Telecommunication etc..
Some of our products like Smart Socket[Bluetooth/ WiFi/ infrared], Bluetooth headphones, Bluetooth Smart Controller, Fly Mouse, Bluetooth Locks, Bluetooth Medical Module, Wearable Bluetooth Module, Beacon etc., are welcomed by all people around the world except the residents from North pole and South pole.
