50cc/110cc/125cc horizontal engine cargo tricycle/three wheeler
- Category: >>>
- Supplier: Nantong Lusky Trading Co. Ltd.
Share on (60099375110):
Product Overview
Description
50cc/110cc/125cc horizontal engine cargo tricycle/three wheeler
| Specifications/Features: | ||
| ENGINE TYPE | 50cc, Zongshen | 110cc, Zongshen |
| Displacement | 47.8ml | 106.7ml |
| Engine | 1 Cylinder, 4 Stroke | 1 Cylinder, 4 Stroke |
| Bore & Stroke | 39×40 | 52.4*49.5 |
| Cooling System | Air Cooled | Air Cooled |
| Compression Ratio | 8.8:1 | 9.7:1 |
| Fuel feed | 90# | 90# |
| Max Power( Kw/rpm) | 2.18/7500 | 4.7/8000 |
| Max Torque(N.M/rpm) | 3.74/4500 | 6.7/6000 |
| Max Speed | 45 kmph | 60 kmph |
| Fuel consumption | 1.8L/100KM | 2.0L/100KM |
| Drive Train | gear | gear |
| Ignition | CDI | CDI |
| Transmission | axle | axle |
| Fuel tank capacity | 5.0L | 5.0L |
| Starting System | Electric+kick start | Electric+kick start |
| Clutch | maual,gear | maual,gear |
| Front Brakes | Drum brake | Drum brake |
| Rear Brake | Drum brake | |
| Front suspension | Hydraulic Suspension | Hydraulic Suspension |
| Rear suspension | 2 spring Suspension | 2 spring Suspension |
| Front Wheels | steel 3.75-12 | steel 3.75-12 |
| Rear Wheels | steel 4.00-12 | steel 4.00-12 |
| Axle Base | 1900 mm | 1900 mm |
| Wheel Base rear | 865mm | 865mm |
| Seat Height | 750mm | 750mm |
| max load | 500kg | 500kg |
| Net Weight | 200KG | 200KG |
| Gross Weight | 210KG(CKD) | 210KG(CKD) |
| Carriage Size | 1400*1000*270mm | 1400*1000*270mm |
| Size | 2950*1000*1070mm | 2950*1000*1070mm |
| Packing type | Carton (CKD) / Steel + Carton(SKD) | Carton (CKD) / Steel + Carton(SKD) |
| Packing size (SKD) | 2450*1000*850mm | 2450*1000*850mm |
| 20' GP container | 20 units(CKD) / 8units(SKD) | 20 units(CKD) / 8units(SKD) |
| 40' HQ container | 60 units(CKD) / 24units(SKD) | 60 units(CKD) / 24units(SKD) |

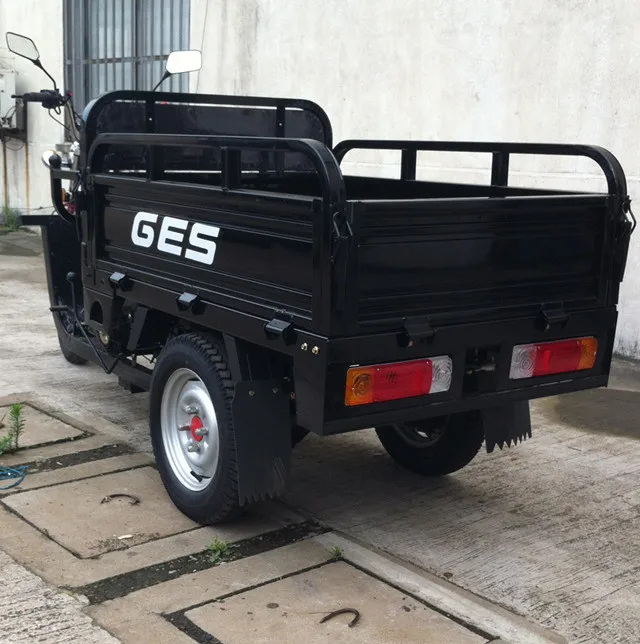

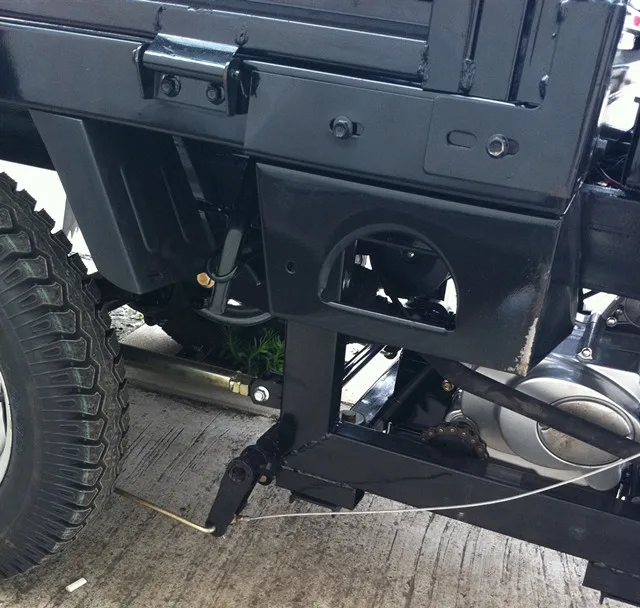

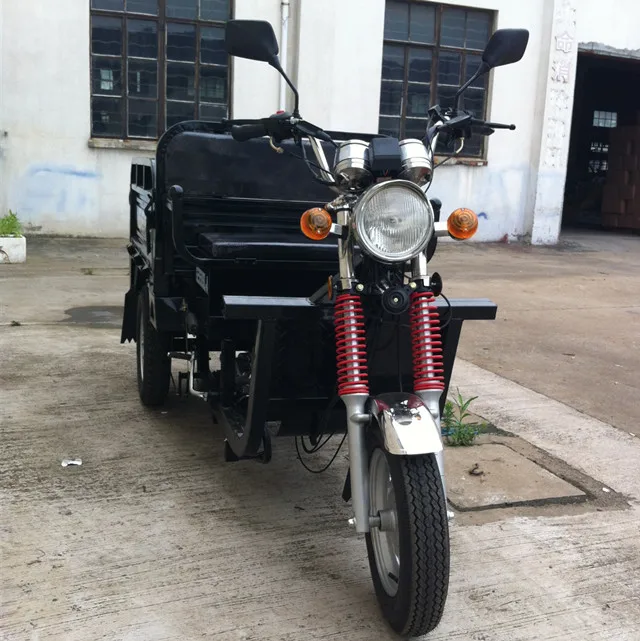

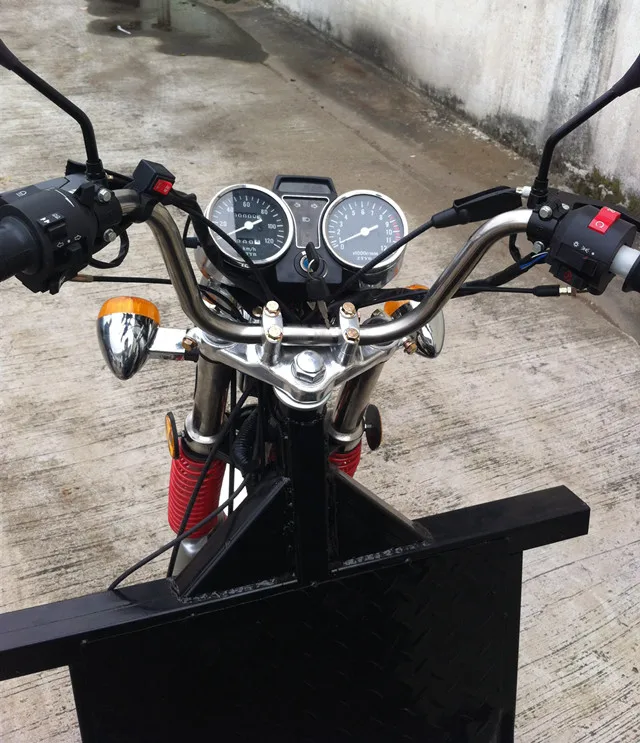

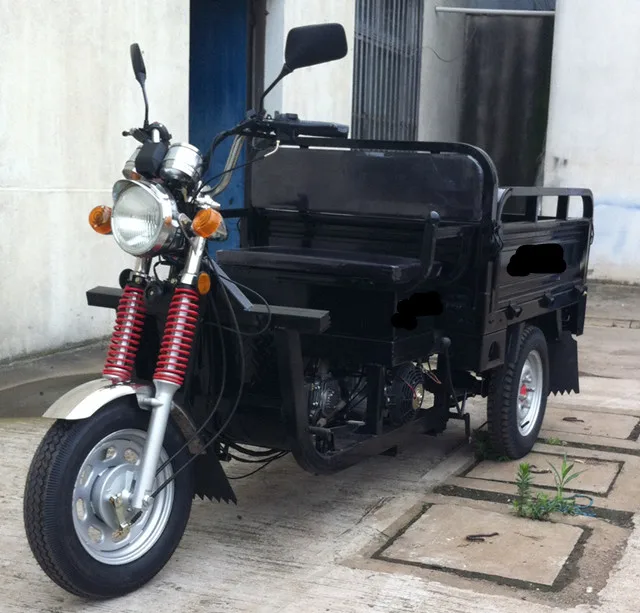

tricycle pictures:
