ZH 1200G лучшее качество автоматический склеиватель для картонных коробок для машины для изготовления обувных коробок

ZH-1200G  Best quality automatic shoe box making machine

ZH-1200G folder gluer is specially designed for large straight line box, large pre-fold box and large crash lock bottom box. Its feeding width can be up to 1000mm. Larger sized folding section will increase the folding and gluing accuracy, and thus decrease the trumpet mouth box forming on the older generation model. Upper belt of ZH1200G can be adjusted separately, and thus for E corrugated box, the trumpet mouth box forming phenomena will also be decreased. Its motor can be separately independently and makes the collecting effect better. It is ideal equipment for large box packing factories.

Technical parameters

1.Line speed:280m/min, Continuous adjustment.

2.Usage paper:220~600g/m2 Paperboard, E corrugated board

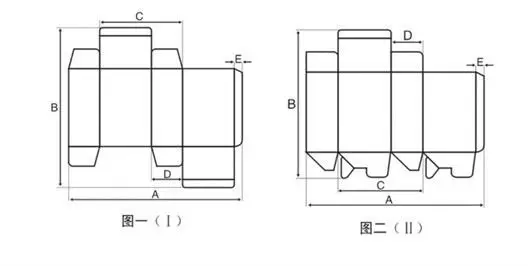

3.Box forming:Either side folds, either side pre-folds, crash lock bottom

4. Fold method: 1st & 3rd folds 90°, 2nd & 4th folds 180°

5.Paper feeding:Automatic feeding

6.Glue:Cold glue

7.Electric:6kw, AC380V

8.Weight:3000kg

9.Dimension:10500×1300×1300mm
