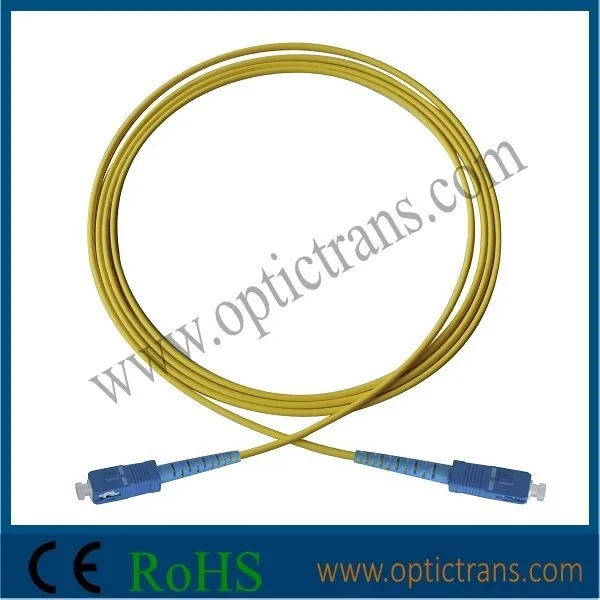

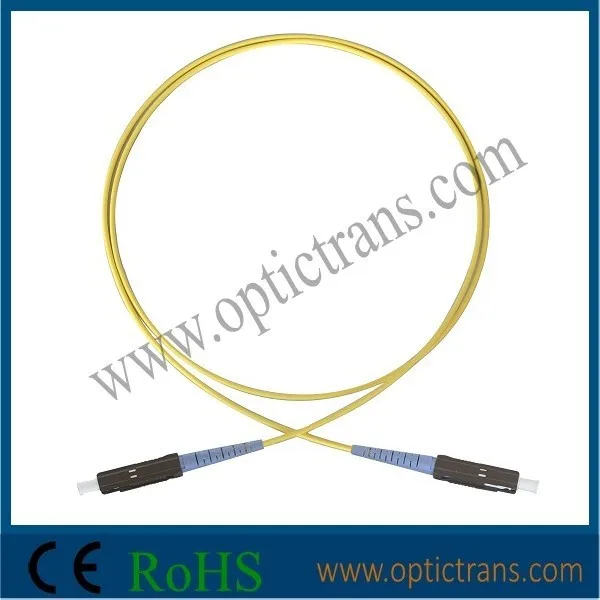

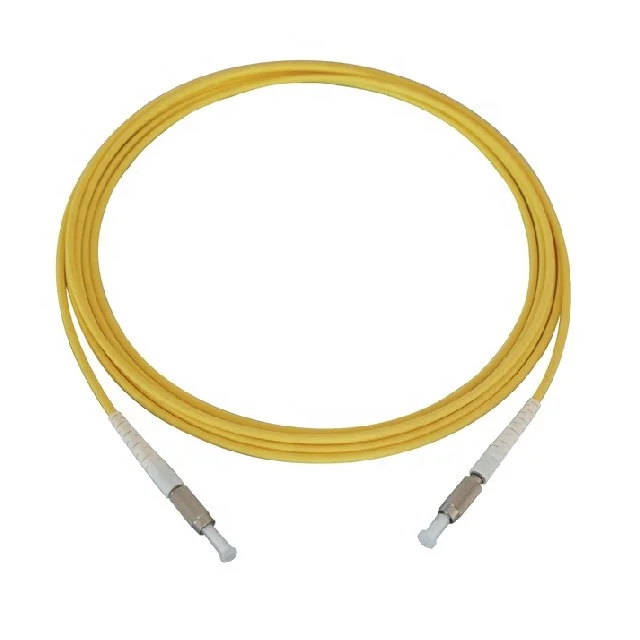

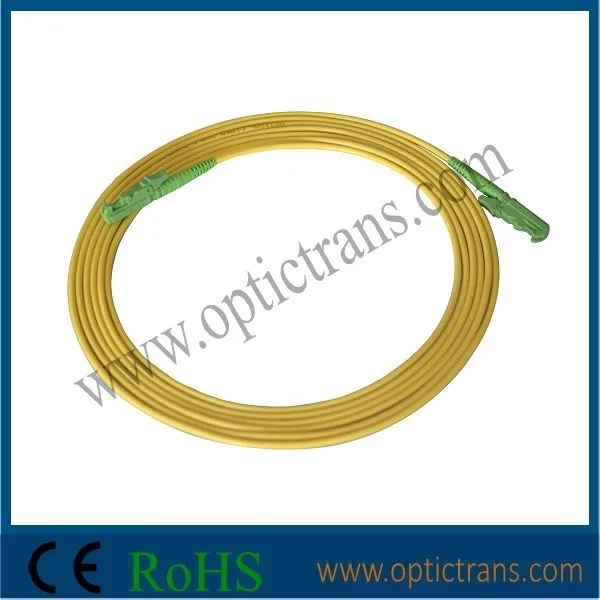

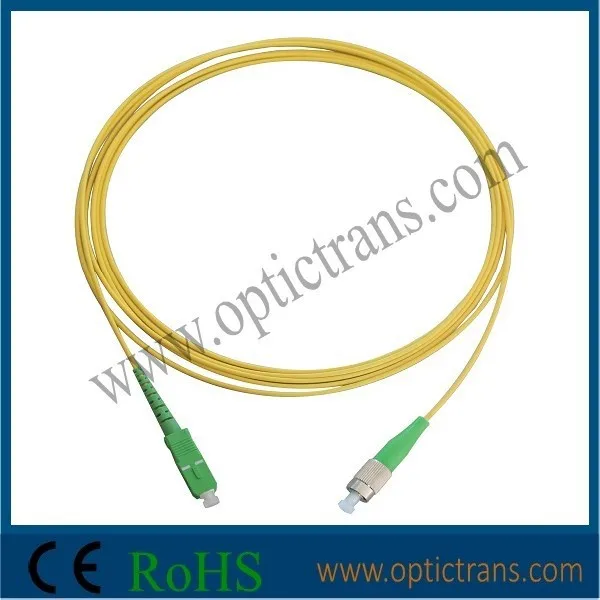

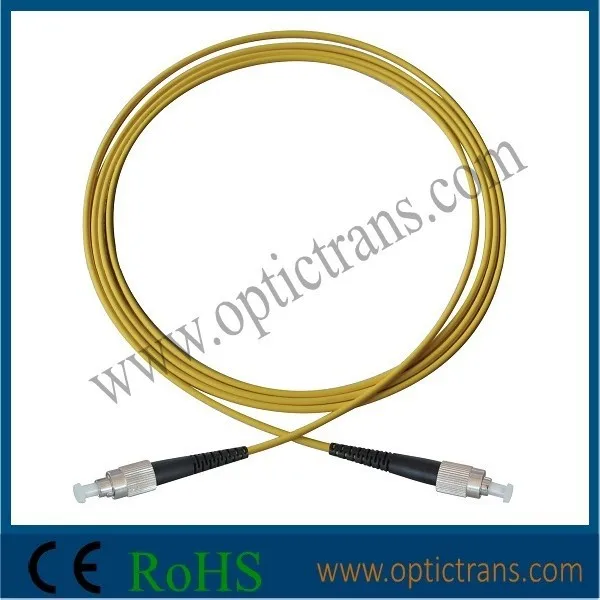

Single mode Simplex Patch cord( OPPC 1000 )
- Category: >>>
- Supplier: Hangzhou OpticTrans Communication Tech. Co. Ltd.
Share on (60099564780):
Product Overview
Description
Feature
1. All patch cords & pigtails 100% tested, 3D test data can be provided.
2. Different boot colors for option
3. Simplex or duplex can be specified
4. Low insertion loss & high reflection loss
5. Strong environment & high temperature stability, comply with Telcordia standard, pass TLC approval.
Applications
1. Long distance and local light transmission network
2. Data Transmission network
3. CATV network
4. Various kinds of testing and self-control system
Technical parameters
Connector type | SC/ST/FC/LC/MTRJ/DIN/MU/E2000/D4/ESCON/MTP/MPO/SMA | ||
Fiber type | Corning Multi-mode 50/125, 62.5/125, 10Gig (OM3) | Corning Single mode 9/125 G652D,G657A,G655 | |
Cable type | PVC, OFNR (Riser), OFNP( plenum), | ||
LSZH ( low smoke zero halogen | |||
Simplex, duplex, multi standard , 4,6,8,12, 24,48, 96,144 fibers | |||
Cable color, | According to customers’ requirements | ||
length, diameter | |||
Optical specification | IS | ≤0.3dB | ≤0.3dB |
RL | ≥30dB | PC≥45dB, UPC≥50dB, | |
APC≥60dB, | |||
Mechanical testing | Ferrule | Ceramic | |
Peak offset | <50um | ||
Curvature radius | 7mm<R<25mm | ||
Repeatability | ≤0.2dB 1000 times mating cycles | ||
Working temperature | -25℃~+75℃ | ||
Storage temperature | -45℃~+85℃ | ||
Ordering information
OPPC-1000-A-B-C-D-E-F-G
A: Fiber cable structure
01 | Simplex 3.0mm (0.9 tight coating) |
02 | Simplex 3.0mm (0.9 loosing tube) |
03 | Simplex 2.4mm (0.9 tight coating) |
04 | Simplex 2.0mm (0.9 tight coating) |
05 | Simplex 1.6mm (0.6 tight coating) |
06 | Simplex 0.9mm tight coating |
07 | Simplex 0.9mm loosing tube |
08 | Duplex 3.0mm |
09 | Duplex 3.0mm (0.6 round tight coating) |
10 | Duplex 3.0mm (flat double tube) |
11 | Duplex 2.0mm(0.9 tight coating) |
12 | Duplex 2.0mm(0.6 tight coating) |
13 | Duplex 1.8mm |
B: Fiber type
01 | G.652D |
02 | G.655 |
03 | G.657A |
04 | G.657B |
05 | OM1 |
06 | OM2 |
07 | OM3(150) |
08 | OM3(300) |
09 | OM4 |
