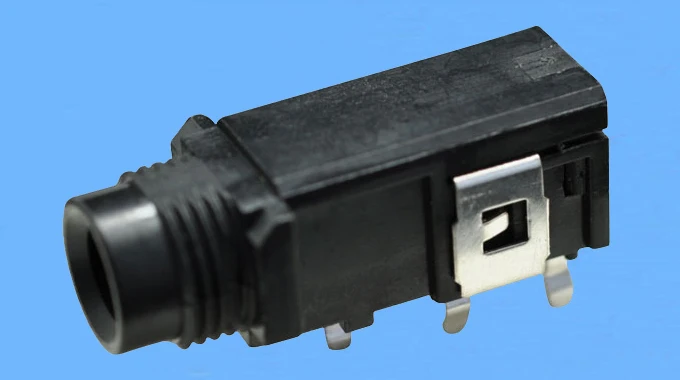

4 pin phone jack connector 6.35mm PJ 603 socket

6.35 Phone jack

Specification

Rating

0.5-3A 12-50V DC

Contact resistance

100mΩ max

Insulation resistance

100MΩ min at500V DC

Dielectric strength

AC 500V for 1 min

Lifespan

10,000 Cycles

Practical temperature range

-40 to 85 degrees Celsius

RoHS

Yes

[Warm Tips]All informations above are for reference only; Particulars of all items are base on individual specification.
