TAIWAN Easy welded by PU round belting
- Category: >>>
- Supplier: TAIWAN POLY-URETHANE INDUSTRIAL CO. LTD.
Share on (60099771937):
Product Overview
Description
Product Description
TPUCO Easy welded by PU round belting

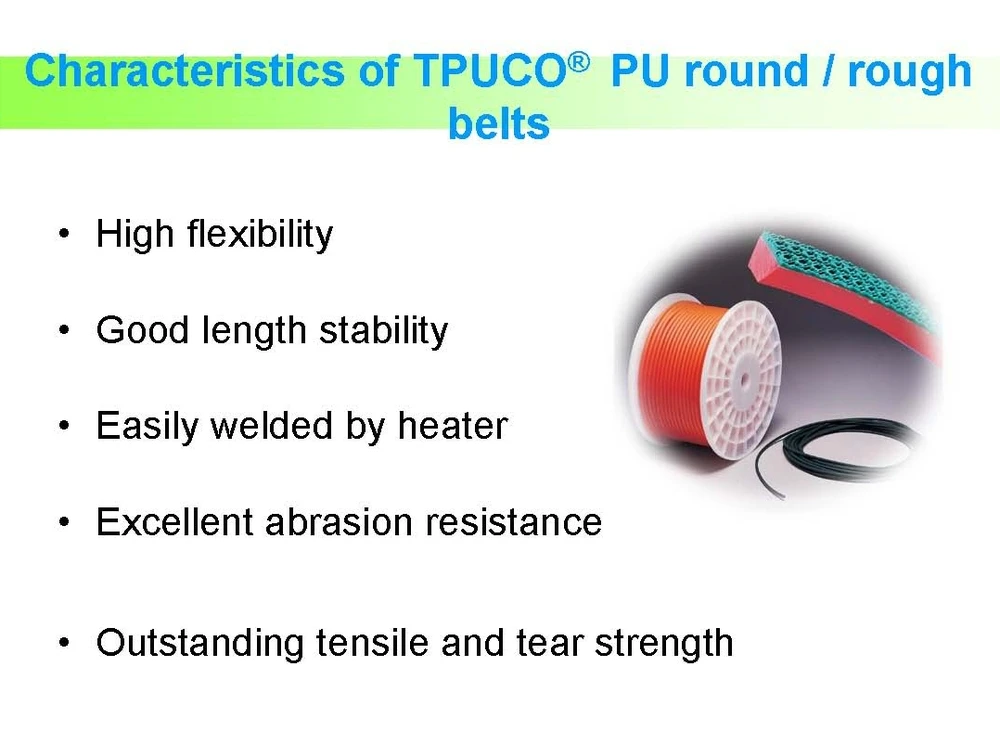

Advatage
- High flexibility and impact resistance
- Easily welded by heater
- Outstanding tensile and tear strength
- Resistance to oils, fuels and oxygen
- Good weather ability
- Better abrasion resistance than PU smooth belt
Application
Transmission purposes of textile machines, packaging machines, printing presses, food machinery, industrial and paper equipments. Cut round belts can be joined as the endless belts as required according to the drive wheel distance and pulley size.
Description
| ITEM No. | Specification | ||
| BTR01 | OD:1mm | x | L:2,000M |
| BTR02 | OD:2mm | x | L:400M |
| BTR03 | OD:3mm | x | L:400M |
| BTR04 | OD:4mm | x | L:200M |
| BTR05 | OD:5mm | x | L:200M |
| BTR06 | OD:6mm | x | L:200M |
| BTR07 | OD:7mm | x | L:100M |
| BTR08 | OD:8mm | x | L:100M |
| BTR09 | OD:9mm | x | L:100M |
| BTR10 | OD:10mm | x | L:50M |
| BTR12 | OD:12mm | x | L:50M |
| BTR14 | OD:14mm | x | L:50M |
| BTR15 | OD:15mm | x | L:50M |
| BTR16 | OD:16mm | x | L:50M |
| BTR18 | OD:18mm | x | L:30M |
| BTR19 | OD:19mm | x | L:30M |
Physical Properties
SHORE HARDNESS "A" SCALE ASTM D 2240 | ULTIMATE TENSILE STRENGTH PSI ASTM D 412 | ELONGATION% ASTM D 412 | TEAR STRENGTH PLI ASTM D 412 | COMPRESSION SET AT 25% DEFORMATION % TABER e | ABRASION RESISTANCE CYCLES ASTM D 746 | SOLENOID BRITTLE POINT oC |
90±2 | 6400 | 500 | 600 | 6 | 39 | -35 |
Notice: These values are based on the test of our present laboratory test specimens.
**More information, please access our website:
https://www.taiwanpu.com/en/product/PU-Beltings/PU-Belt?page=1&rtnKind=PU-Beltings?kindt=true
