PVC rain boot shoes making machine

Product Overview

Description

PVC rain boot shoes making machine

This machine Dedicated to the production of single-color variety of highly different male and female boots, rain boots is so far the best and efficient injection molding machine.

Product Description:

 Use and character :

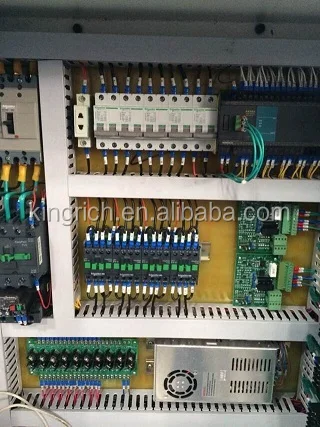

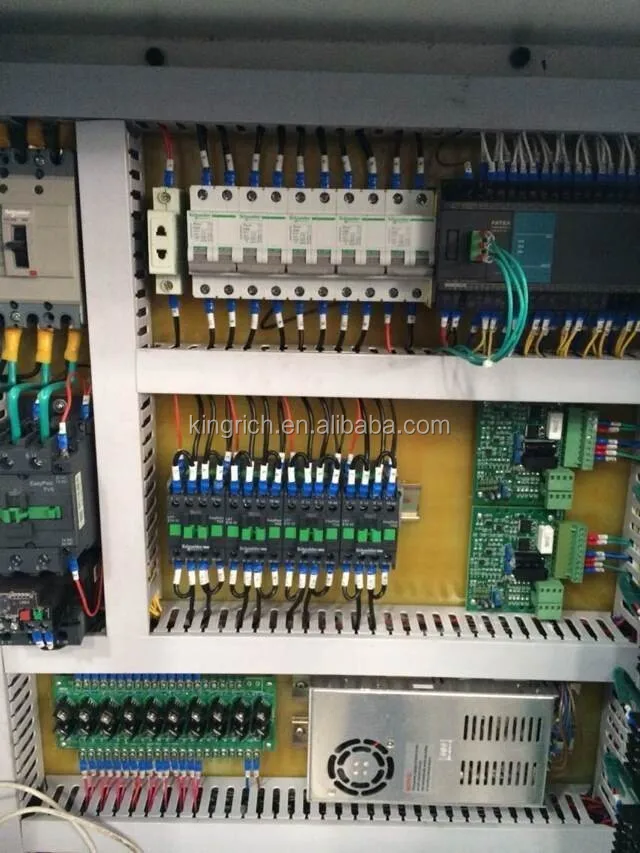

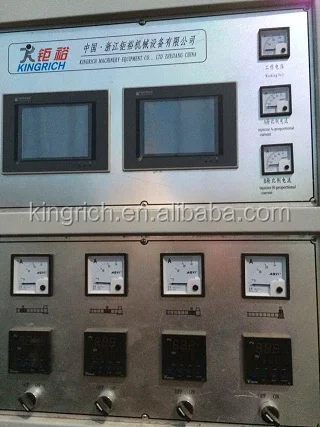

 1.  PLC program control of industrial man-machine interface\\Display of tactile screen\\Quick speed\\Precise measurement\\Full automatic operation.

2. The working statement is monitored all the while,for person to adjusthe parameters easily if necessary.

3. It is applied to produce one-color\\two-color\\three-color soles.

4. The machine has economy design ,it takes up only small space,savingenergy,asking for fewer operators.

Specifications:



Items	Units	KR2160012W
Main machine injection capacity	g	1200
Diameter of screw	mm	90
Auxiliary machine injection capacity	g	680
Diameter of auxiliary screw	mm	65
Injection measuring accuracy	g	±1
Injection pressure of main machine	kg/cm²	300
Injection pressure of auxiliary machine	kg/cm²	760
Rotate speed of thescrew	r/min	0-160
Clamping pressure	TONS	150(main)75 ( deputy)
Clamping pressure	TONS	20
Mold size	mm	380×200×680
Power of heating plate	kw	9×2

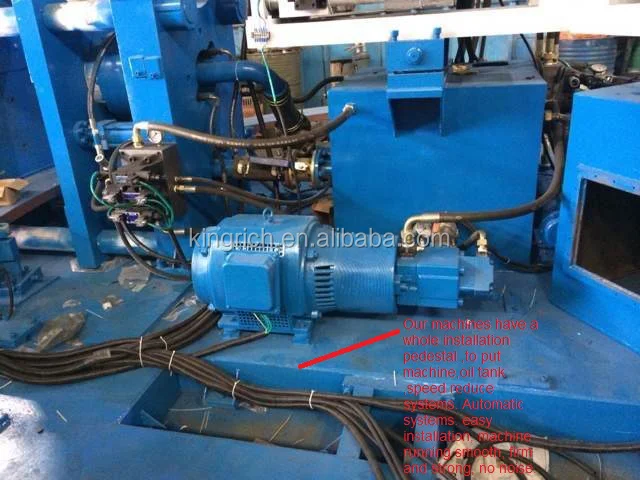

Power of motor	kw	22 main 15  deputy
Total power	kw	55
Material		PVC,TPR Plastic materials
Mould stations	digit	12
Dimension(L×W×H)	m	6.5×6×3
Machine weight	T	21

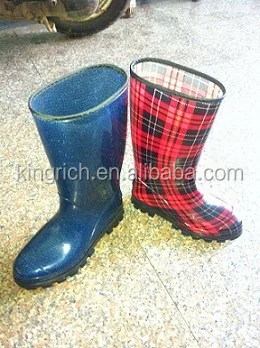

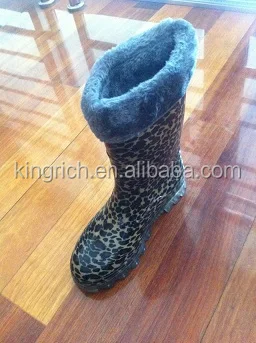

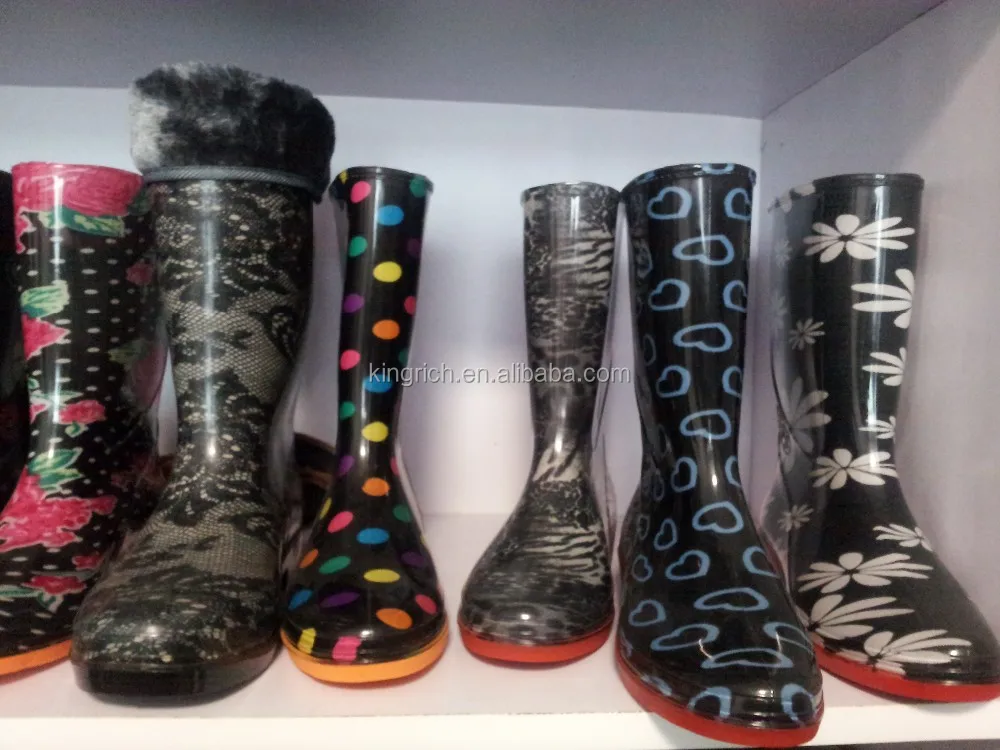

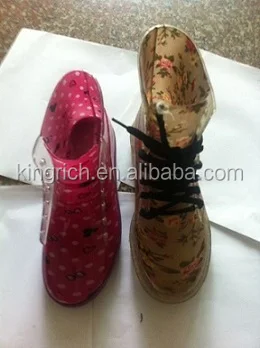

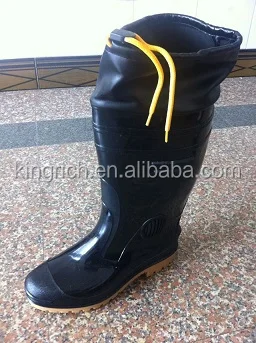

 SHOES SAMPLE:



costomer visit our factory

Certifation:



Two color rain boot machine video link:

//v.youku.com/v_show/id_XNjkzNTAzMzI0.html







WARRANTY

1year warranty(from the installation date)for all machine parts.

Exception:consumable machine parts such as screw,motor and ect.Damage caused by mis-operation





INSTALLATION



Installtion & Training will be completed by our technicians, charge is free within 15 working days.

If extension,clients have to pay 100$ to each technician every day.

The expanse of round-trip air tickets,meals and local transportation.
