Energy saving EVA shoes machine

Product Overview

Description

Energy saving EVA shoes injection machine

Use and charactor:

1.low operation height.proper height of control platform fits the body engineering.

2.we have energy saving systems(SIFU motor)20% energy saving.

Specifications:



Items	Units	KR9506-L2	KR9508-L2
Material	kind	EVA	EVA
Work stations	stations	6	8
Mold clamping pressure	T	180	180
Mold size	mm	290*500*2	290*500*2
Opening stroke of mould	mm	360	360
Diameter of screw	mm	55	55
Max.injection capacity(Max.)	g	900	900
Injection pressure	kg/cm2	1000	1000
Injection Speed	cm/sel	10	10
Rotate speed of the screw	R.P.M	0-165	0-165
Temperature Control	point	4	4
Power of heating Barrel	kw	13.1	13.1
Power of heating plate	kw	72	96
Total electricity	kw	118.6	142.6
Oil tank size	L	1000	1000
Dimension(L×W×H)	M	8*4*2.7	10*4*2.7
Machine weight	T	29.5	33

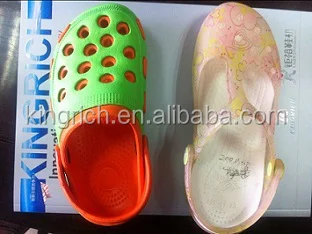

EVA Shoes samples:



Certifation:



EVA shoes making machine Vido link for YUKU

//v.youku.com/v_show/id_XMzgzODQ1MDQw.html







WARRANTY

1year warranty(from the installation date)for all machine parts.

Exception:consumable machine parts such as screw,motor and ect.Damage caused by mis-operation





INSTALLATION



Installtion & Training will be completed by our technicians, charge is free within 15 working days.

If extension,clients have to pay 100$ to each technician every day.

The expanse of round-trip air tickets,meals and local transportation.
