1220x2400 OSB production line/ Chipboard making machine

Product Overview

Description

OSB Production Line



OSB line based on wood as raw materials, shavings, glue, auxiliary equipment, hot pressed density 550-750kg / M 3 man-made sheet. It has a fine smooth surface structure of the core layer gradient, and has good heat insulation, sound insulation and good machining properties, is widely used in manufacturing furniture, high-end cabinets, speakers, and other interior construction and transport. We produce an annual output of 30000-60000 cubic meters of particle board equipment, in a dry, auxiliary equipment, hot press has done a great section in the technical modifications, reduce investment, improve the quality of the products.



1. Main Data of OSB production line



--Voltage	380v/ 415v
--Layers	10~24
--Capacity	30,000~60,000 cbm
--Board Size	4*8 (1220*2400)
--Raw Material	Bagasse,  Wood Branch, log, waste wood, sawdust and left overs
--Control Method	PLC, CNC





1) Chip preparation section
Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to the chip bin, and then feed to the knife-ring flaker by which the chips are turned to flakes,then the flake stored in wet flake bin.

2) Drying and sifting section
The flskes discharged from the wet flake bin are conveyed to the rotary dryer. Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, and transported to surface flake bin.

3) Forming and hot-pressing section
The surface and core flakes are sent into classi-forming machine, and forming on the mat conveyor uniformly. After process of metal remover , pre-press, lengthwise saw, cross saw, accelerate conveyor,scaling conveyor , storing conveyor and loading conveyor,mats are transported to carrier and then to hot pressing. Rough boards after pressing are pushed to unloader via pallet.

4) Cooling and sizing section
The rough board is conveyed to star-cooler for cooling ,then the rough board goes through side trimming saw and become a qualified particle-board, stacked on the hydraulic lift.

5) Sanding section
The board are sanded,checked and stored.
PLC control is used in mat-forming section.



2. Image Showing of OSB production line



No.1 OSB Wood Chip

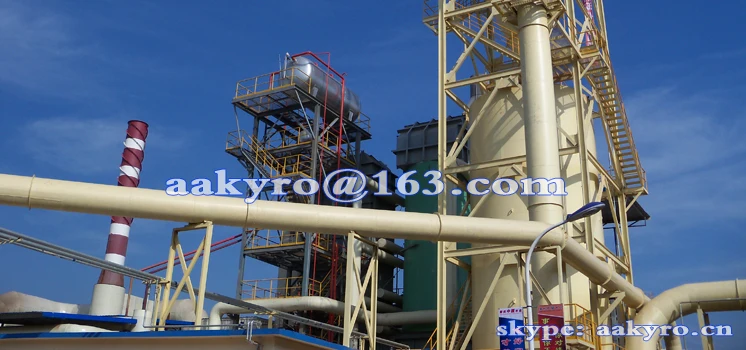

No.2 Chip  Silo

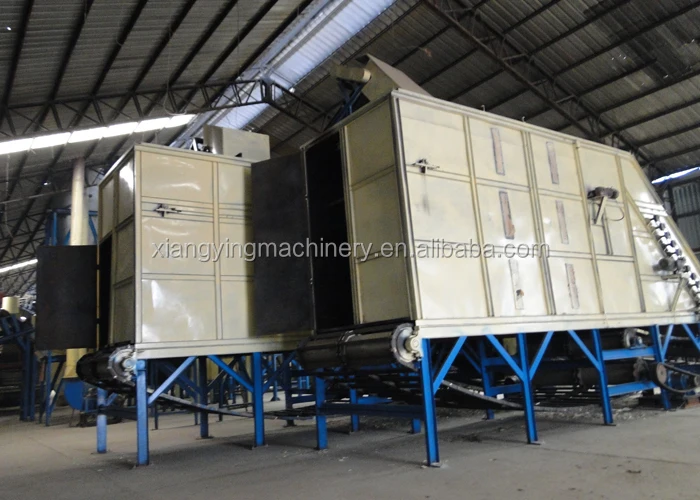

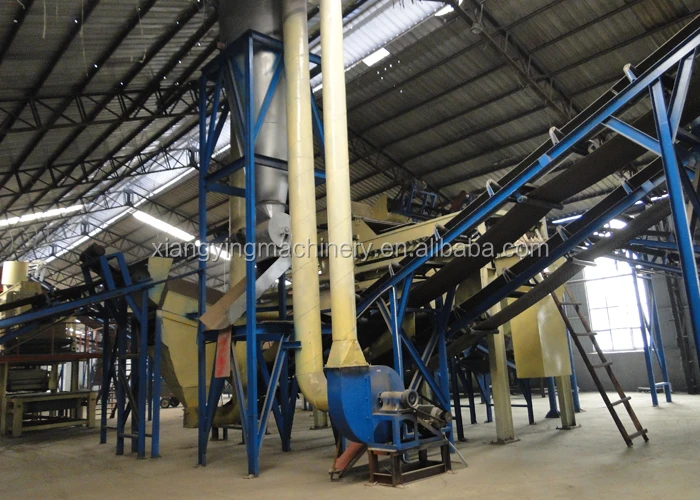

No.3 Belt Conveyor & Separator

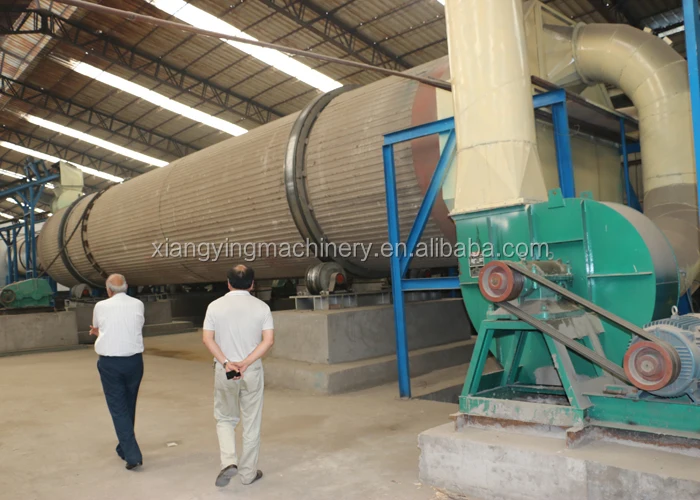

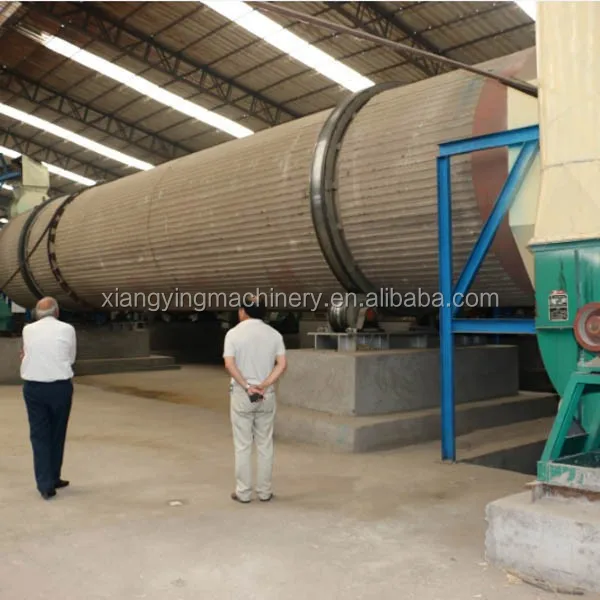

No.4 Three-passage Hot Air Dryer

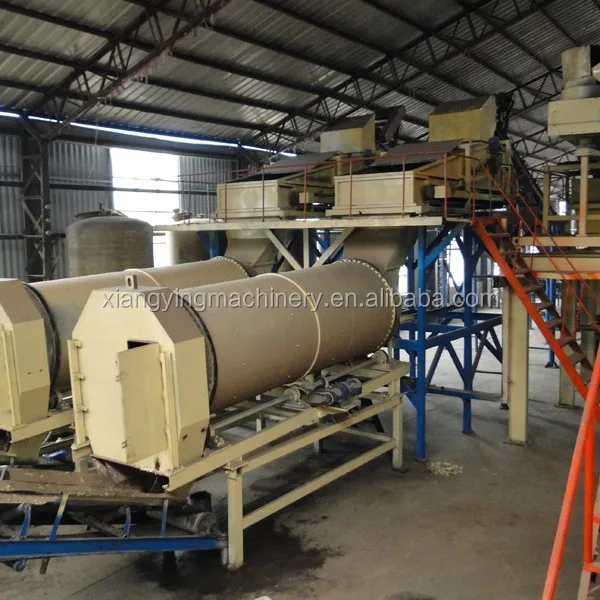

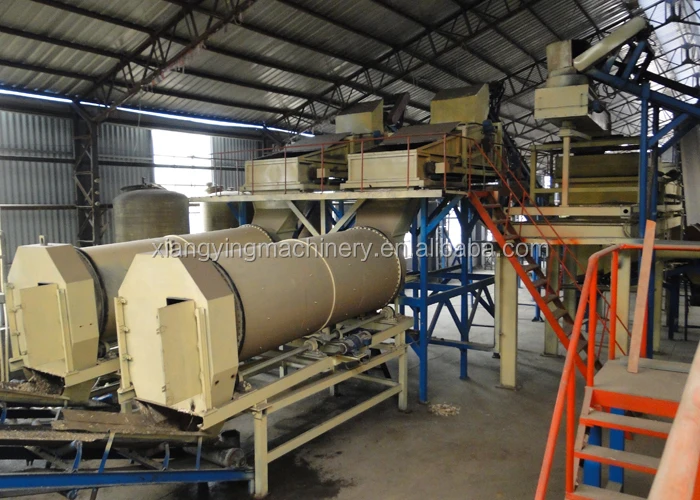

No.5 Glue distribution & blending system

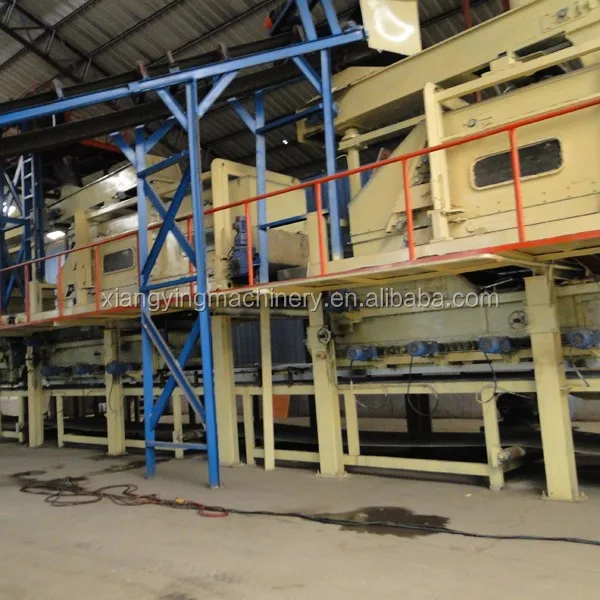

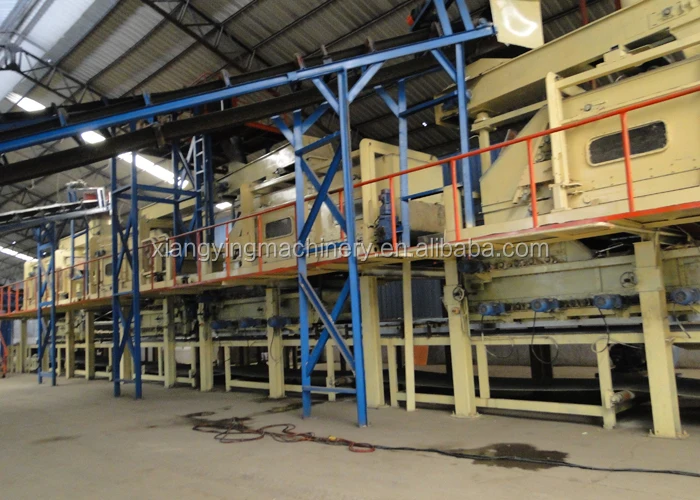

No.6 Oriented forming machine (4-head)





No.7 Muti-roller pre-press (continuous pre-press)

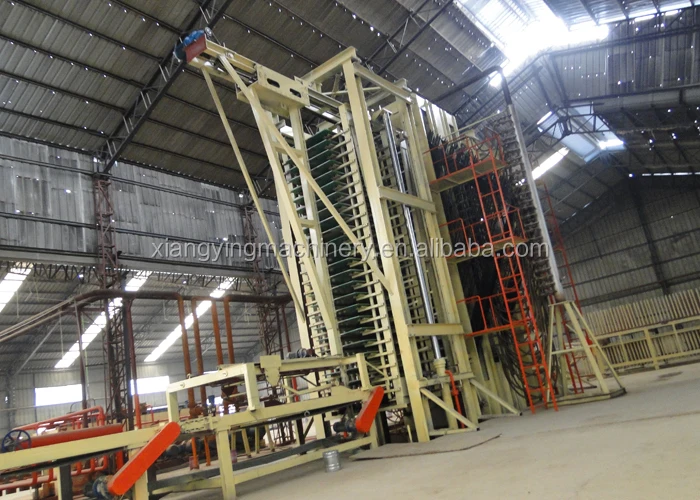

No.8 Multi-opening Hot Press

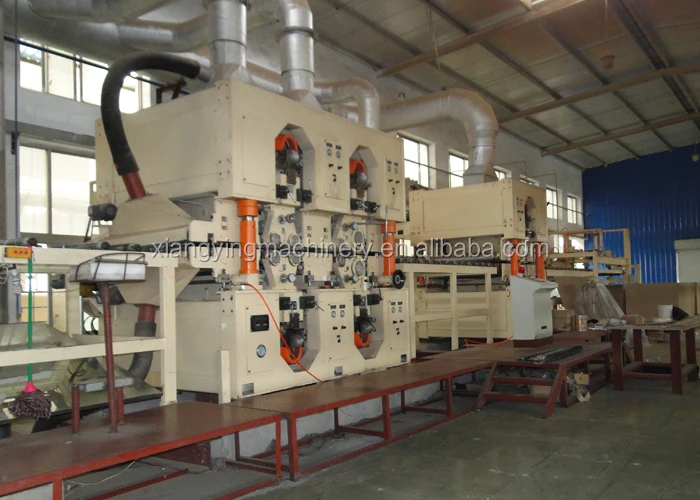

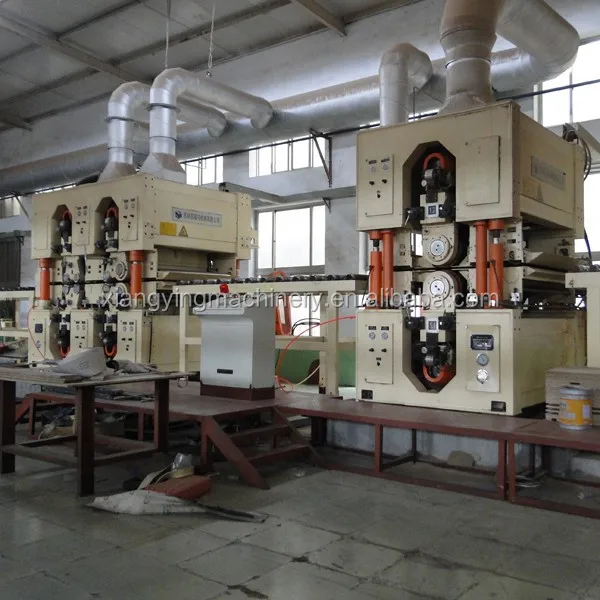

No.9 Sanding Machine





3. Company information

Xiangying Machinery · Linyi Shandong

Located at Lanshan district, Linyi City of Shandong province, “the Biggest wood based panel base of Asia”, Linyi Xiangying Machinery Manufacturing Co., Ltd(Linyi wood based panel machinery plant)is an aggressive enterprise which integrates woodworking researching, designing, manufacturing, marketing and service into one whole.
Since it was established in 1992, Xiangying machinery keeping innovations and perfection to commit themselves in producing best quality machinery.
Our main products are Particle board production line, Plywood production line, MDF production line, Melamine veneer press,Mould door equipment etc. based on our good quality as well as perfect service ,our business scope expands extensively both at home and in more than 20 countries such as Vietnam, Malaysia, Pakistan ,Bangladesh, Russia, Turkey and so on. And they are all well praised by our clients.
Choose Xiangying machinery, Create measureless value.





3. FAQ



1) All kinds of mold can be made by customer's drawings

2) All price are based on FOB, QINGDAO, China

3) Payment: by T/T 30% down payment, 70% upon machinery completion.

4) Delivery: After finishing all the payment

5) All the parameters above just for reference, for they are updating all the time

6) Package: Standard packing

7) Warranty: All the machine enjoys one year’s warranty, in this period.



Any problems of machine, please feel free to contact us. We will try our best to make it .
