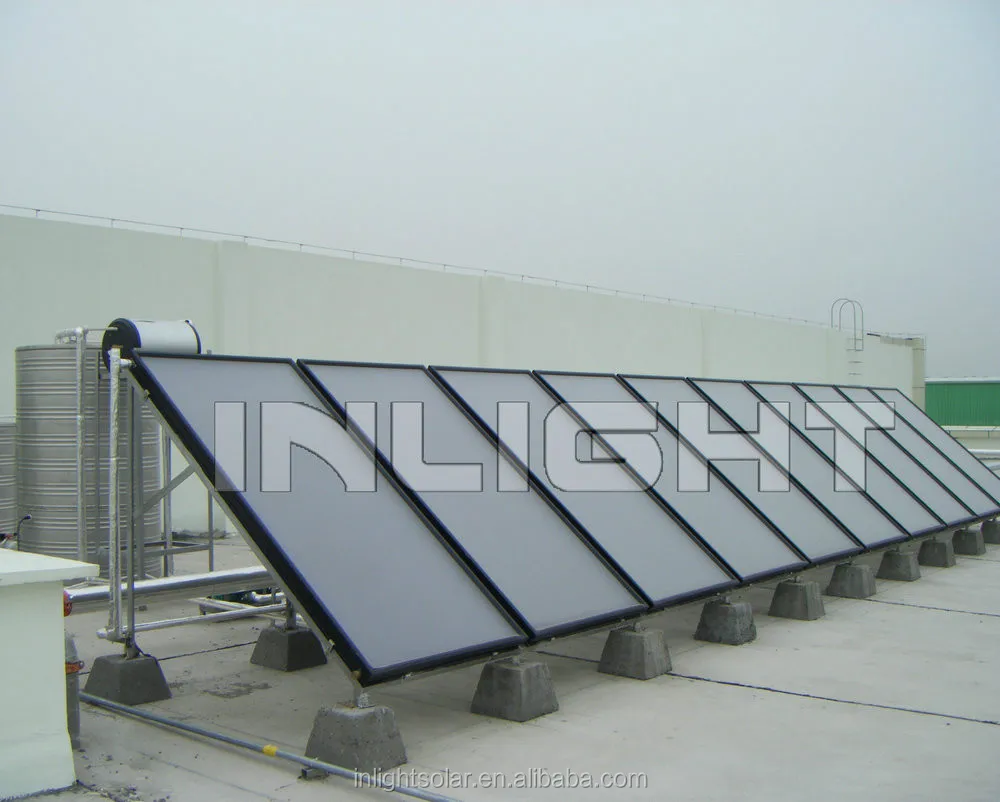

Top Quality Low Price Hot Sale China manufacture 2000L Flat Panel Solar Water Heater

Product Overview

Description





Item Name			Description
Hot Water Storage Tank			1. Tank capacity: 2000L
			2. Inner material: Food grade SUS304-2B stainless steel,0.4mm
			3. Outer material: SUS202-2B stainless steel,0.4mm
			4. Insulation layer: Polyurethane foam, 50mm
Flat Solar Panel			1. Size: 2000x1000x80mm
			2. Absorber coating: Black chrome
			3. Header and riser pipe: High quality copper T2
			4. Insulation layer: Rockwool, 35mm
			5. Cover / black plate: Tempered glass/ galvanized steel
Intelligent Controller			1. Voltage: 110/220V,50Hz/60Hz
			2. Controlling electric heater power: 6~9KW
Circulation Pump			Make water circulation between solar collector and water tank
Pressure Pump			To hot water use terminal
Electric Solenoid Valve			Controlling water inlet
Connecting pipes & connectors			Connect solar collector and water tank
PVC & Insulation materials			Wrap outside of water pipe to reduce heat loss
Optional Assistant Element : Electric heater or heat pump heater			To assist the system in cloudy or rainy days.



Working Principle:
1) Firstly, the storage tank shall be filled with cold water, the collector loop shall be pumped with water

2) The water in collector loop then will be heated with solar radiation to vacuum tubes

3) When temperature discrepancy sensed between solar collector and storage tank reaches set value in controller, the controller shall start the circulation pump automatically
4) The circulation pump makes water circulate in the loop
5) Hot water would be pumped into storage tank and the loop again be pumped with cold water from the bottom of storage tank
6) In case the temperature in storage tank does not reach set value you want, then the auxiliary electrical heater would start to assist heating
7) When temperature discrepancy sensed between solar collector and storage tank is below the set value in controller, the circulation pump shall stop automatically

8) If the water temperature has not reached the expected value set in the controller, then the auxiliary heating device would start to assist solar water heating

9) Eventually the water will get heated enough as expected ready for use



Features:

1. Especially for large-scale hot water heating system, supplying hot water for apartments, hotels, restaurants, schools, hospitals, factories, swimming pools, and other places requiring large amount hot water use.

2. Very economical and of good performance for a 15 years lifespan

3. Adaptable to different architecture structure installation

4. Anti-freezing system with good insulation to the pipelines

5. Easy installation and connection of solar collectors and pipelines

6. Able to be disigned to work with axuiliary heating devices to assist solar water heating
