PRYXF 398 полностью автоматическая Высококачественная машина для изготовления конвертов для бумажников Южная Африка 3000 10000 шт./ч 375 мм 480 мм/

Product Overview

Description

PRYXF-398 Fully automatic high quality wallet envelope making machine





1.It equips with the advanced automatic creasing function which can shape the paper exactly during quick operation.

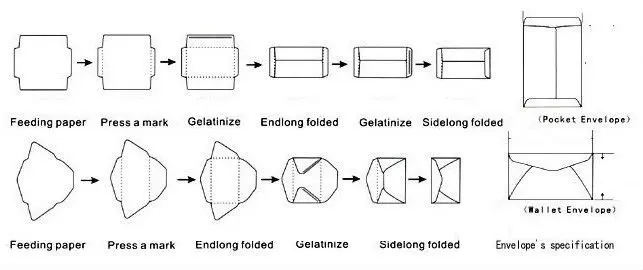

2.Widely used for pocket, wallet ,card ,diamond style envelopes,  other various non-standard and middle/large-size envelopes .



Reliable sheet separation of the air-suction bottom feeding system with automatic feeding of non-stop operation of the equipment;easy regulation of the positioning structure of the paper with accurate positioning;ensuring the forming precision of ground paper regarding the parts of verticl and cross creasing under the high-speed running of the machine;rotary sizing applicable for any forms of glue lines ;provided with the folder for the suction roller for the stable production in a high-speed state;visible and accurate regulation of the dial under the condition of fine adjustment;mounted with electric counter and automatic delivery unit on the collecting part.



TECHNICAL PARAMETER:



max.width of raw paper	480mm
max. length of raw paper	375mm
max.size of finished product	324*229mm(12.75×9.01inch)
min.size of finished product	85*85mm(3.34×3.34inch)
Envelope model	Western style:2-7
machine dimension-L*W*H	3600*920*1150mm
applicable sheet gram	70-150
working speed	3000-10000pcs/h
total machine power	3kw
machine weight	1800kg
