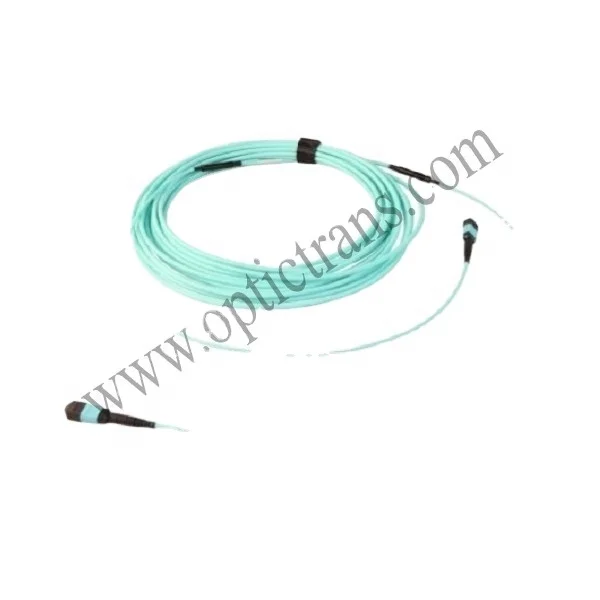

MPO Extended Trunk Cable

Product Overview

Description

• Ideal for high density Datacenter application, choice from 12 to 144-fiber cable

• Mainly used on extension from HDA to EDA, HDA to ZDA, ZDA to EDA

• One end MPO with guiding pins, connect to trunk cable thru MPO adapter

• One end MPO without guiding pins, connects to cassette module or hybrid trunk cable

• Rest of the specifications are same as trunk cable



Applications

• Datacenter backbone and parallel cabling

• Mainly used on extension from

HDA to EDA, HDA to ZDA, ZDA to EDA



 Applied Standards

• TIA-568-C.3

• IEC61754-7

• TIA/EIA-604-5



 Ordering Information

1 Connectors	2 Fiber Count	3 Fiber Type	4 Cable Sheath
• MTMF MPO(M) on one side, MPO(F) on other side	• 12 12-Fiber • 24 24-Fiber • 36 36-Fiber • 48 48-Fiber • 72 72-Fiber • 96 96-Fiber • 144 144-Fiber	• D OM2 • T OM3 • Q OM4 • S OS2	• R OFNR • Z LSZH • P OFNP
5 1st Furcation Length	6 2nd Furcation Length	7 Cable Length	8 Pulling eye
• 8 800+7mm • 9 900+7mm on the MPO(F) side	• 5 500+7mm • 8 800+7mm	•M005~999 Between two Connectors (m)	• P1 On one end • P2 On both ends • P0 None



Example: MTMF12TR98M020P1

MPO Extended Trunk Cable /MPO (M) to MPO (F)/12-Fiber,OM3/OFNR/1st Furcation Length:900mm/2nd Furcation/Length:800mm/Overall cable length:20m/Pulling eye on both ends
