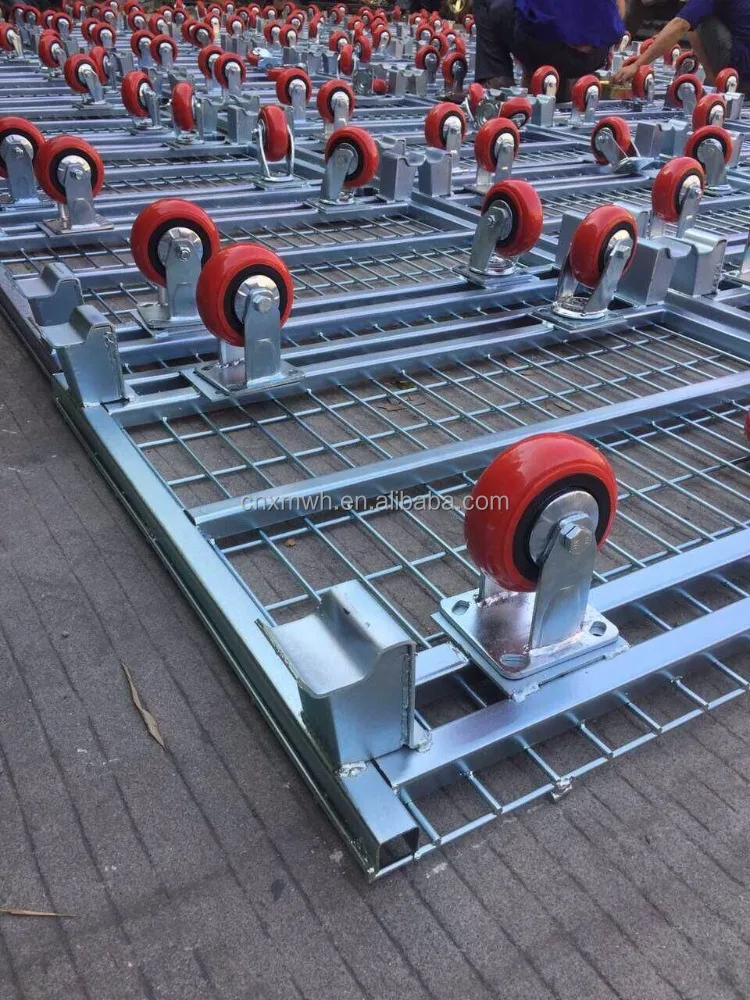

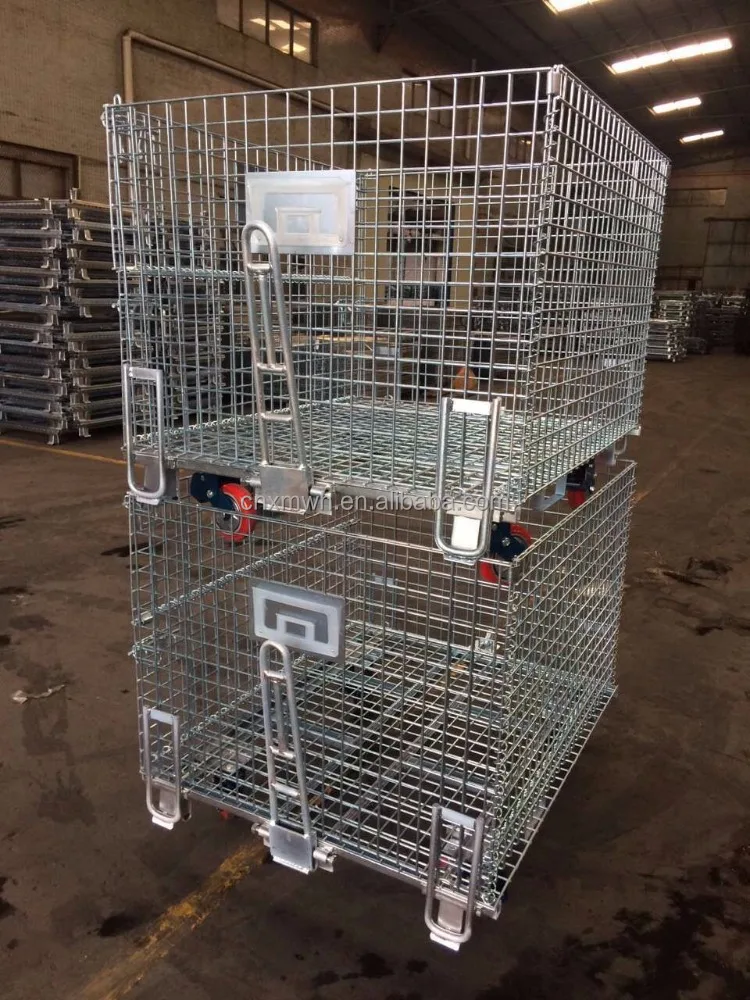

Поддон, Металлический Стальной Оцинкованный Складной Сетчатый Контейнер с колесами

Product Overview

Description



PRODUCT DESCRIPTION





The wire mesh container can be used in warehouse and supermarket. It is specially designed to

be foldable so that it will not take up much space if it is not in used. The wire mesh container is

strong and capable of withholding much load, making it suitable for bulk storage purpose.



Product Name: Metal steel galvanized collapsible bins wire container for pallet rack with wheels
Material: Shanghai Baosteel
Finishing: Galvanized / Powder Coated
Size:

Length 1200mm x Width 1000mm x Height 890mm

Length 1000mm x Width 800mm x Height 840mm

Length 800mm x Width 600mm x Height 640mm
Size: Can be customized
Options: Depend on customers' requirements

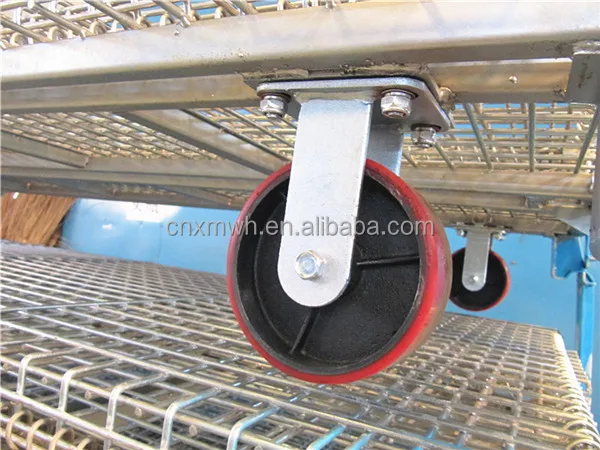

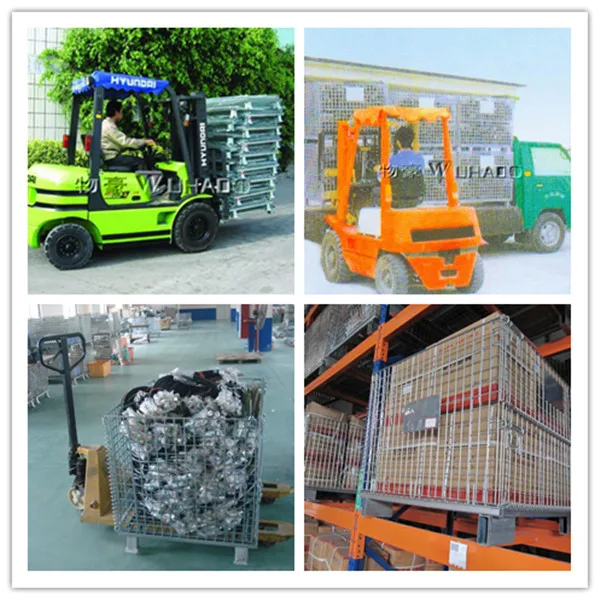

They can work with pallet jack and forklift, also can plus PP hollow sheet, paper, castors,

cover, lid and MDF, galvanized finishing make cage longlife.





Regular production models



A Series
Item No.	Specification		Wire diameter	Mesh gauge	Load capacity	Self-weight	Feet height	Load quantity
	External size (L*W*H)(mm)	Internal size (L*W*H)(mm)	(mm)	(mm)	(kg)	(kg)±2%	(mm)	20' FT	40 ' FT
A1-800	800*600*640	750*550*500	5.8	50*50	800	29	100	357	726
A1-700			5.6	50*50	700	27.8
A1-600			5.3	50*50	600	23
A1-400			4.8	50*50	400	20.6
A2-600			5.8	50*100	600	25
A3-1000			6.3	50*50	1000	33
B Series
B1-1200	1000*800*840	950*750*700	5.8	50*50	1200	44	100	210	462
B1-1000			5.6	50*50	1000	42
B1-800			5.3	50*50	800	35.6
B1-600			4.8	50*50	600	30.7
B2-1000			5.8	50*100	1000	39.5
B3-1500			6.3	50*50	1500	51
C Series
C1-1500	1200*1000*890	1150*950*750	5.8	50*50	1500	60	100	144	324
C1-1200			5.6	50*50	1300	55
C2-1000			5.8	50*100	1000	53
C2-800			5.6	50*100	800	48
C3-200			6.3	50*50	2000	68
Remark: (1) Customized size: the size, wire diameter, mesh gauge can be customized as your design. (2) Surface treatment: galvanized or powder coating.

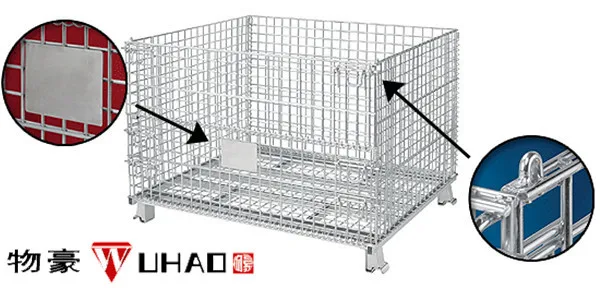

Features of  wire mesh storage cage:



• Collapses in seconds without the need of any tools

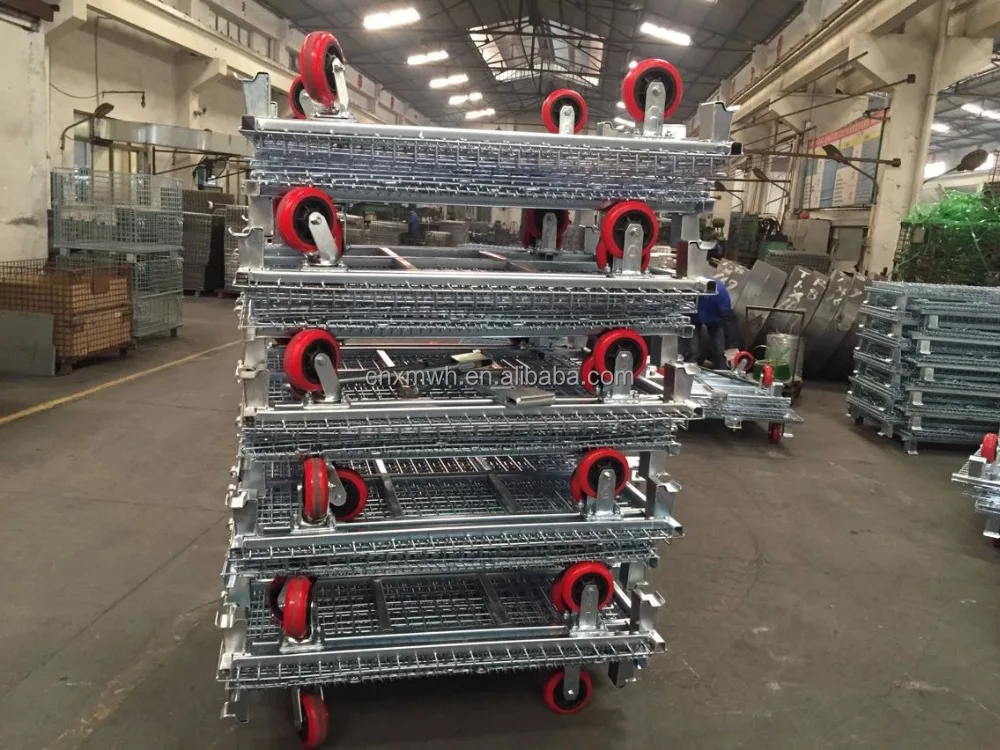

• Drop down gate with self locking latches provides access even when stacked.
• Zinc plated finish

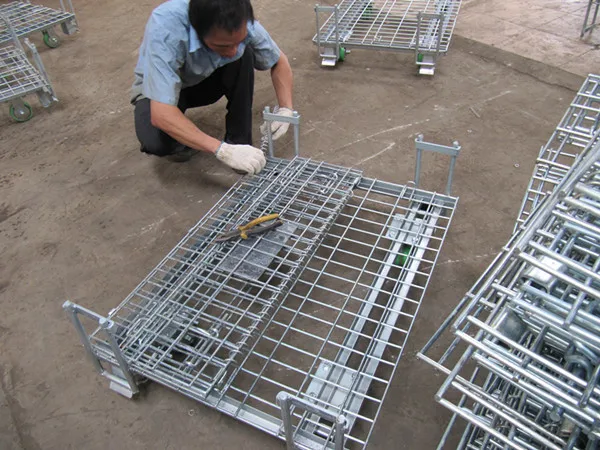

• Easy to operate or fold: one or two person’s operation
• Ergonomic: Easy access to the products
• Good product visibility
• No detachable parts or no loose parts

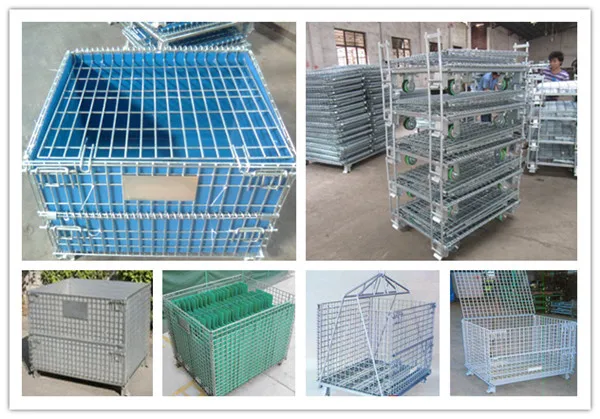

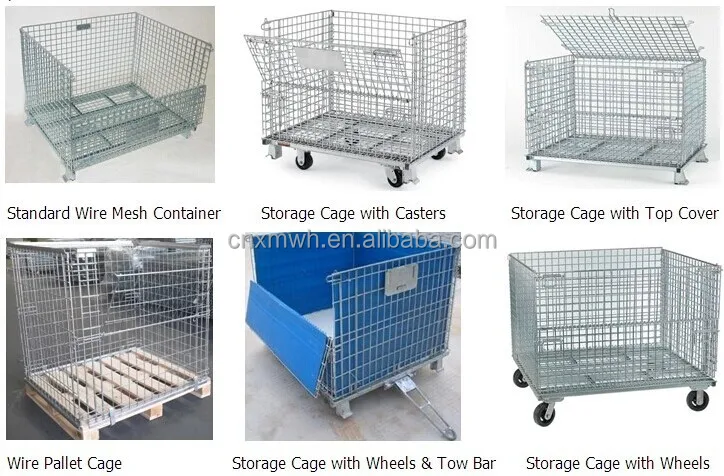

The types of wire mesh container custom:  PP hollow sheet, paper, castors, cover, lid etc.



Specification available and accept custom



There are color coded popular.



Item No.	External size (mm)	Internal size (mm)	Wire diameter(mm)	Mesh gauge(mm)	Load capacity(kg)	Weight   ((kg)±2%)	Load Qty 20GP/40GP
A1-800	800*600*640	750*550*500	5.8	50*50	800	29	350/700
A1-700			5.6	50*50	700	27.8	350/700
A1-600			5.3	50*50	600	23	350/700
A1-400			4.8	50*50	400	20.6	350/700
A2-600			5.8	50*100	600	25	350/700
A3-1000			6.3	50*50	1000	32	350/700
B1-1200	1000*800*840	950*750*700	5.8	50*50	1200	44.8	220/480
B1-1000			5.6	50*50	1000	42.8	220/480
B1-800			5.3	50*50	800	35.2	220/480
B1-600			4.8	50*50	600	30.8	220/480
B2-1000			5.8	50*100	1000	39	220/480
B3-1500			6.3	50*50	1500	51	220/480
C1-1500	1200*1000*890	1150*950*750	5.8	50*50	1500	60.8	150/300
C1-1300			5.6	50*50	1300	55.8	150/300
C2-1000			5.8	50*100	1000	53.8	150/300
C2-800			5.6	50*100	800	48.4	150/300
C3-2000			6.3	50*50	2000	68	150/300

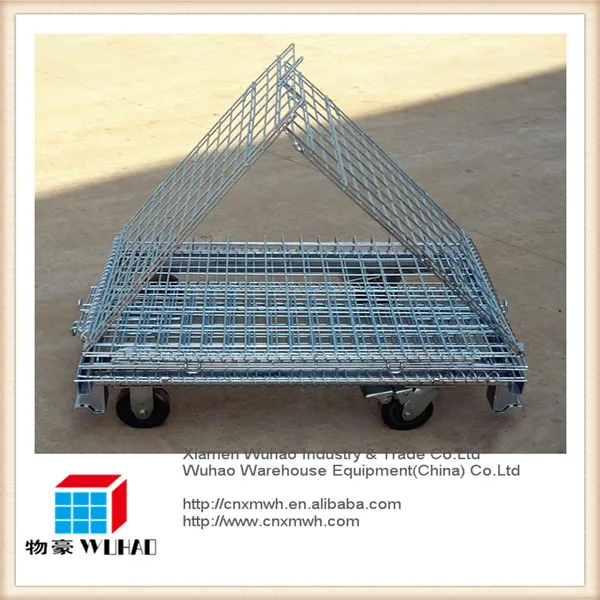

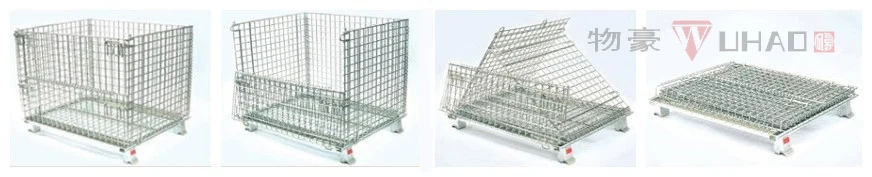

Folding display figure as follows :

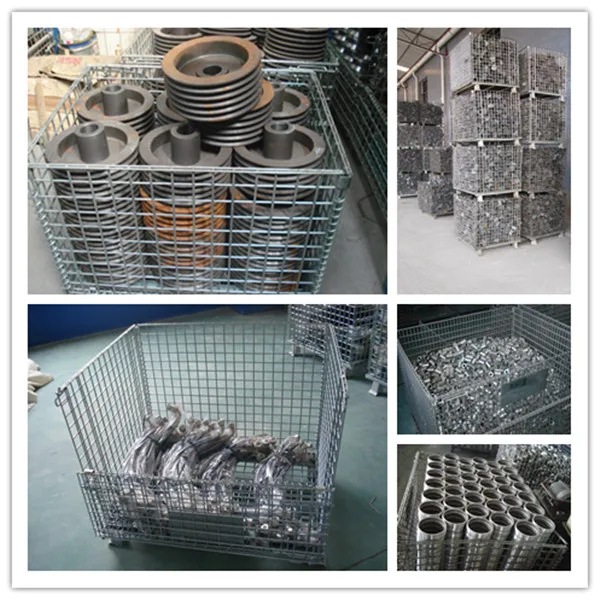

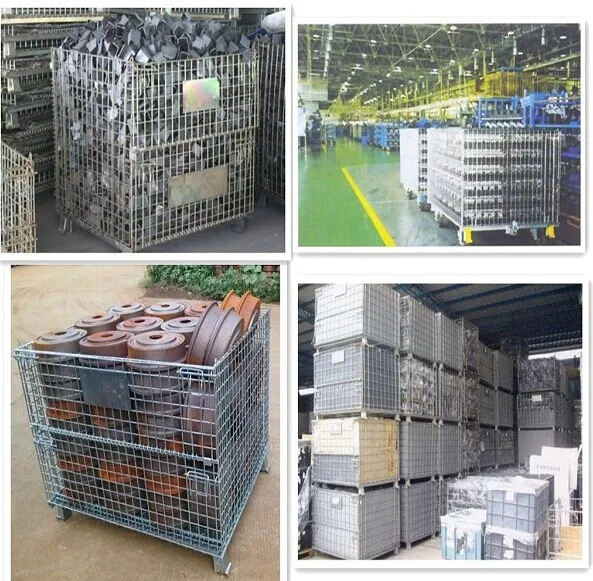

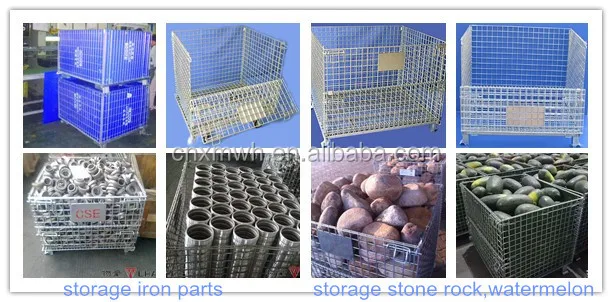

ANY INDUSTRY NEEDS

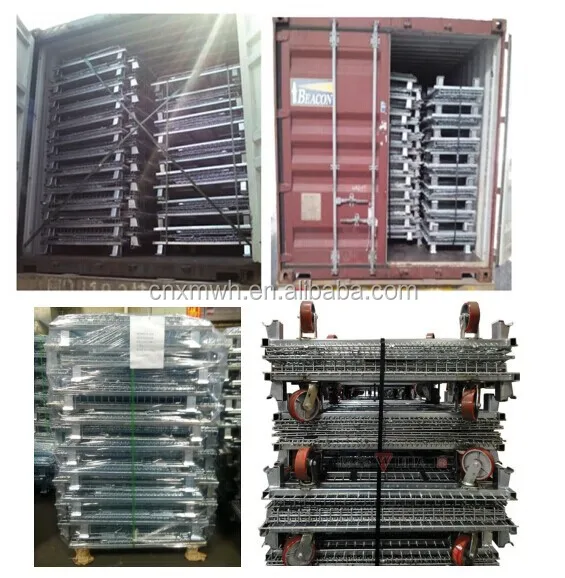

Shipping container fit in quantity A series: 20'ft/342pcs, 40'ft/726pcs, 40'HQ/828PCS B series: 20'ft/210pcs, 40'ft/462pcs, 40'HQ/528pcs (overweight) C series: 20'ft/144pcs, 40'ft/324pcs, 40'HQ/369pcs (overweight)

Xiamen Wuhao Industry & Trade Co., Ltd. is one of the large-sized professional manufacturers

of warehouse equipments, such as Wire Container, Wire Cage, Plastic crate, Turnover box, Plastic

Pallet etc. Those products, being important facilities for material handling, transport, storage, the

wire containers are widely applied to the industries of hardware, machinery, electronics, tiered

warehouse, material logistics, etc., and the plastic pallet, crate, box, are widely applied to the fields

of food, aquatic products, chemicals, clothing, pharmaceuticals, tobacco, docks, warehouse

logistics, etc.

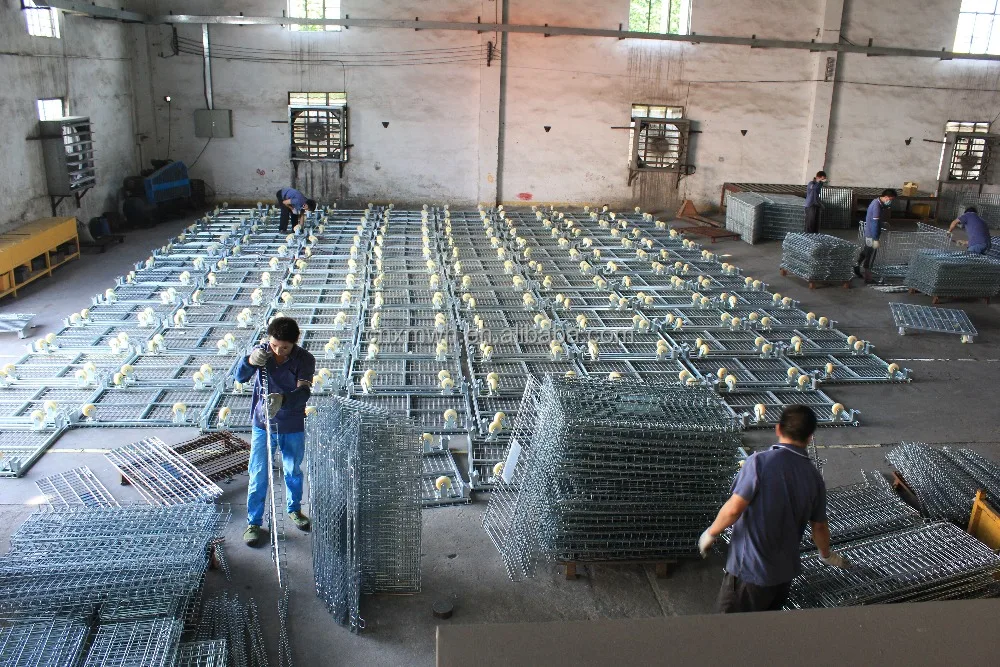

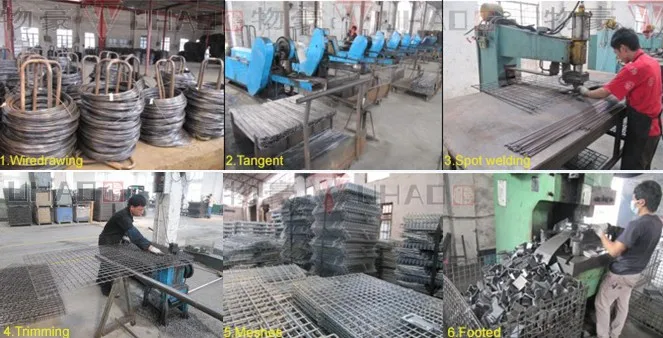

Since the establishment in 2007, we have been committed to the pursuit of fine design, development,

production, sales in each detail, strictly adhering to international standards of production and quality

inspection to standardize the production process. With these years' development, we have won the

trust and support from our customers with our best products & service. Wuhao is the correct choice

for all our customers all over the world.
