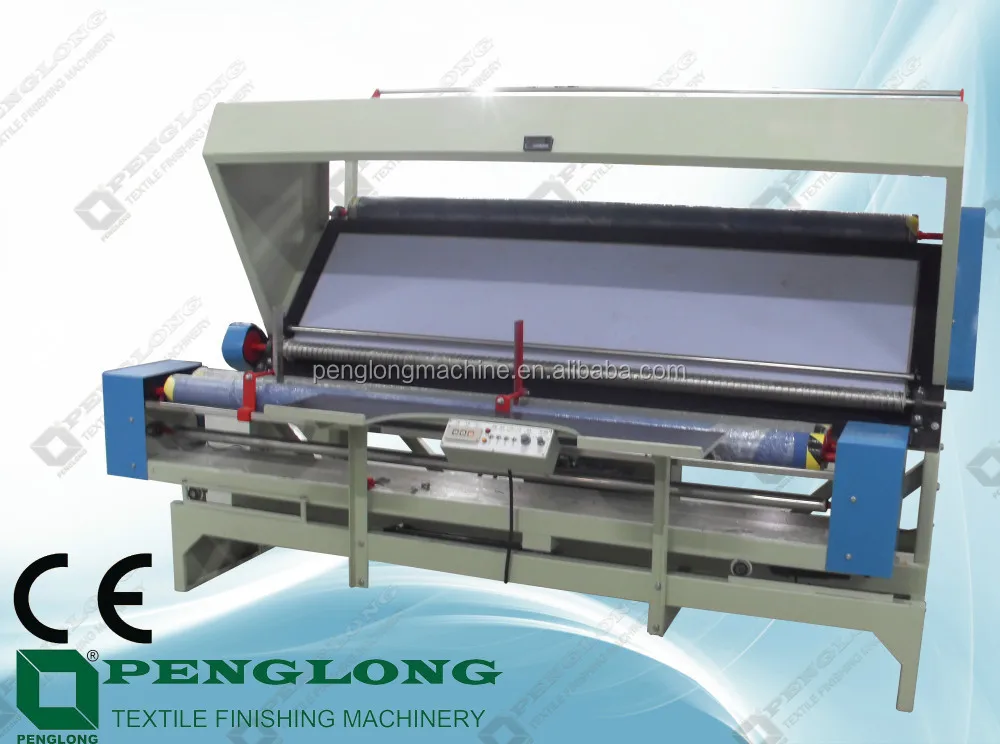

PL B Fabric Inspecting Machine/insepction machine

Product Overview

Description

Fabric inspection and rolling machine

Company introduction



Changshu Penglong Machinery Co,. Ltd is a famous cloth inspecting,finishing and packing machinery manufacturer in textile dyeing and finishing equippment industry.Founded in 2000,our company is located in Changshu,a famous histroic and cultural city in the Yangtze River Delta,just 80km away from Shanghai,with convenient ports and good highway transportation.



Our leading products include cloth slitting-inspecting-wnding combination machines,fabric inspection machine,rope opener,fabric relaxing machine,automatic centering machine,high-speed tubular slitting machines,swarch cutter,automatic edge sewing machine,tensionless fabric inspection machine,fabric unwinding and plaiting machine,fabric folding machine,pneumatic batch winding machine,vacuum cloth packing machines,tubular slitting inspection machine,infrared hydraulic trackers and other dyeing and finishing machines and spare parts.



Welcome to cooperate with us!



Business area



Asian Countries:Bangladesh,Saudi Arabia,Thailand,Vietnam,Sri Lanka,Iraq,Iran



Europe Countries:America,Portland,France,Ukraine,Britain,Russia



Africa Countries:Ethiopia,Uganda,South Africa



Oceanica:Australia



South America:Argentina,Peru,Venezuela,Uruguay,Chile,Brazil.





Description of goods



Usage

This type is design for inspecting and winding small rolls to big rolls before recombination and coating



Characteristics

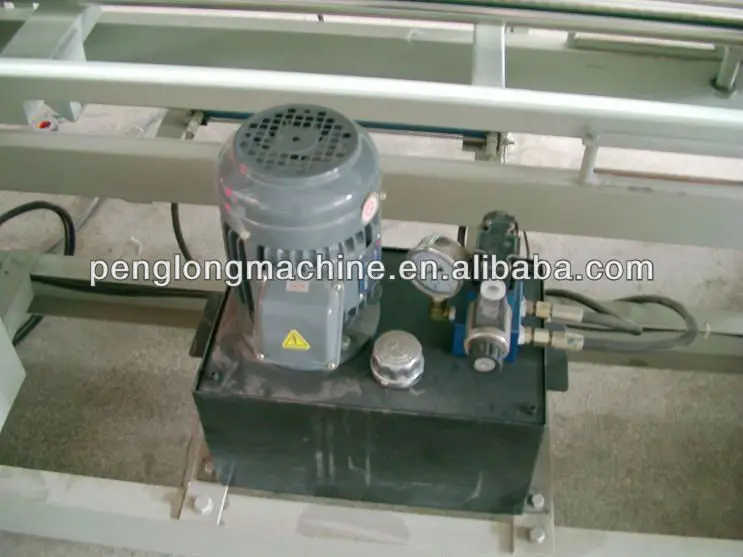

1.Photoelectric hydraulic edge-alignling system is adopted.

2.Using overfeed motor and winding motor to adjust the tension.



3.Slopping table for inspecting is made of milky color acrylic.



4.Passage between inspecting boards and winding uni can be built for easier mending or labeling fabric.

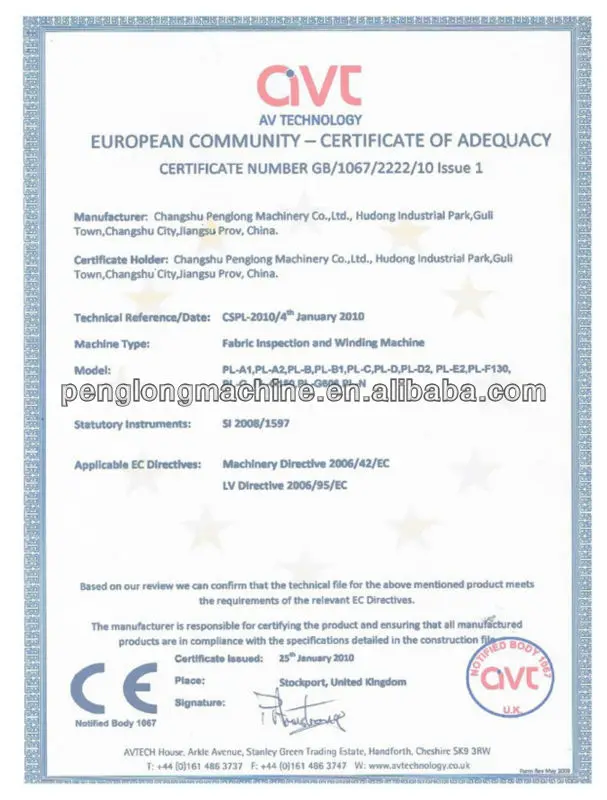

CE certificate





Technical Parameters



Max.Speed	100m/min,stepless speed change
Max.Fabric Width	1800-2800mm
Diameter of Winding cloth	≤1000mm
Measurement Tolerance	≤0.4%
Main Motor	2.2KW
Dimensions	LxWxH   2200x2300x1900mm
