2021 New Design China pipe jacking machine/tunnel boring machine
US $580000-$585000
Pipe jacking machine, tuneladora tbm, microtunneling machine
- Category: Pipe Jacking Machines >>>
- Supplier: Realtop Heavy Industry Co. Ltd.
Share on (60101698025):
Product Overview
Description
tunnel boring machine sale
Company Information
1. Realtop has more than 10 years experience on manufacturing Pipe Jacking Machinery(TBM),

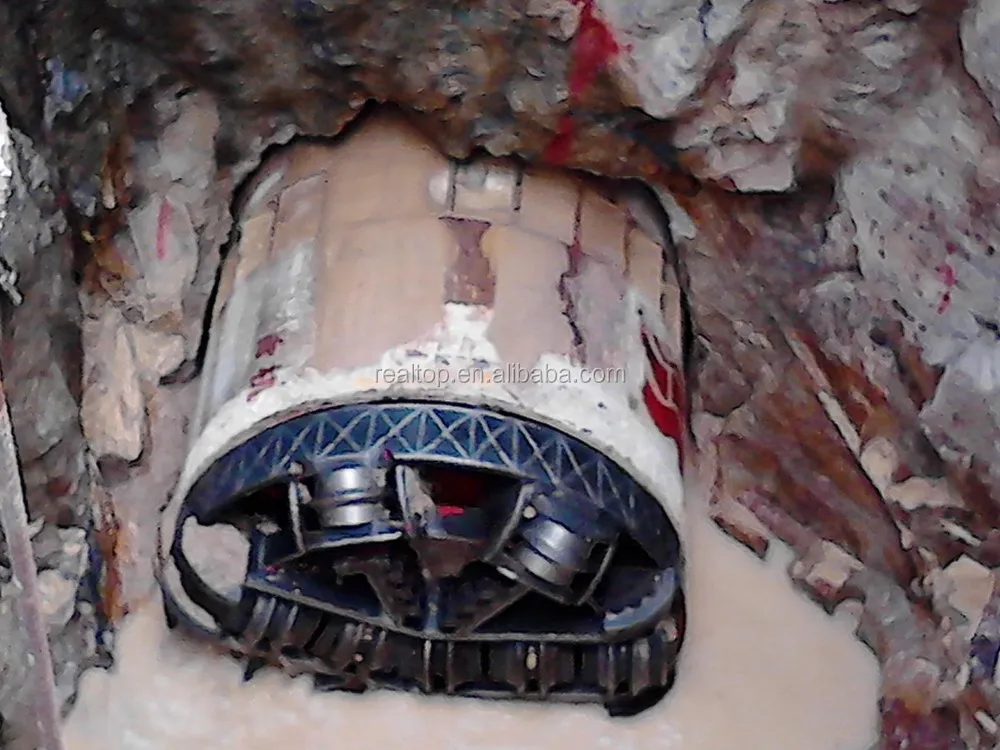

2. Remote-controlled Slurry Balance tunnel boring machine sale is a new advanced non-digging-equipment with high technology.
3. It combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc, curve jacking;
4. Besides the high efficiency, it also has effect on the traffics on surface. Furthermore, it is good for the environment, and can lower the cost of the construction.

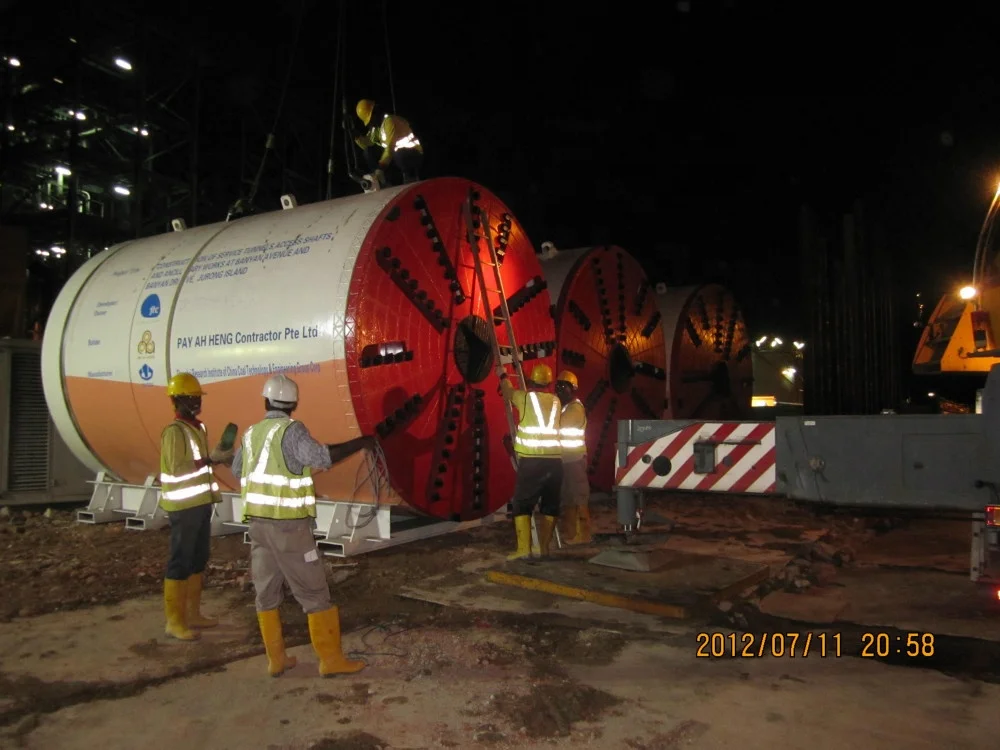

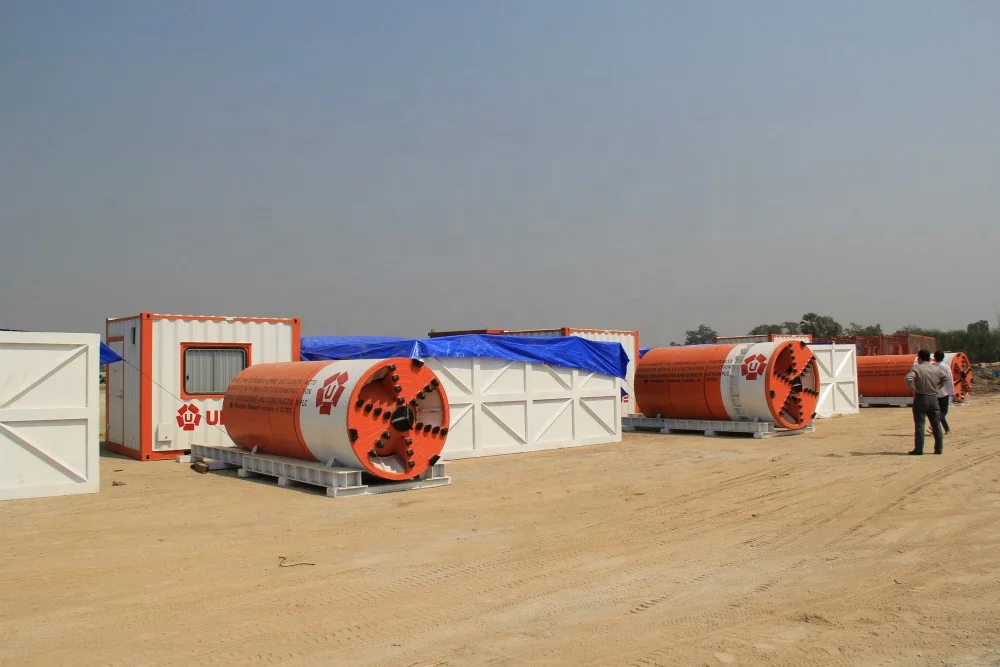

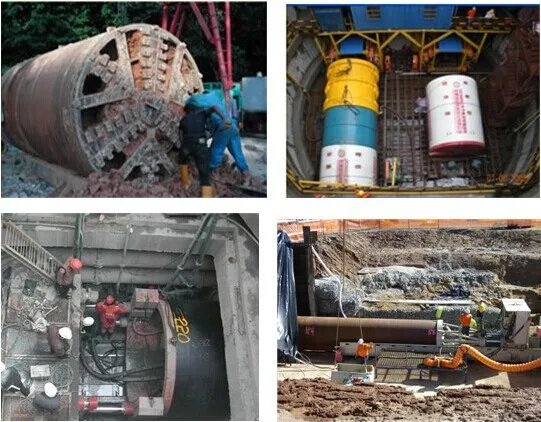

5. Projects in Singapore,Thailand,Hongkong,etc.. Export to Singapore from 10years ago.
Our Services
1. On site service support.
Product Description

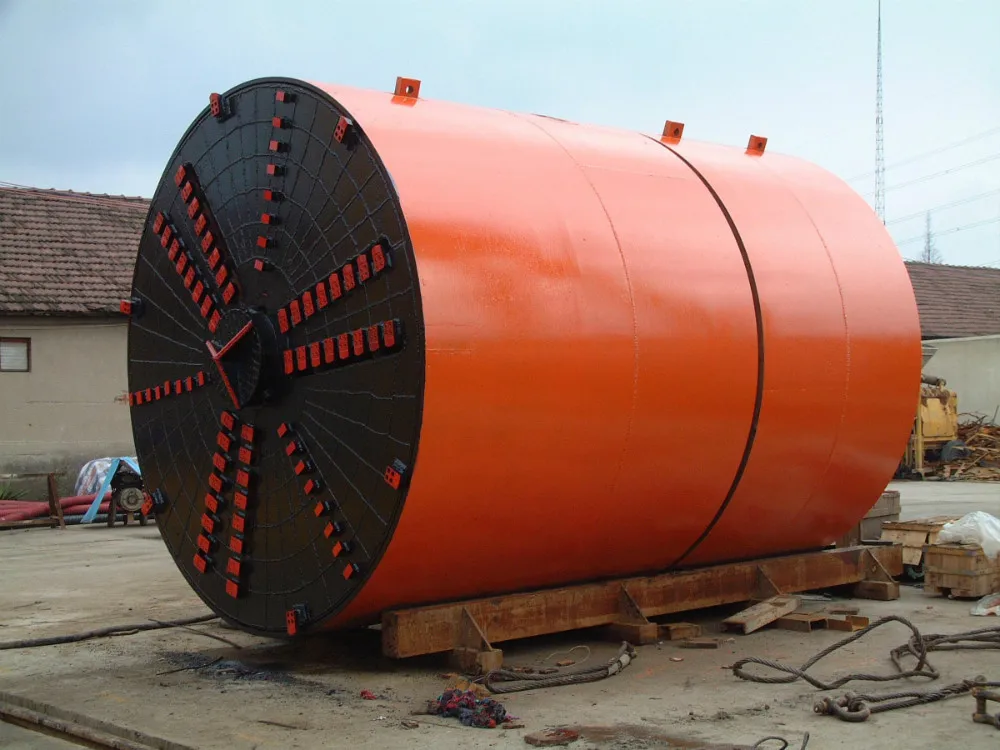

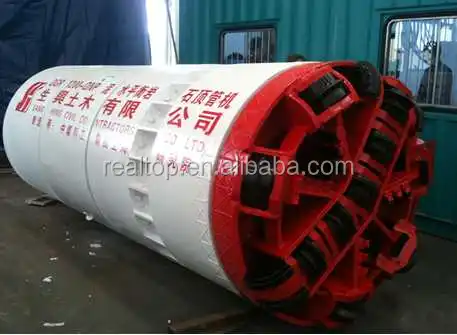

we could supply tunnel boring machine sale model from ID from 250mm to 5000mm, customer-built size ok, not only for round shape and rectangle shape.
Two hot models for your reference: DG600 and DG1200
Models& Parameters | DG600-QNP | |
Dimention | Inner diameter (mm) | 600 |
Outer diameter (mm) | 780 | |
Total Length (mm) | 3800 | |
Main drive | Rated Power (kW) | 18.5 |
Max. torque (kN·m) | 29 | |
Revolution (r/min) | 6.14 | |
Steering | Steering cylinders | 4 |
Force per cyl. / oil pressure (kN) | 375 | |
Stroke per cyl. (mm) | 35 | |
Steering angle (°) | ±2 | |
Inside hydraulic system | Rated power (kW) | 1.1 |
working pressure (MPa) | 25 | |
Slurry system | Rated Power of Water Supply Pump (kW) | 18.5 |
Rated Power of slurry-out Pump (kW) | 30 | |
Side-Slurry line diam. | 80 | |
Main Jacking system | Rated Jacking Speed mm/min | 0--100 |
Model Name | DG1200-QNP | |
Dimensions | Inner Diameter (mm) | 1,200 |
Outer Diameter (mm) | 1,470 | |
Total Length (mm) | 3800 | |
Cutting Part | Motor Power (kW) | 37 |
Cutterhead Torque (kN·m) | 67 | |
Cutterhead Rotating Speed (r/min) | 0-5.25 | |
Timing Way | VVVF | |
Oil Cylinder of Rectifying | Quantity | 4 |
Thrust Force (kN) | 800 | |
Stroke (mm) | 60 | |
Rectifying Angle (°) | ±2 | |
Hydraulic System | Motor Power (kW) | 1.5 |
Working Pressure (MPa) | 25 | |
Slurry In & Out System | Water-in Gravel Pump(kW) | 22 |
Slurry-out Gravel Pump(kW) | 37 | |
Timing Way | VVVF | |
Main Jacking System | Jacking Speed (mm/min) | 0~80 |
Rated Pressure (MPa) | 31.5 | |
Rated Jacking Force (kN·m) | 2,000 *6 | |
Main Pump Power (kW) | 22 | |
Vice Pump Power (kW) | 15 | |
Timing Way | VVVF | |
Click Following Links for more model examples:
1) ID600mm pipe jacking machine.
2) ID800 mm pipe jacking machine.
3) ID1000mm pipe jacking machine.
4) ID1200mm pipe jacking machine.

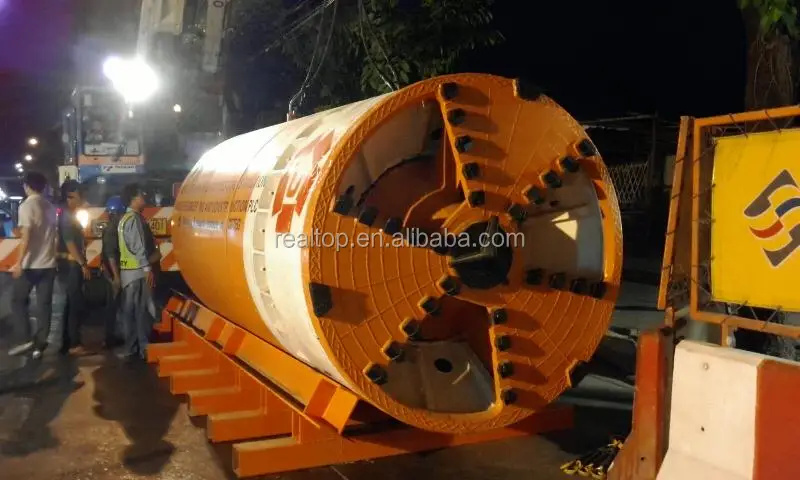

5) ID1500mm pipe jacking machine.
6) ID1800mm pipe jacking machine.
7) ID2200mm pipe jacking machine.
8) ID3000mm pipe jacking machine.
9) ID3500mm pipe jacking machine.
10) OD4880mm tunnel boring machine.
Customer-built during 250mm~5000mm available

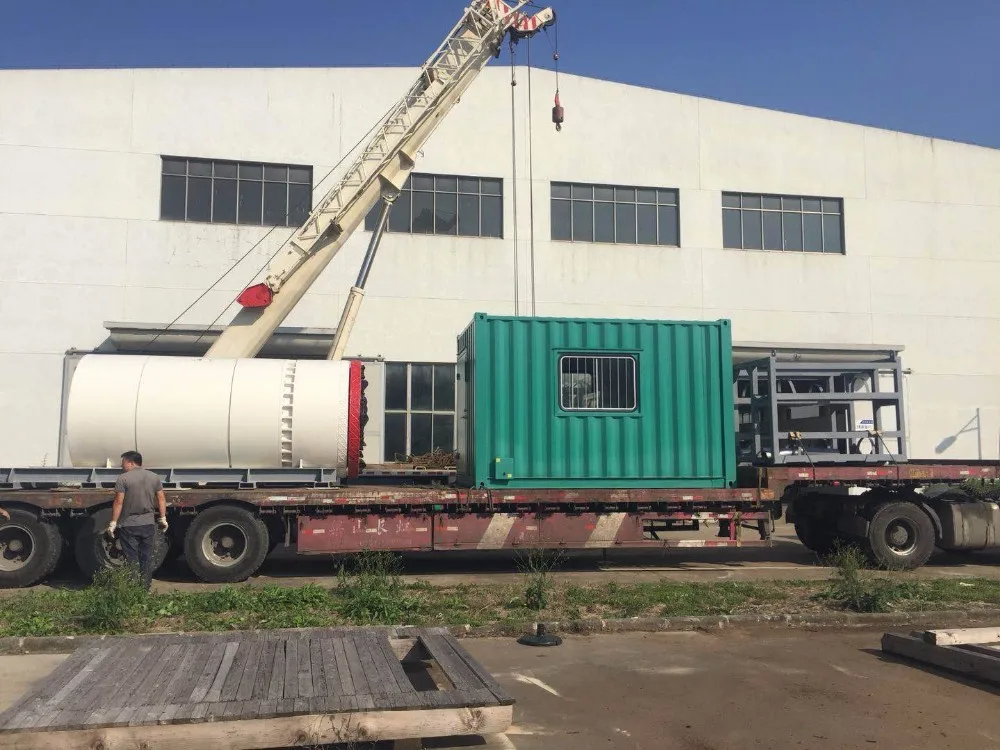

Packaging & Shipping
Machine is being loading to Singapore
