032: 600 мм микротуннелирующая машина для продажи

Product Overview

Description



1. Realtop has more than 10 years experience on manufacturing microtunneling machine

2. Remote-controlled  microtunneling machine   is a new advanced non-digging-equipment with high technology.

3. It combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller   (including PLC), Laser system, measuring device, etc.

4.  Besides the high efficiency, it also has effect on the traffics on surface. Furthermore, it is good for the environment, and can lower the cost of the construction.

5.  Projects in Singapore,Thailand,Hongkong,etc.. Export to Singapore from 10years ago;



1. On site service support;

  we could  microtunneling machine supply model from DG600-QNP not only for round shape and rectangle shape.



  Typic model,  DG 600-QNP specs as following







Models& Parameters		DG600-QNP
Dimention	Inner diameter  (mm)	600
	Outer diameter (mm)	780
	Total Length  (mm)	3800
Main drive	Rated Power  (kW)	18.5
	Max. torque  (kN·m)	29
	Revolution  (r/min)	6.14
Steering	Steering cylinders	4
	Force per cyl. / oil pressure  (kN)	375
	Stroke per cyl.  (mm)	35
	Steering angle (°)	±2
Inside hydraulic  system	Rated power  (kW)	1.1
	working pressure  (MPa)	25
Slurry system	Rated Power of Water Supply Pump (kW)	18.5
	Rated Power of slurry-out Pump (kW)	30
	Side-Slurry line diam.	80
Main Jacking system	Rated Jacking Speed   mm/min	0--100



Click Following Links for more model examples:

1)    ID600mm Pipe Jacking Machine / Tunnel Boring Machine

2)    ID800mm Pipe Jacking Machine / Tunnel Boring Machine

3)    ID1000mm Pipe Jacking Machine / Tunnel Boring Machine

4)    ID1200mm Pipe Jacking Machine / Tunnel Boring Machine

5)    ID1400mm Pipe Jacking Machine / Tunnel Boring Machine

6)    ID1500mm Pipe Jacking Machine / Tunnel Boring Machine

7)    ID1600mm Pipe Jacking Machine / Tunnel Boring Machine

8)    ID1800mm Pipe Jacking Machine / Tunnel Boring Machine

9)    ID2200mm Pipe Jacking Machine / Tunnel Boring Machine

10)  ID2500mm Pipe Jacking Machine / Tunnel Boring Machine

11)  ID250mm~5000mm Pipe Jacking Machine/Tunnel Boring Machine

     Customer-built during 250mm~5000mm available

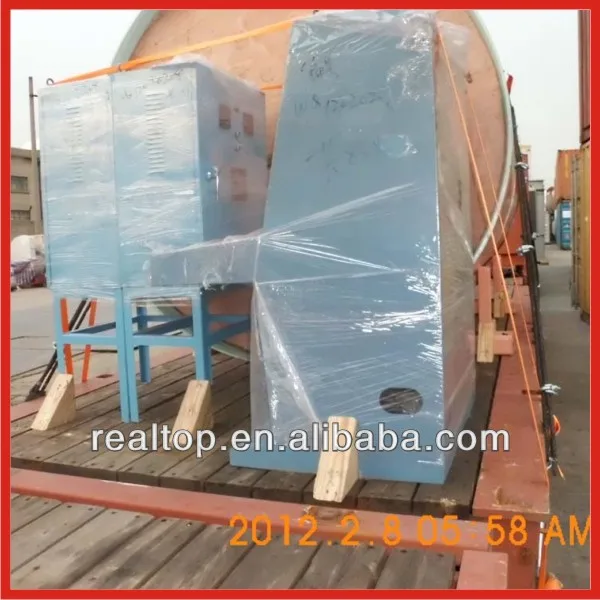

As  below the loading photos for sea shipments
