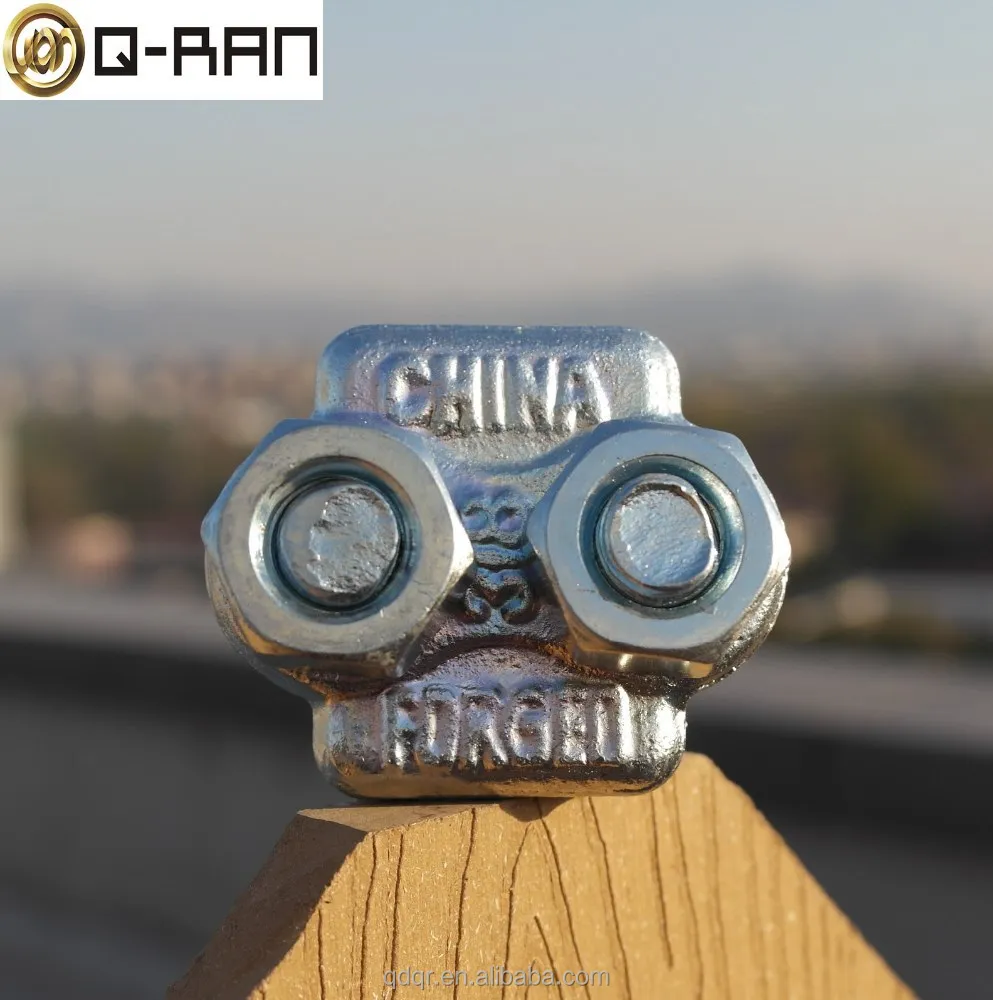

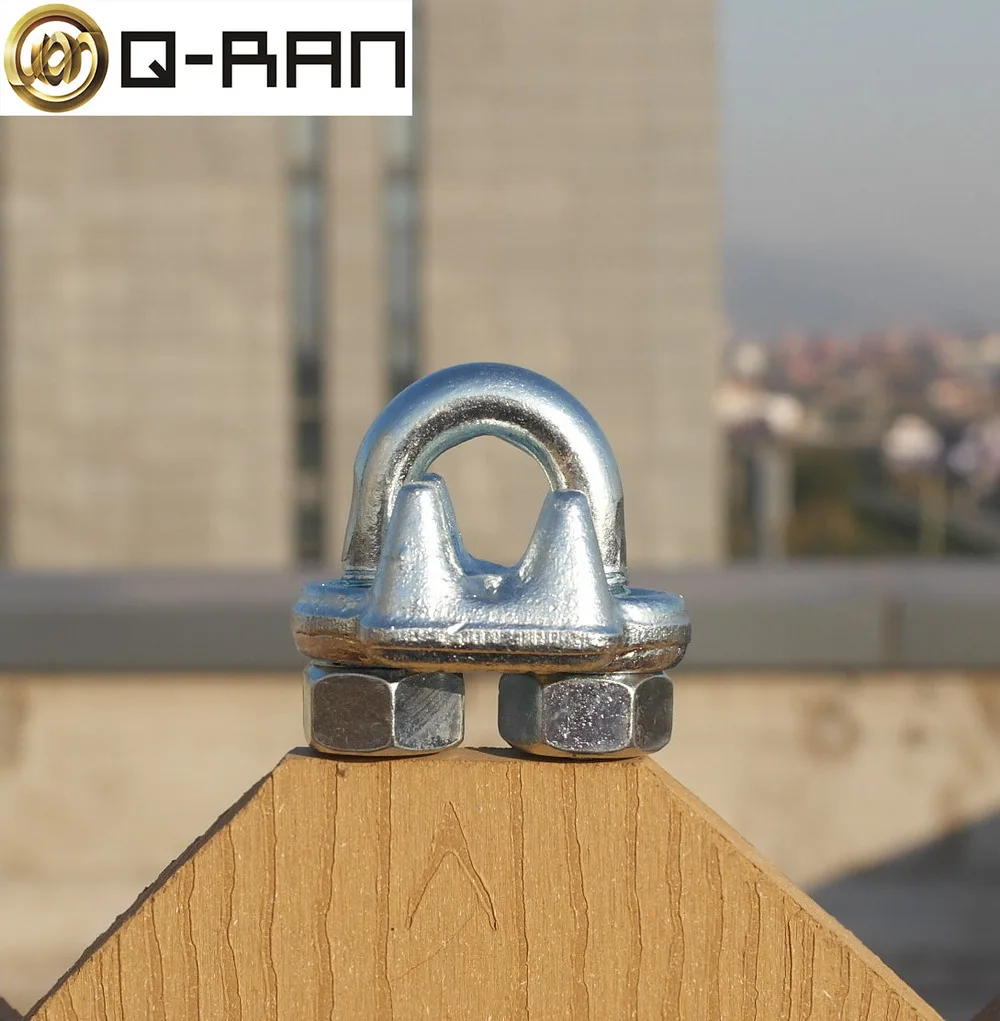

1.Commodity Name: US Type Drop Forged Wire Rope Clip
2.Category :Rigging hardware, Rigging
3.Origin :China mainland
4.Type :US type
6.Material :Carbon Steel
7.Surface :Hot dip galvanized
8.Process :Drop Forged
9.Size : From 1/8" to 3-1/2"
Dimensions For H.D.G US Type Drop Forged Matel Wire Rope Clip
SIZE(IN)
DIMENSIONS(IN)
WEIGHT PER 100 LBS
A
B
C
D
E
G
H
1/8
0.22
0.72
0.44
0.47
0.37
0.81
0.99
6
3/16
0.25
0.97
0.56
0.56
0.5
0.94
1.18
10
1/4
0.31
1.03
0.5
0.75
0.66
1.19
1.43
19
5/16
0.38
1.38
0.75
0.88
0.73
1.31
1.66
28
3/8
0.44
1.5
0.75
1
0.91
1.63
1.94
48
7/16
0.5
1.88
1
1.19
1.13
1.91
2.28
78
1/2
0.5
1.88
1
1.19
1.13
1.91
2.28
80
9/16
0.56
2.25
1.25
1.31
1.34
2.06
2.5
109
5/8
0.56
2.25
1.25
1.31
1.34
2.06
2.5
110
3/4
0.62
2.75
1.44
1.5
1.39
2.25
2.84
142
7/8
0.75
3.12
1.62
1.75
1.58
2.44
3.16
212
1
0.75
3.5
1.81
1.88
1.77
2.63
3.47
252
1-1/8
0.75
3.88
2
2
1.91
2.81
3.59
283
1-1/4
0.88
4.44
2.22
2.31
2.17
3.13
4.13
438
1-3/8
0.88
4.44
2.22
2.38
2.31
3.13
4.19
442
1-1/2
0.88
4.94
2.38
2.59
2.44
3.41
4.44
544
1-5/8
1
5.31
2.62
2.75
2.66
3.63
4.75
704
1-3/4
1.13
5.75
2.75
3.06
2.92
3.81
5.24
934
2
1.25
6.44
3
3.38
3.28
4.44
5.88
1300
2-1/4
1.25
7.13
3.19
3.38
3.19
4.56
6.38
1600
2-1/2
1.25
7.69
3.44
4.13
3.69
4.05
6.63
1900
2-3/4
1.25
8.31
3.56
4.38
4.88
5
6.88
2300
3
1.5
9.19
3.88
4.75
4.44
5.31
7.61
3100
3-1/2
1.5
10.75
4.5
5.5
6
6.19
8.38
4000
Packaging & Shipping
1.Safety Carton and pallet,sack and pallet,according to customers requirement.
2.Within 30-60 Days on Request.
Process
Process for H.D.G US Type Drop Forged Matel Wire Rope Clip
Product Uses
Our Main Products
Qingdao Q-RAN import & export co., ltd is professional in producing and sale rigging hardware,such as shackle,eyebolt,eye nut,wire rope clip,turnbuckle and so on.
