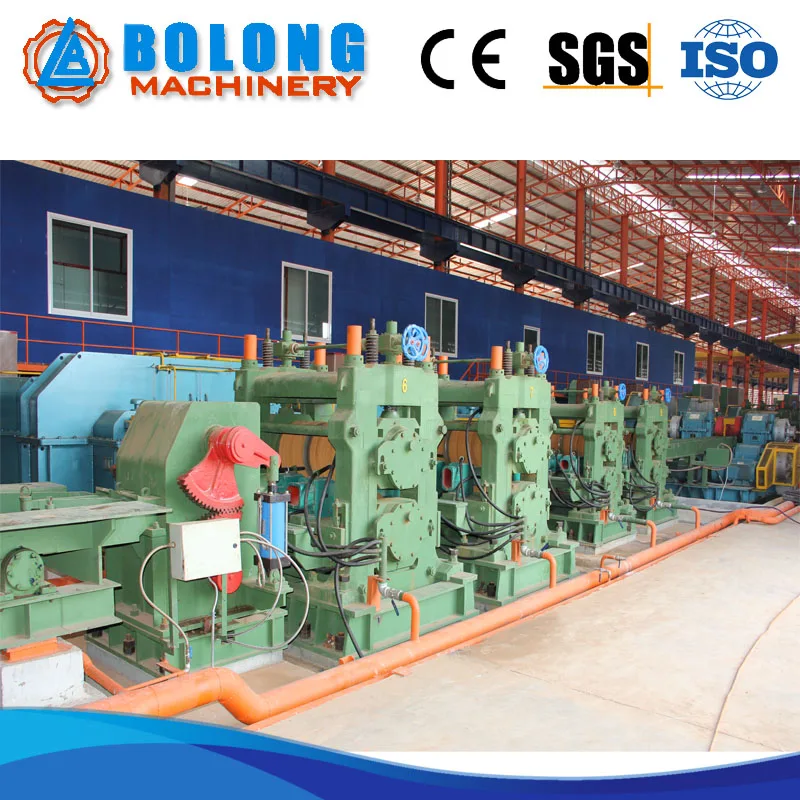

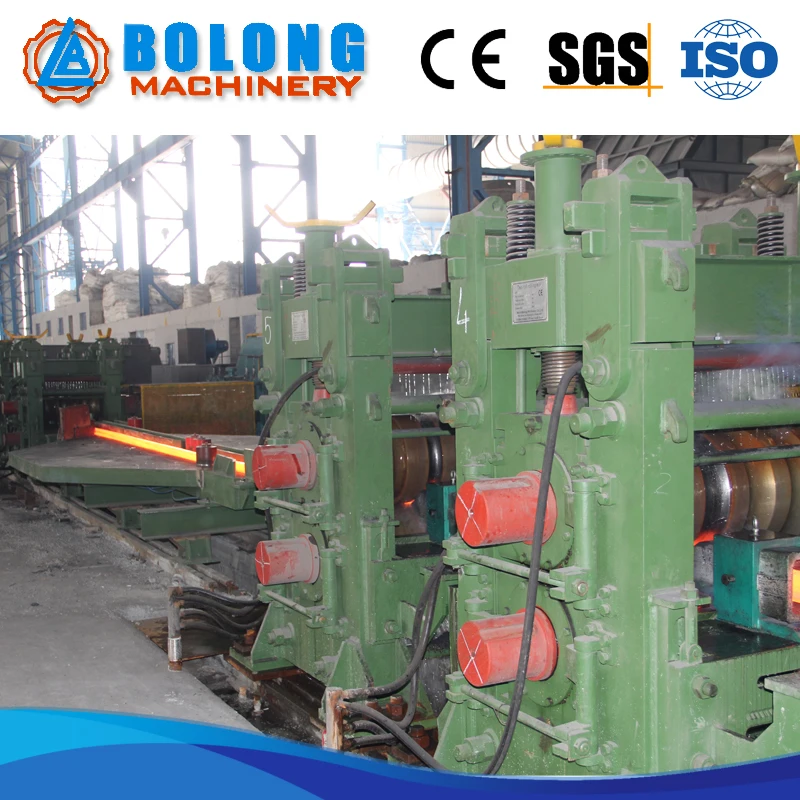

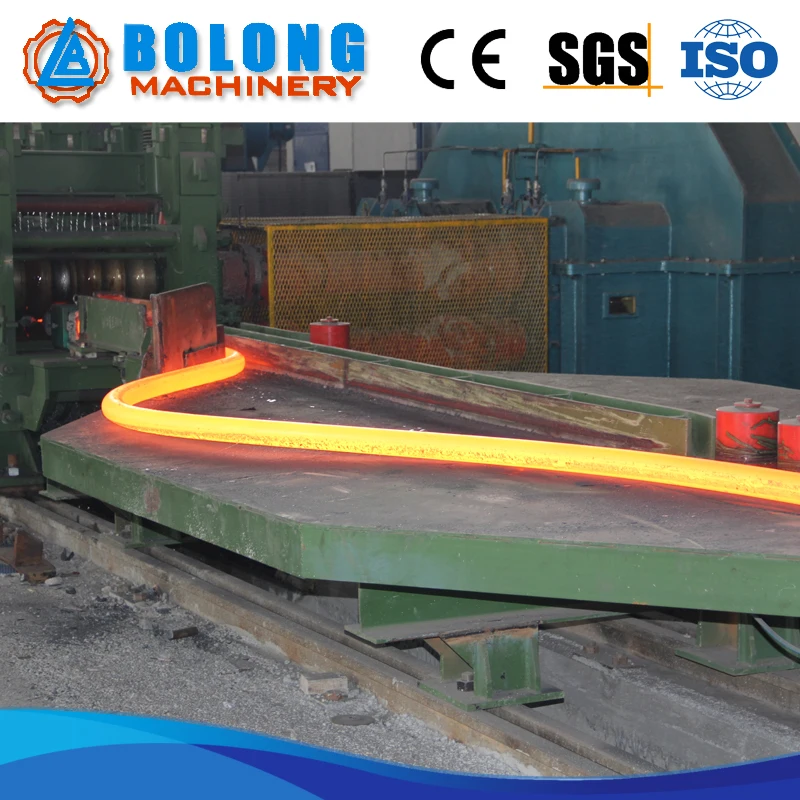

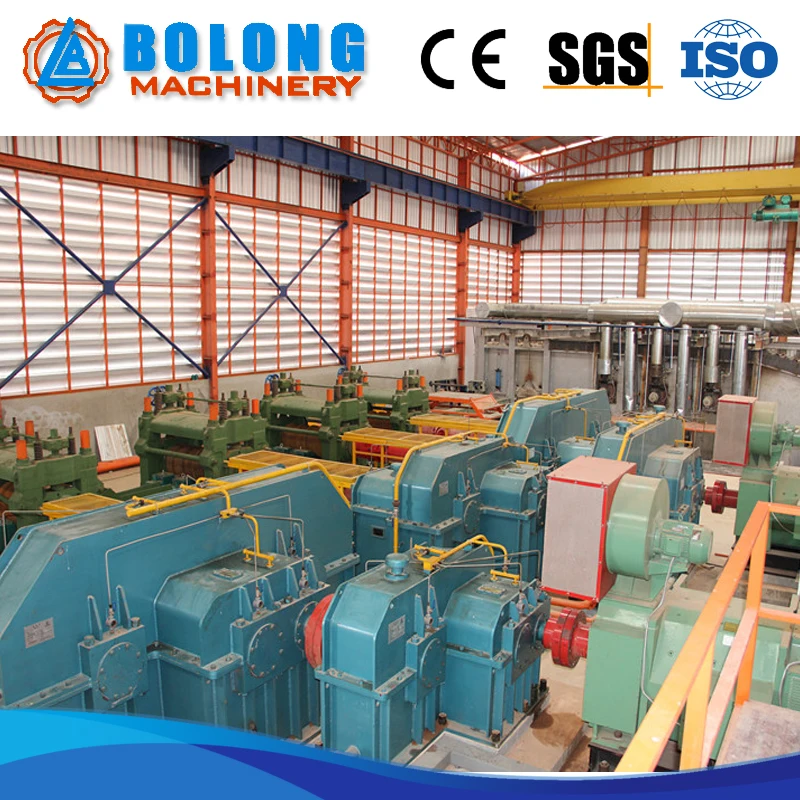

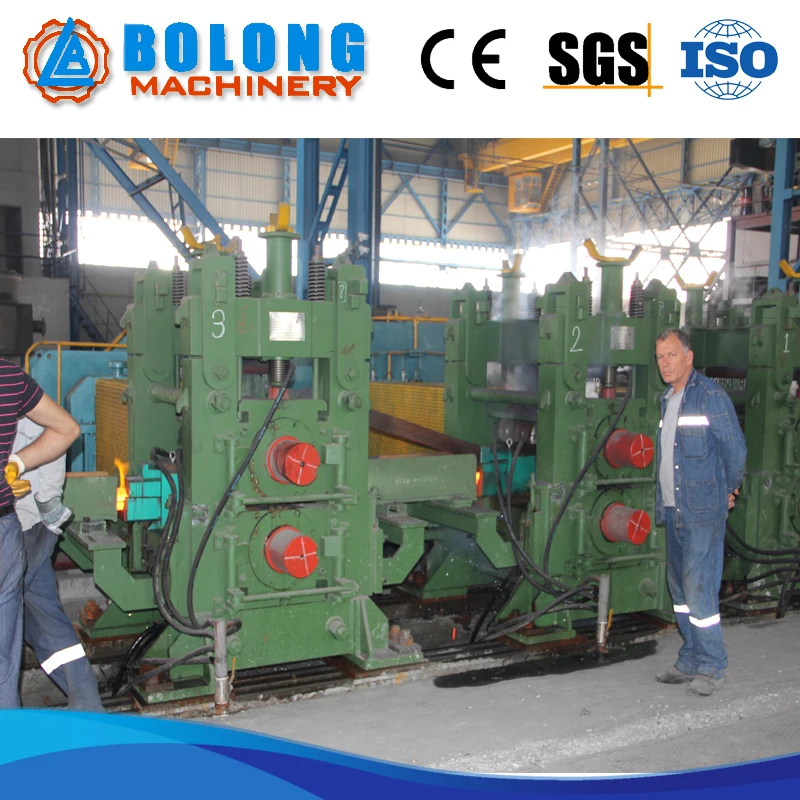

CCM and rolling mill for deformed bar and wire rod
CCM and rolling mill for deformed bar and wire rod
CCM and rolling mill for deformed bar and wire rod
CCM and rolling mill for deformed bar and wire rod
CCM and rolling mill for deformed bar and wire rod
CCM and rolling mill for deformed bar and wire rod
CCM and rolling mill for deformed bar and wire rod

CCM and rolling mill for deformed bar and wire rod

Share on (60102060235):


Price:

Quantity:


Product Overview

Description

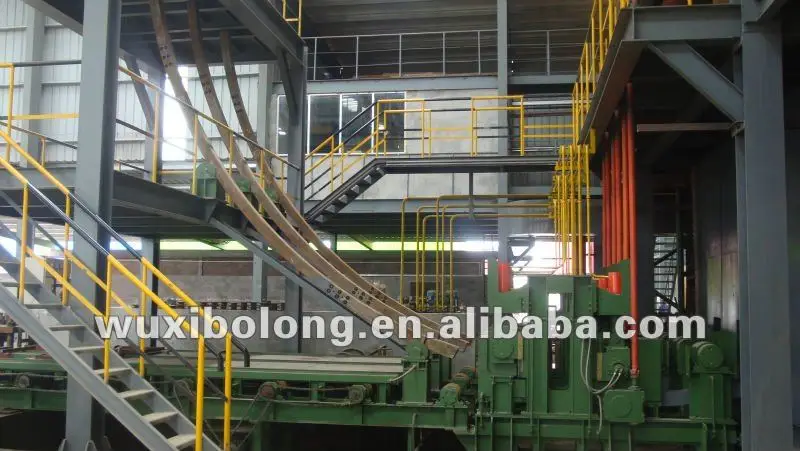

DSC03069.JPGDSC03271.JPG1. Wuxi Bolong Machinery Co.,Ltd is an integrated professional metallurgy machinery manufacturer, capable of providing Equipment Design, Manufacture, Installation, and Commissioning. Our factory is competent to produce all kinds of continuous casting machine with radius from 3 meters to 13 meters, such as round billet, square billets and slabs.








2. Basic parameters:

























































Machine model



Fully arc continuous casting machine



Production ability



Depending on casting radius



Casting radius



R3m-R13m



Billet specification



Round, square and rectangular (slab)



Strand quantity



Depending on output requirement



Steel quality



Common carbon steel; bearing steel; low alloy steel and stainless steel, etc.



Ladle supporting method



Ladle turret; ladle moving car; fixed ladle support



Cooling method



Fully water cooling



Billet out method



Hydraulic billet pusher



Weight



Depending on casting radius and strand quantity



Color



Depending on customers requirement



Delivery time



Around 45 working days (without busy schedule)






3. Standard supply scope

































































































































































Mechanical part



1



Ladle turret/ladle moving car/ladle fixed support (determined by customers)



2



Tundish



3



Tundish car



4



Mould



5



Mould vibration device



6



Vibration drive device



7



Protecting cover for vibration device



8



Secondary coolings spraying frame



9



Secondary coolings spraying pipe



10



Spraying nozzle for secondary cooling water



11



Support roller device for secondary and thirdly cooling



12



Withdrawal straightening machine



13



Transmission device for withdrawal straightening machine



14



Universal joint



15



Rigid dummy bar



16



Dummy bar storage device



17



Guide roller for dummy bar storage device



18



Billet delivery roller table



19



Hydraulic billet pusher



20



Platform for billet collection



21



Flame cutting machine/hydraulic shear (determined by customers)



Electrics control system



23



Control system for mould vibration



24



Control system for withdrawal straightening machine



25



Effective control system for dummy bar



28



Control system for billet delivery roller table



29



Control system for billet out



30



Control system for central hydraulic station



Steel structure



31



Main casting platform



32



Casting platform



33



Platform for dummy bar storage



Auxiliary system



34



Hydraulic system



35



Discharging device for secondary coolings steam



36



Control system for secondary cooling water



37



Suspended operation box for withdrawal straightening part



38



Special configuration can be provided in accordance with customers requirements









4. Contact information





























Company



Wuxi Bolong Machinery Co.,Ltd



Address



North, Hudai Industrial Park, Binhu District, Wuxi City



Zip



214161



Telephone



86 510 8558 3868



Fax



86 510 8558 1938
